Chicago Pneumatic CP7642 Series – Impact Wrenches
Chicago Pneumatic CP7642 Series - Impact Wrenches
QUOTE

For operators looking for a powerful and durable tool with an affordable price, the CP7642 1″ pneumatic impact wrench, is the best in choice tool.

  • High Torque : Powerful : 2200 Nm – 1622 ft / lbs
  • Durable : Pin less closed reinforced clutch mechanism
  • Comfort : Angled down exhaust blows air away from the work place
  • Useful : Regulator integrated in forward/reverse knob with 3 positions power setting in both directions.
  • Supplied with a composite bumper protecting both applications & tool

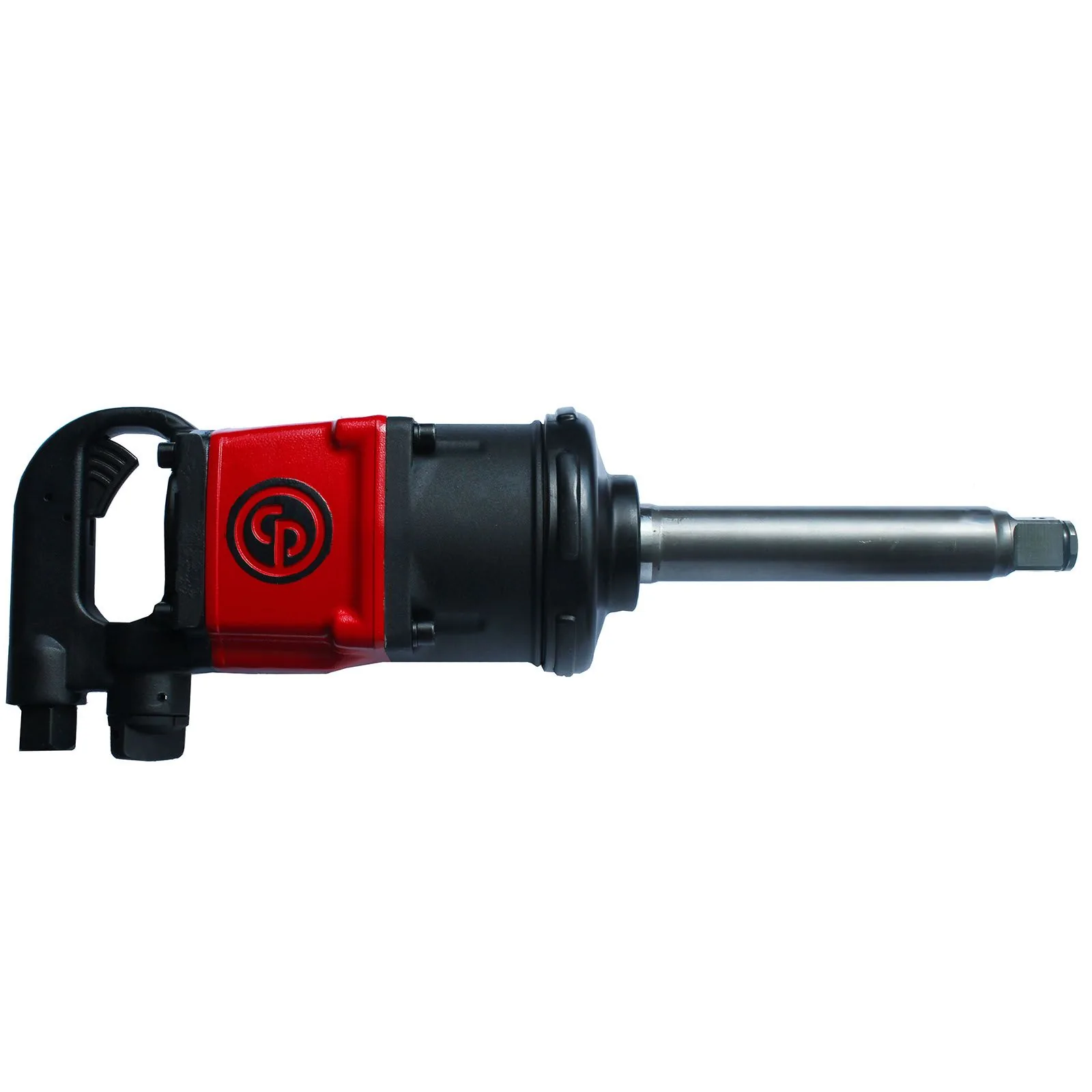

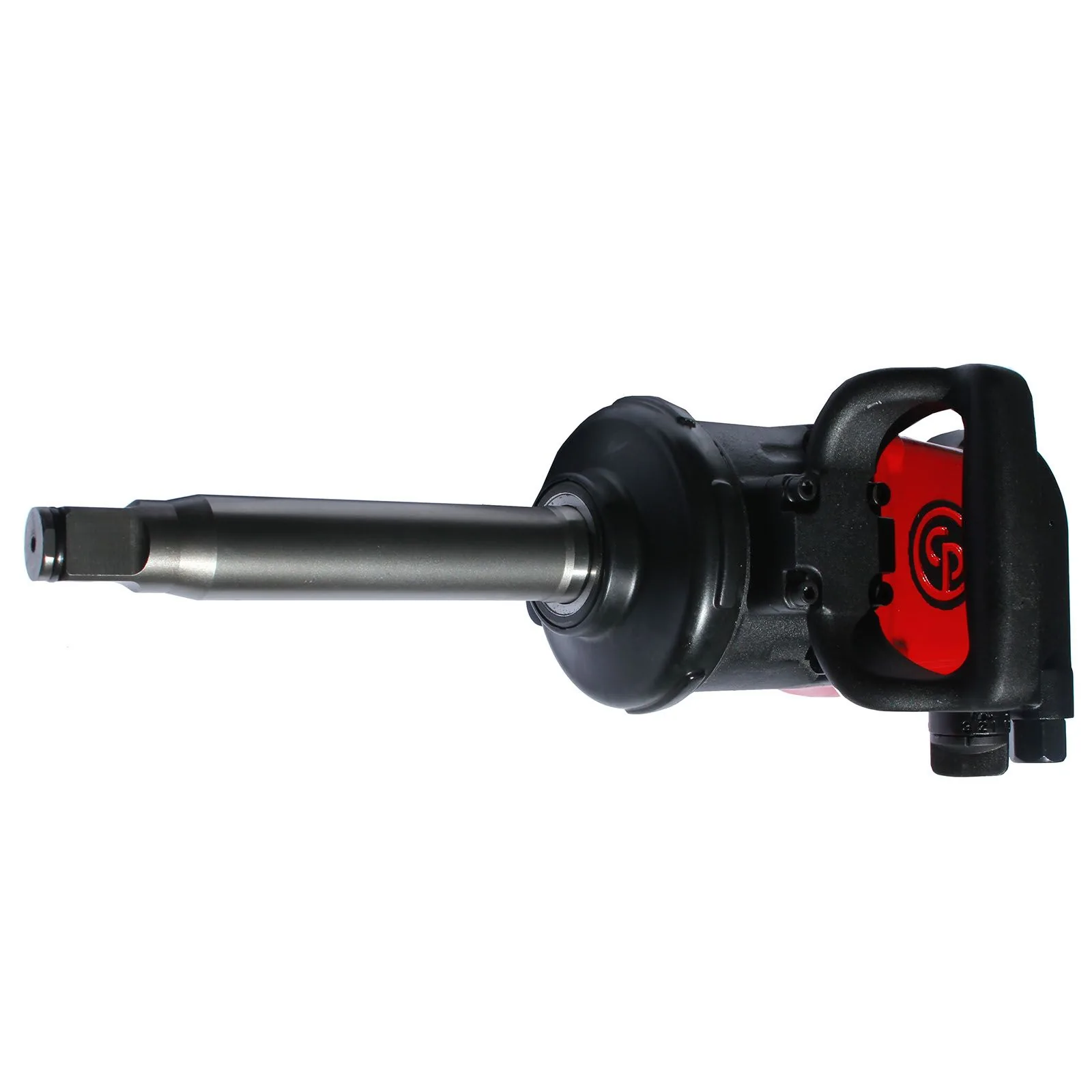

1″ Impact Wrench – 6″ anvil

Accessories

Specifications

SKU
Product Name
Vendor SKU
Power Source
Tool Weight (lb)
Output drive size (in)
Handle type
Output retainer type
Max Working Torque Fwd (ft.lbf)
Min Working Torque Fwd (ft.lbf)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air consumption at free speed (cfm)
Length (in)
Torque limited
Vibration (m/s²)
Body
Clutch Housing
Clutch Lubrication Type
Impact Mecanism
Output drive type
Starting System
CI-8941076428
CP7642 - Pneumatic
8941076428
Pneumatic
24.2
1
D-handle
Dual
1330
561
3/4
90
0.5
114.3
103.3
5.2
72
20.87
No
11.3
Aluminium
Aluminium
Grease
Pinless rocking dog
Sq
Trigger
