Chicago Pneumatic CP7741 Series – Impact wrench
Chicago Pneumatic CP7741 Series - Impact wrench
$224.00$227.00

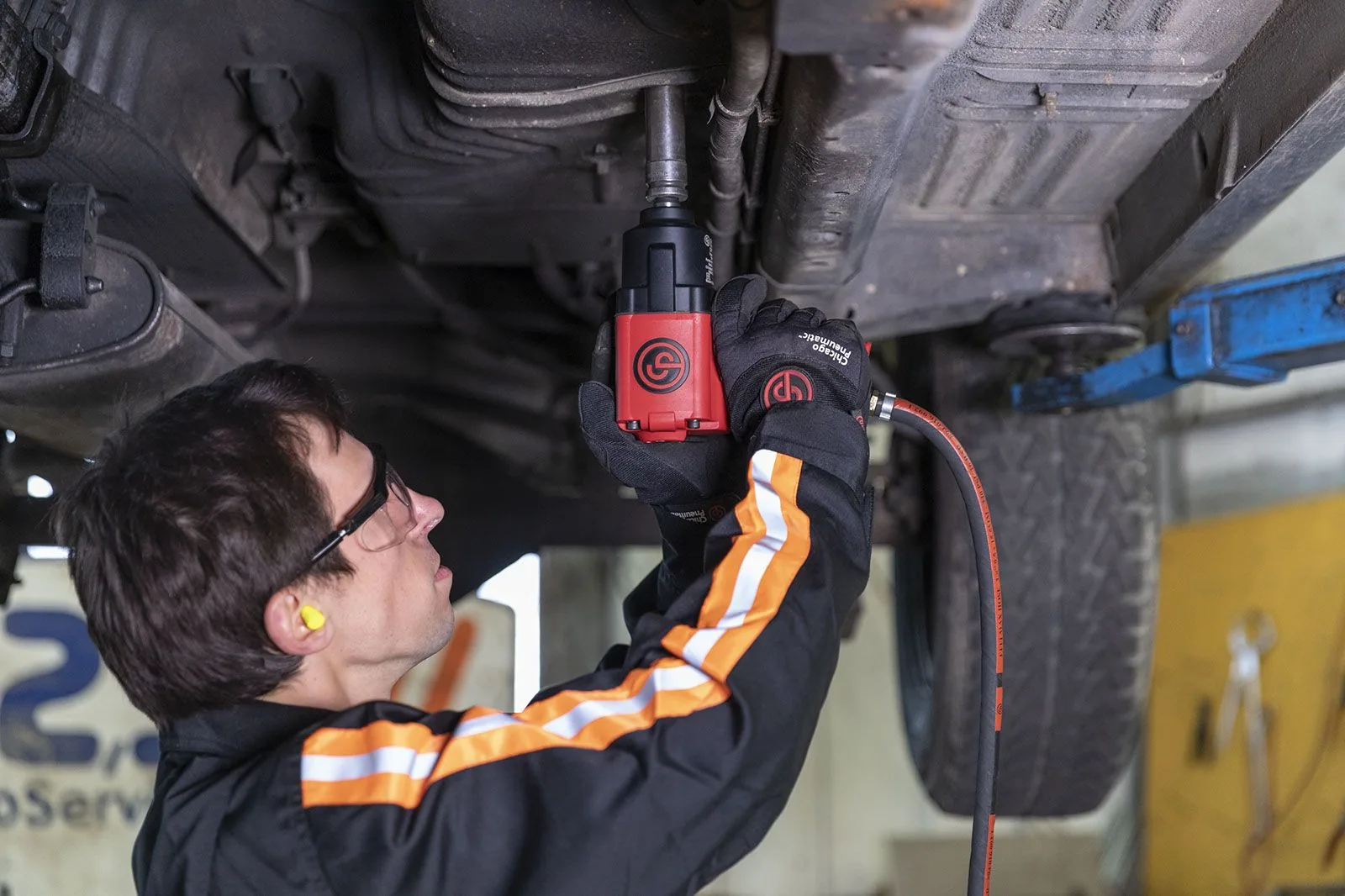

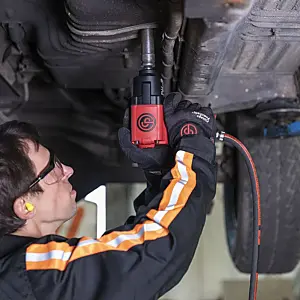

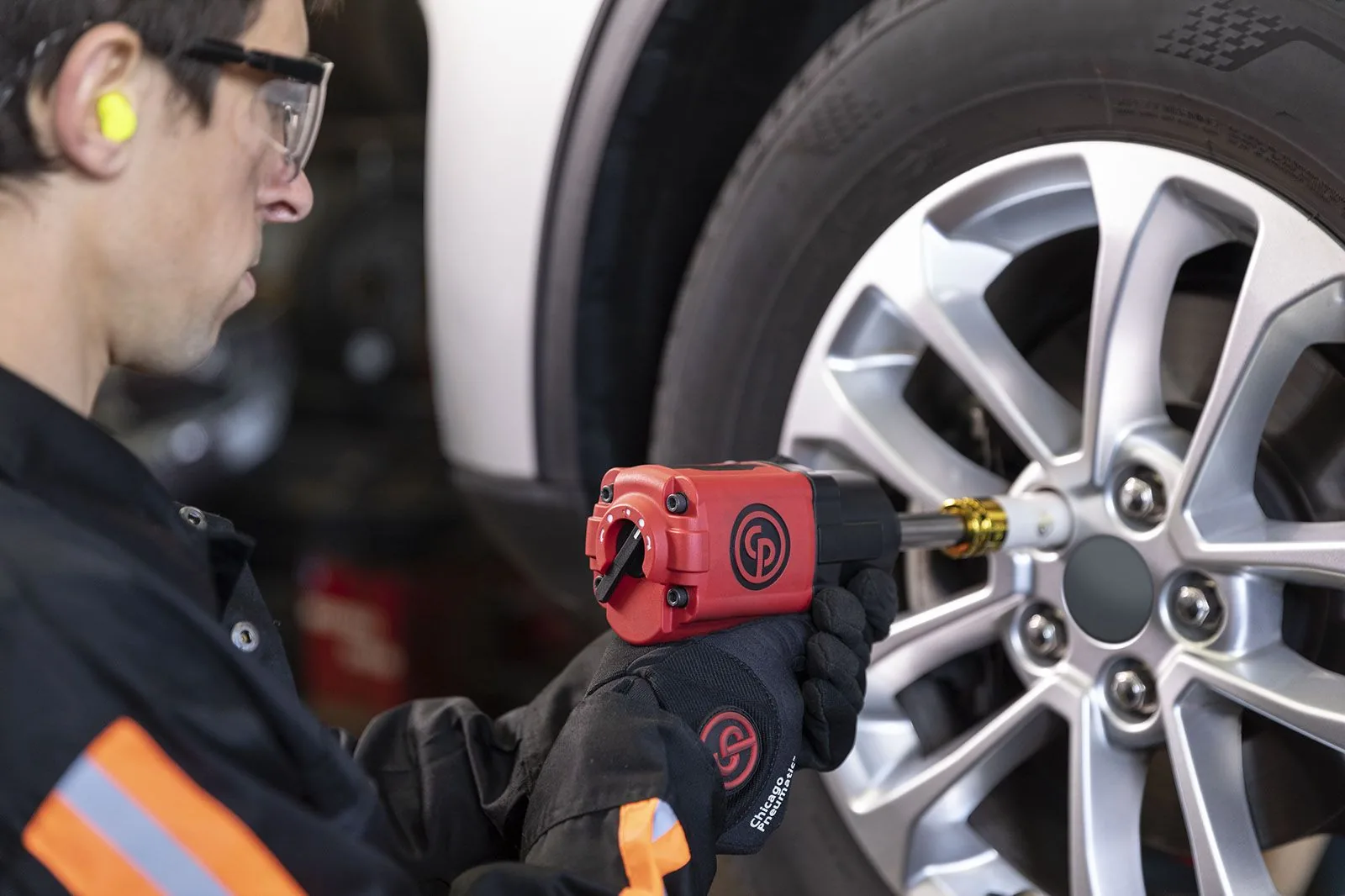

For operators working in maintenance or tire changing applications who are looking for a powerful and durable tool with an affordable price, the CP7741 series is the best in choice tool which increases your productivity.

  • Qualitive parts as well as its attractive price makes of this series, a good quality & value for money one.
  • With only 2.25kg and being 15% lighter than its former version, the CP7741 offers high comfort to its operators.
  • Less heat transfer between the motor and the handle is provided thanks to its composite housing

To better serve its customers working in tire changing or maintenance applications, Chicago Pneumatic enhanced one of its ½” pneumatic impact wrench bestsellers: the CP7741 series (former CP7736 series). For operators looking for a powerful and durable tool with an affordable price, the CP7741 series, 1/2″ pneumatic impact wrench, is the best in choice tool. This new series offers more robustness and durability than its old version. The motor, the gasket and plenty of parts have been improved to last longer.

This sits within our wider pneumatic impact wrenches selection and it works with our custom maintenance tools. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Output drive size (in)
Anvil
Max Torque Reverse (ft.lbf)
Free Speed (rpm)
Handle type
Output retainer type
Power Source
Max Working Torque Fwd (ft.lbf)
Min Working Torque Fwd (ft.lbf)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air consumption at free speed (cfm)
Height (in)
Length (in)
Width (in)
Power Weight Ratio (Nm/kg)
Side To Center (in)
Tool Weight (lb)
Torque limited
Blow per minute (bpm)
Body
Clutch Housing
Clutch Lubrication Type
Impact Mecanism
Main Material type
Output drive type
Side Handle
Starting System
Suspension Option
CI-8941077410

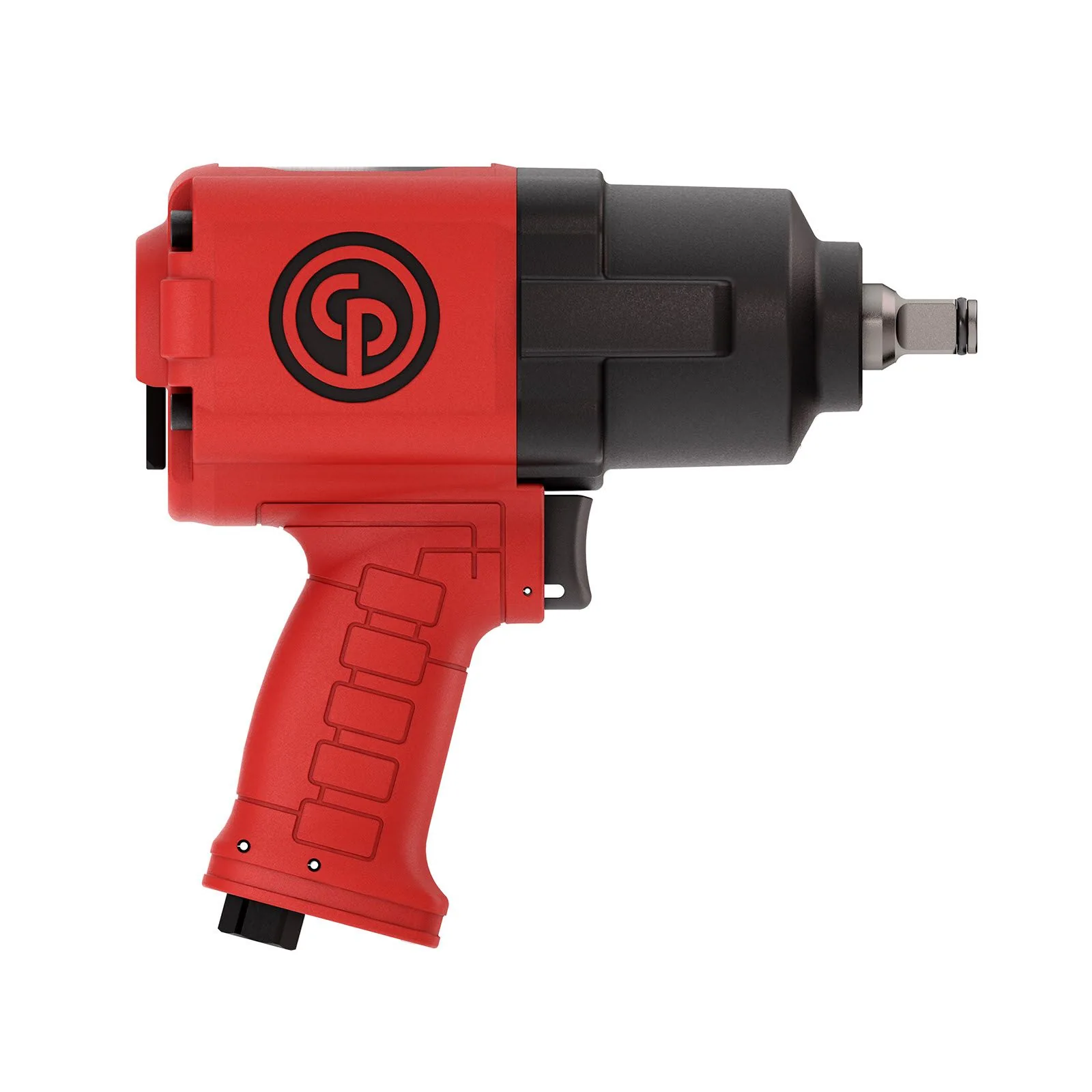

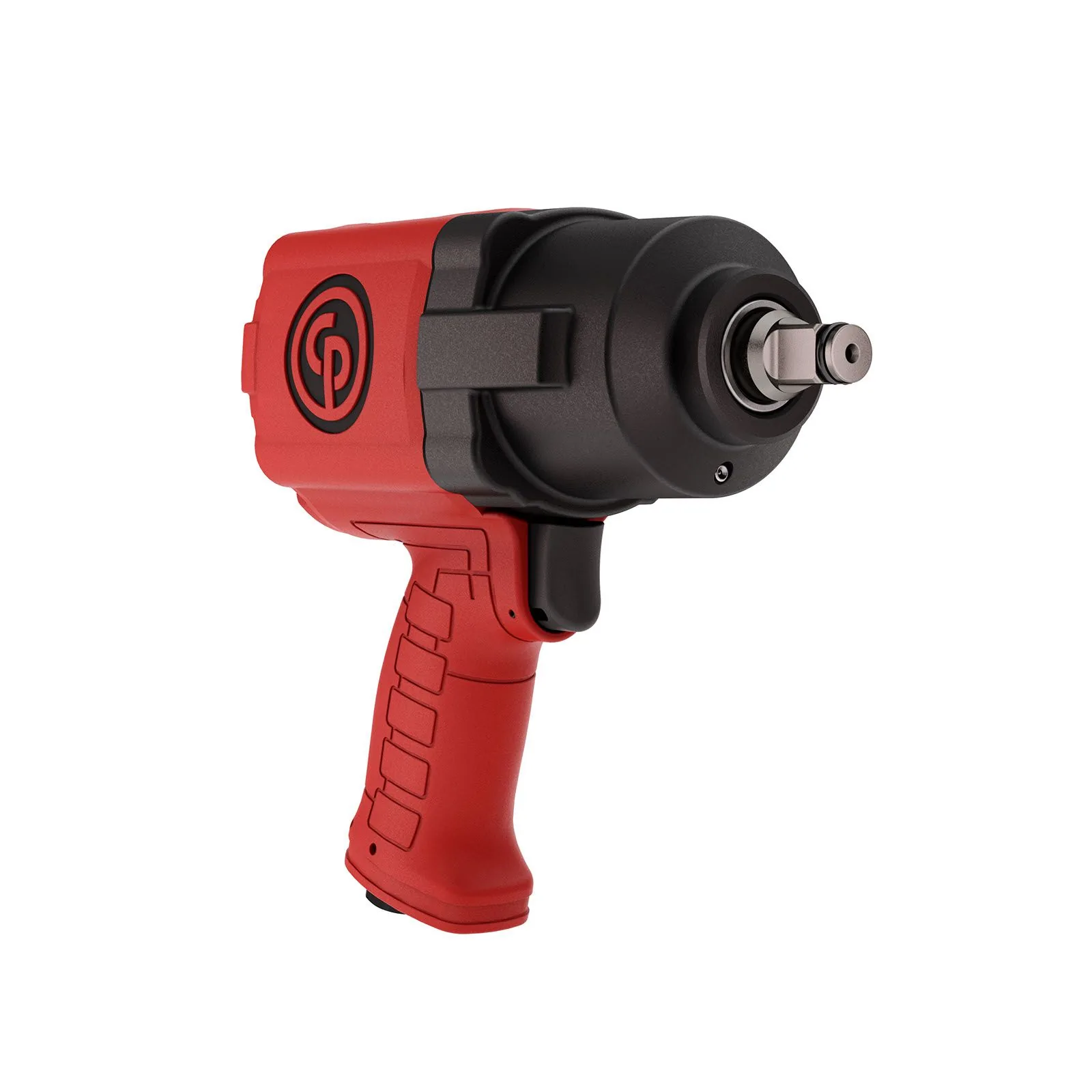

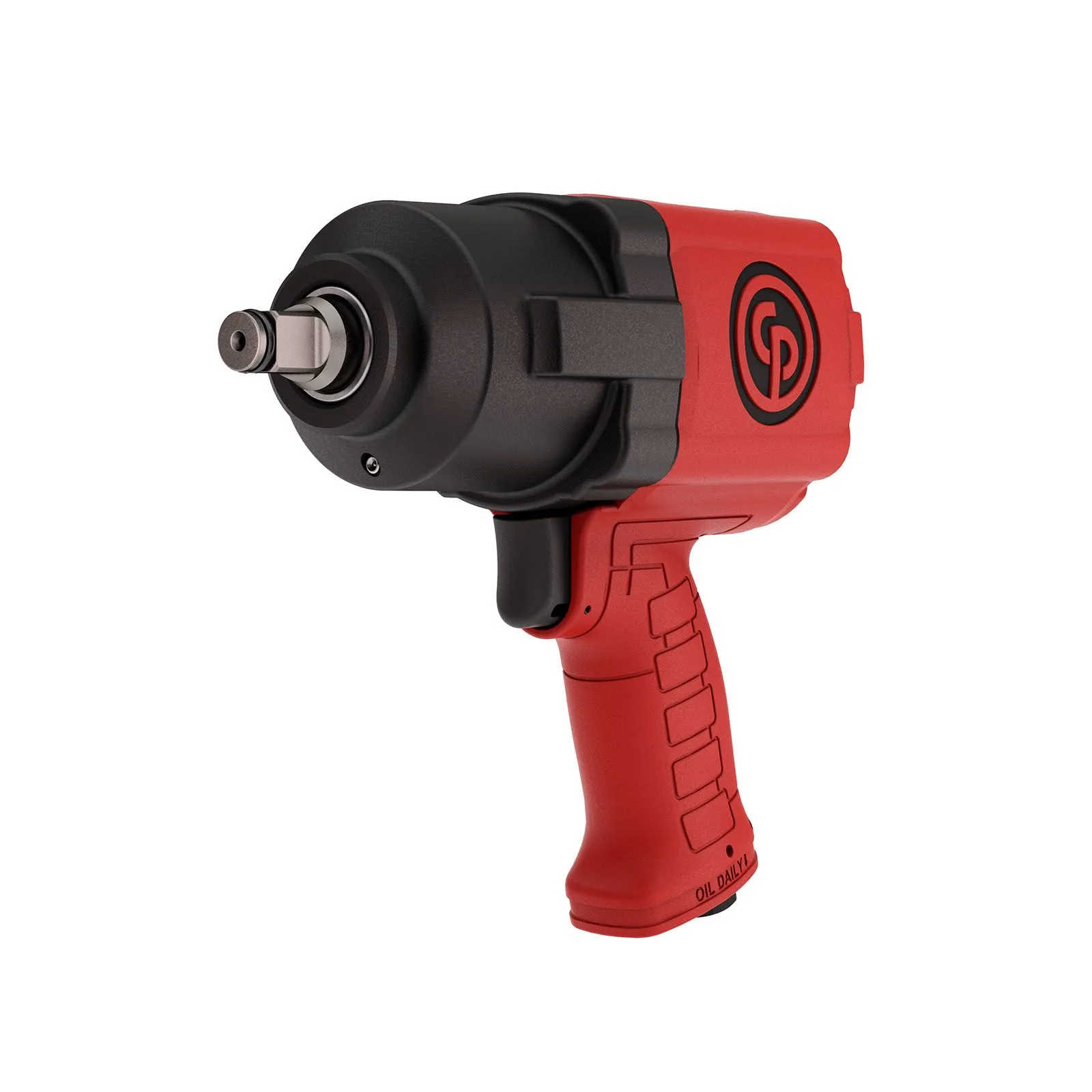

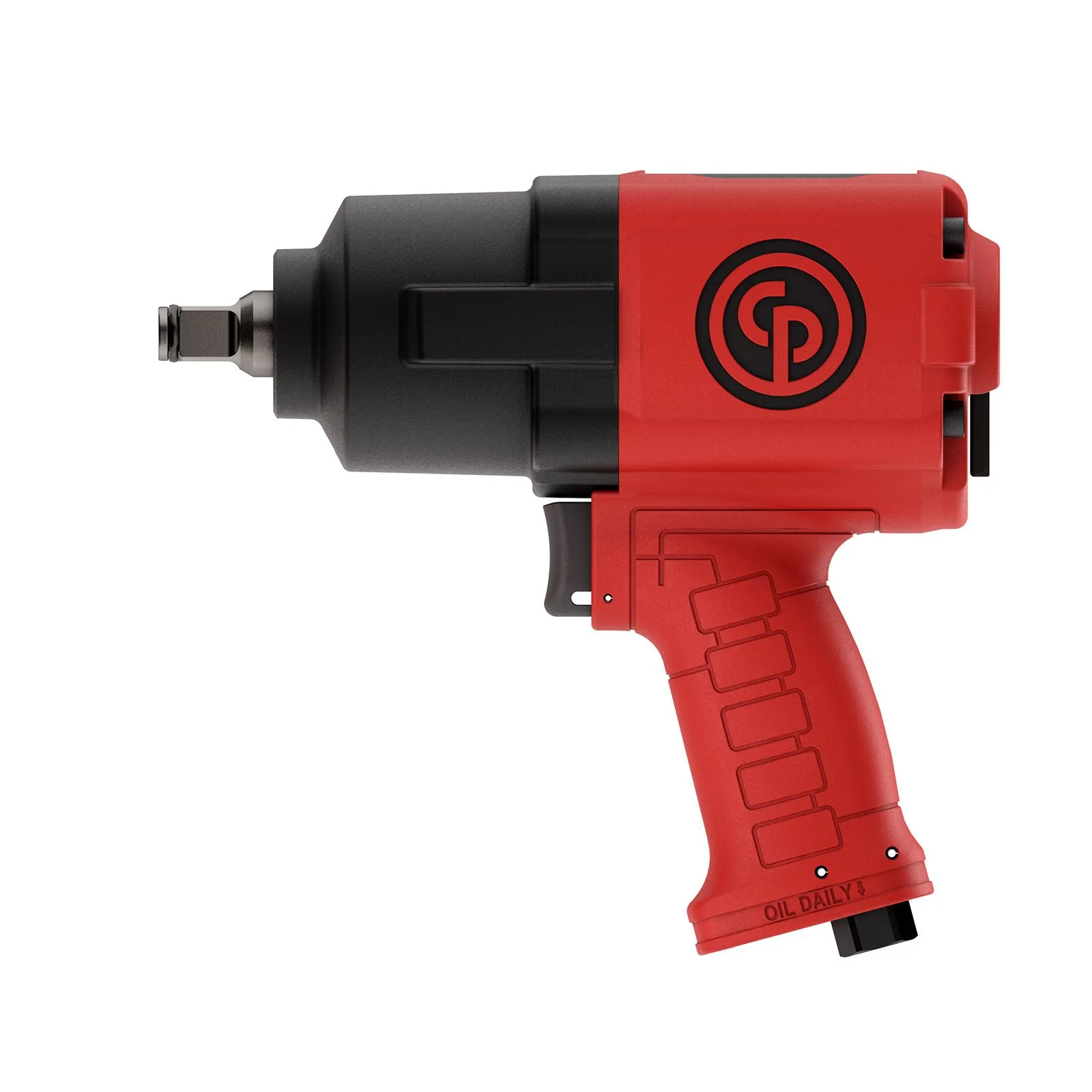

Chicago Pneumatic CP7741 - 1/2 Inch Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 715 ft. lbf / 970 Nm, 10000 RPM, Twin Hammer
8941077410
1/2
Standard
715
10000
Pistol
Friction ring
Pneumatic
509
88.5
19
1/4
90
0.38
103
92.6
8.9
4.4
7.2
7.64
2.99
430
1.5
4.96
No
1005
Composite
Aluminium
Grease
Twin hammer
Composite
Sq
No
Trigger
Not available
CI-8941077412

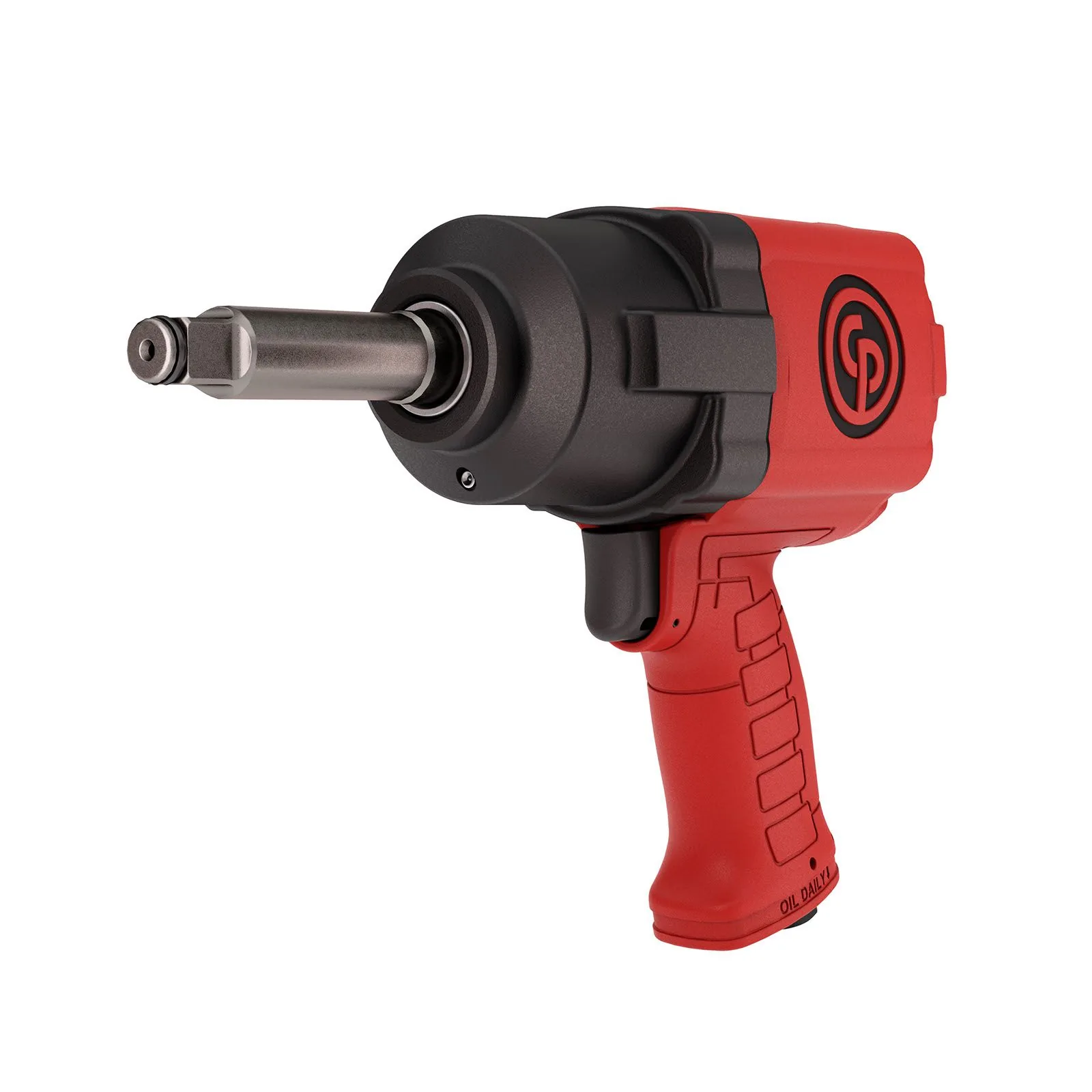

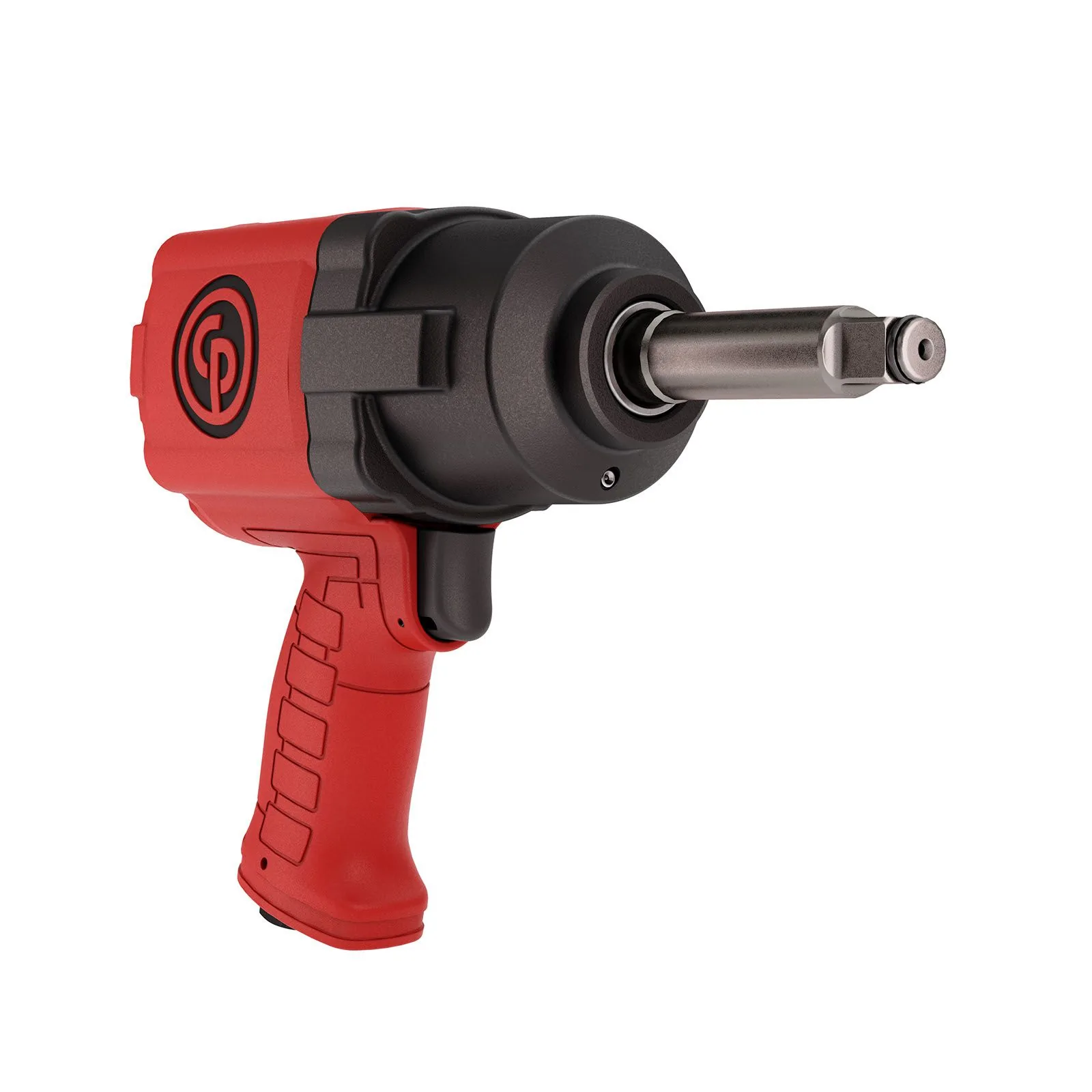

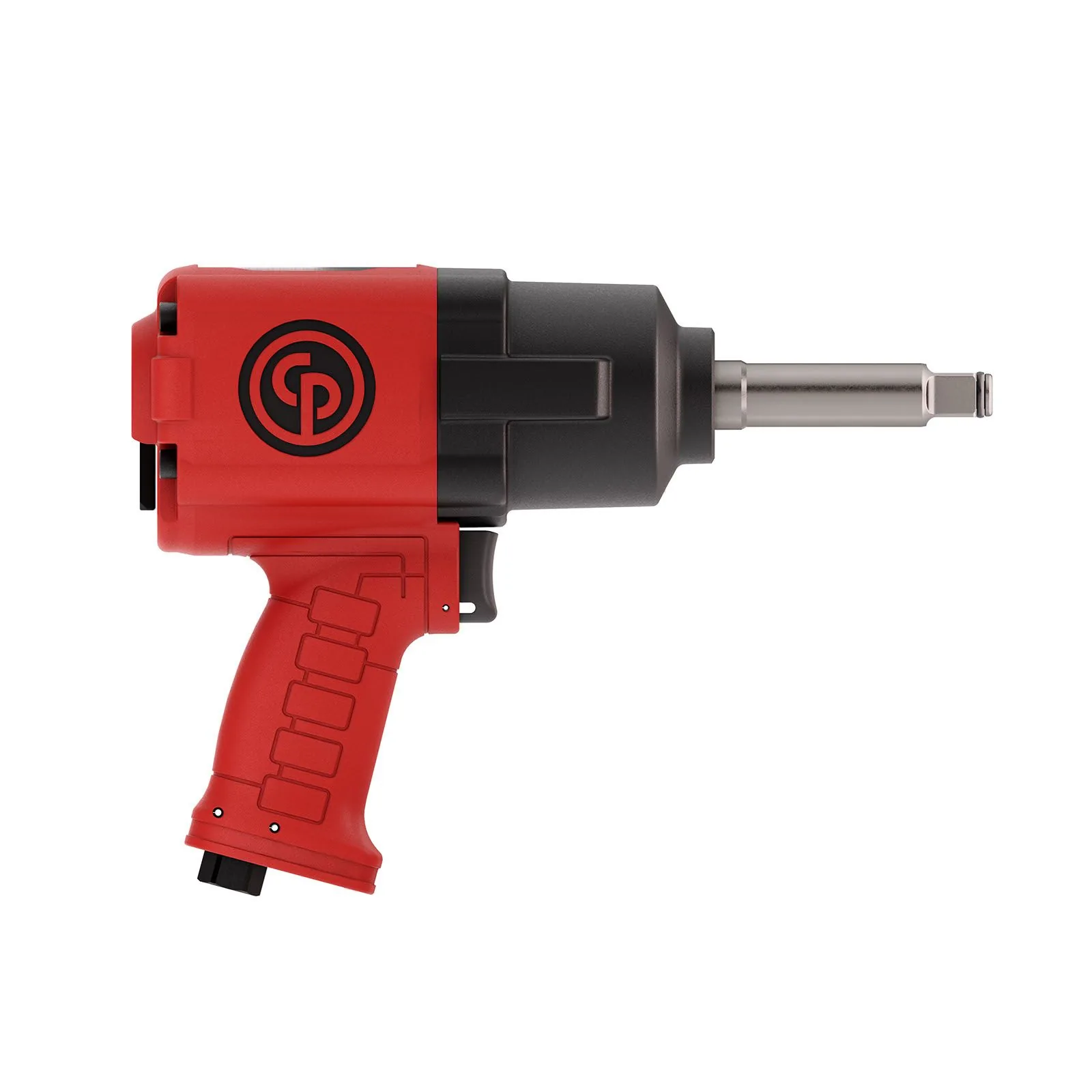

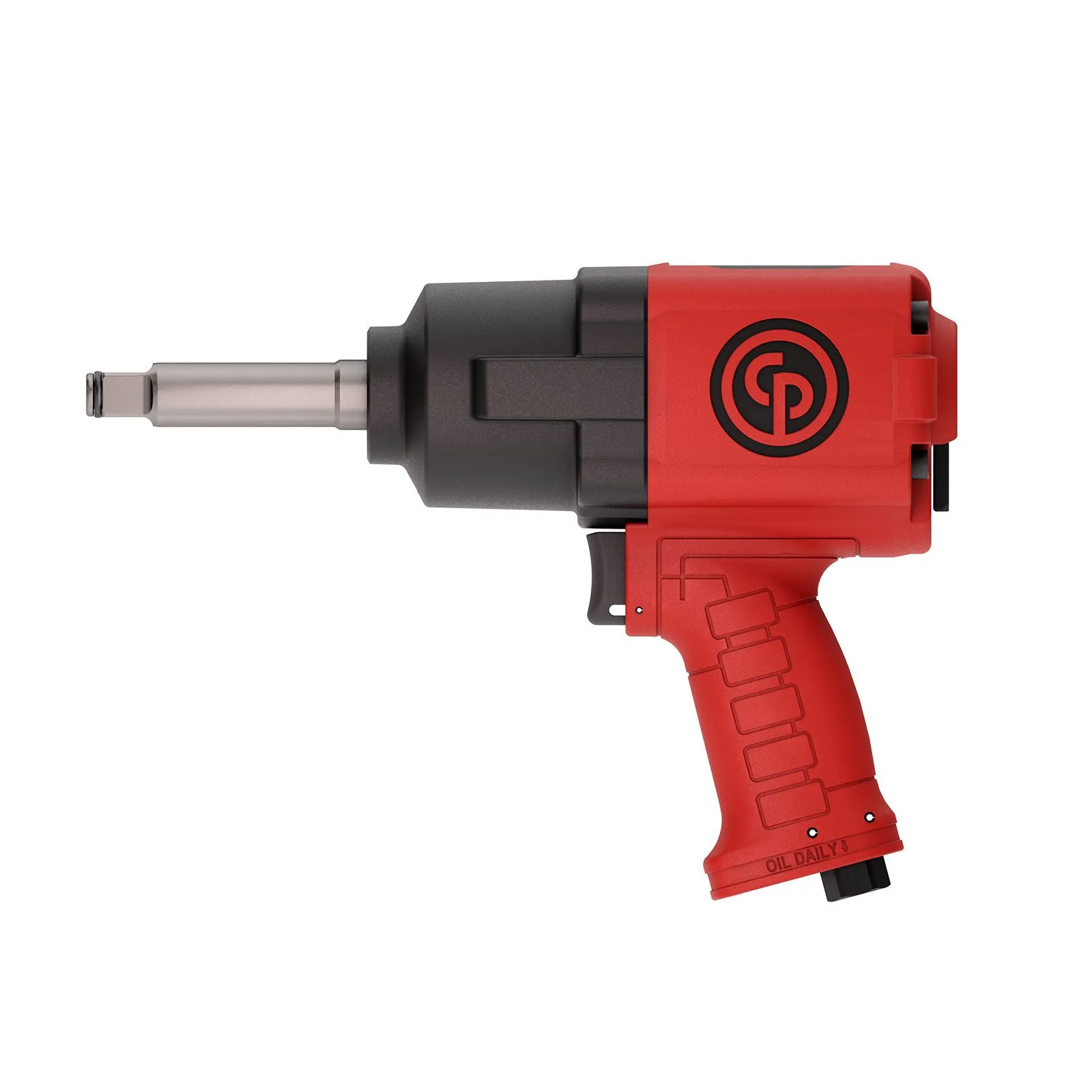

Chicago Pneumatic CP7741-2 - 1/2 Inch Air Impact Wrench with 2 Inch Extended Anvil, Pistol Handle, Max Torque Reverse Output 715 ft. lbf / 970 Nm, 10000 RPM, Twin Hammer
8941077412
1/2
2" Extended
715
10000
Pistol
Friction ring
Pneumatic
509
88.5
18
1/4
90
0.38
103
92.6
12.5
4.4
7.2
9.65
2.99
410
1.5
5.18
No
1145
Composite
Aluminium
Grease
Twin hammer
Composite
Sq
No
Trigger
Not available
