Chicago Pneumatic CP7763/CP7773 Series – Impact Wrenches

$661.00 – $724.00

Visit Chicago Pneumatic store

Chicago Pneumatic CP7763/CP7773 Series – Impact Wrenches

$661.00 – $724.00

Chicago Pneumatic CP7763/CP7773 Series - Impact Wrenches

$661.00 – $724.00

Max Working Torque Fwd (ft.lbf): No selection

More options

Output drive size (in): No selection

More options

Anvil Extension: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

Compact & Powerful

For operators working in maintenance applications or tire changing applications who are looking for a durable, lightweight, yet powerful tool, the CP7763 / CP7773 series is the 3/4″ / 1″ impact wrench for you.

Composite housing and twin hammer impact mechanism for high durability
A lightweight and compact tool in a composite motor housing that offers greater comfort
Equipped with intuitive Forward / Reverse lever for easy operation
Power regulator for a controlled approach

The CP7763/CP7773 Series impact wrench features 3/4″ and 1″ square drives and delivers reverse torque up to 1,630 Nm / 1,200 ft.lb. Designed for general maintenance and tire changing. Its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact. Available in 6 models: 3/4″ pistol short anvil, 3/4″ pistol long anvil, 3/4″ D-handle short anvil, 3/4″ D-handle long anvil (6″ anvil), 1″ D-handle short anvil, and 1″ D-handle long anvil (6″ anvil).

Browse all pneumatic impact wrenches we stock and it works with our custom maintenance tools. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Specifications

SKU	Product Name	Vendor SKU	Max Working Torque Fwd (ft.lbf)	Output drive size (in)	Anvil Extension	Power Source	Max Torque Reverse (ft.lbf)	Min Working Torque Fwd (ft.lbf)	Air Consumption At Load (cfm)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Sound Power (dB(A))	Sound Pressure (dB(A))	Uncertainty Vibration-k (ft/s²)	Free Speed (rpm)	Length (in)	Power Weight Ratio (Nm/kg)	Side To Center (in)	Tool Weight (lb)	Torque limited	Vibration (m/s²)	Blow per minute (bpm)	Body	Clutch Housing	Clutch Lubrication Type	Handle type	Impact Mecanism	Output drive type	Output retainer type	Starting System	Side Handle	Air consumption at free speed (cfm)

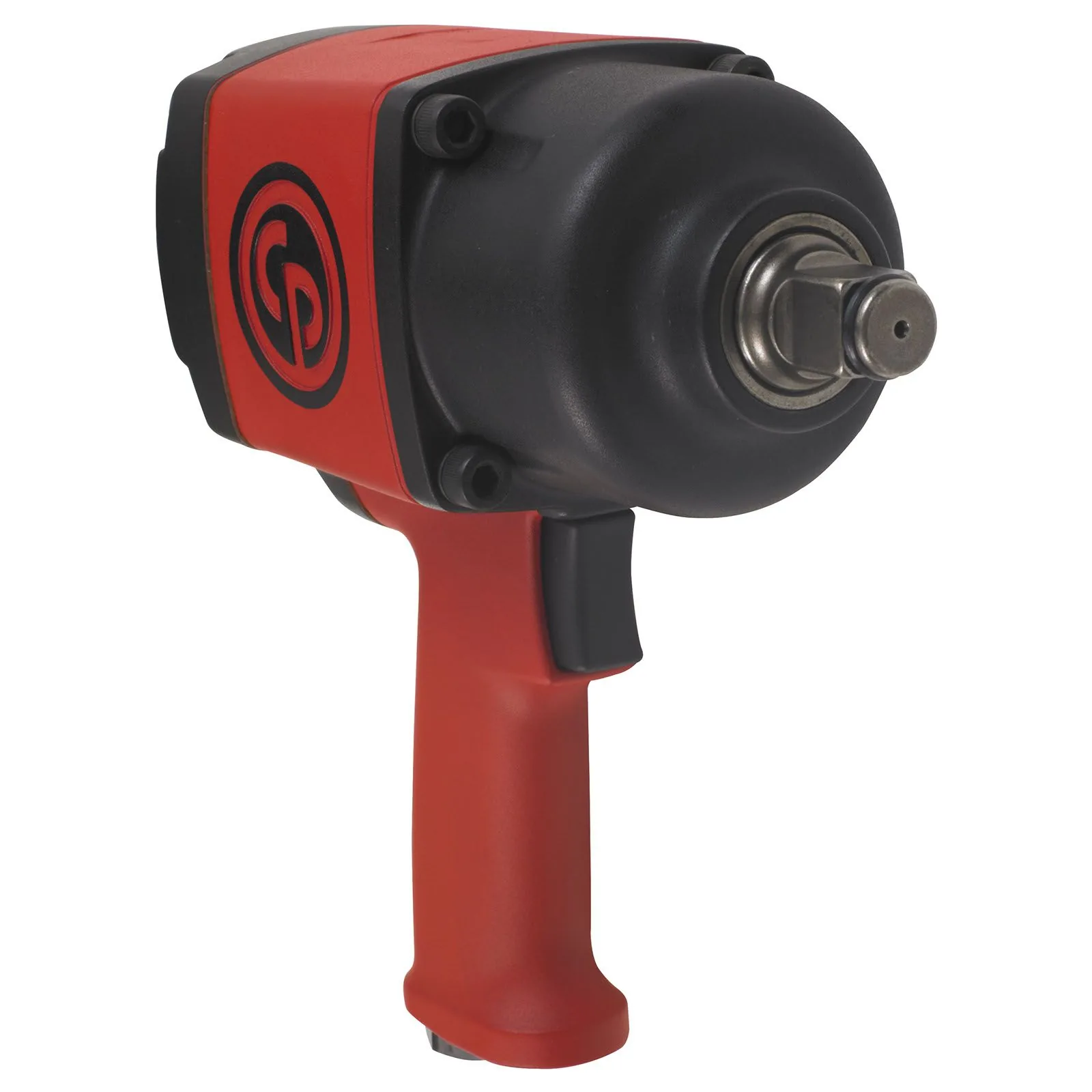

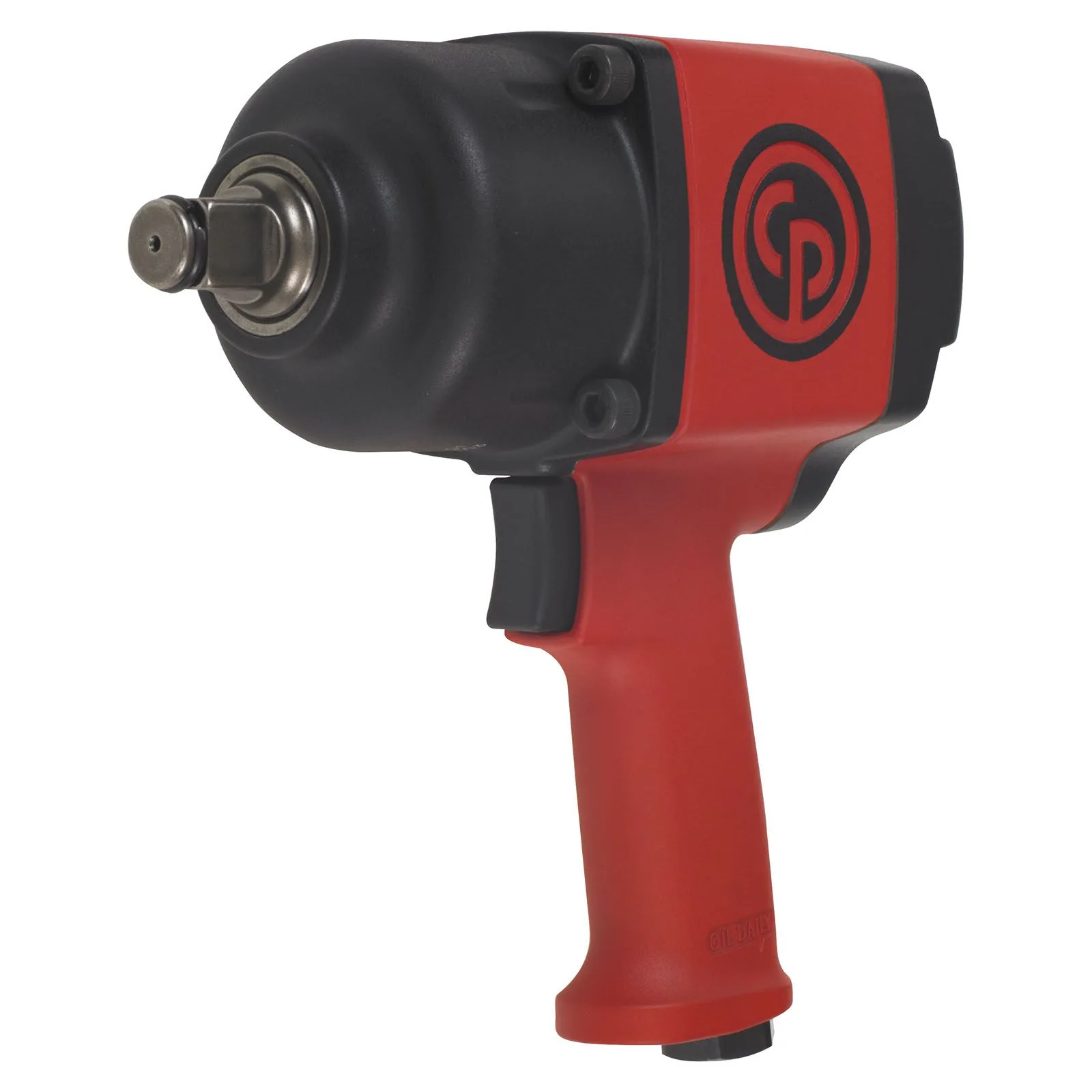

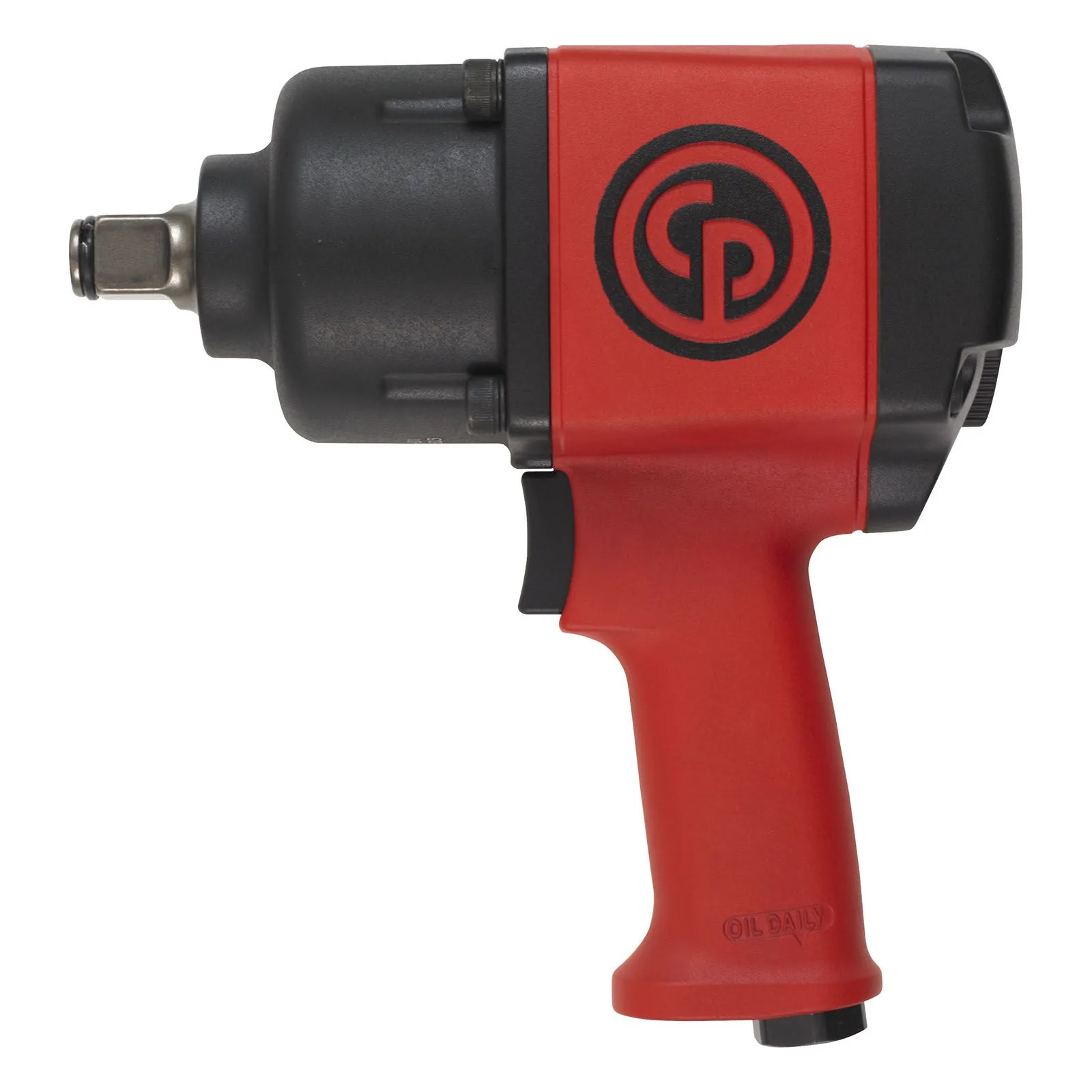

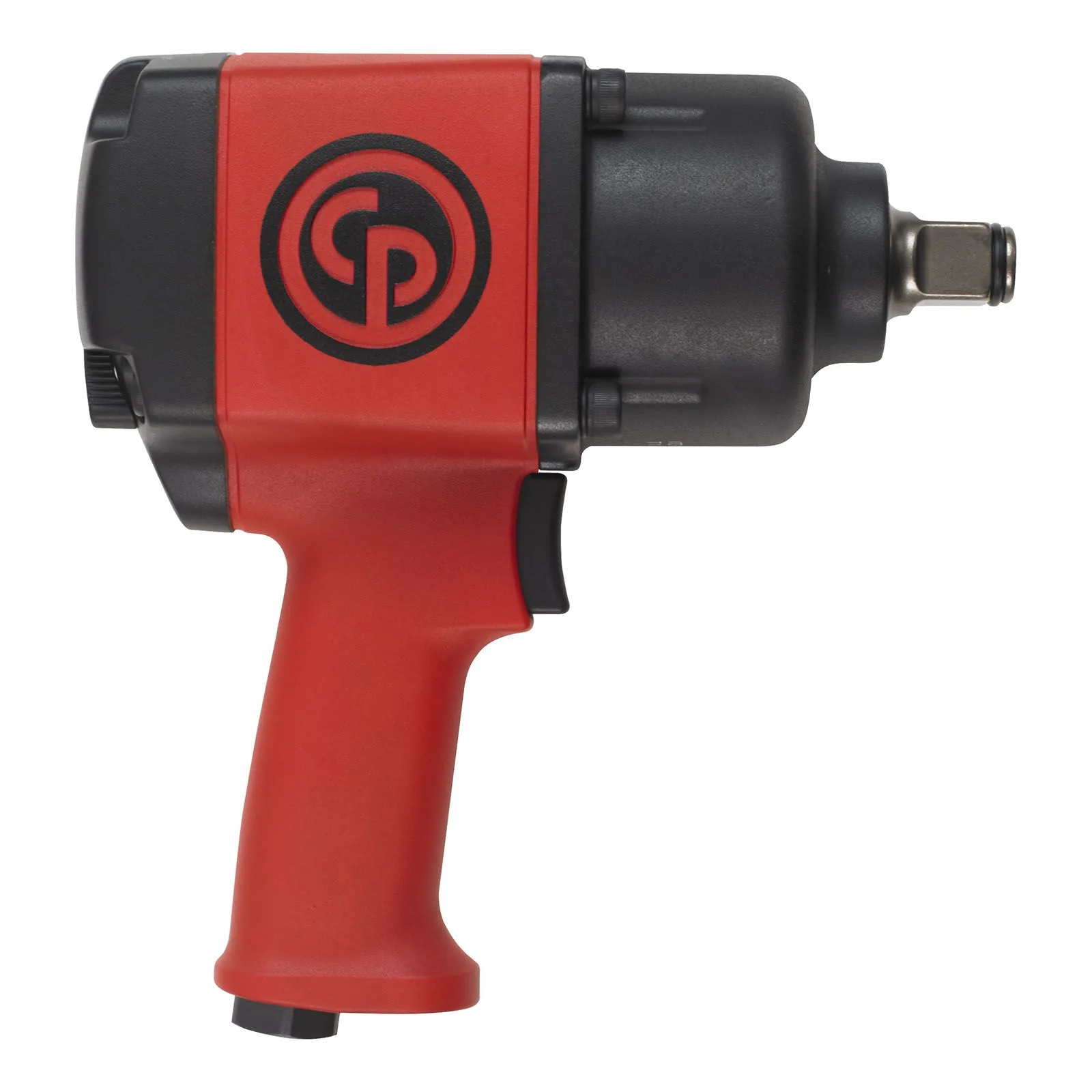

CI-8941077630	Chicago Pneumatic CP7763 - 3/4 Inch Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 1200 ft. lbf / 1630 Nm, 6300 RPM, Twin Hammer	8941077630	950	3/4	None	Pneumatic	1200	100	34	3/8	90	0.5	107	96	13.8	6300	9.02	310	1.77	11.5	No	10.4	900	Aluminium	Aluminium	Grease	Pistol	Twin hammer	Sq	Friction ring	Trigger	No	-

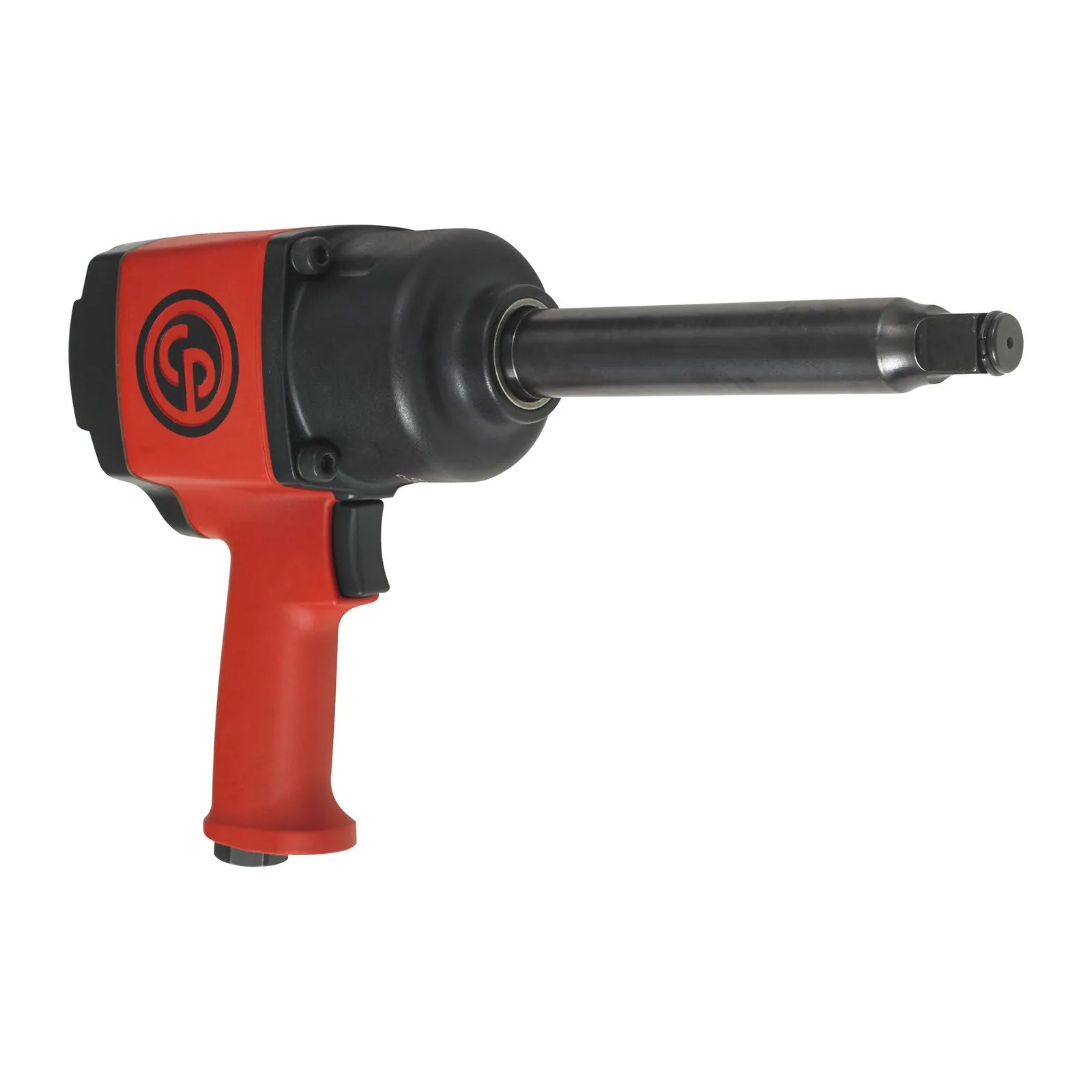

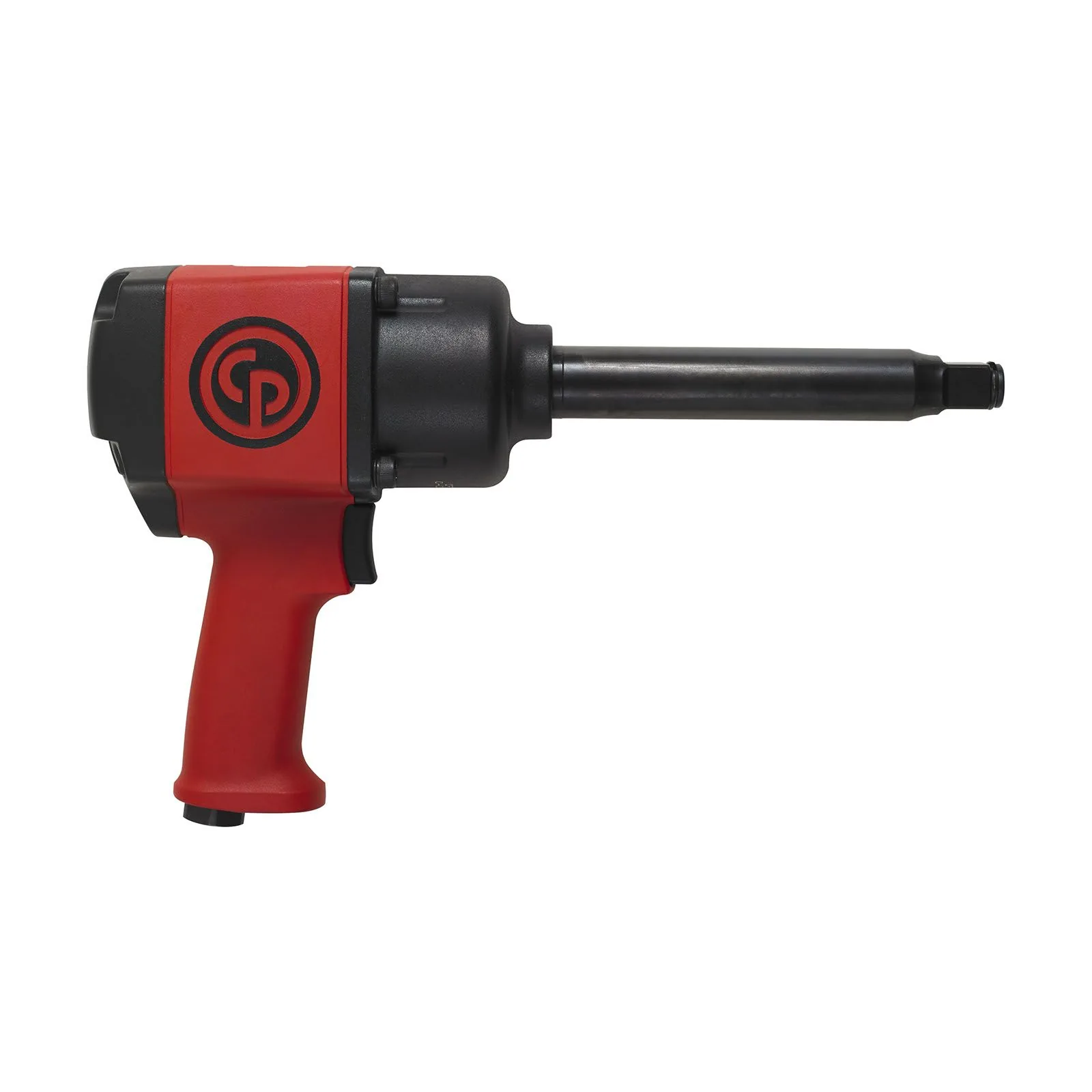

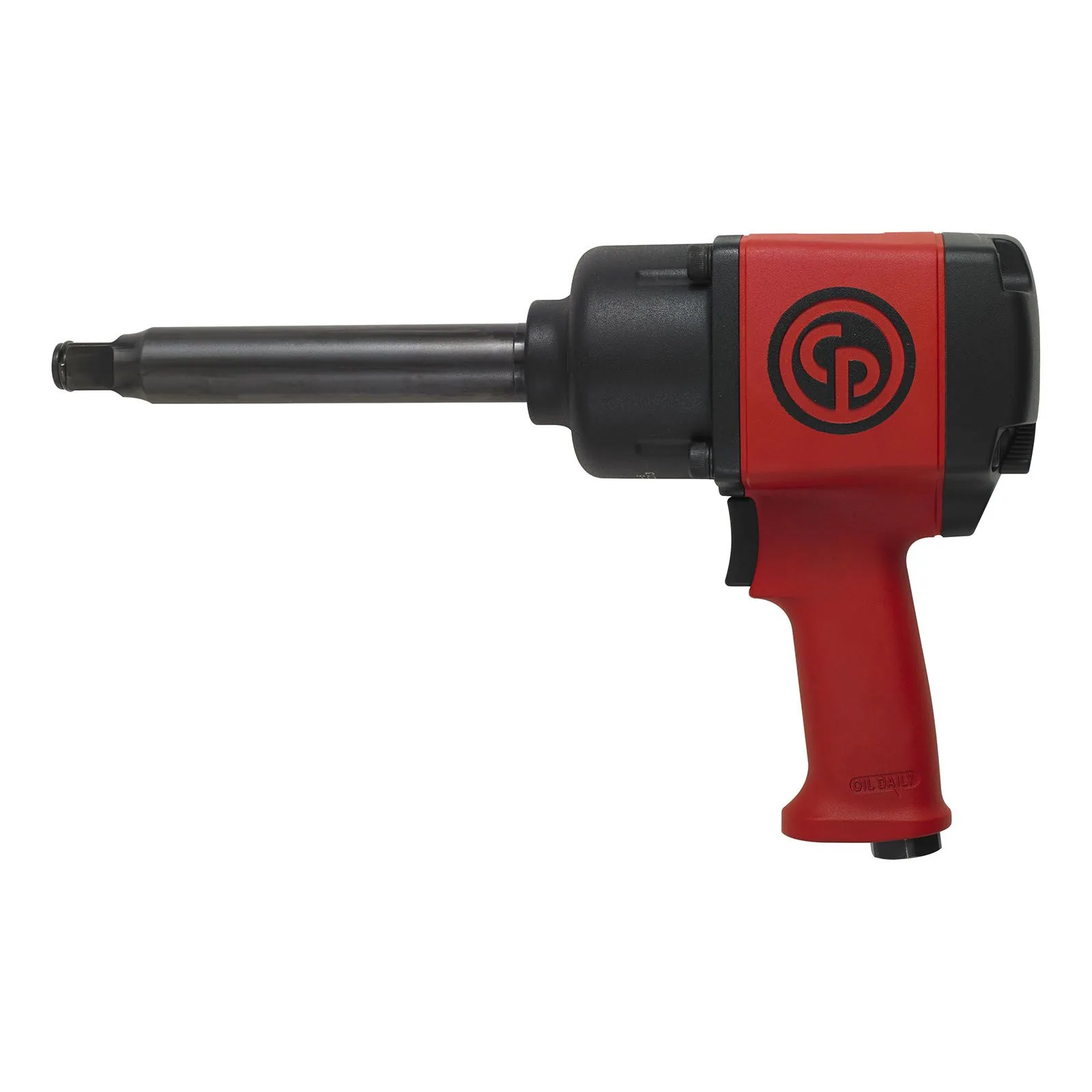

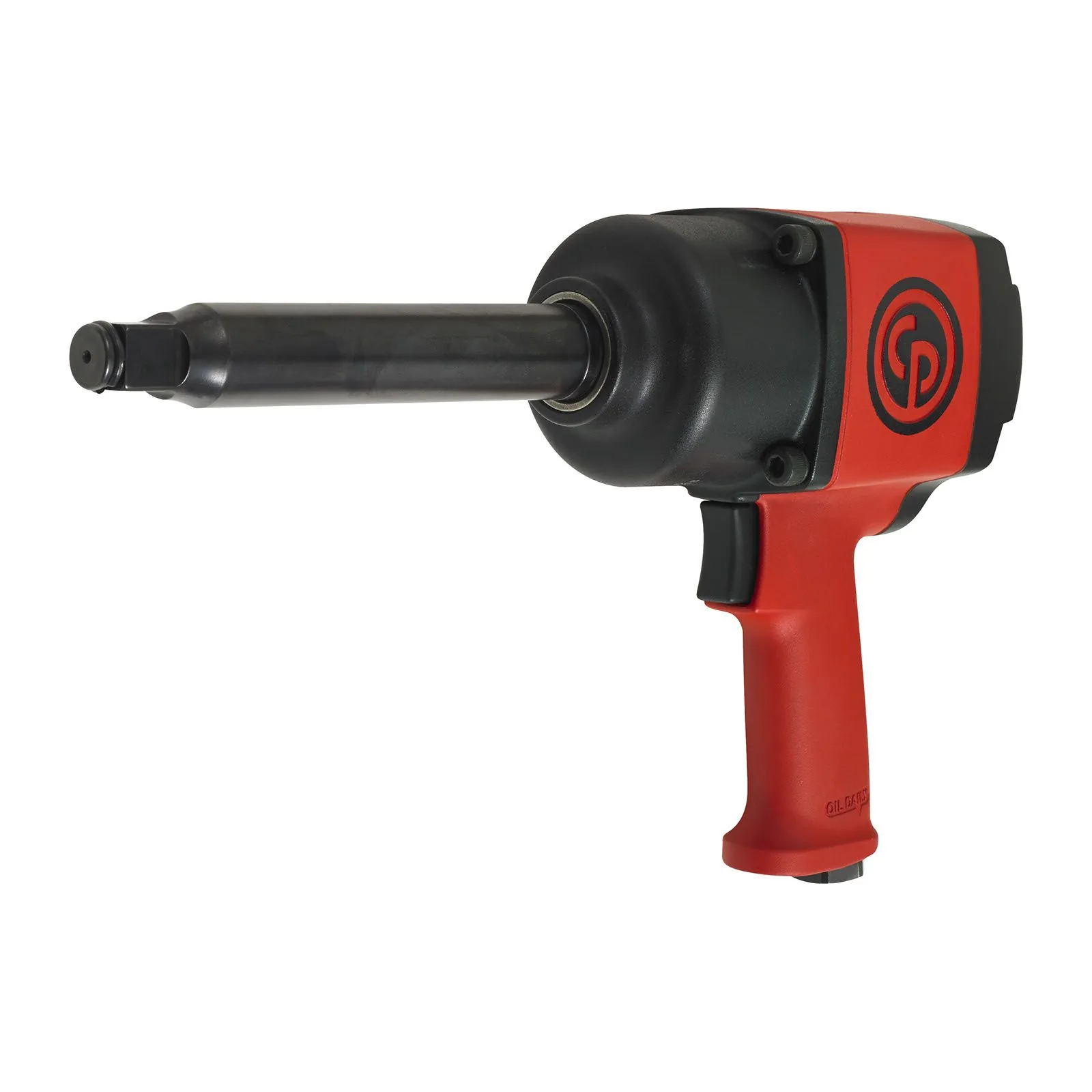

CI-8941077636	Chicago Pneumatic CP7763-6 - 3/4 Inch Air Impact Wrench with 6 Inch Extended Anvil, Pistol Handle, Max Torque Reverse Output 1200 ft. lbf / 1630 Nm, 6300 RPM, Twin Hammer	8941077636	950	3/4	6 Inch	Pneumatic	1200	100	34	3/8	90	0.5	107	96	13.8	6300	15	250	1.77	13.8	No	10.4	900	Aluminium	Aluminium	Grease	Pistol	Twin hammer	Sq	Dual	Trigger	No	-

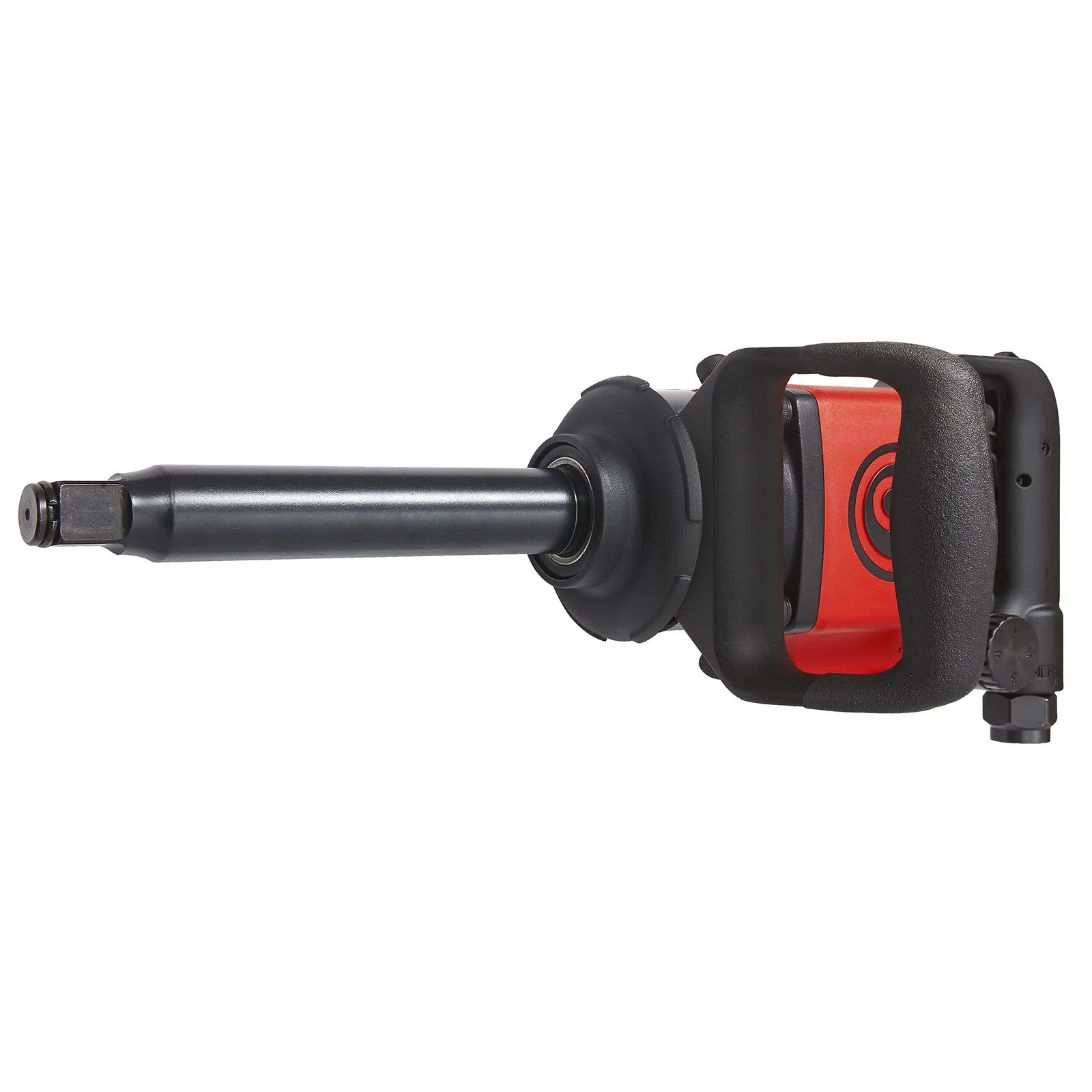

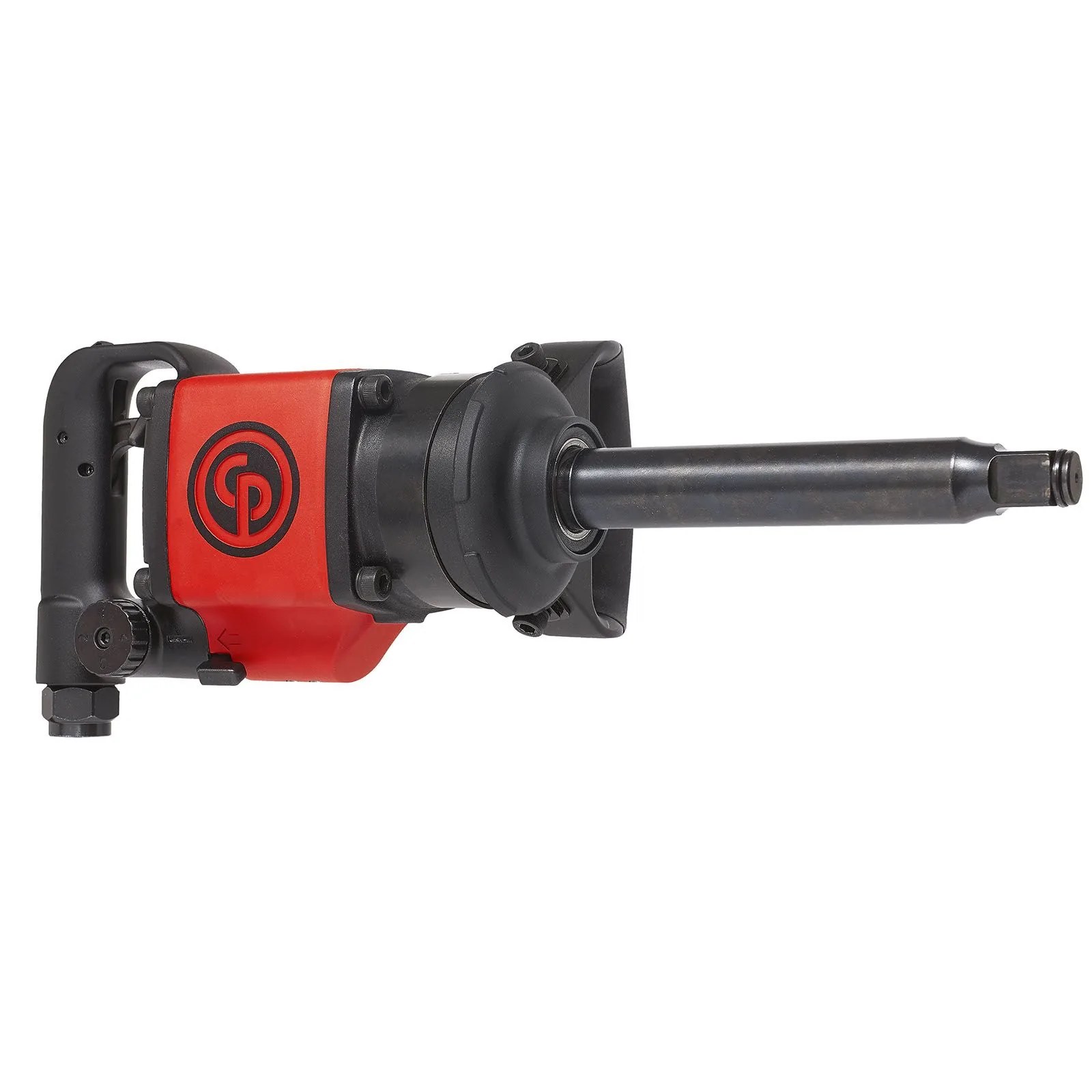

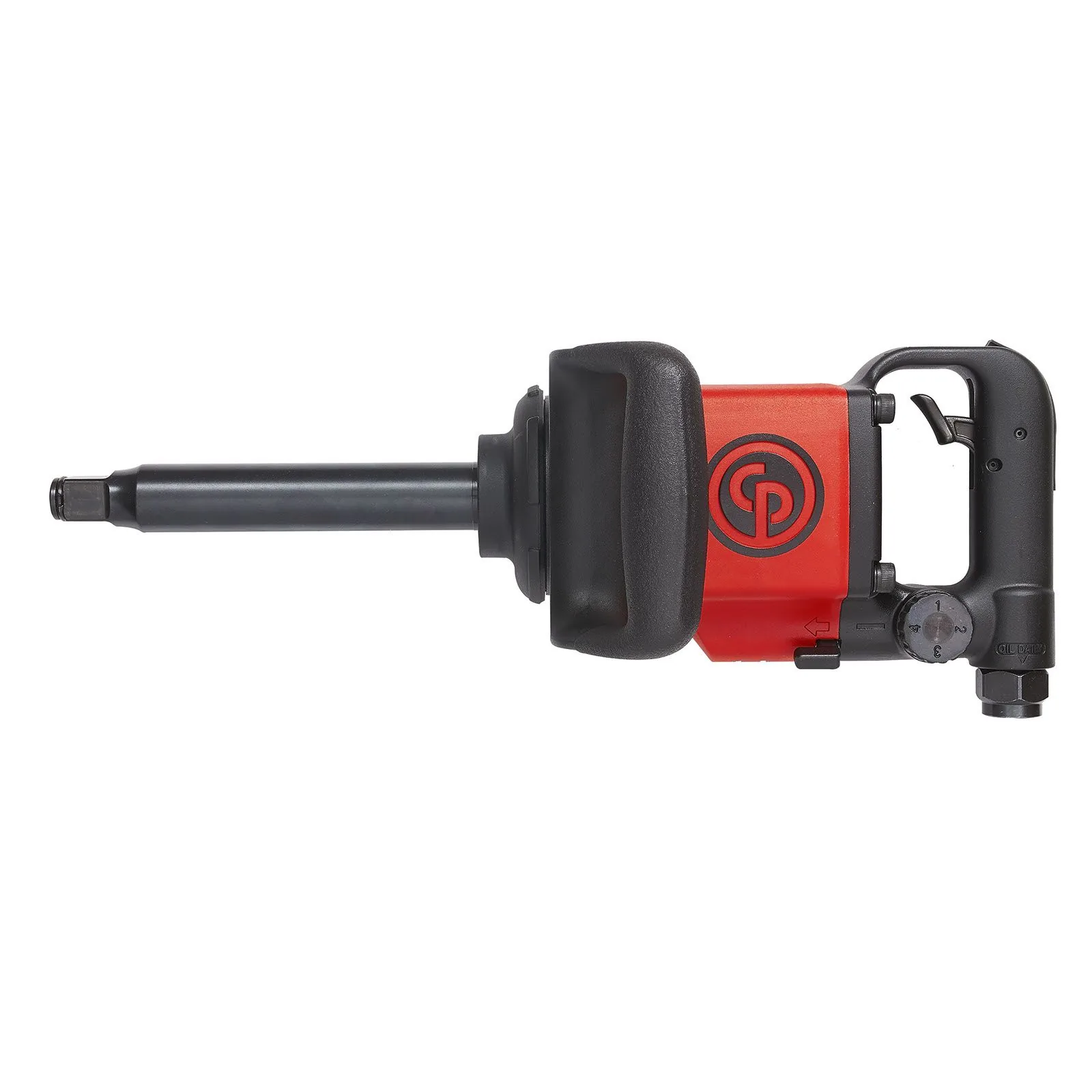

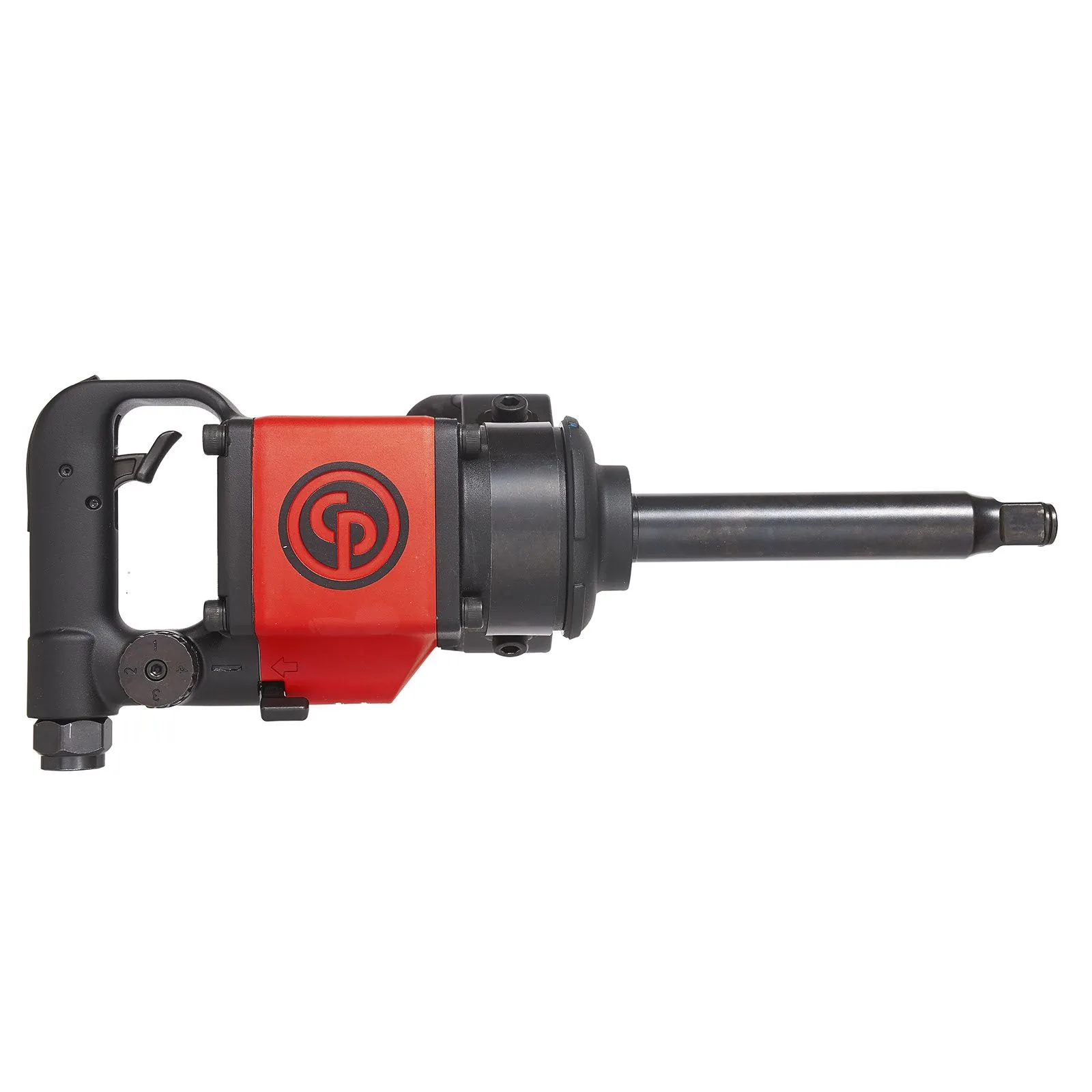

CI-8941077637	Chicago Pneumatic CP7763D-6 - 3/4 Inch Air Impact Wrench with 6 Inch Extended Anvil, D-Handle with Side Handle, Max Torque Reverse Output 1300 ft. lbf / 1760 Nm, 6600 RPM, Twin Hammer	8941077637	1070	3/4	6 Inch	Pneumatic	1300	251	-	1/2	90	0.38	109	98	10.8	6600	17.52	-	1.77	16	No	12	-	Composite	Aluminum	Grease	D-handle	Twin hammer	Sq	Friction ring	Trigger	Yes	56

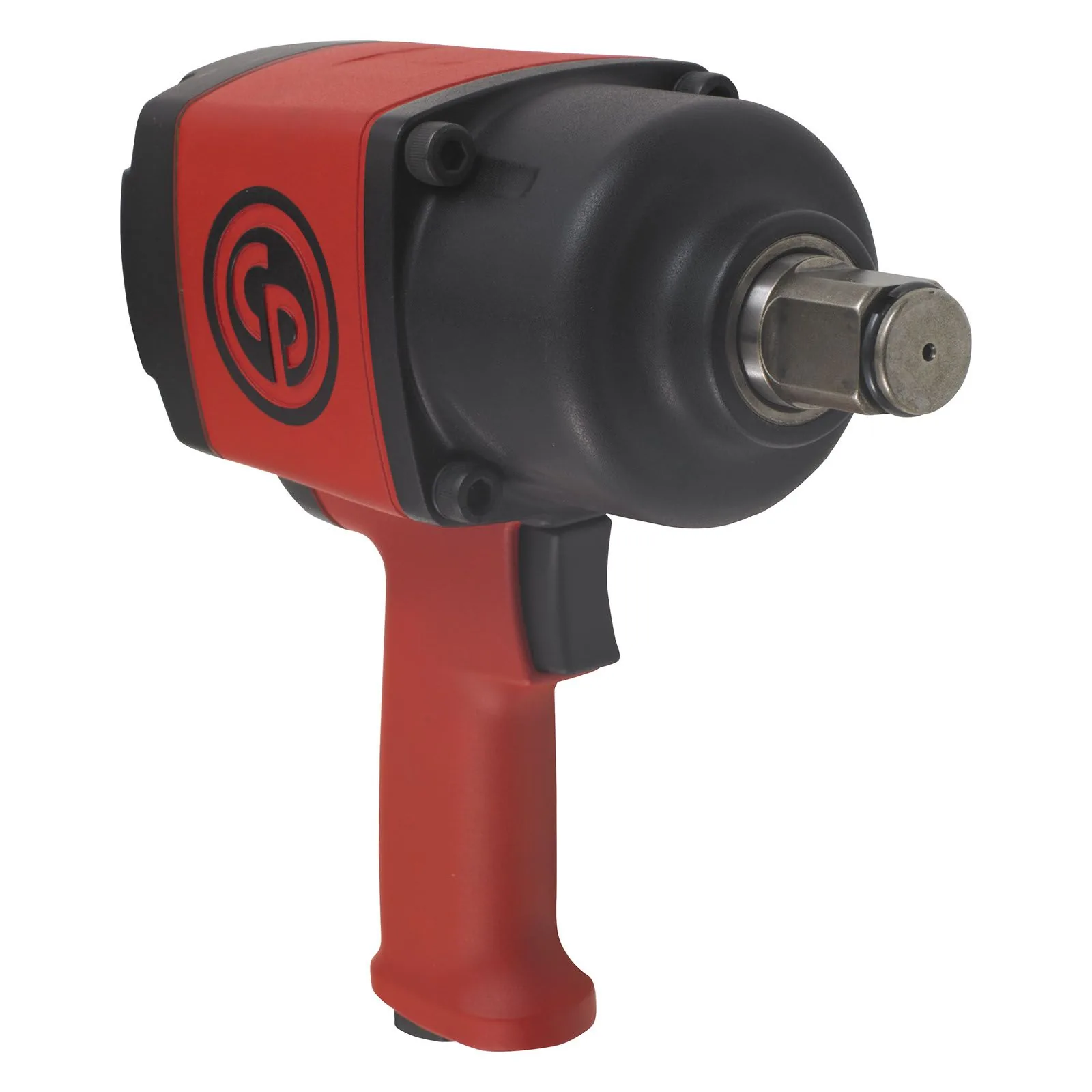

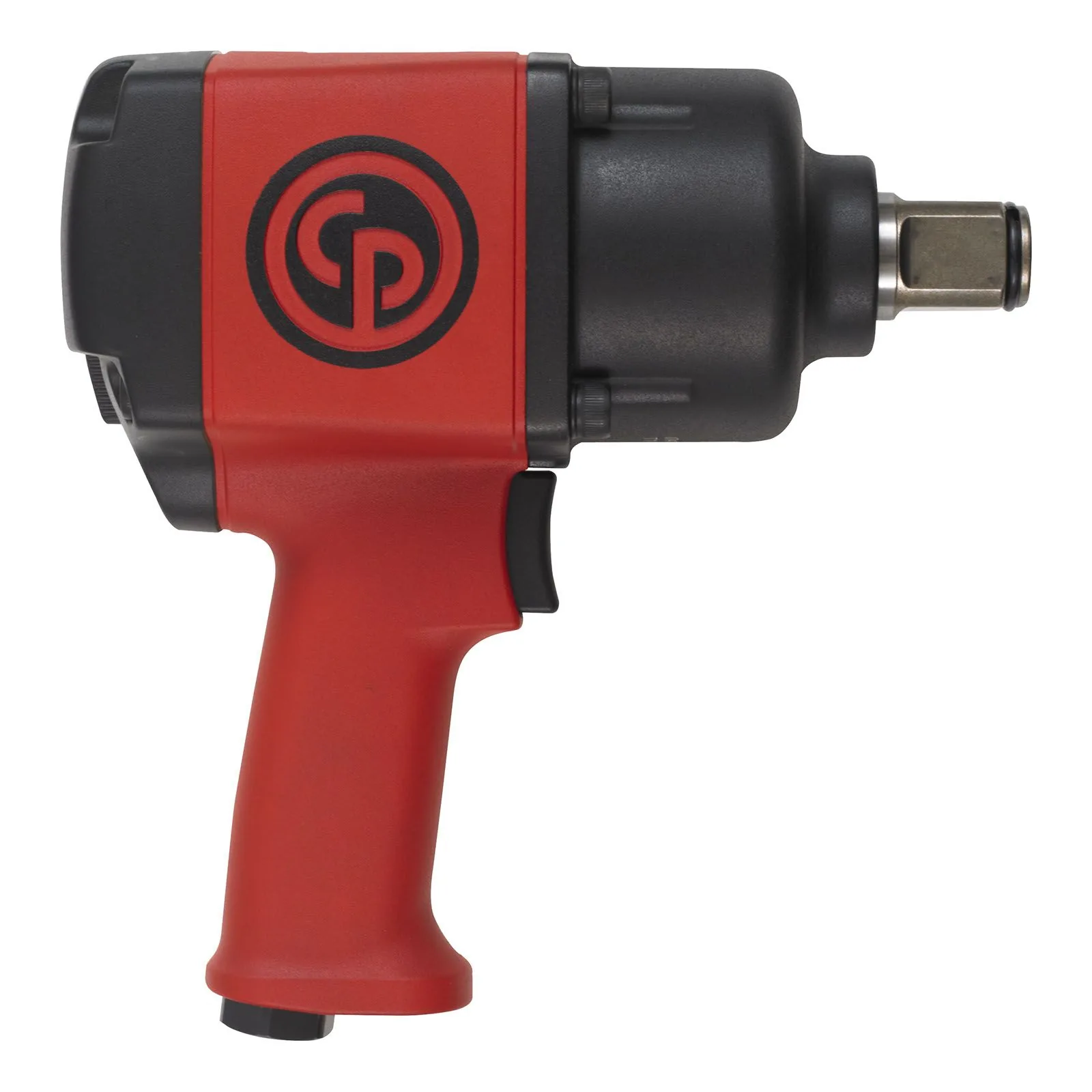

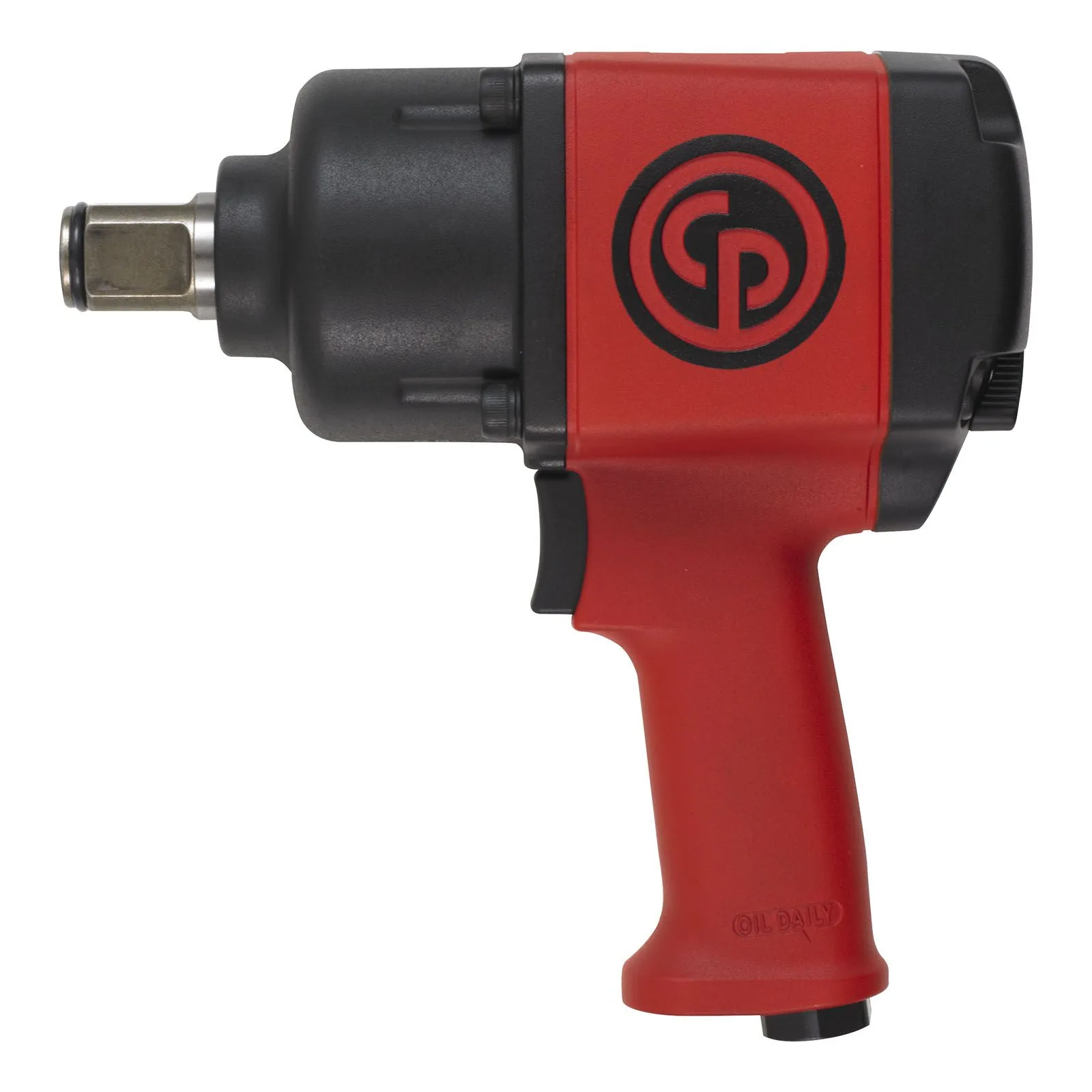

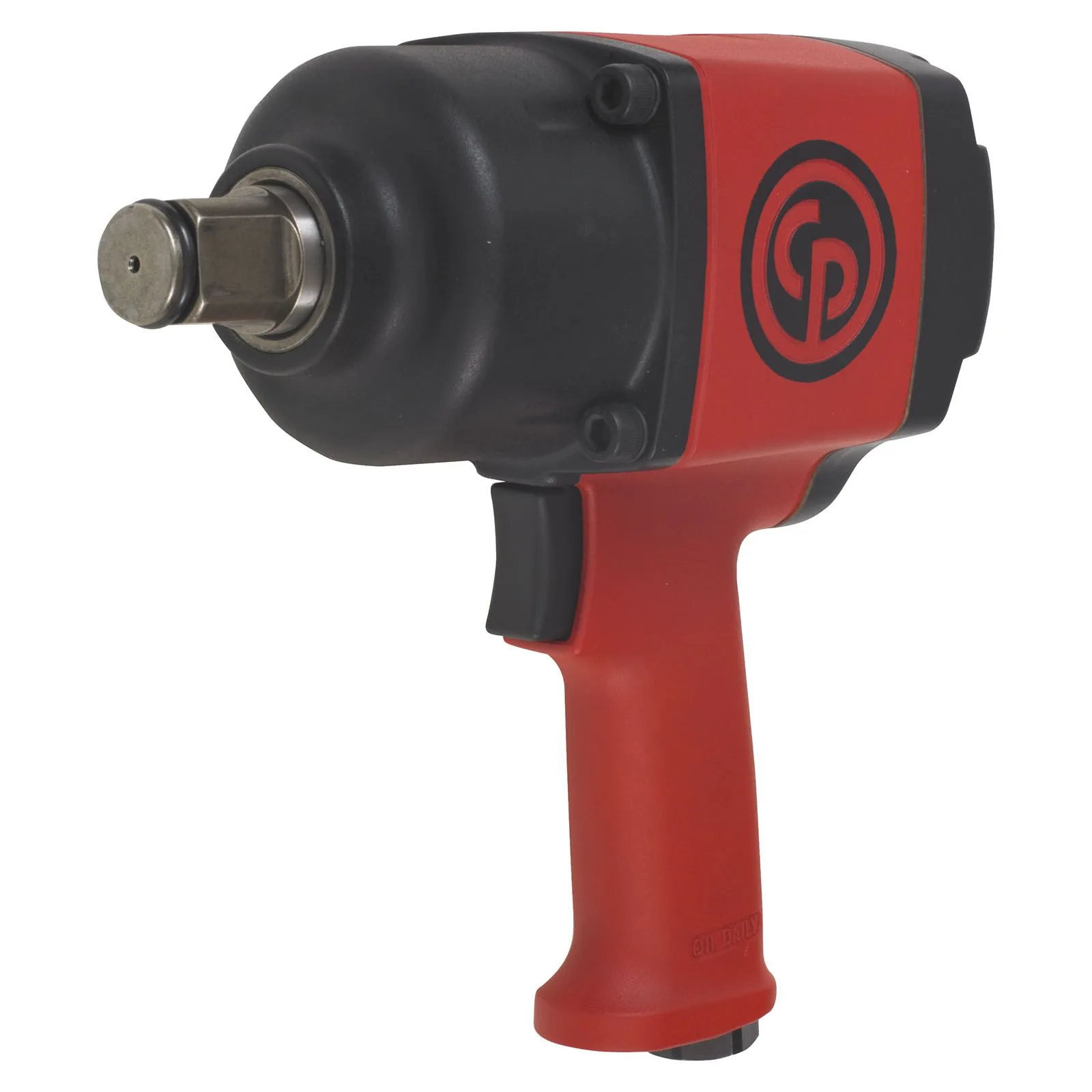

CI-8941077730	Chicago Pneumatic CP7773 - 1 Inch Air Impact Wrench, Pistol Handle, Max Torque Reverse Output 1200 ft. lbf / 1630 Nm, 6300 RPM, Twin Hammer	8941077730	950	1	None	Pneumatic	1200	100	30	3/8	90	0.5	107	96	13.8	6300	9.21	290	1.77	12.1	No	10.4	900	Aluminium	Aluminium	Grease	Pistol	Twin hammer	Sq	Friction ring	Trigger	No	-
