Chicago Pneumatic CP7829 Series – Ratchet Wrenches
Chicago Pneumatic CP7829 Series - Ratchet Wrenches
$241.00 – $246.00

High Torque and Compactness

For operators working in heavy applications and general mechanics who are looking for high torque and compactness, the CP7829 series ratchet wrench is the ideal fastening option.

  • Comfortable ultra-compact (6.6 in/169mm long), lightweight (1.1 lbs/0.5 kg) tool that allows ease of access in hard-to-reach areas
  • Adjustable side exhaust avoids blowing dirt and dust
  • Ergonomic composite grip insulates operators” hands from cold
  • Teasing trigger to better adjust the torque with 225 rpm

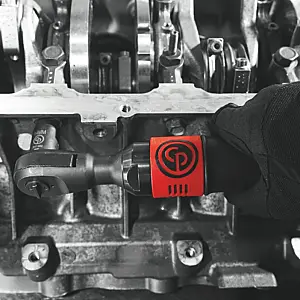

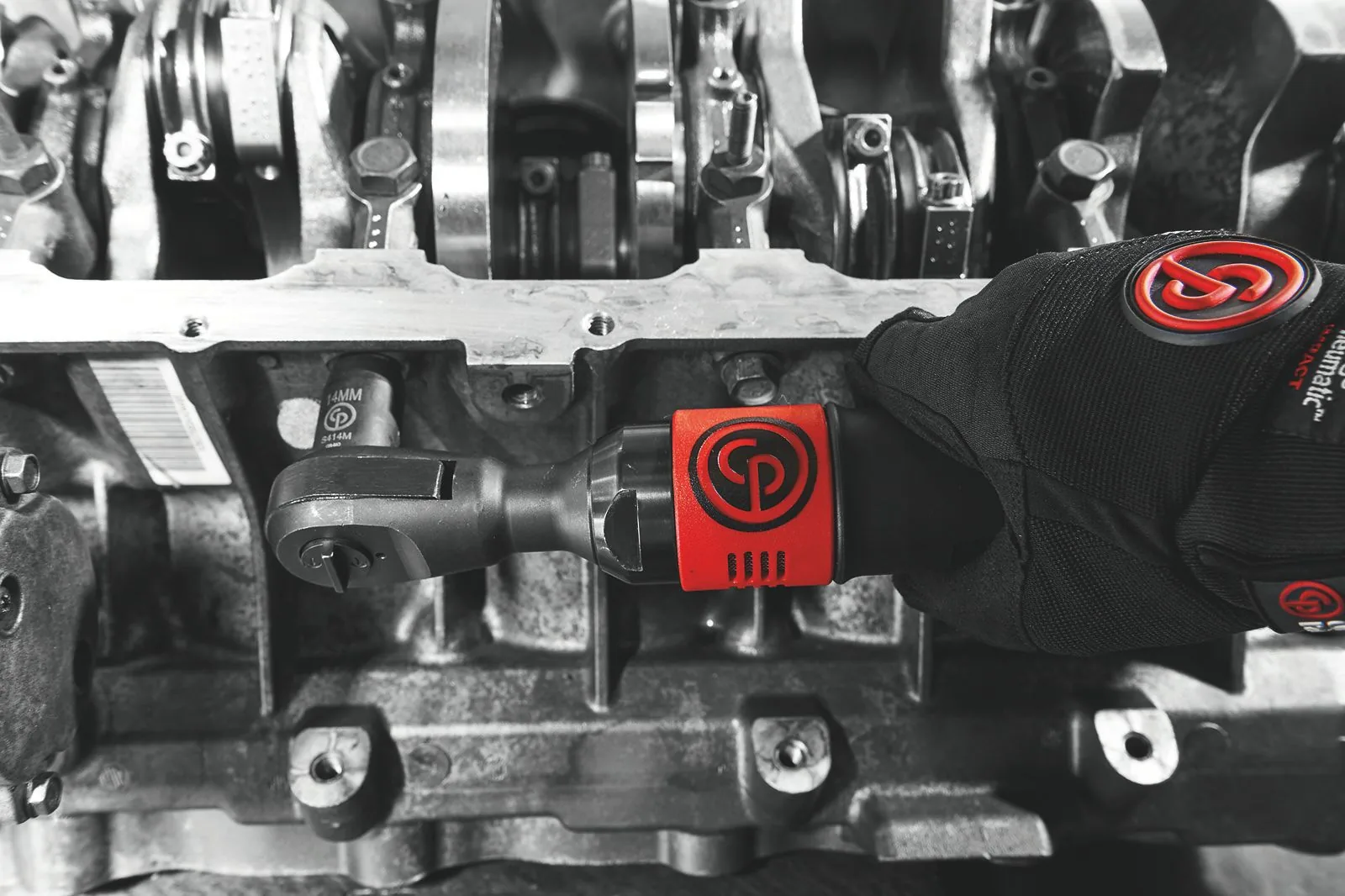

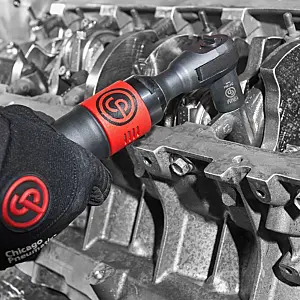

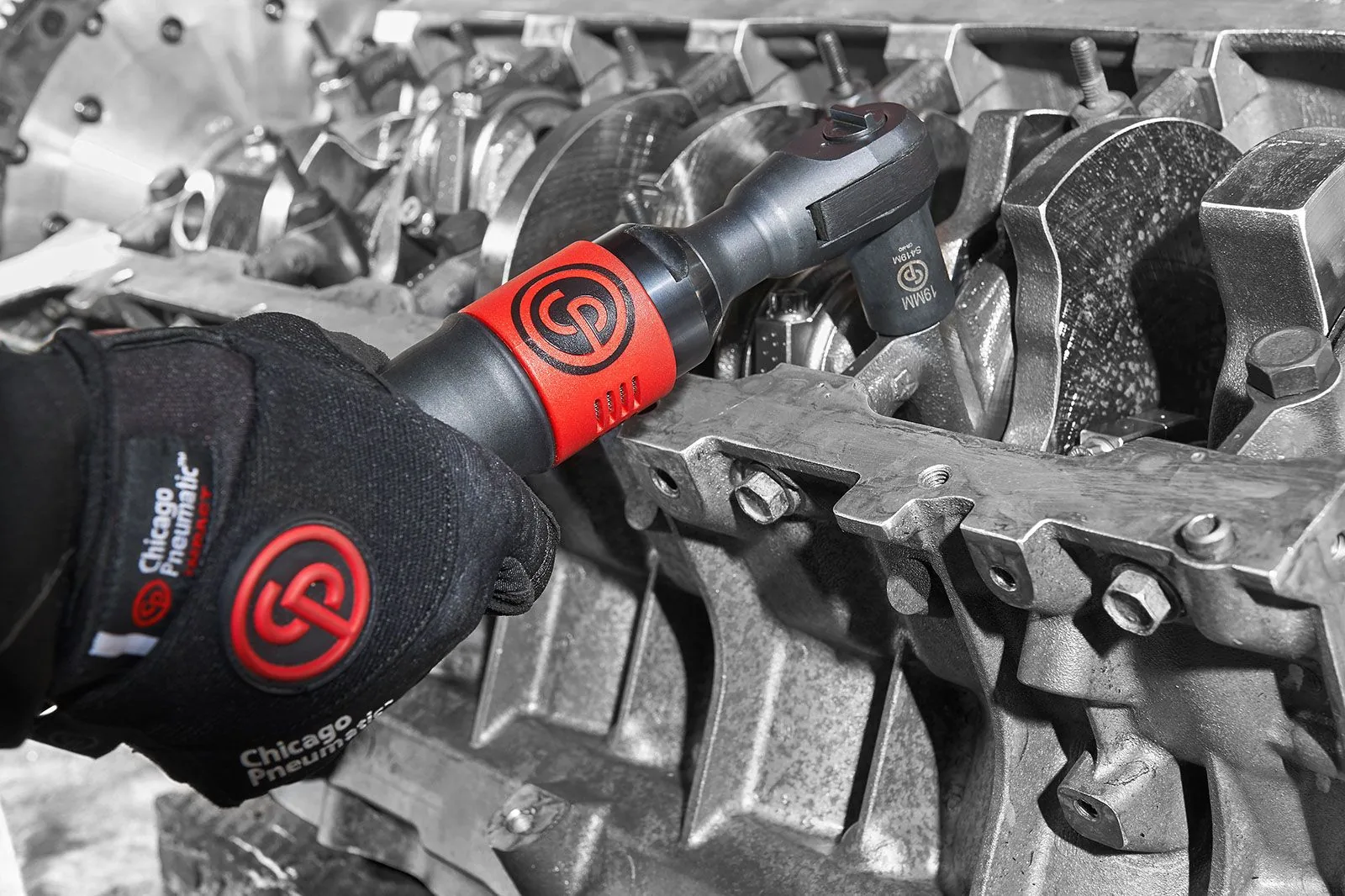

The CP7829 pneumatic ratchet wrench is made in Japan and is designed for a variety of applications such as transmission, suspension work, light engine, dashboard work, and general maintenance. This tool features an adjustable side exhaust, a teasing trigger and delivers torque of up to 70 ft.lbs / 95 Nm. The CP7829 Series is composed of 2 models: 3/8″ and 1/2″ anvil.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Output drive size (in)
Free Speed (rpm)
Max Torque Reverse (ft.lbf)
Length (in)
Vibration (m/s²)
Power Source
Air consumption at free speed (cfm)
Max Working Torque Reverse (ft.lbf)
Min Working Torque Reverse (ft.lbf)
Tool Weight (lb)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Main Material type
Output drive type
Output retainer type
Starting System
Air Inlet Thread Type
CI-8941078293
CP7829 - 3/8 in
8941078293
3/8
225
70.1
10.71
8.6
Pneumatic
23
50.2
11.1
2.72
96
85
8.2
11
1/4
90
10
Composite
Sq
Ball detent
Lever
NPTF
CI-8941078294
CP7829H - 1/2 in
8941078294
1/2
225
70.1
10.71
8.6
Pneumatic
23
54.6
11.1
2.73
96
85
8.2
11
1/4
90
10
Composite
Sq
Ball detent
Lever
NPTF
