Chicago Pneumatic CP785 Series – Drills

$195.00 – $328.00

Visit Chicago Pneumatic store

Chicago Pneumatic CP785 Series – Drills

$195.00 – $328.00

Chicago Pneumatic CP785 Series - Drills

$195.00 – $328.00

Chuck max capacity (in): No selection

More options

Chuck Type: No selection

More options

Reversible: No selection

More options

Clear

Gallery
Description
Accessories
Specifications

Durability and Smooth Operation

For operators working in body shops or general maintenance applications such as drilling, honing, reaming and hole sawing who look for durable drills, CP785 Series is the drills that you need.

Powerful and efficient motor resists to stalls
Handle exhaust allowing the air to flow away from the operator

Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP785 Series offers high durability with its aluminum housing. This model belongs to the CP785 Series which is composed of 3 models: 1 x 3/8″ drills (key & keyless chuck) and 1 x 1/2″ drills (with side handle).

Shop the full range of Chicago Pneumatic tool accessories at Crowder Supply and it works with our related products. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Specifications

SKU	Product Name	Vendor SKU	Chuck max capacity (in)	Chuck Type	Reversible	Max power	Power Source	Sound Power (dB(A))	Sound Pressure (dB(A))	Air Consumption At Load (cfm)	Air Inlet Thread Size (in)	Max Dynamic Air Working Pressure (psi)	Min Hose Diam (mm)	Stall Torque (Nm)	Free Speed (rpm)	Air consumption at free speed (cfm)	Length (in)	Tool Weight (lb)	Handle type	Main Material type	Starting System	Vibration (m/s²)

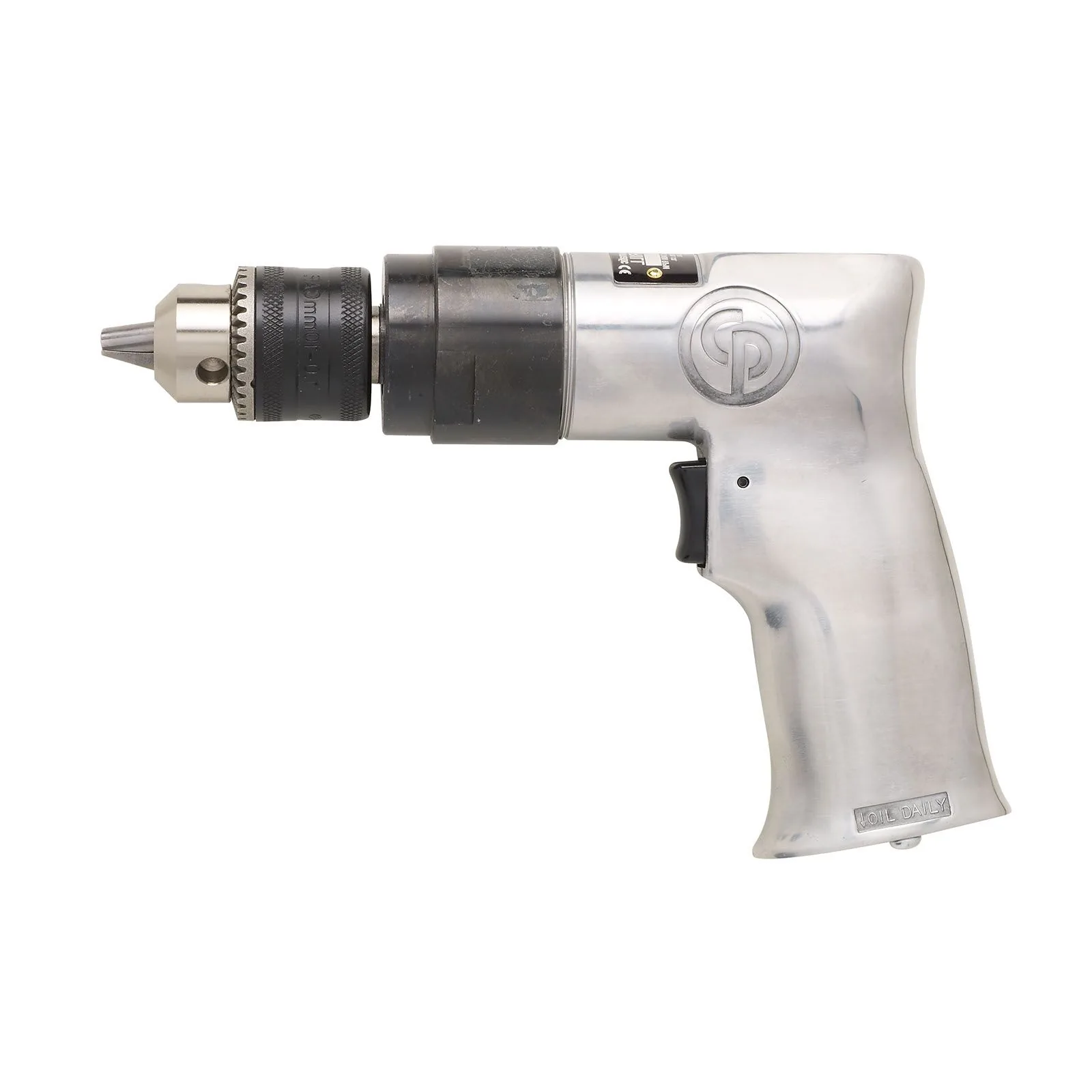

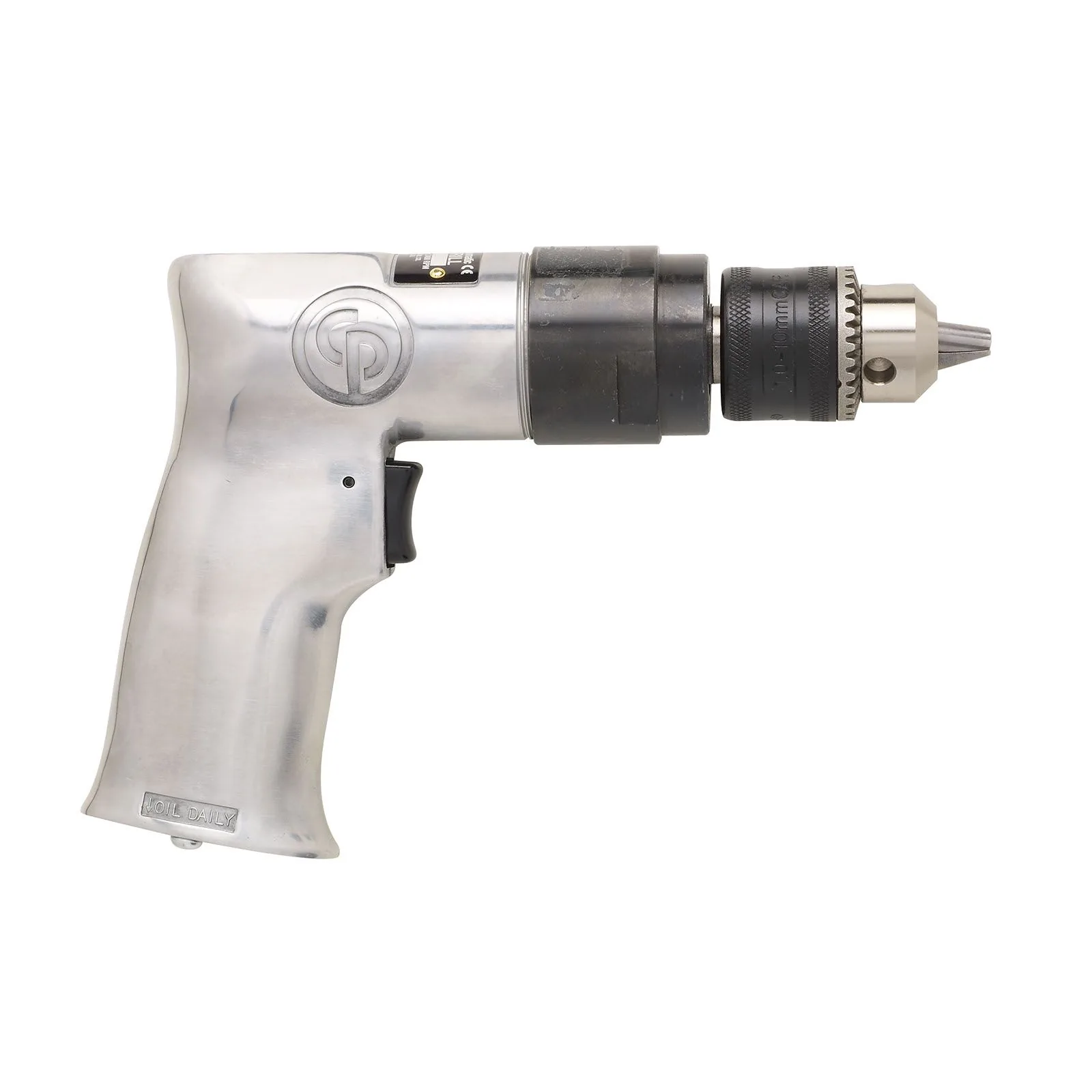

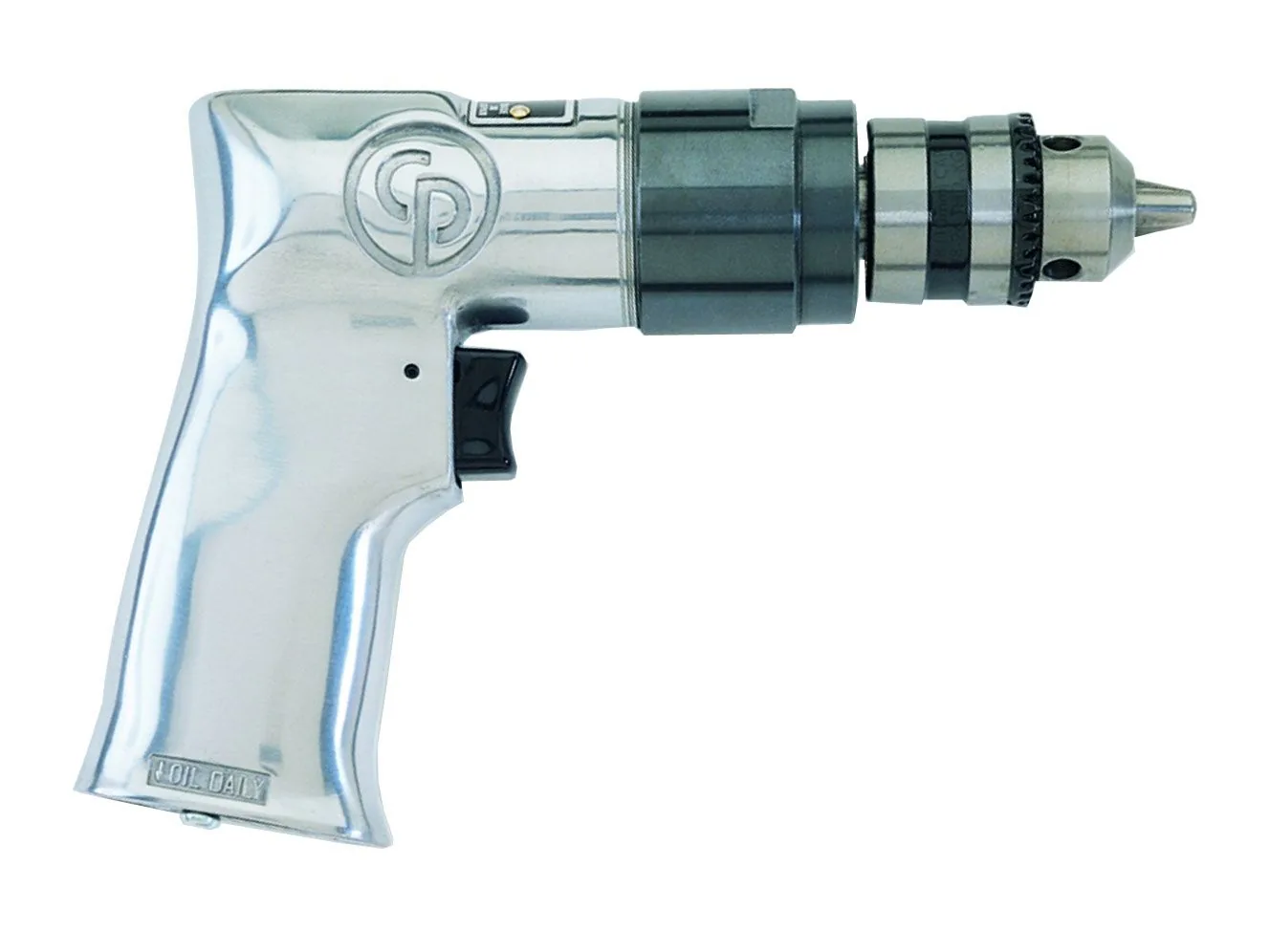

CI-T022698	Chicago Pneumatic CP785 - 3/8 Inch (10 mm) Air Drill, Keyed Chuck, Aluminum Housing, Pistol Handle, 0.5 HP / 370 W, Stall Torque 3.1 ft. lbf / 4.2 Nm - 2400 RPM	T022698	3/8	Keyed	No	0.5	Pneumatic	101	90	17	1/4	90	0.38	3.1	2400	19	7.01	2.25	Pistol	Aluminum	Trigger	-

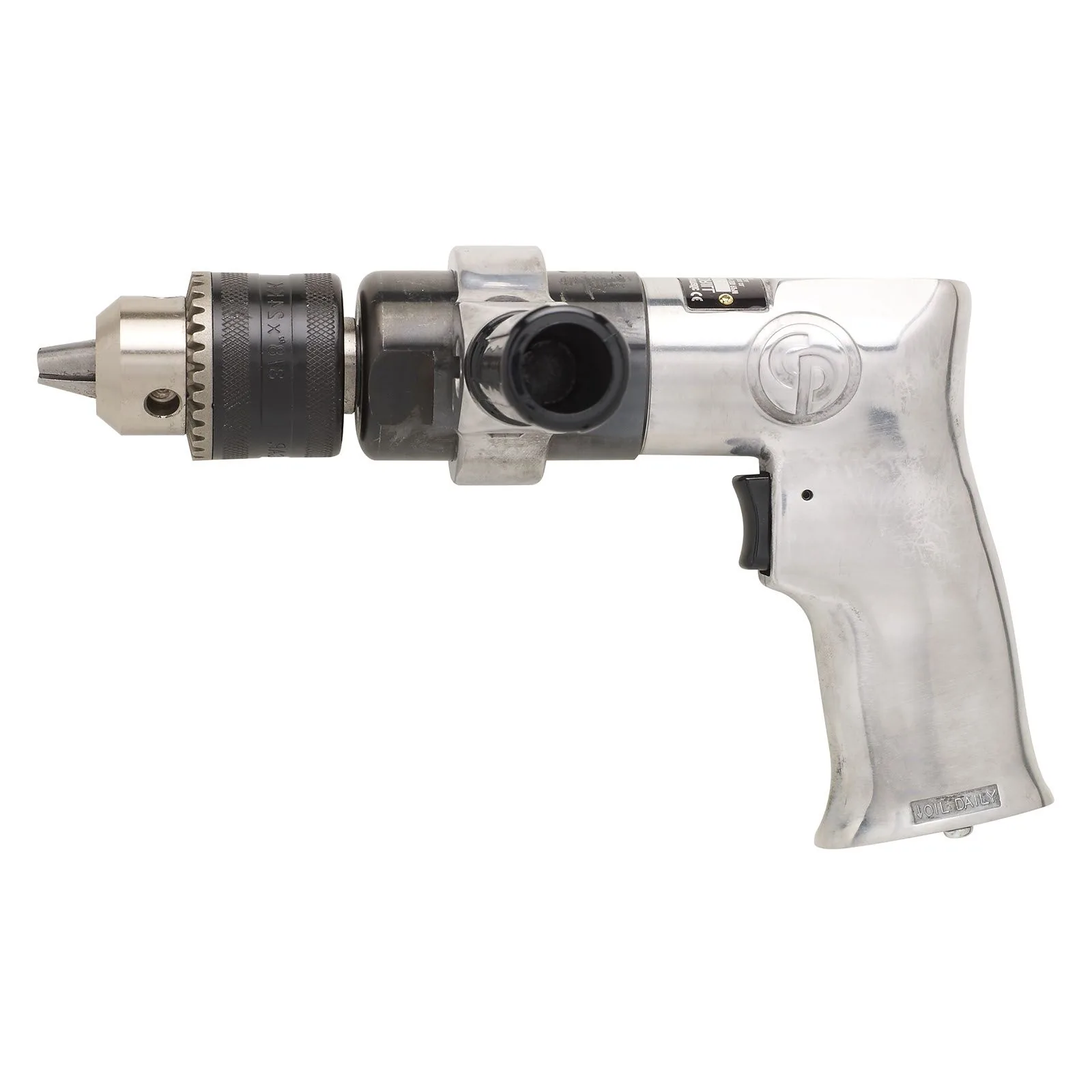

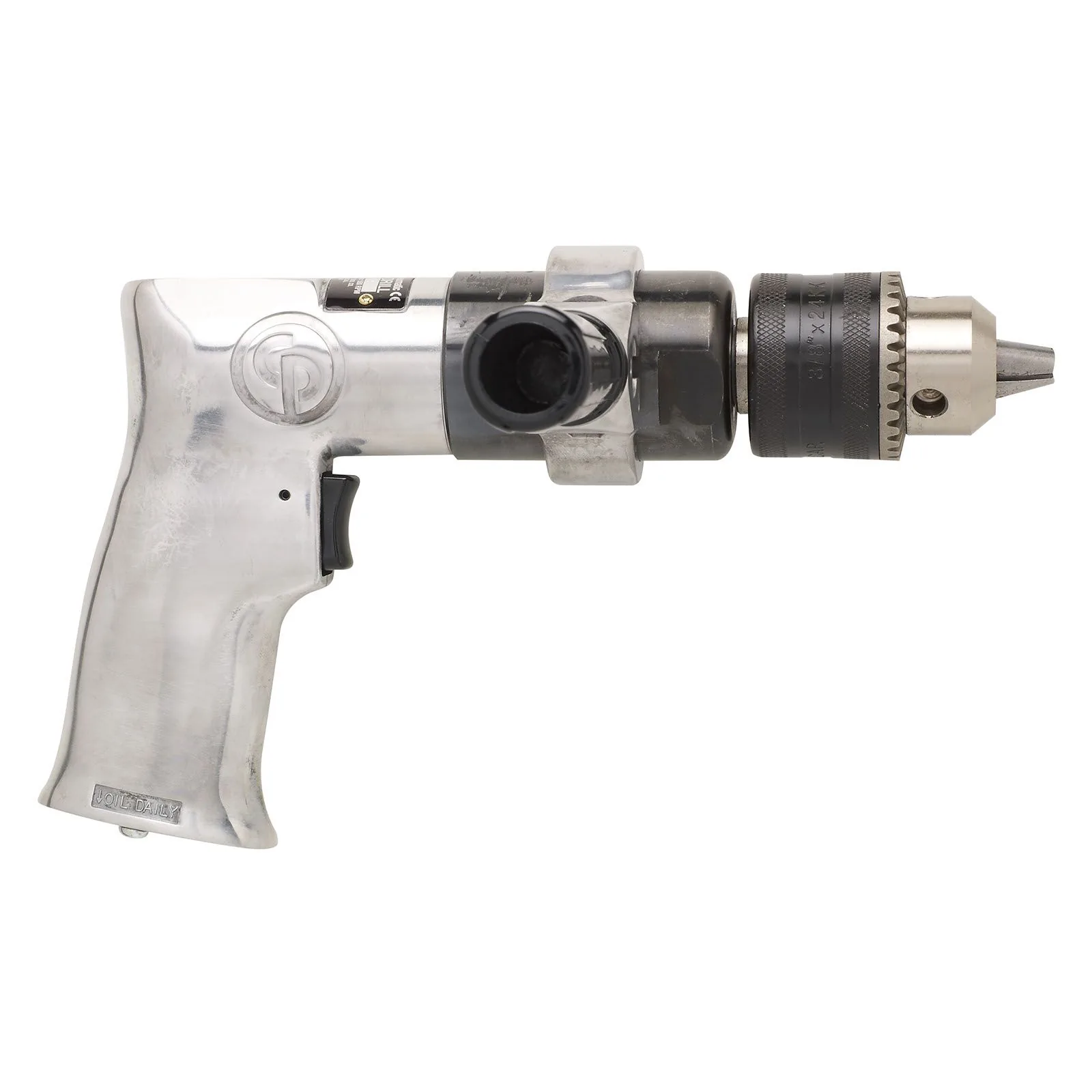

CI-T024134	Chicago Pneumatic CP785H - 1/2 Inch (13 mm) Air Drill, Keyed Chuck, Aluminum Housing, Pistol Handle, 0.5 HP / 370 W, Stall Torque 11.4 ft. lbf / 15.4 Nm - 500 RPM	T024134	1/2	Keyed	No	0.5	Pneumatic	107	96	12	1/4	90	0.38	11.4	500	31	7.76	3	Pistol	Aluminum	Trigger	<2.5

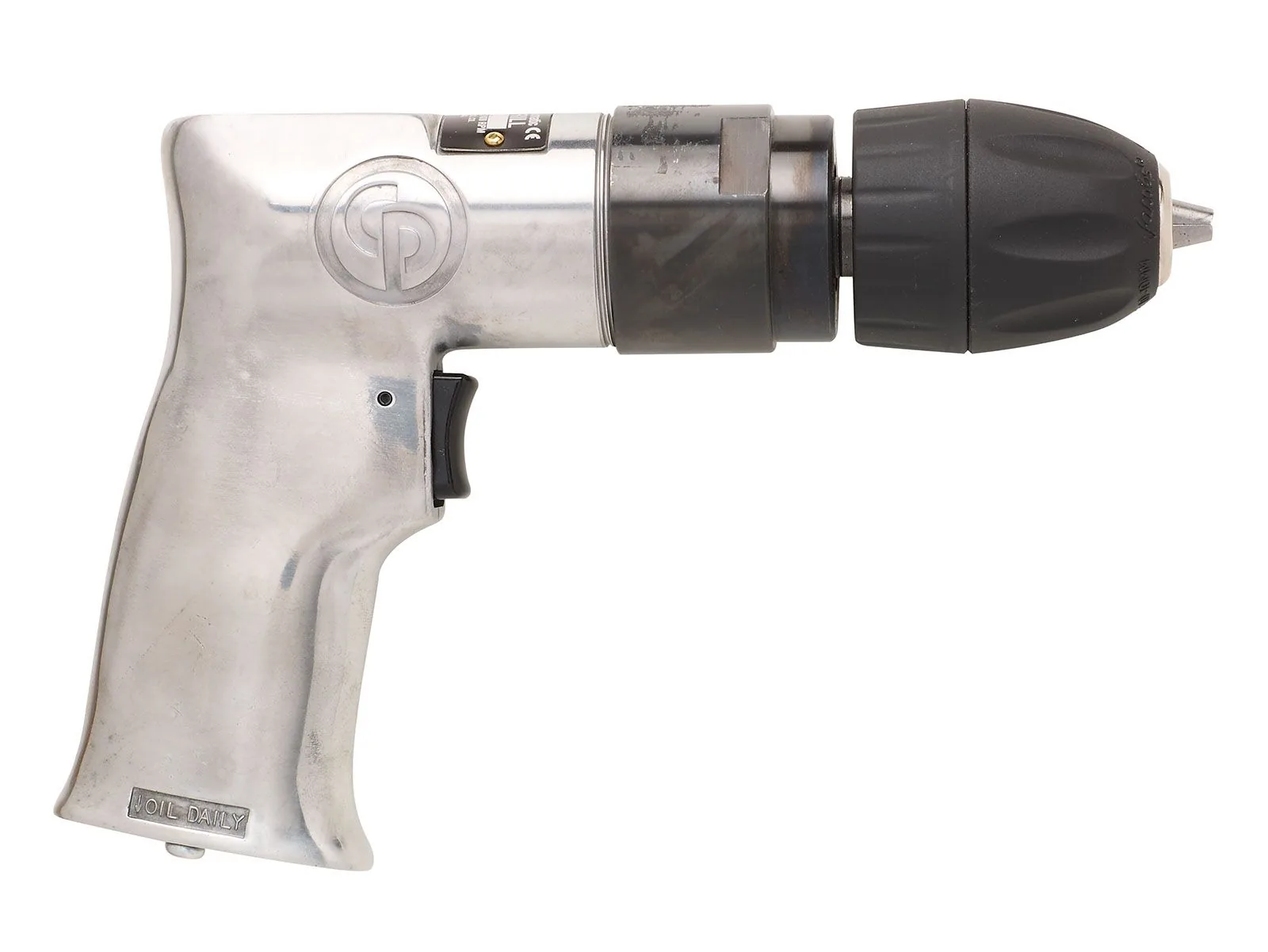

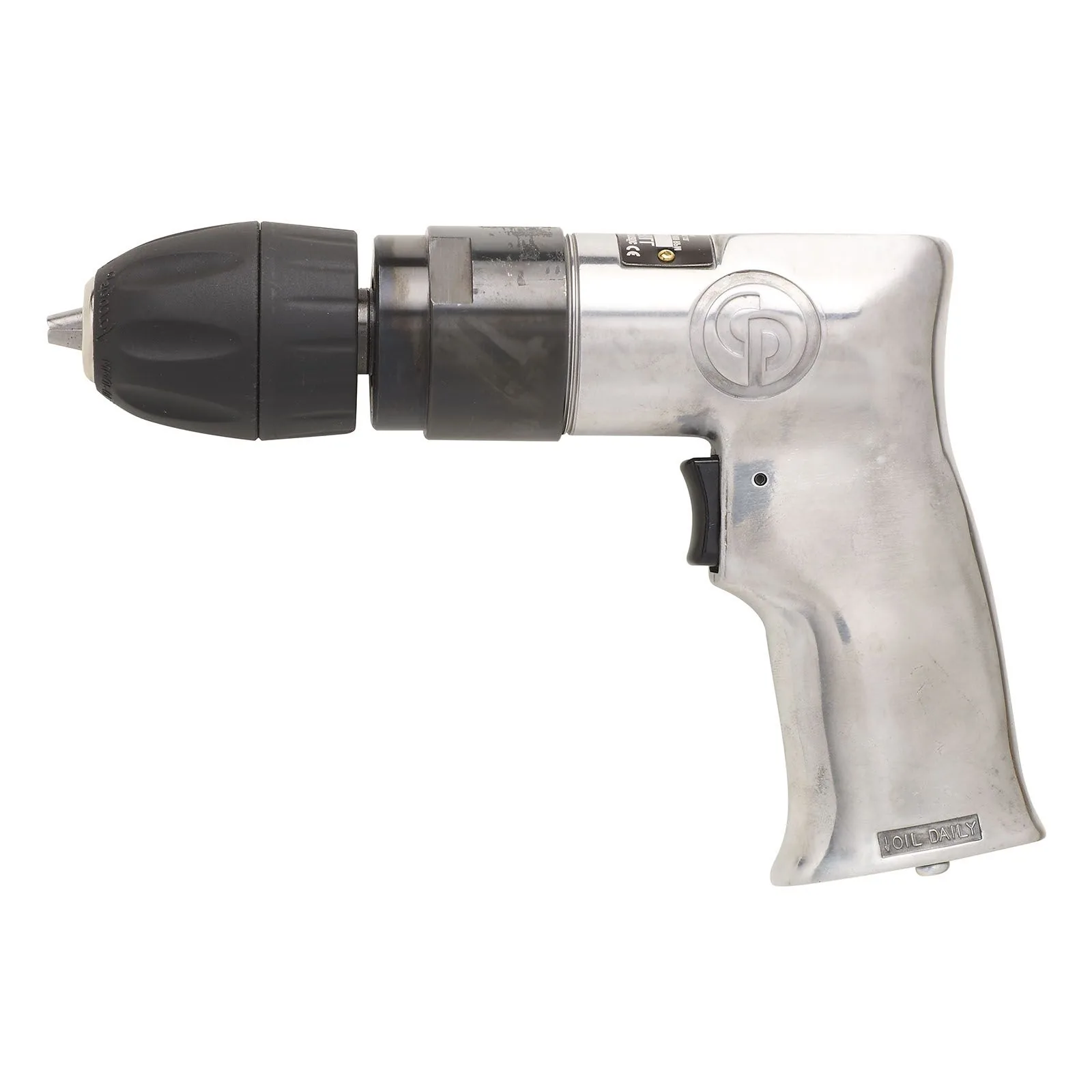

CI-T024242	Chicago Pneumatic CP785QC - 3/8 Inch (10 mm) Air Drill, Keyless Chuck, Aluminum Housing, Pistol Handle, 0.5 HP / 370 W, Stall Torque 3.1 ft. lbf / 4.2 Nm - 2400 RPM	T024242	3/8	Keyless	No	0.5	Pneumatic	101	90	12	1/4	90	0.38	3.1	2400	19	7.01	2.25	Pistol	Aluminum	Trigger	<2.5
