Chicago Pneumatic CP789 Series – Drills

Chicago Pneumatic CP789 Series – Drills

$320.00$435.00

Add to Cart
Chicago Pneumatic CP789 Series – Drills
Chicago Pneumatic CP789 Series - Drills
$320.00$435.00

Reversible, High Torque & Durability

For operators working in body shops or general maintenance applications such as drilling, honing, reaming and hole sawing who look for powerful and durable drills, CP789 series is the drill that you need.

  • Thermoplastic rubber handle grip for better operator comfort
  • Teasing trigger allowing more control to start holes
  • Industrial quality Jacobs chuck and gearbox for high durability

Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP785 Series offers high performance with its power of 0.4 hp (320 W) and high durability with its aluminum housing, its industrial quality Jacobs chuck and gearbox. This model belongs to the CP789 series which is composed of 3 models: 2 x 3/8″ drills (26,000 and 42,000 rpm) and 1 x 1/2″ drills (with side handle).

Accessories

Specifications

SKU
Product Name
Vendor SKU
Chuck max capacity (in)
Free Speed (rpm)
Max power
Chuck Type
Reversible
Power Source
Sound Power (dB(A))
Sound Pressure (dB(A))
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Stall Torque (Nm)
Air consumption at free speed (cfm)
Length (in)
Tool Weight (lb)
Handle type
Main Material type
Starting System
Vibration (m/s²)
CI-T025165

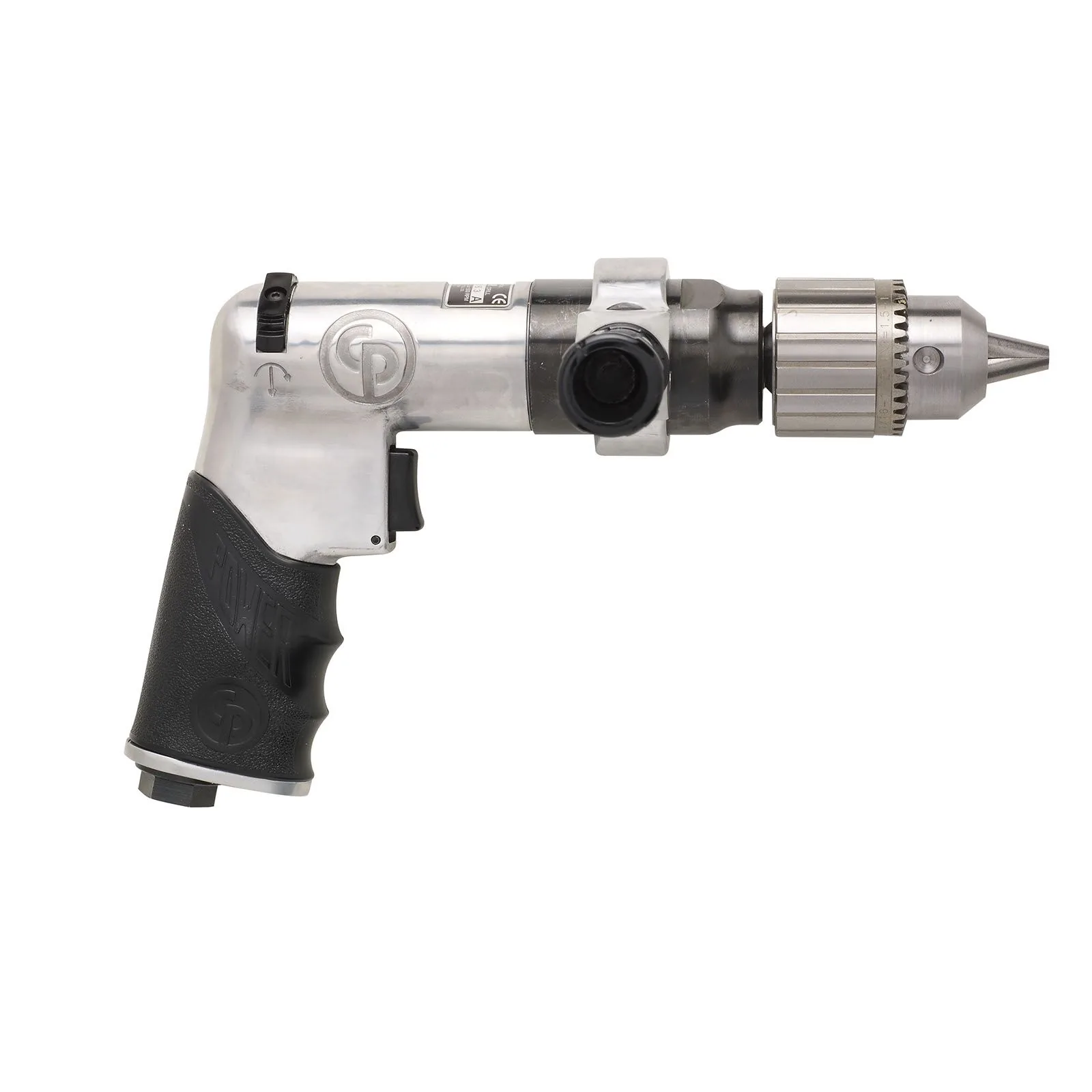

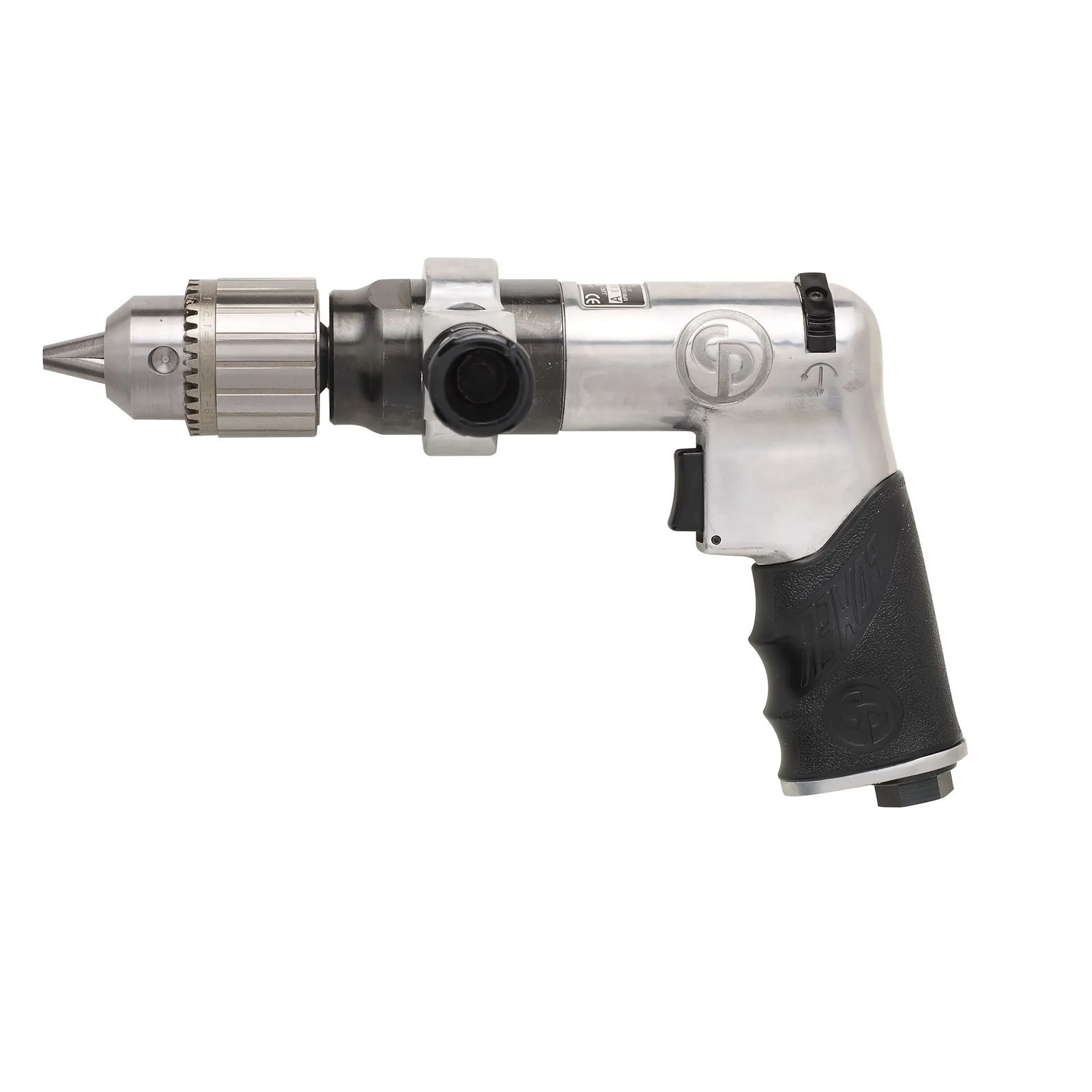

CP789HR - 1/2 in, 500 rpm
T025165
1/2
500
0.43
Keyed
Yes
Pneumatic
110
99
29
1/4
90
0.38
15.6
31
7.99
3.24
Pistol
Aluminum
Trigger
<2.5
CI-T025180

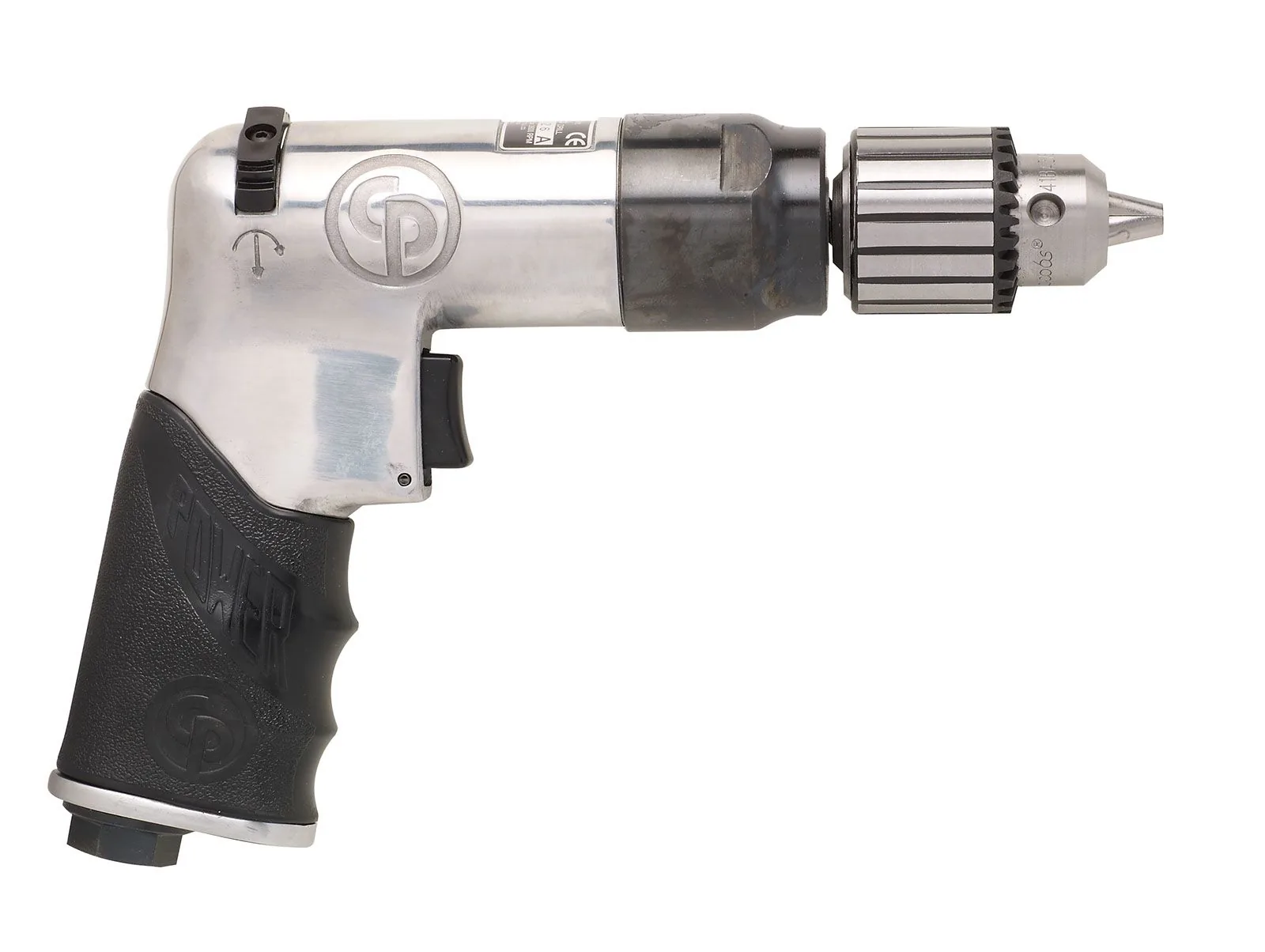

CP789R-26 - 3/8 in, 2600 rpm
T025180
3/8
2600
0.43
Keyed
Yes
Pneumatic
106
95
29
1/4
90
0.38
3.1
30
7.01
2.49
Pistol
Aluminum
Trigger
<2.5
CI-T025198

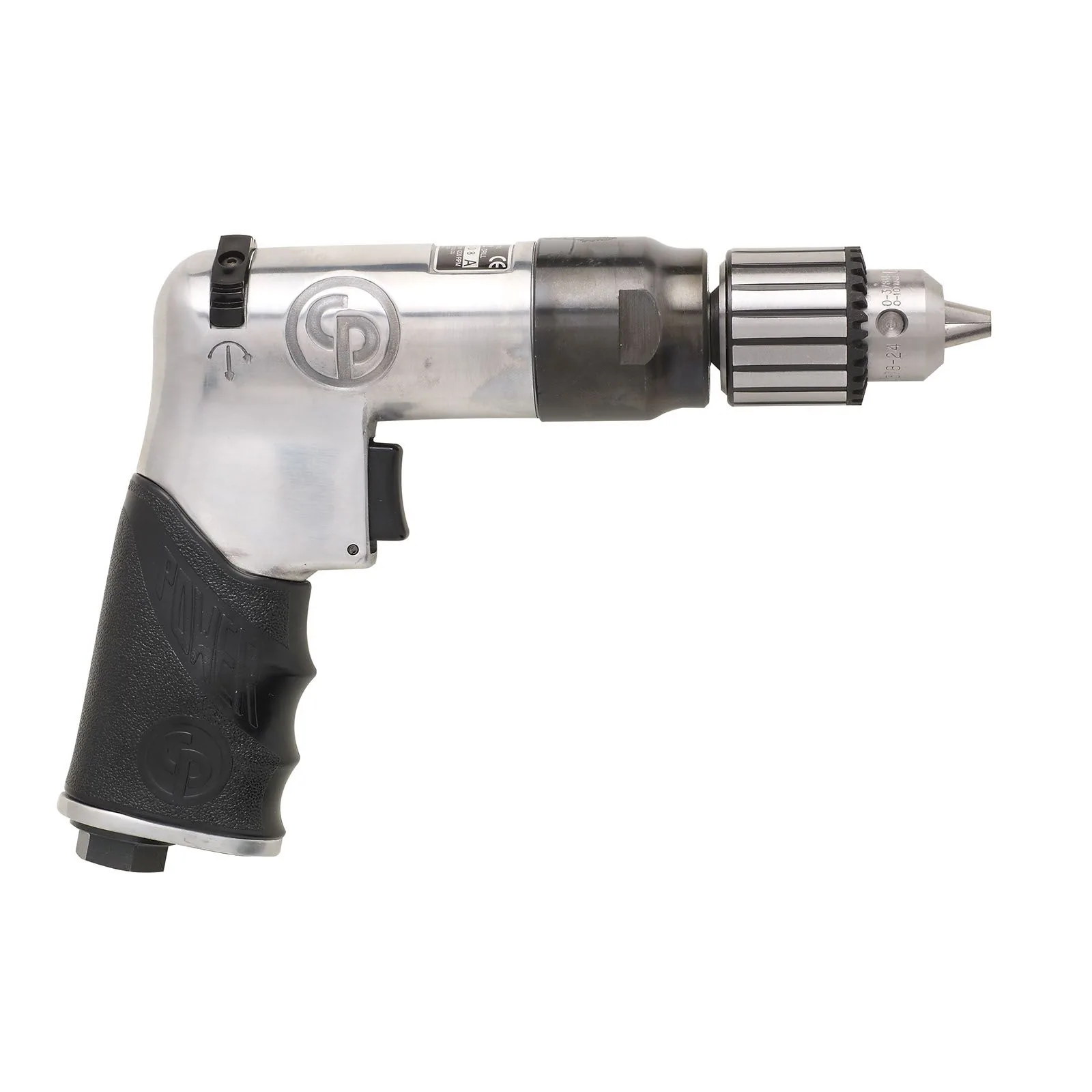

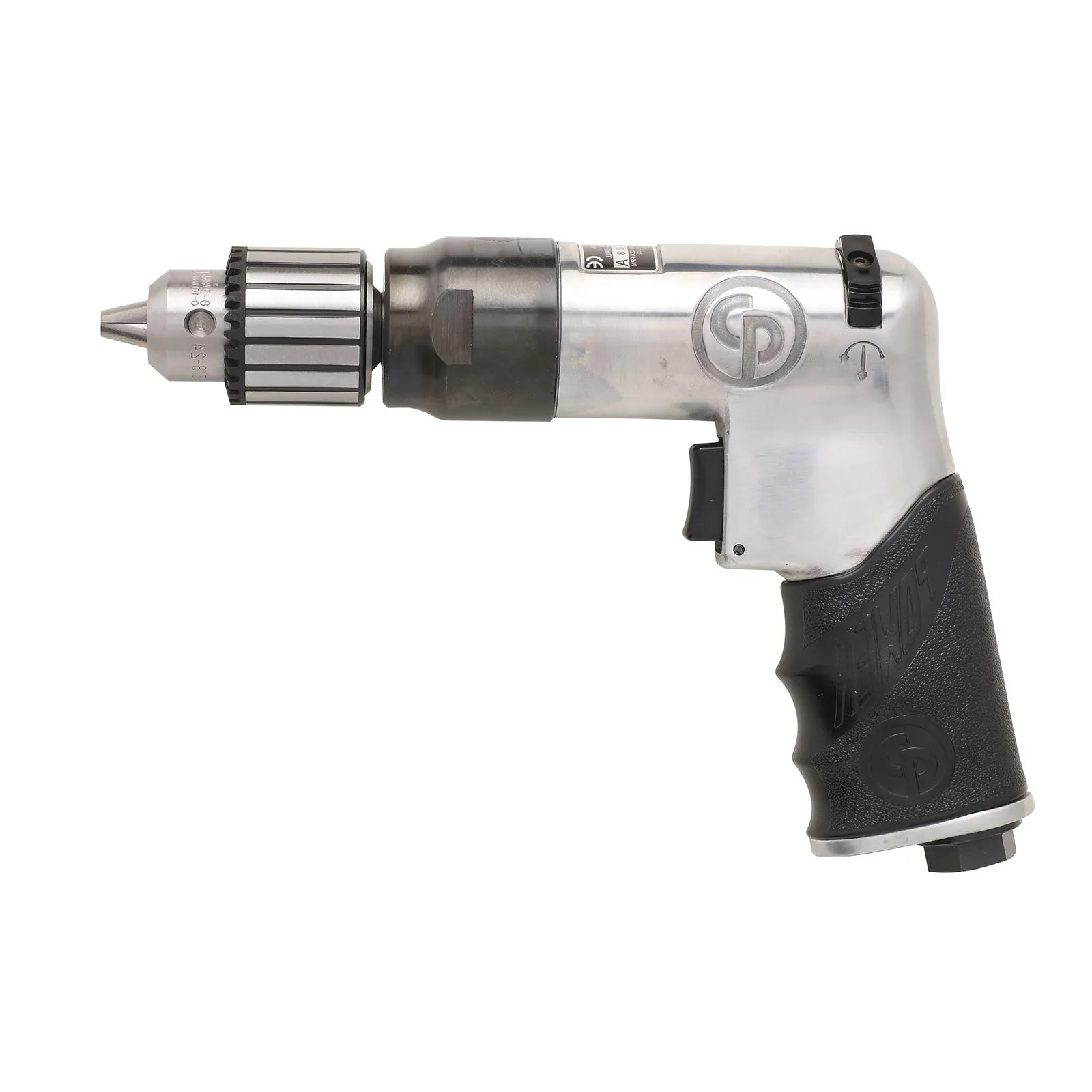

CP789R-42 - 3/8 in, 4200 rpm
T025198
3/8
4200
0.43
Keyed
Yes
Pneumatic
107
96
29
1/4
90
0.38
1.8
30
7.01
2.49
Pistol
Aluminum
Trigger
<2.5
