Versatile, Robust & Comfortable

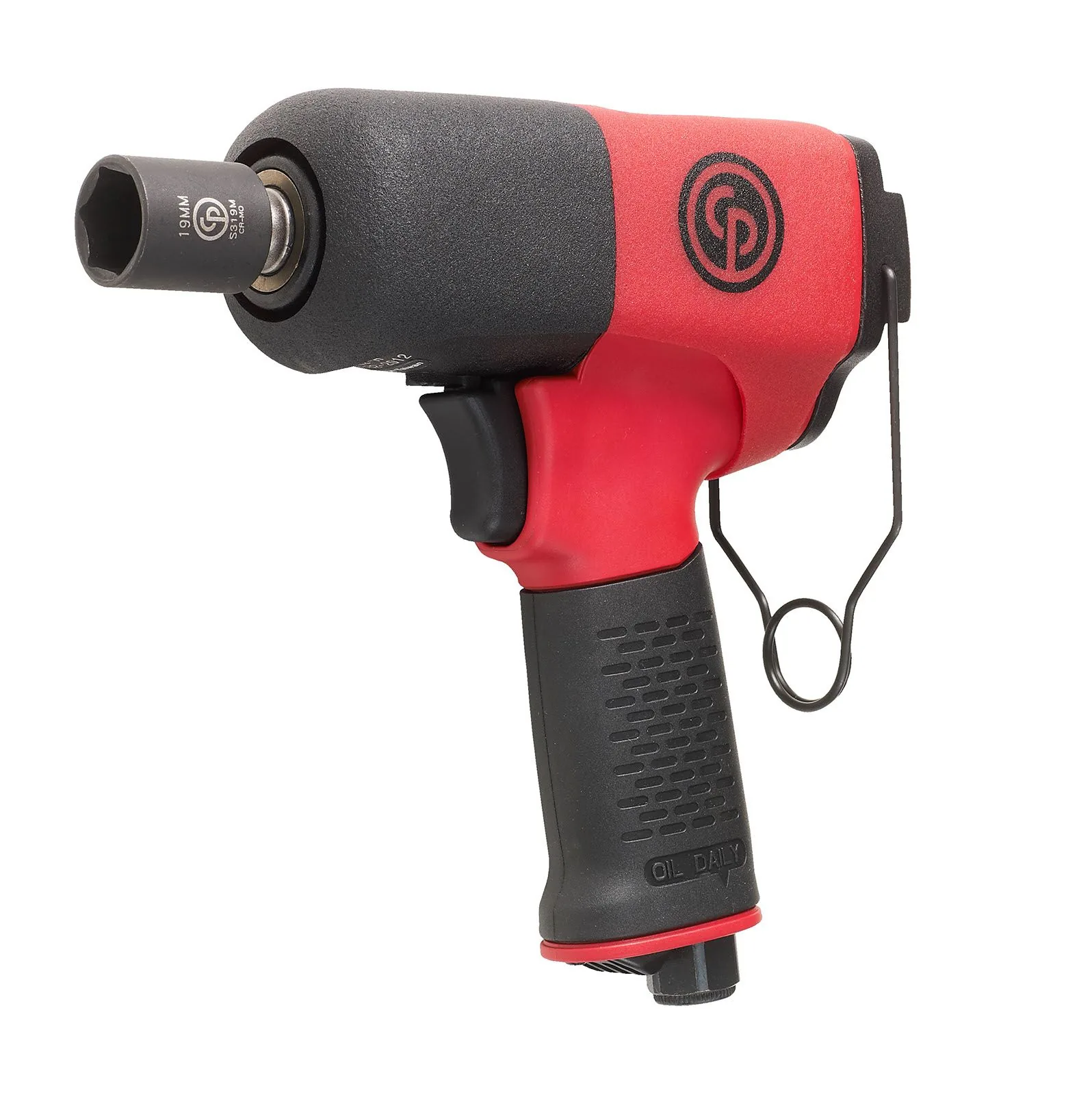

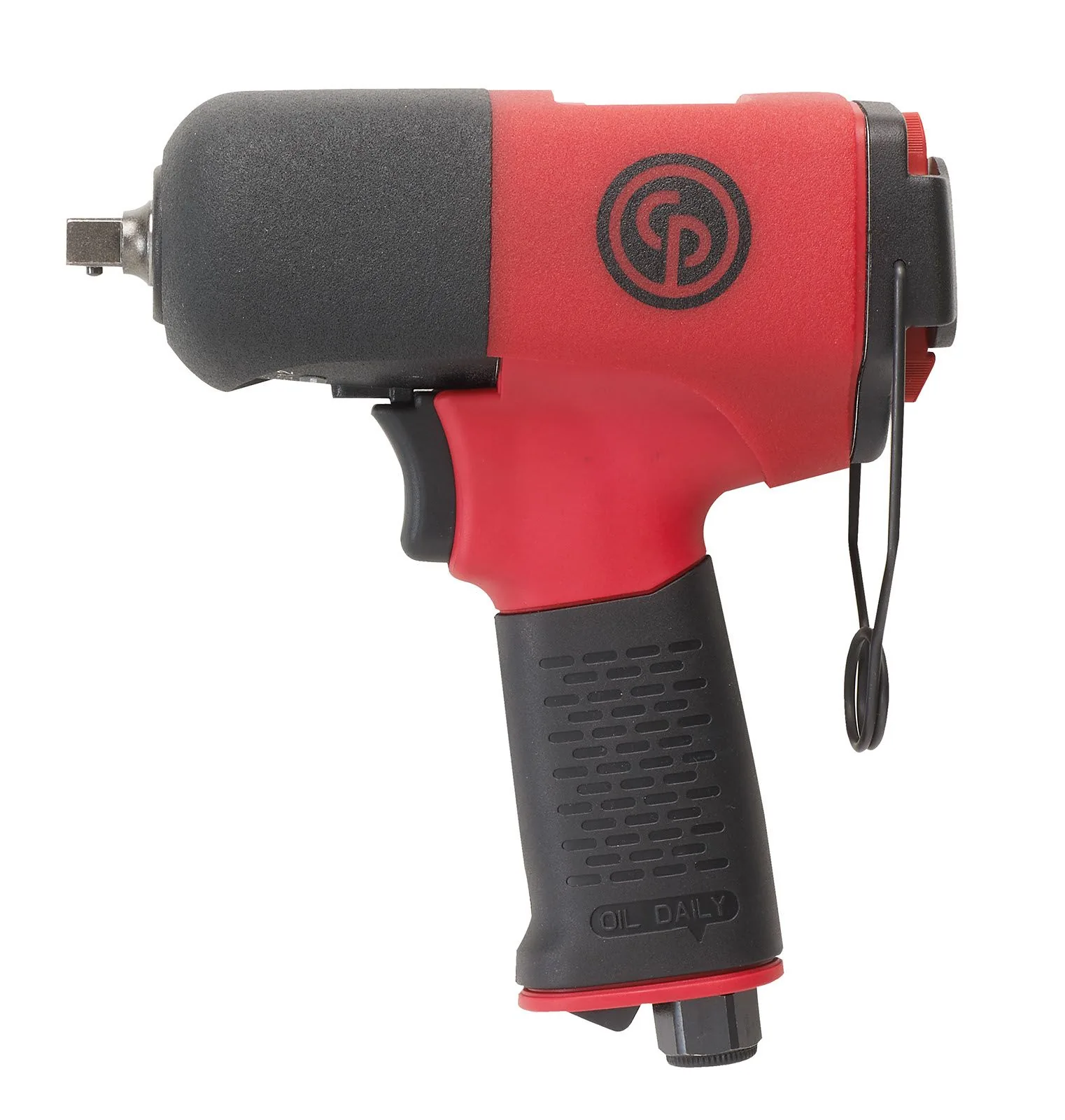

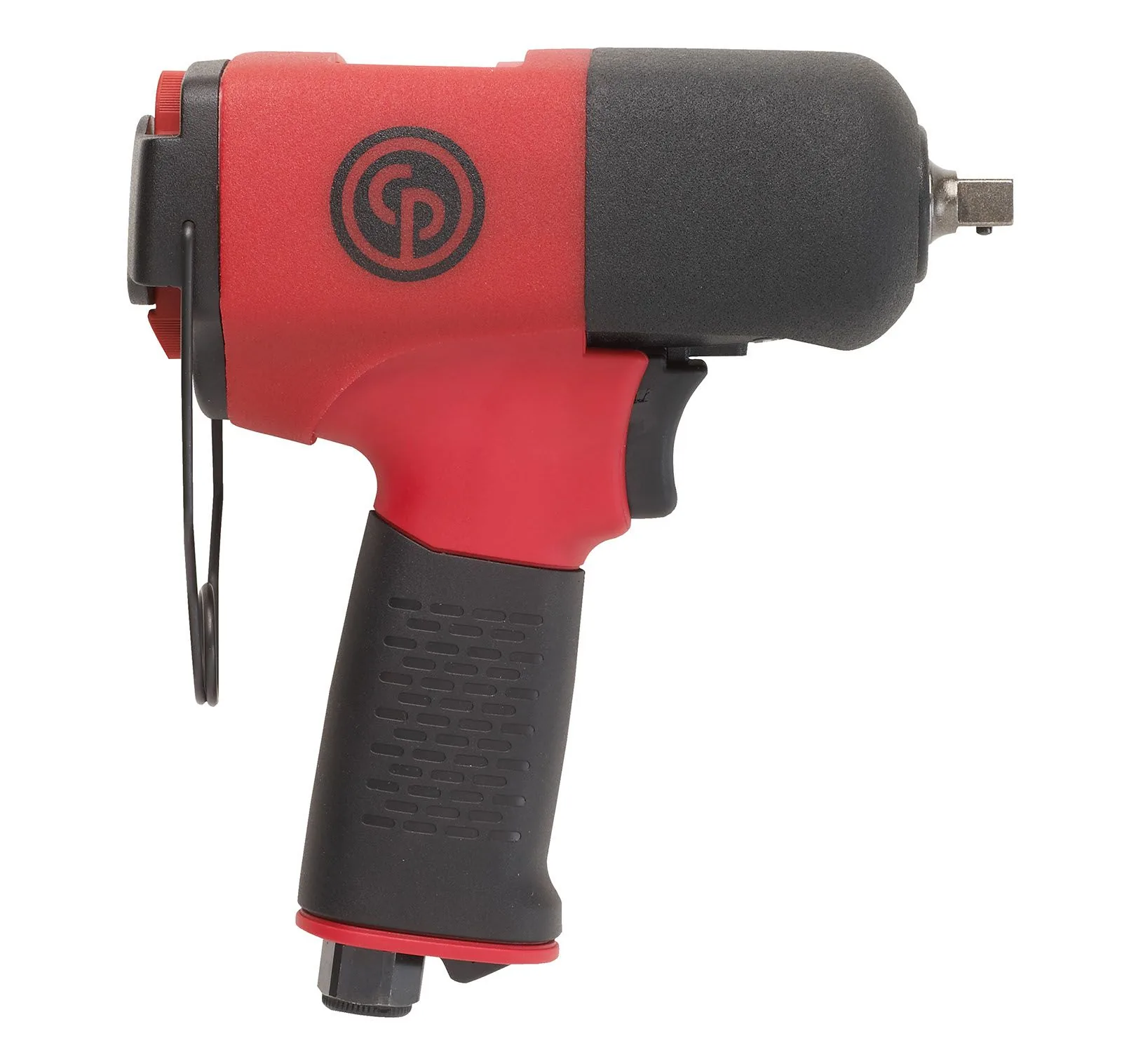

Designed for intensive use in industrial maintenance and productions, the CP822/32/42/52/72 series is an ultralight, high torque tool for 3/8″, 7/16″ Hex, 1/2″, and 3/4″ drive bolting applications.

The twin hammer clutch mechanism offers a high power/weight ratio.
Low vibration sensation for operator comfort, even at very high torque.
Lightweight composite body and aluminium clutch housing
3 power settings ensure high progressive maximum torque for smooth operation.
Integrated suspension bail for use with balancer

This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8″ to 3/4″.

Specifications

	CI-6151590180	CI-6151590230	CI-6151590190	CI-6151590200	CI-6151590240	CI-6151590210	CI-6151590250	CI-6151590260	CI-6151590220	CI-8940171708
SKU	CI-6151590180	CI-6151590230	CI-6151590190	CI-6151590200	CI-6151590240	CI-6151590210	CI-6151590250	CI-6151590260	CI-6151590220	CI-8940171708
Product Name	CP8222-P - 295 ft.lbf, 3/8 in, Pin Retainer, No	CP8222-R - 295 ft.lbf, 3/8 in, Friction Ring, No	CP8232-QC - 295 ft.lbf, 7/16 in, Quick Change, No	CP8242-P - 295 ft.lbf, 1/2 in, Pin Retainer, No	CP8242-R - 295 ft.lbf, 1/2 in, Friction Ring, No	CP8252-P - 553 ft.lbf, 1/2 in, Pin Retainer, No	CP8252-R - 553 ft.lbf, 1/2 in, Friction Ring, No	CP8272-D - 922 ft.lbf, 3/4 in, Dual, No	CP8272-P - 922 ft.lbf, 3/4 in, Pin Retainer, No	CP8272D+TUN - Dual, 3/4, Yes, 922
Vendor SKU	6151590180	6151590230	6151590190	6151590200	6151590240	6151590210	6151590250	6151590260	6151590220	8940171708
Max Working Torque Fwd (ft.lbf)	295	295	295	295	295	553	553	922	922	922
Output drive size (in)	3/8	3/8	7/16	1/2	1/2	1/2	1/2	3/4	3/4	3/4
Output retainer type	Pin retainer	Friction ring	Quick change	Pin retainer	Friction ring	Pin retainer	Friction ring	Dual	Pin retainer	Dual
Pack	No	No	No	No	No	No	No	No	No	Yes
Power Source	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Max Torque Reverse (ft.lbf)	332	332	332	406	406	701	701	1220	1220	-
Min Working Torque Fwd (ft.lbf)	59	59	59	59	59	111	111	184	184	-
Air Inlet Thread Size (in)	1/4	1/4	1/4	1/4	1/4	1/4	1/4	3/8	3/8	-
Max Dynamic Air Working Pressure (psi)	90	90	90	90	90	90	90	90	90	-
Min Hose Diam (mm)	0.38	0.38	0.38	0.38	0.38	0.38	0.38	0.5	0.5	-
Sound Power (dB(A))	100	100	100	100	100	105	105	107	107	-
Sound Pressure (dB(A))	89	89	89	89	89	94	94	96	96	-
Uncertainty Vibration-k (ft/s²)	7.9	7.9	10.5	10.5	10.5	11.8	11.8	22.3	22.3	-
Free Speed (rpm)	11500	11500	11500	11500	11500	9000	9000	6500	6500	-
Length (in)	6.97	6.97	6.97	6.97	6.97	7.87	7.87	9.06	9.06	-
Power Weight Ratio (Nm/kg)	370	370	320	450	450	470	470	500	500	-
Side To Center (in)	1.18	1.18	1.18	1.18	1.18	1.38	1.38	1.57	1.57	-
Tool Weight (lb)	2.65	2.65	3.09	2.65	2.65	4.41	4.41	8.05	7.28	-
Torque limited	No	No	No	No	No	No	No	No	No	No
Vibration (m/s²)	5.8	5.8	6.6	6.6	6.6	8.8	8.8	15.5	15.5	-
Blow per minute (bpm)	1250	1250	1250	1250	1250	1400	1400	1000	1000	-
Body	Composite	Composite	Composite	Composite	Composite	Composite	Composite	Composite	Composite	-
Clutch Housing	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium	-
Clutch Lubrication Type	Grease	Grease	Grease	Grease	Grease	Grease	Grease	Grease	Grease	-
Handle type	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	Pistol	-
Impact Mecanism	Twin hammer	Twin hammer	Twin hammer	Twin hammer	Twin hammer	Twin hammer	Twin hammer	Twin hammer	Twin hammer	-
Main Material type	Composite	Composite	Composite	Composite	Composite	Composite	Composite	Composite	Composite	-
Output drive type	Sq	Sq	Hex	Sq	Sq	Sq	Sq	Sq	Sq	-
Starting System	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	Trigger	-
Suspension Option	-	Included	-	Included	Included	Included	Included	Optional	Included	-
Air Consumption At Load (cfm)	-	-	-	21.2 1/sNl	21.2 1/sNl	25.4 1/sNl	25.4 1/sNl	-	-	-
