Chicago Pneumatic CP824 Series – Ratchet Wrenches

Chicago Pneumatic CP824 Series – Ratchet Wrenches

$141.00

Add to Cart
Chicago Pneumatic CP824 Series – Ratchet Wrenches

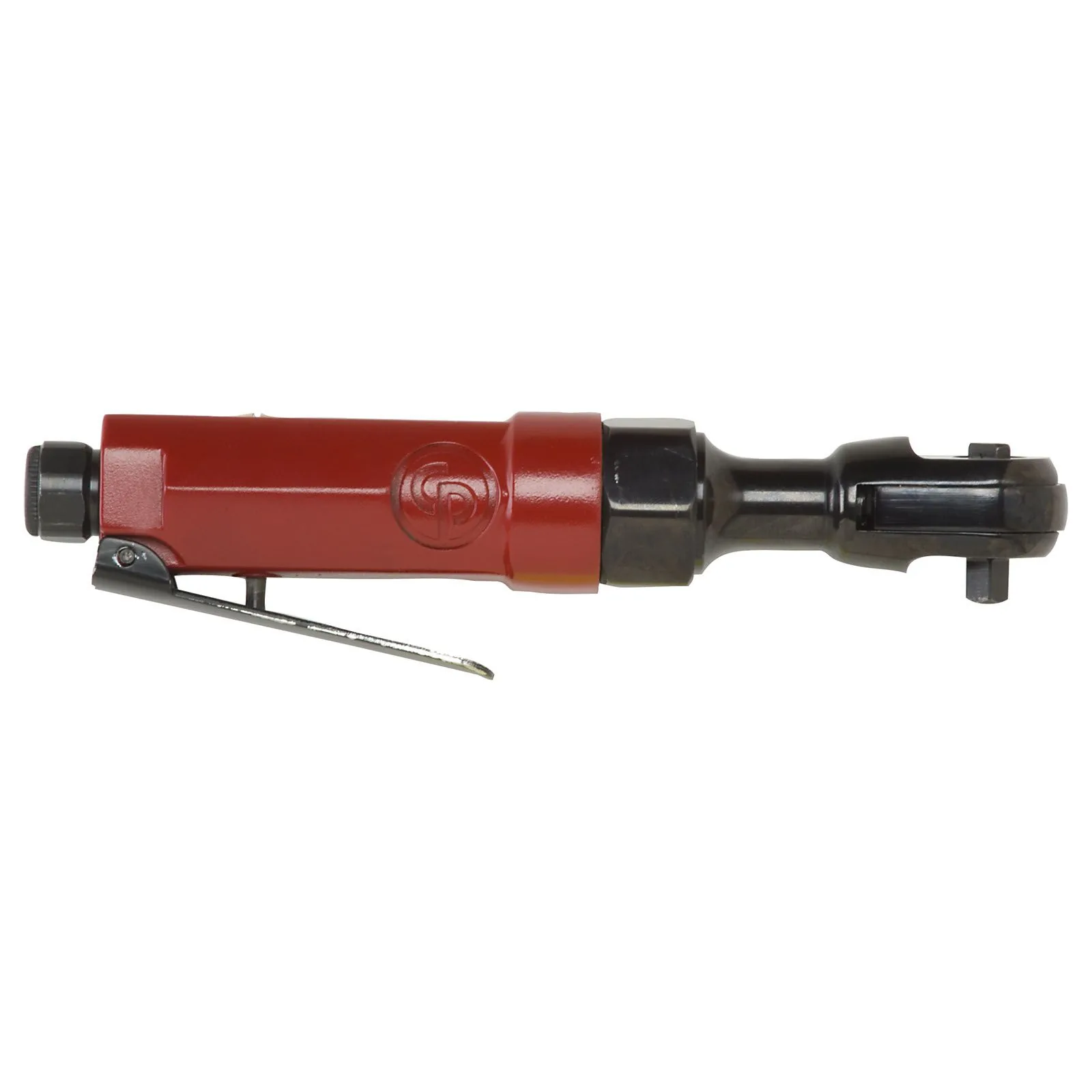

Chicago Pneumatic CP824 Series - Ratchet Wrenches
$141.00

Lightweight & Handy with Its Extented Length

The CP824 series is designed for operators in general maintenance such as under-dashboard work, small engine repair and small fasteners who are looking for a ratchet wrench with moderate torque and extended length.

  • Extended length (7.75in / 197mm long) for ease of access in hard to reach places
  • Lightweight tool (1.13 lbs. / 0.51 kg) for improved comfort

Choosing this lightweight (1.13 lbs./0.5 Kg) pneumatic ratchet wrench with extended length (7.8 in. /197 mm length), will make your daily tightening applications easier due to its torque of 12.5 ft.lbs / 17 Nm. The CP824 Series is composed of 2 models: 1/4″ and 3/8″ anvil.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Output drive size (in)
Free Speed (rpm)
Max Torque Reverse (ft.lbf)
Length (in)
Vibration (m/s²)
Power Source
Max Working Torque Reverse (ft.lbf)
Min Working Torque Reverse (ft.lbf)
Tool Weight (lb)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Main Material type
Output drive type
Output retainer type
Starting System
CI-T025390
CP824 - 1/4 in
T025390
1/4
220
12.5
7.76
4.1
Pneumatic
12.5
3.7
1.12
102
91
6.6
14
1/4
90
10
Aluminum
Sq
Ball detent
Lever
