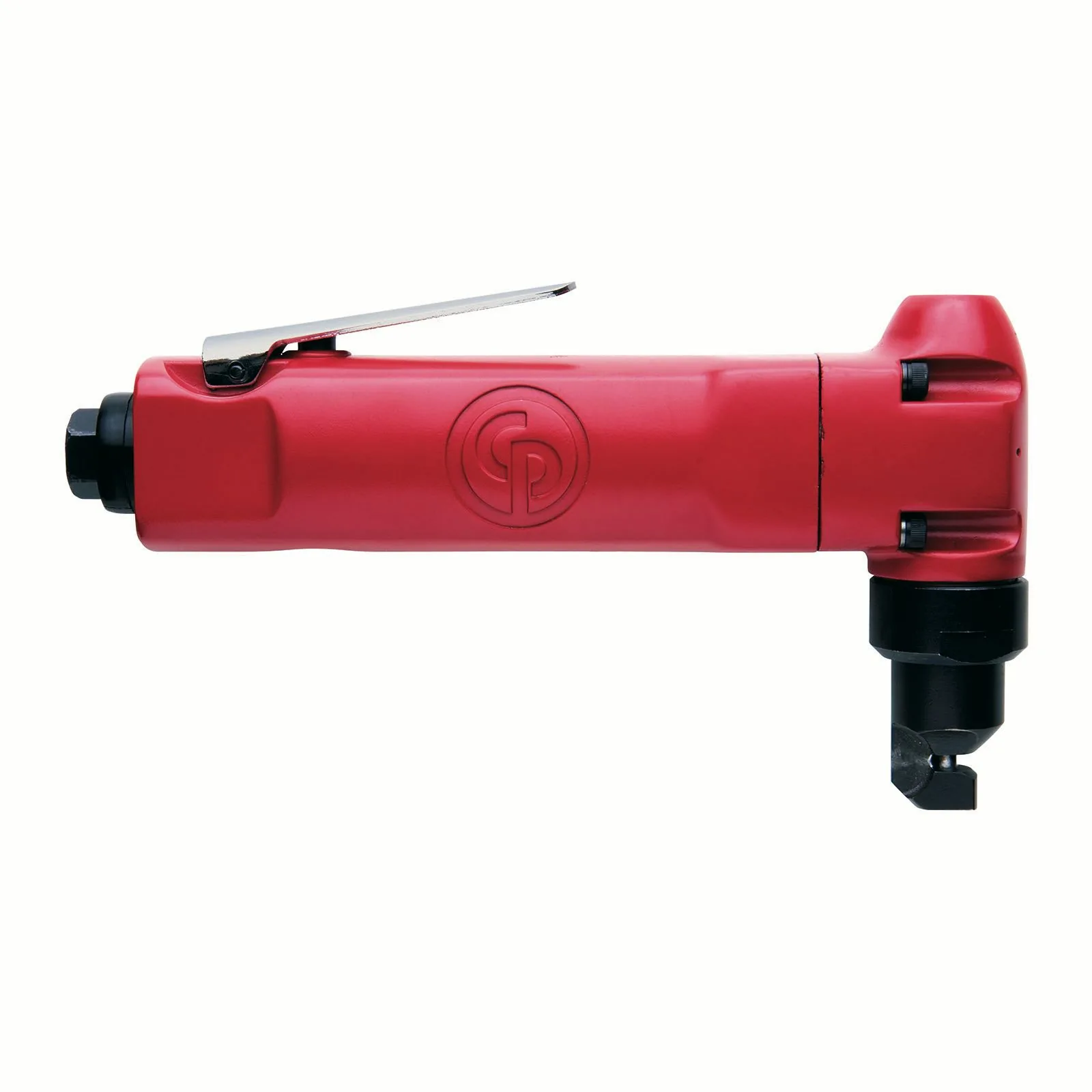

Chicago Pneumatic CP835 Series – Nibblers
Chicago Pneumatic CP835 Series - Nibblers
$386.00

Good Cutting Control

For operators working in general maintenance applications such as cutting tight corners and circles in all types of meterial like aluminum, steel, tin and plastic who look for accurate cutting, CP835 series is the nibbler that you need.

  • Rugged head with 0.177″ diameter punch which can cut steel up to 0.060″ (16 gauge) and aluminum up to .102″ (10 gauge)
  • Easy access to punch and die for quick replacement
  • Lock-off lever for low-speed starting
  • 4 optional cutting positions

Designed for general maintenance applications such as cutting tight corners and circles in all types of meterial like aluminum, steel, tin and plastic, the CP835 series offers high durability thanks to its rugged head with 0.177″ diameter punch which can cut steel up to 0.060″ (16 gauge) and aluminum up to .102″ (10 gauge)

Accessories

Specifications

SKU
Product Name
Vendor SKU
Cutting capacity steel (in)
Cutting capacity aluminum (in)
Max power
Stroke (in)
Stroke per minute
Power Source
Length (in)
Tool Weight (lb)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
CI-T022550
CP835 - 0.1, 0.06 in
T022550
0.06
0.1
0.42
0.2
2750
Pneumatic
8.5
1.3
97
86
9.8
17.7
17
1/4
90
10
