Chicago Pneumatic CP85 series  – Air Hydraulic Jacks
Chicago Pneumatic CP85 series - Air Hydraulic Jacks
$1,948.00 – QUOTE

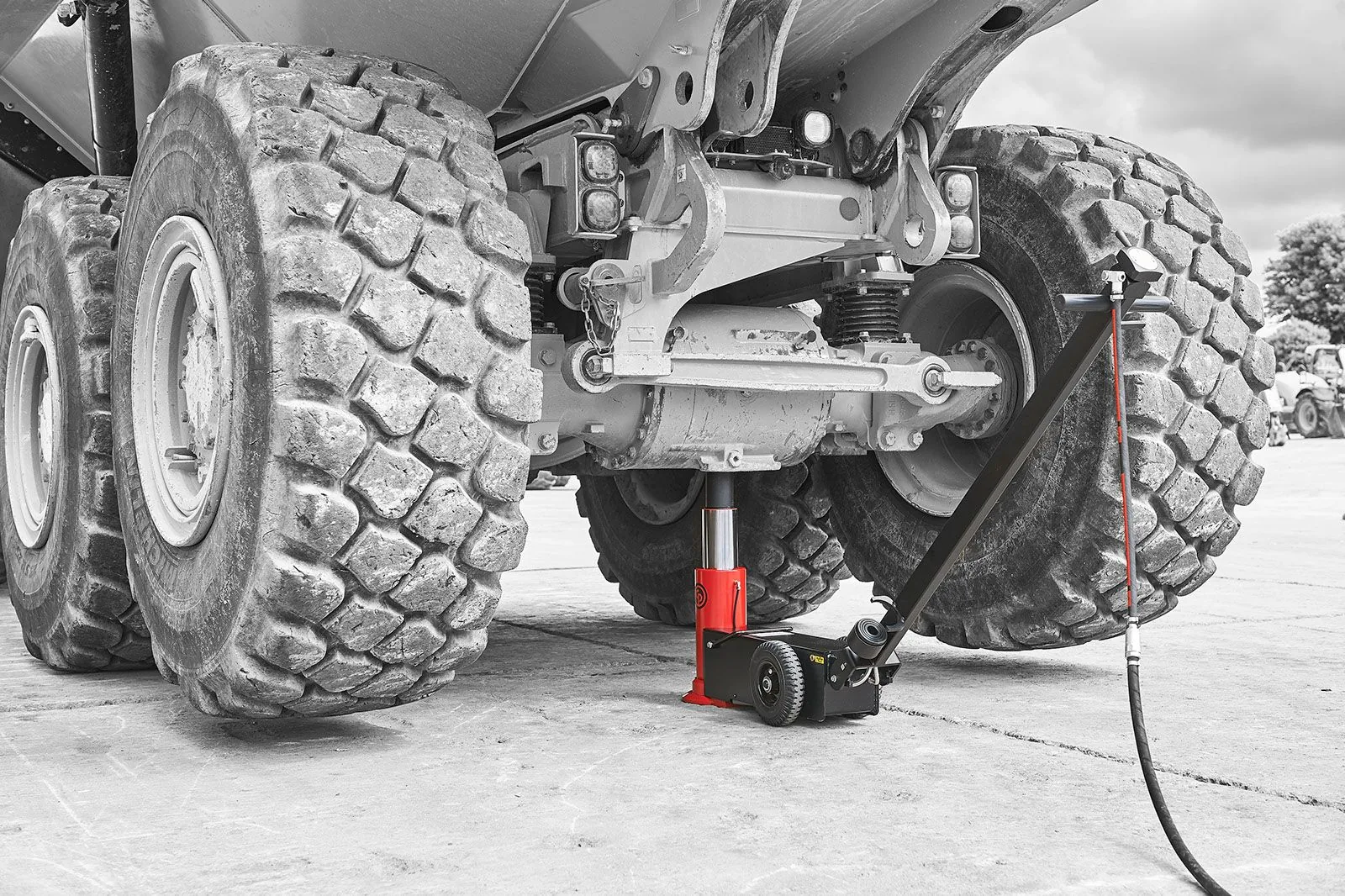

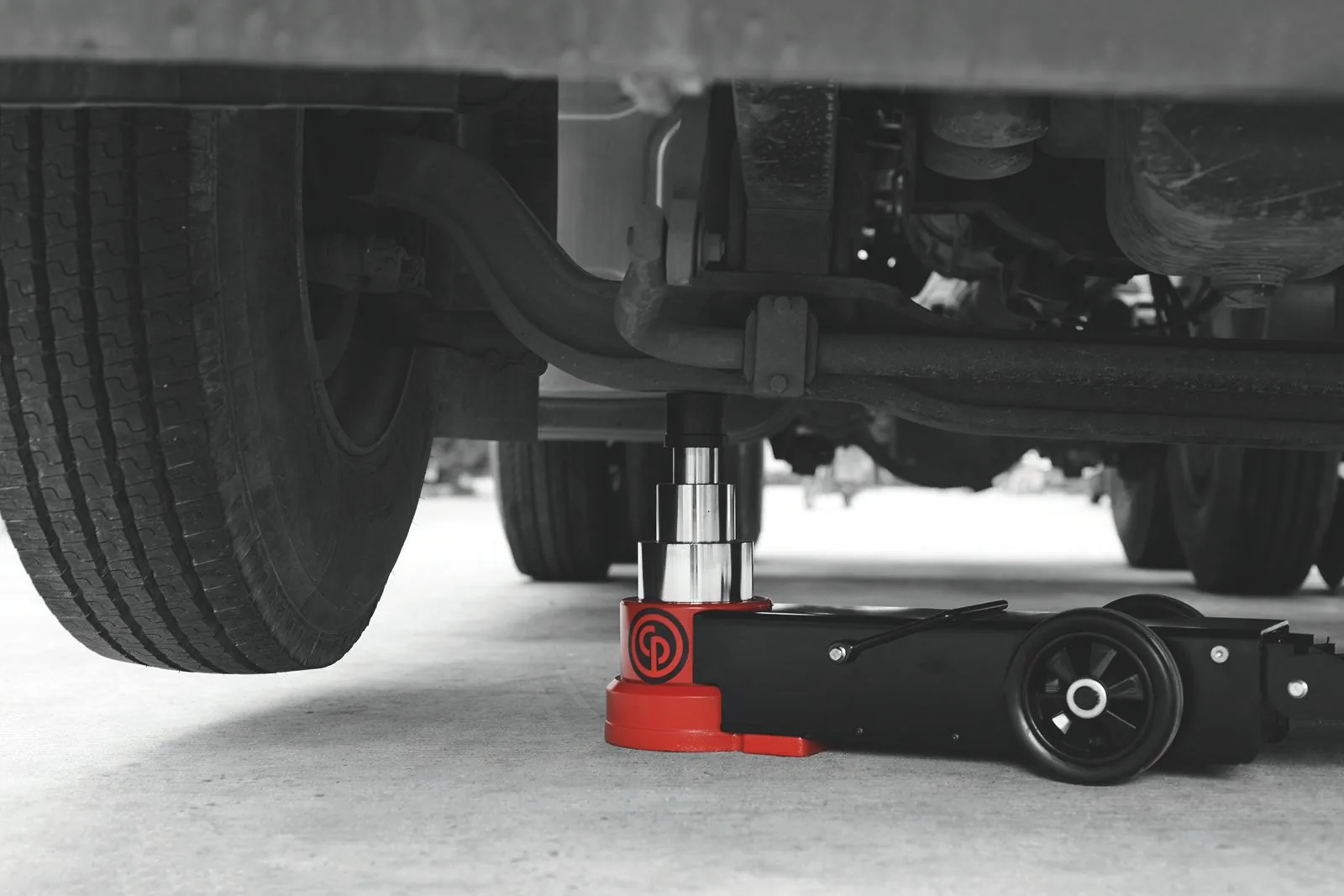

Durable air hydraulic jack range for tire changing and maintenance of heavy vehicles

  • Air powered piston for fast, high lift capacity on high-axle vehicles
  • Hard chromium plated piston guarantees durability and resistance to corrosion
  • Low profile construction allows easy access to lift low chassis trucks and buses
  • Long handlebar allows easy access and control when fully positioned under vehicle.
  • Handlebar locks in 3 positions: 45, 90, and 180 for easy manoeuvring.

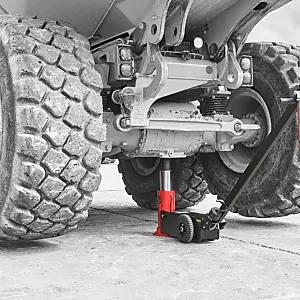

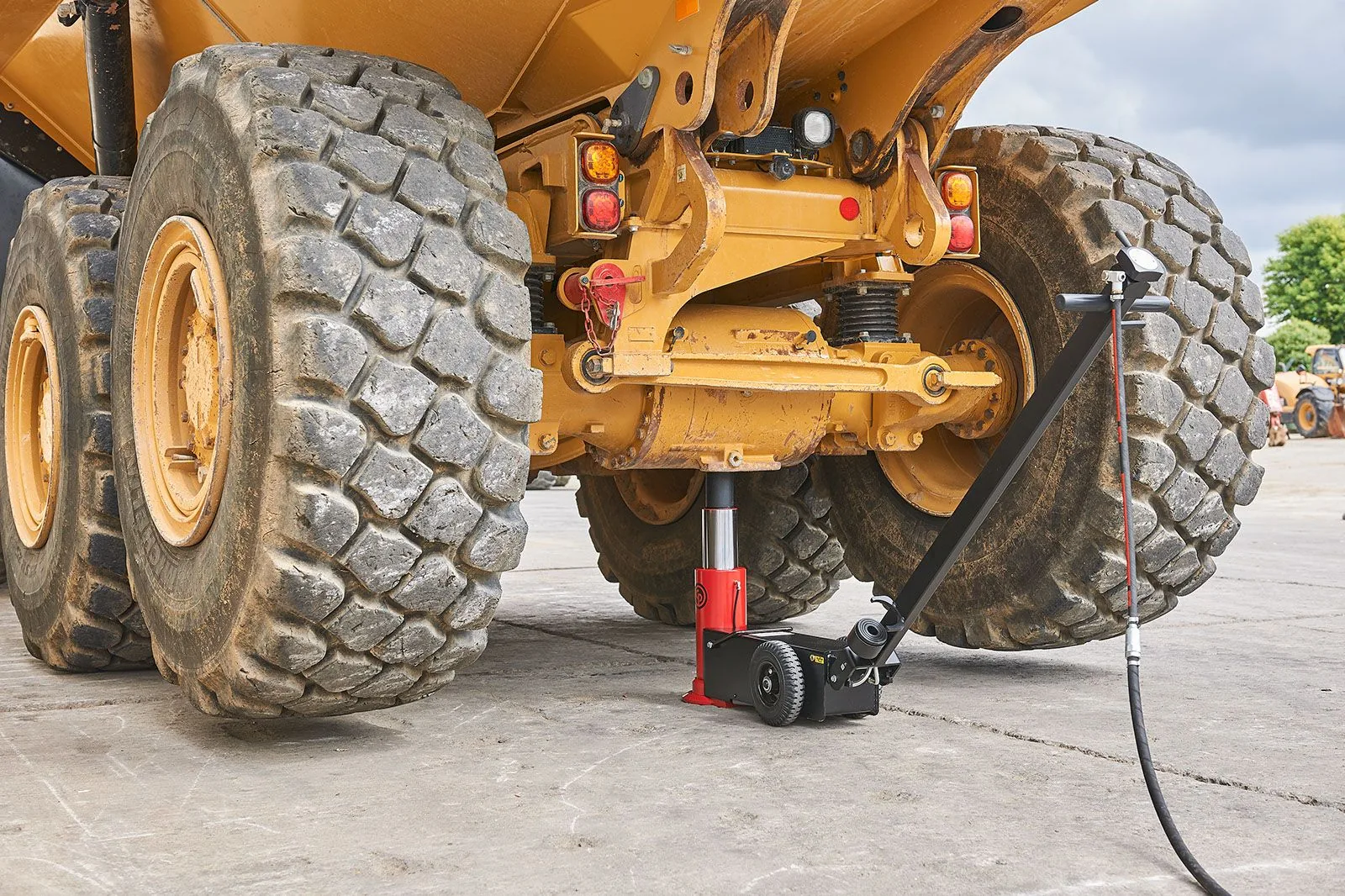

Ideally adapted for tire changing and maintenance operations on heavy vehicles, the CP85 series delivers fast, high lift capacity. The series is supplied with 2 extensions for higher lifting, which can be stored on the handle. The convenient joystick ensures excellent lifting and control. For ease of transport, the carrying handle is mounted on the cylinder. Large, soft rubber wheels enable operations inside or outside of workshops.
Chicago pneumatic pneumatic hydraulic jacks are CE, TUV, and ASME certified to bring quality and safety to work places.
Available in 5 models from 30 to 100 tons.

Specifications

SKU
Product Name
Vendor SKU
Max Lifting Capacity (lb)
Profile
Power Source
Max Height With Extension (in)
Min Height (in)
Lifting Capacities
Main Material type
Wheel Type
CI-8941085030

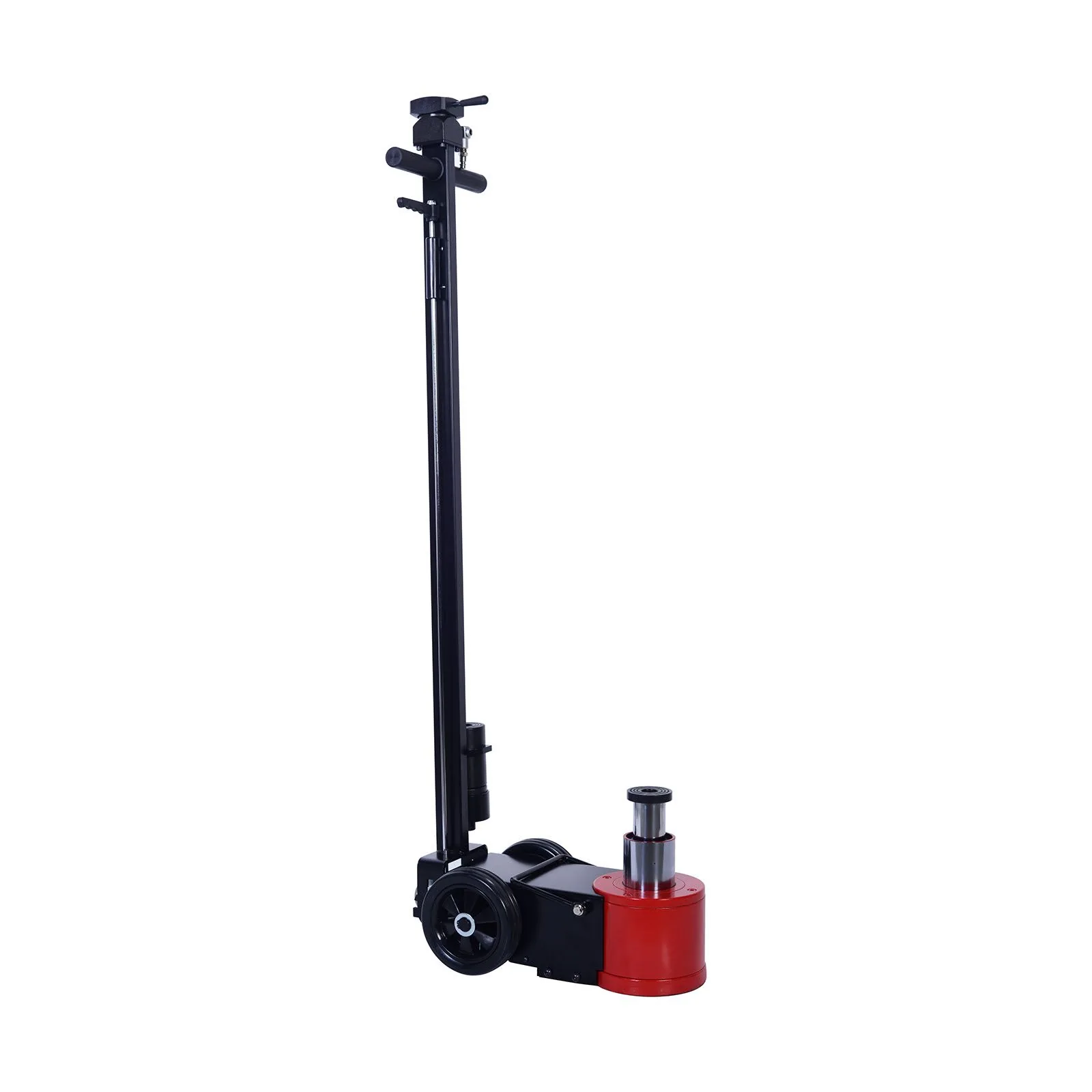

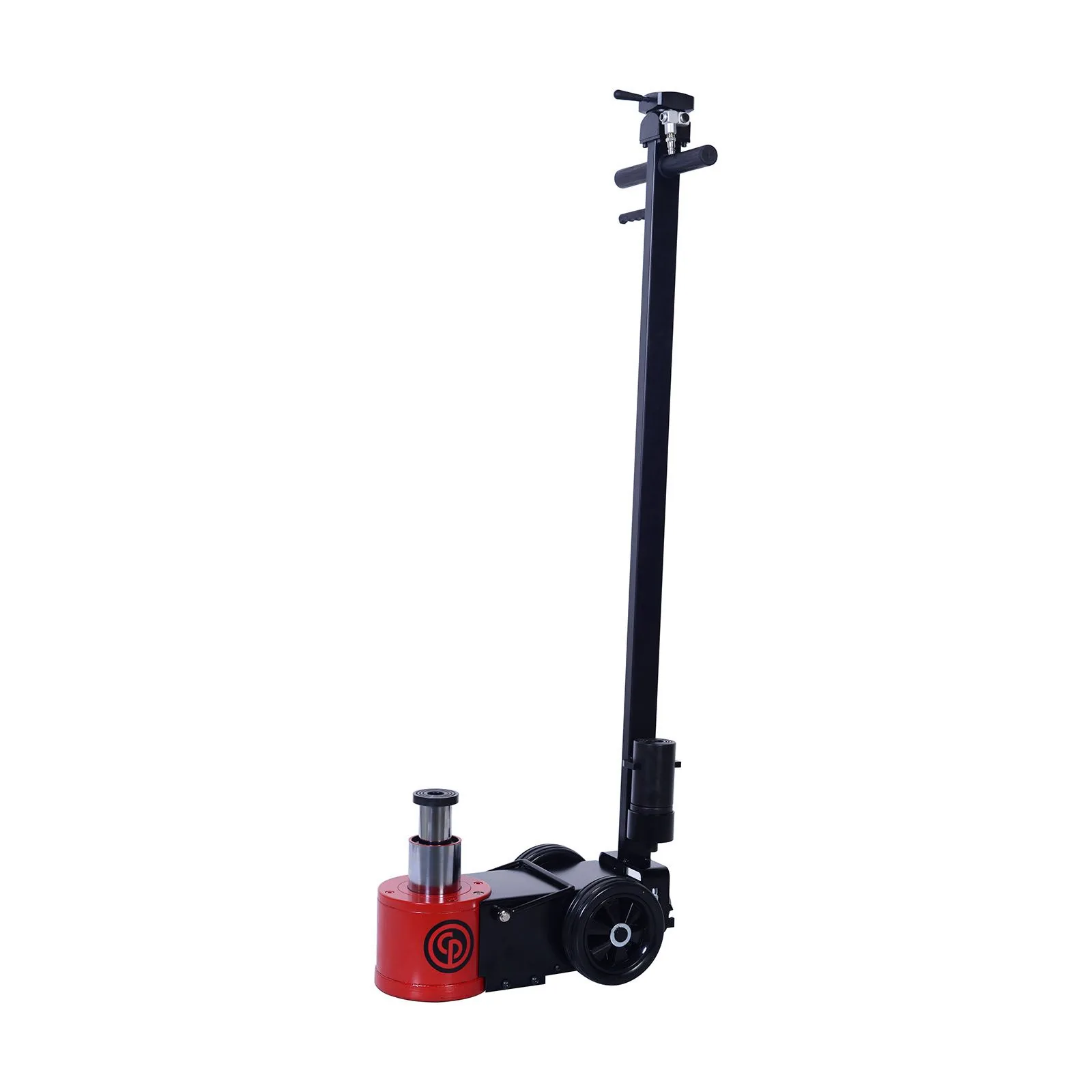

CP85030 - 66100 lb, Low-Profile
8941085030
66100
Low-Profile
Hydraulic
16.1
5.91
30,15
Steel
Rubber
CI-8941085050

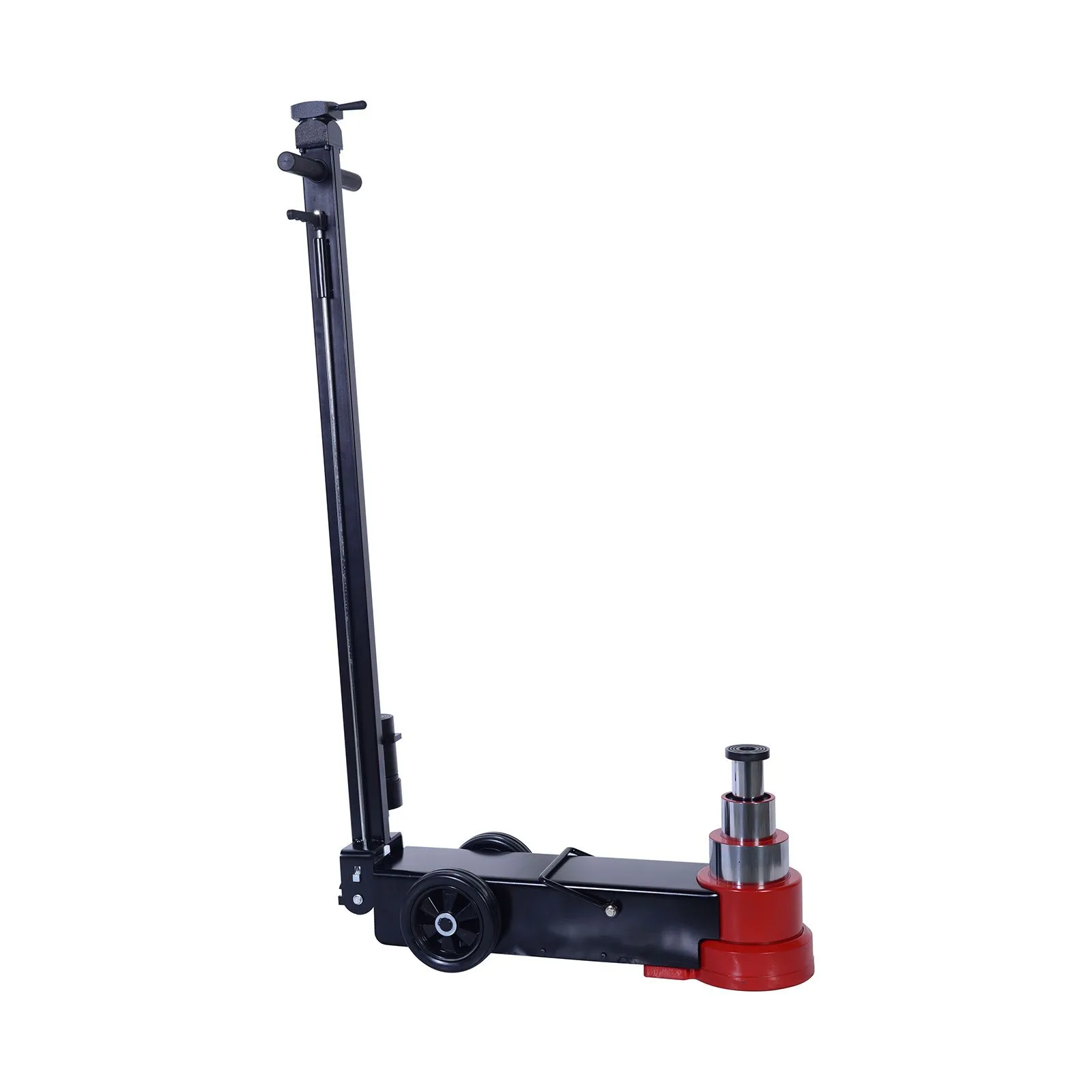

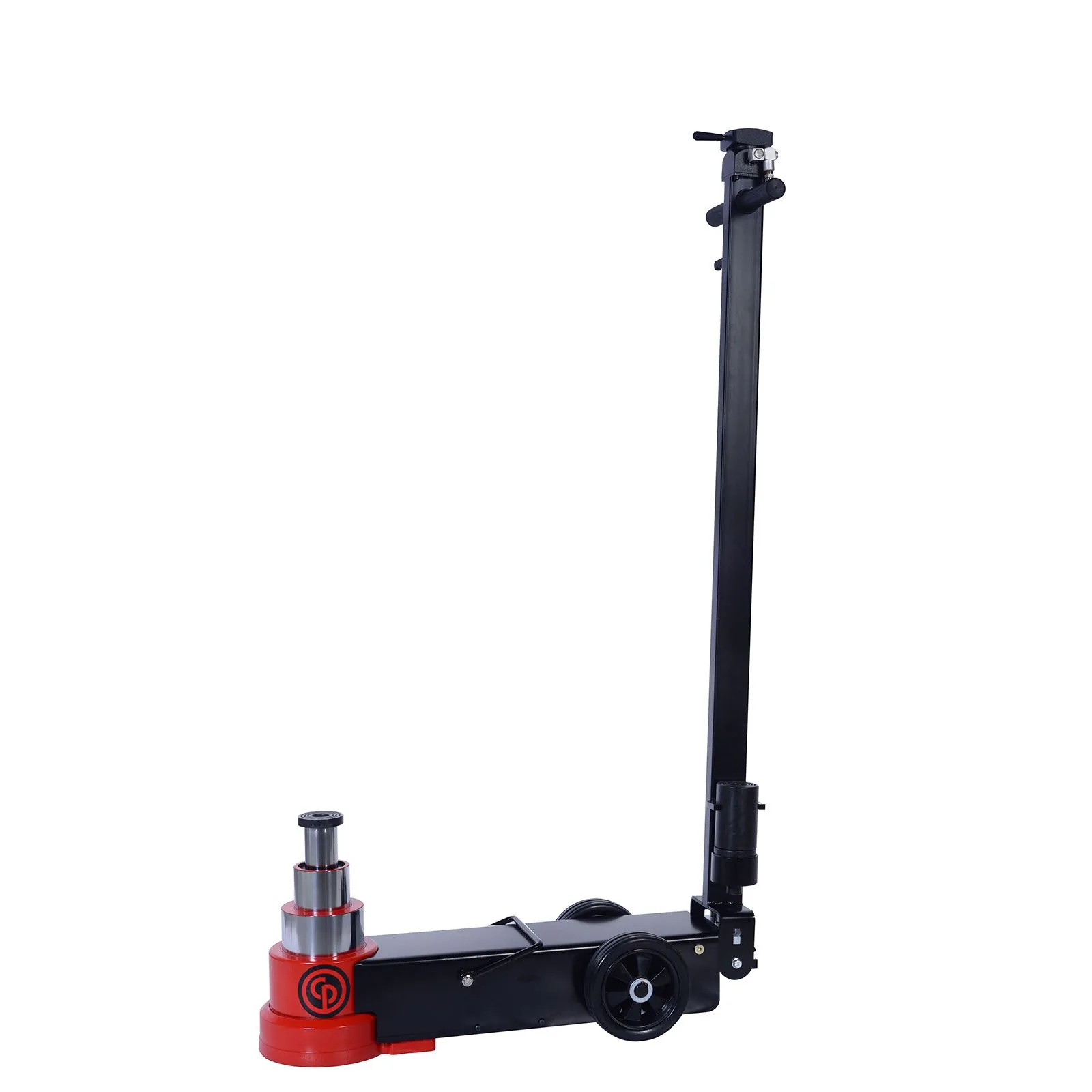

CP85050 - 110000 lb, Standard
8941085050
110000
Standard
Hydraulic
18.58
6.3
25,10,50
Steel
Rubber
CI-8941085080

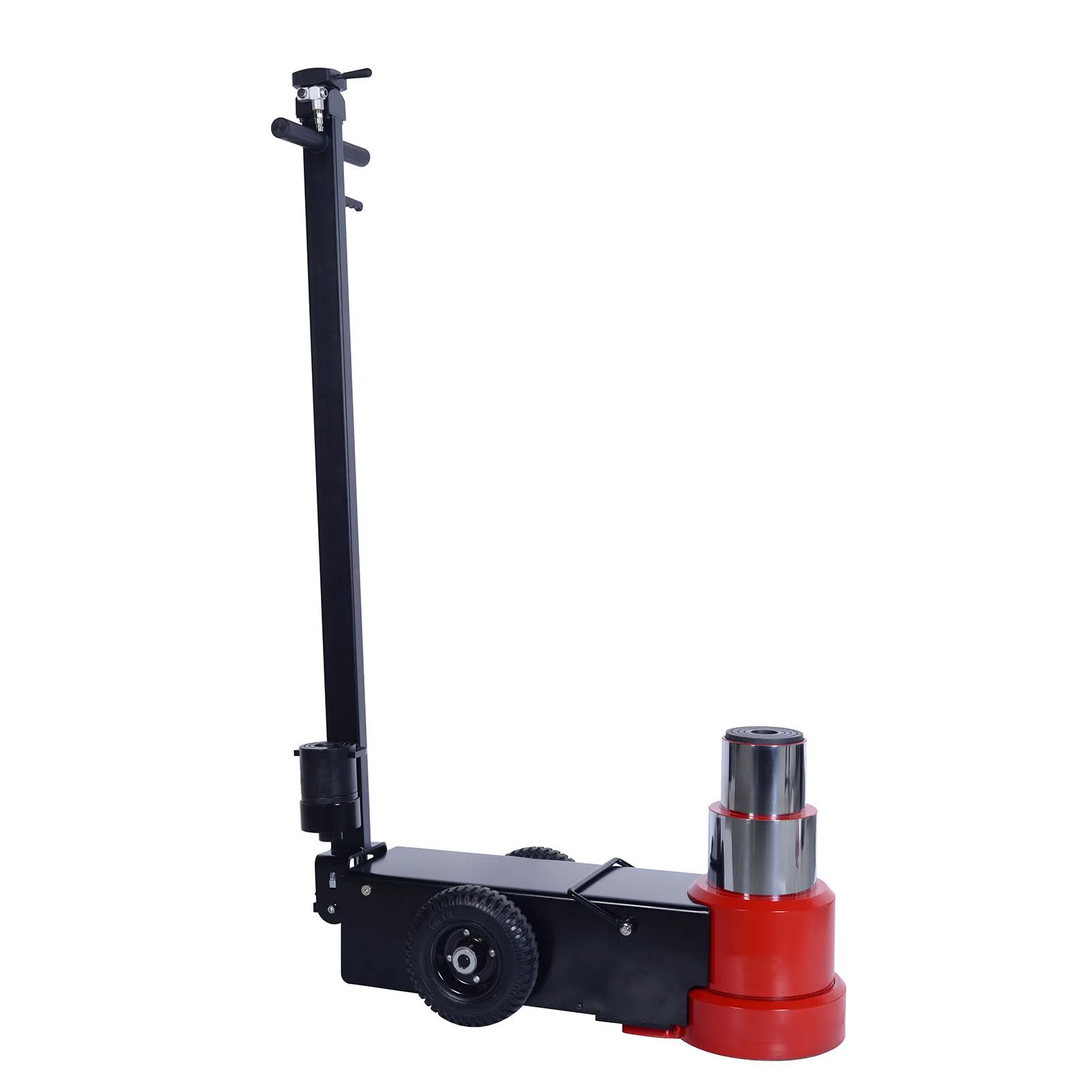

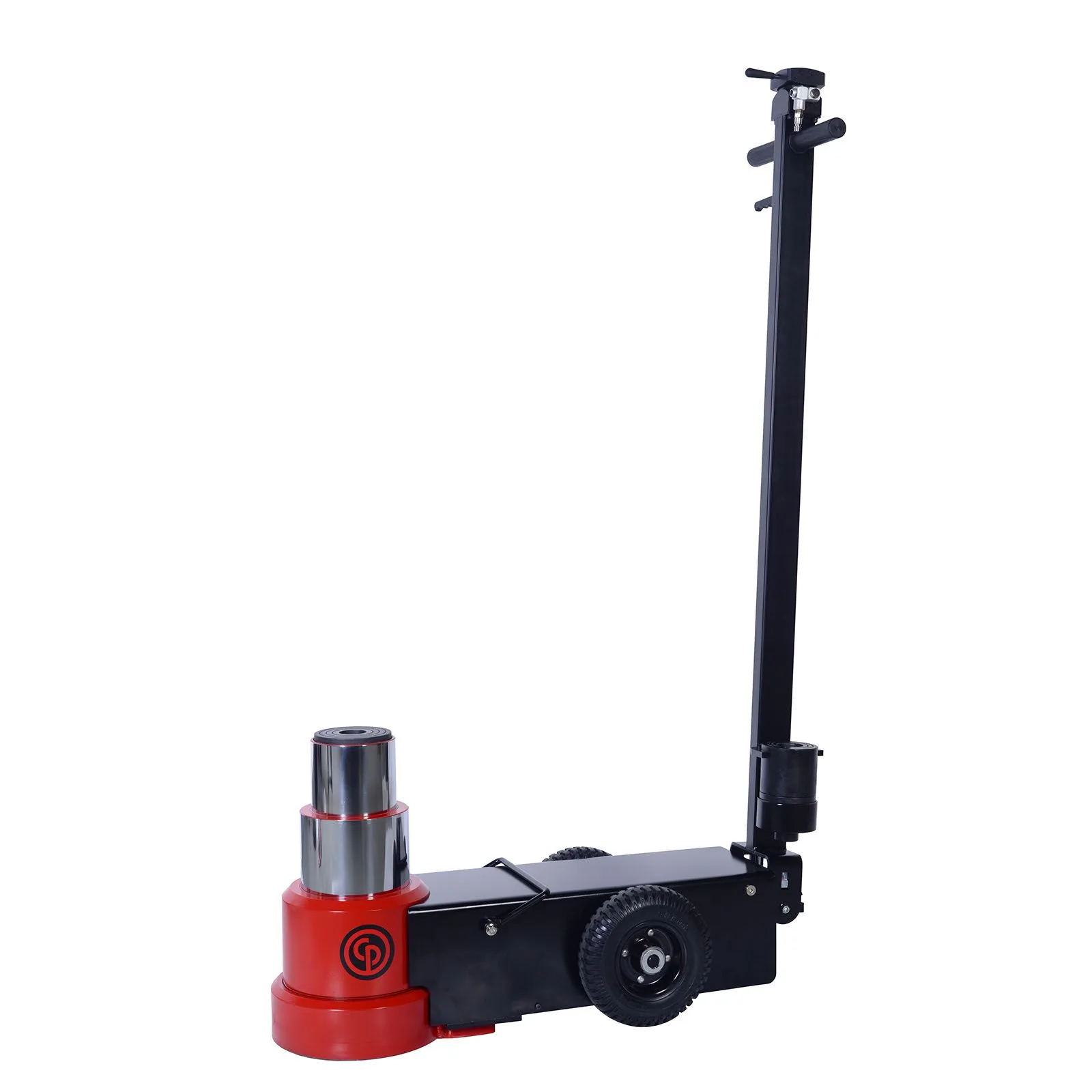

CP85080 - 176000 lb, Standard
8941085080
176000
Standard
Hydraulic
22.17
9.06
50,50,80,80
Steel
Rubber
CI-8941085100

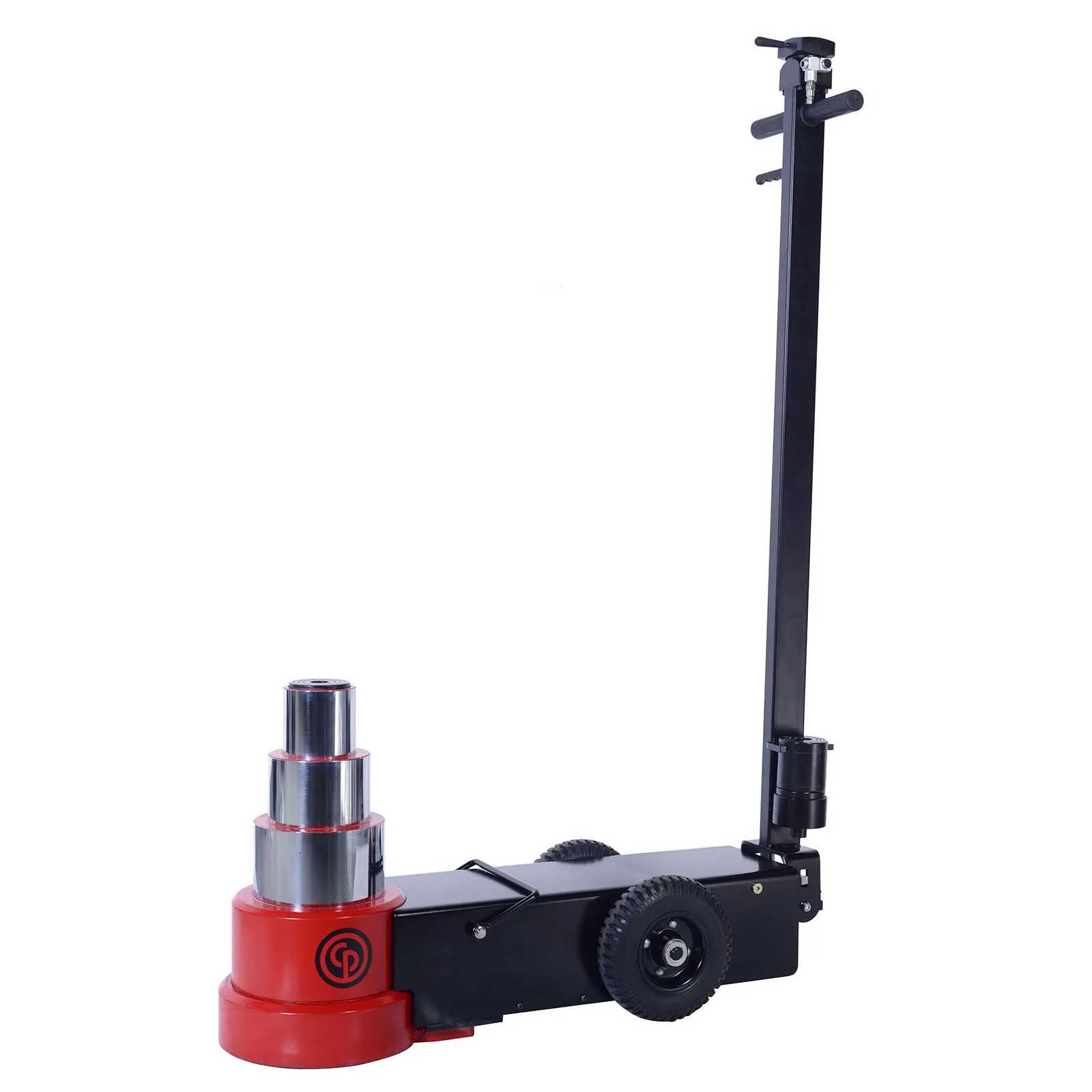

CP85100 - 220000 lb, Standard
8941085100
220000
Standard
Hydraulic
24.02
8.46
100,60,32
Steel
Rubber
CI-8941085031

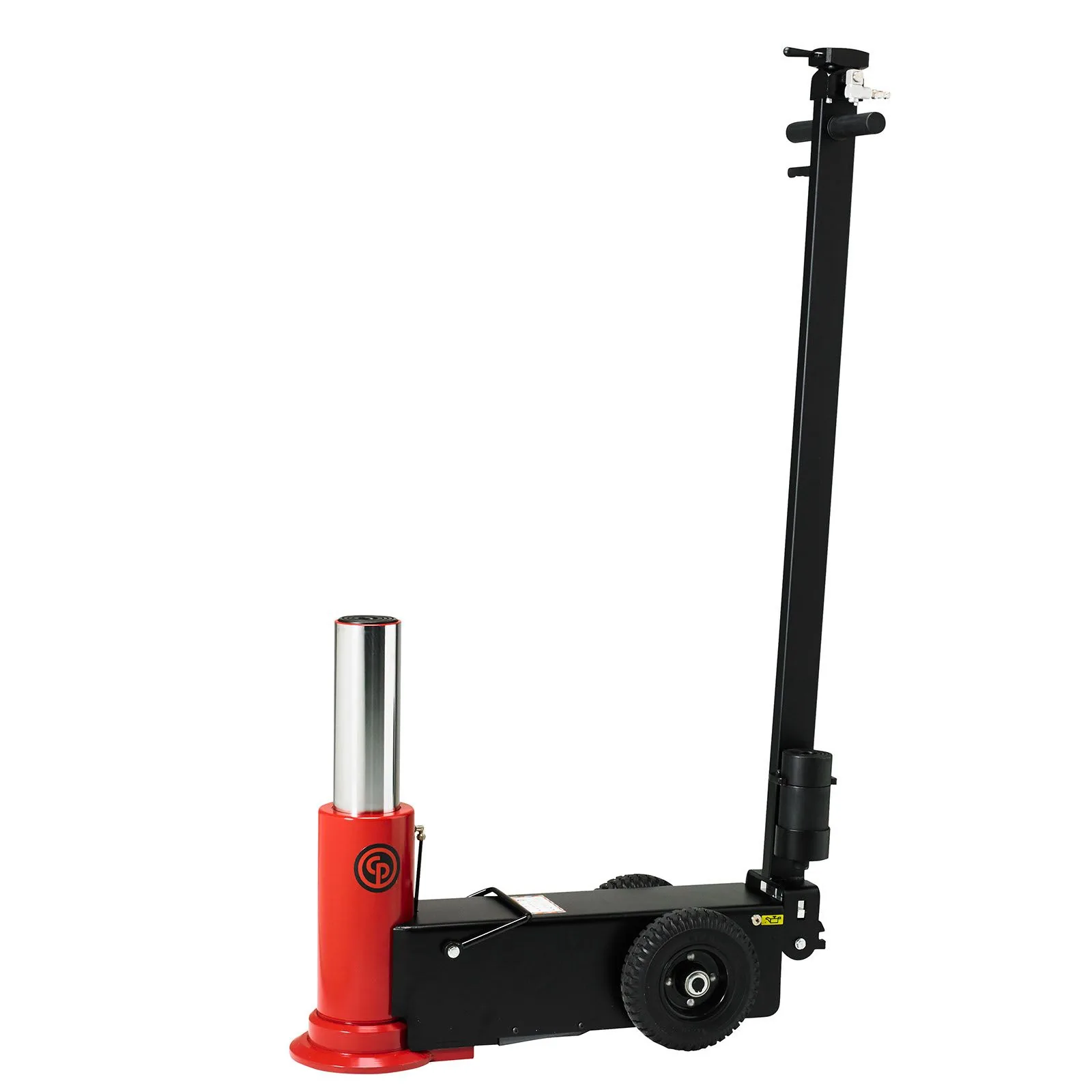

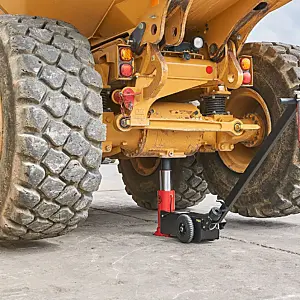

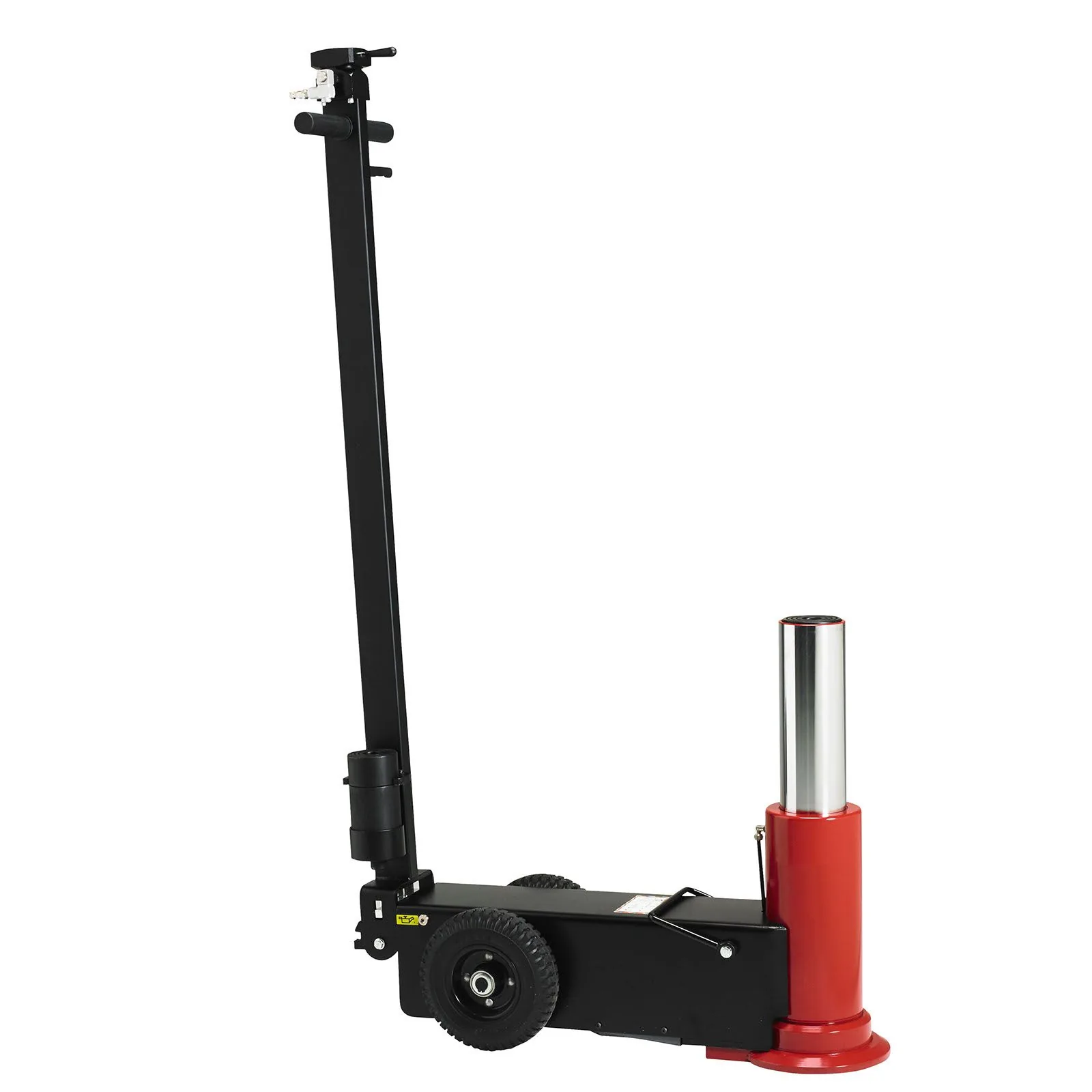

CP85031 - 66100 lb, Standard
8941085031
66100
Standard
Hydraulic
30.39
14.17
-
Steel
Rubber
