Made for Long-lasting Accuracy

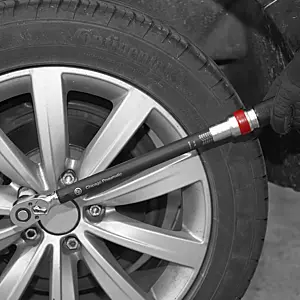

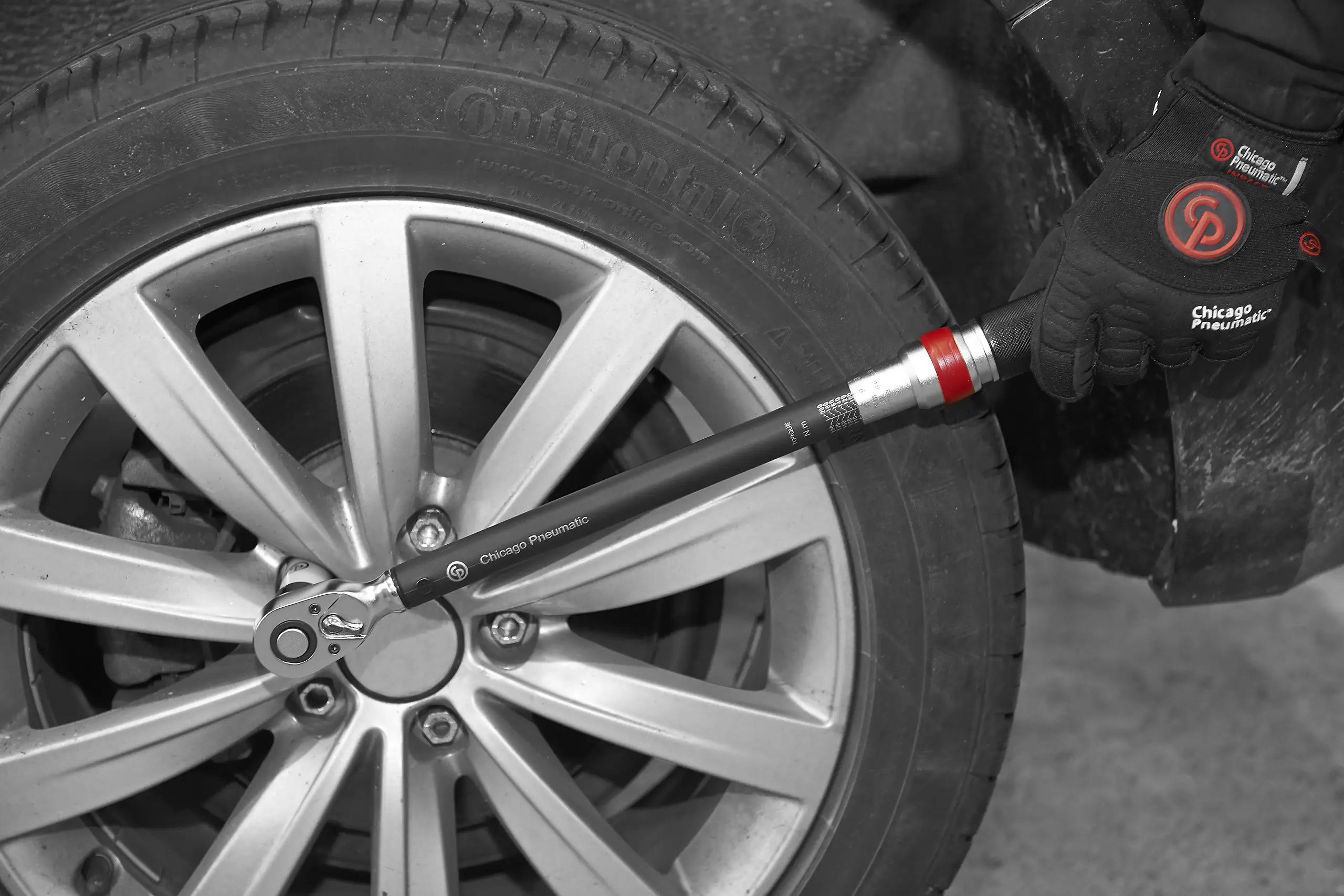

Long-lasting accuracy torque wrench up to 25,000 cycles for vehicle services and MRO applications.

  • 4% according to the ISO 6789 – 1 : 2017 specifications for accuracy
  • Reliability of the mechanism up to 25,000 cycles guarantees long-lasting accuracy
  • Torque adjustment with manual locking at the front of the handle ensures ease of use and precise adjustment
  • The aluminium handle is resistant to common chemicals found in workshops
  • 54 teeth fixed pear head ratchet for durability

Chicago pneumatic torque wrenches are designed for long-lasting accuracy up to 25,000 cycles at 4% according to the ISO 6789 – 1 : 2017.
To ensure robustness, the fixed pear head ratchet has a 54 teeth mechanism for 6.6 increments.
A non-intrusive audible signal is made when the torque is reached. Each torque wrench is delivered with a protective blow-moulded case with ISO 6789 calibration certificate. The head ratchet is built with socket locking and quick release system.

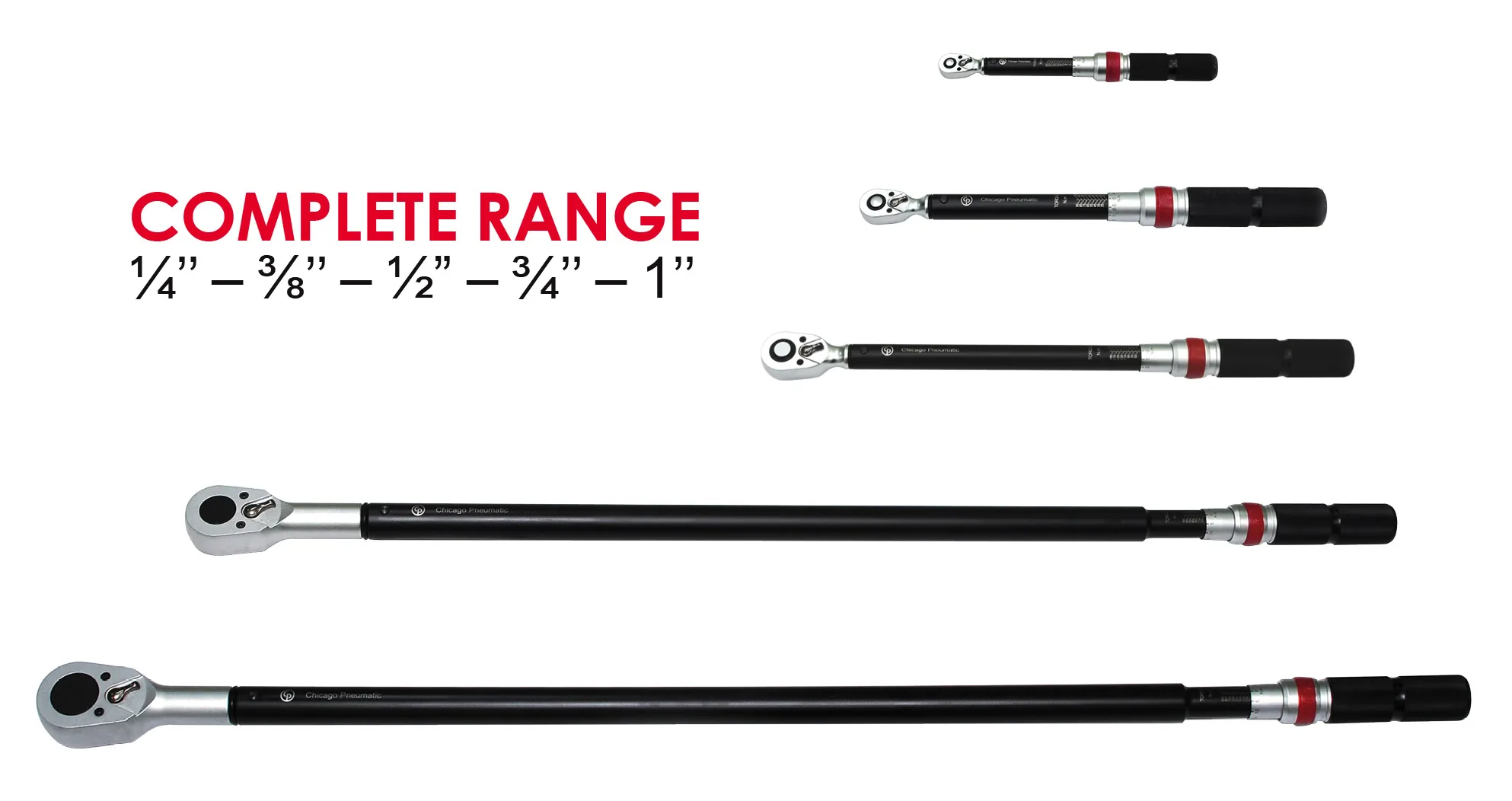

The CP89 series is composed of 6 models from ¼” to 1”, from 5 Nm to 1,000 Nm / 50 inch pound to 750 ft.lbs.

Accessories

Specifications

CI-8941089050
CI-8941089055
CI-8941089100
CI-8941089105
CI-8941089150
CI-8941089170
CI-8941089175
CI-8941089200
CI-8941089205
CI-8941089250
CI-8941089255
SKU
CI-8941089050
CI-8941089055
CI-8941089100
CI-8941089105
CI-8941089150
CI-8941089170
CI-8941089175
CI-8941089200
CI-8941089205
CI-8941089250
CI-8941089255
Product Name

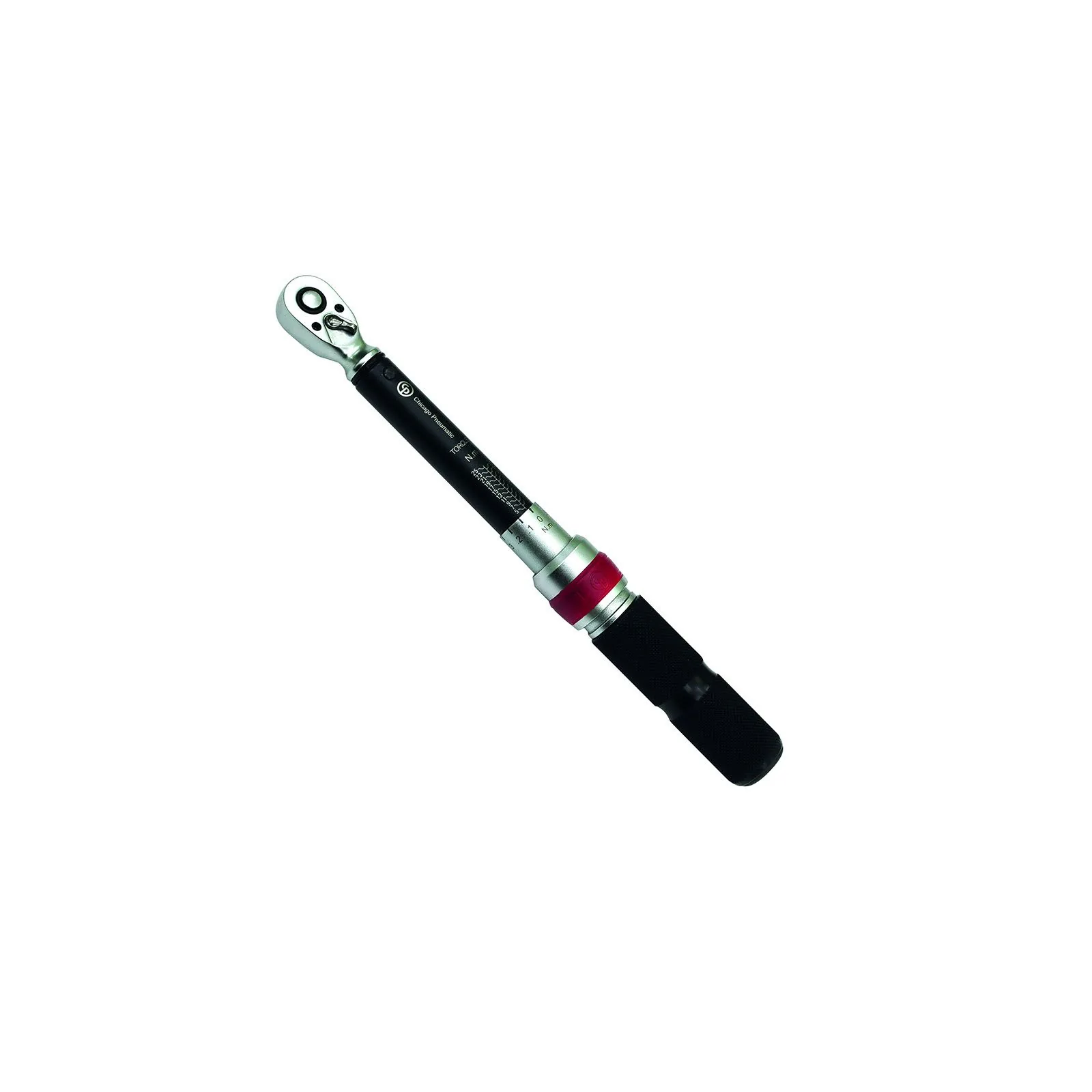

CP8905 - 25 Nm, N.m
CP8905 - 250 lbf*in, Lbs.in

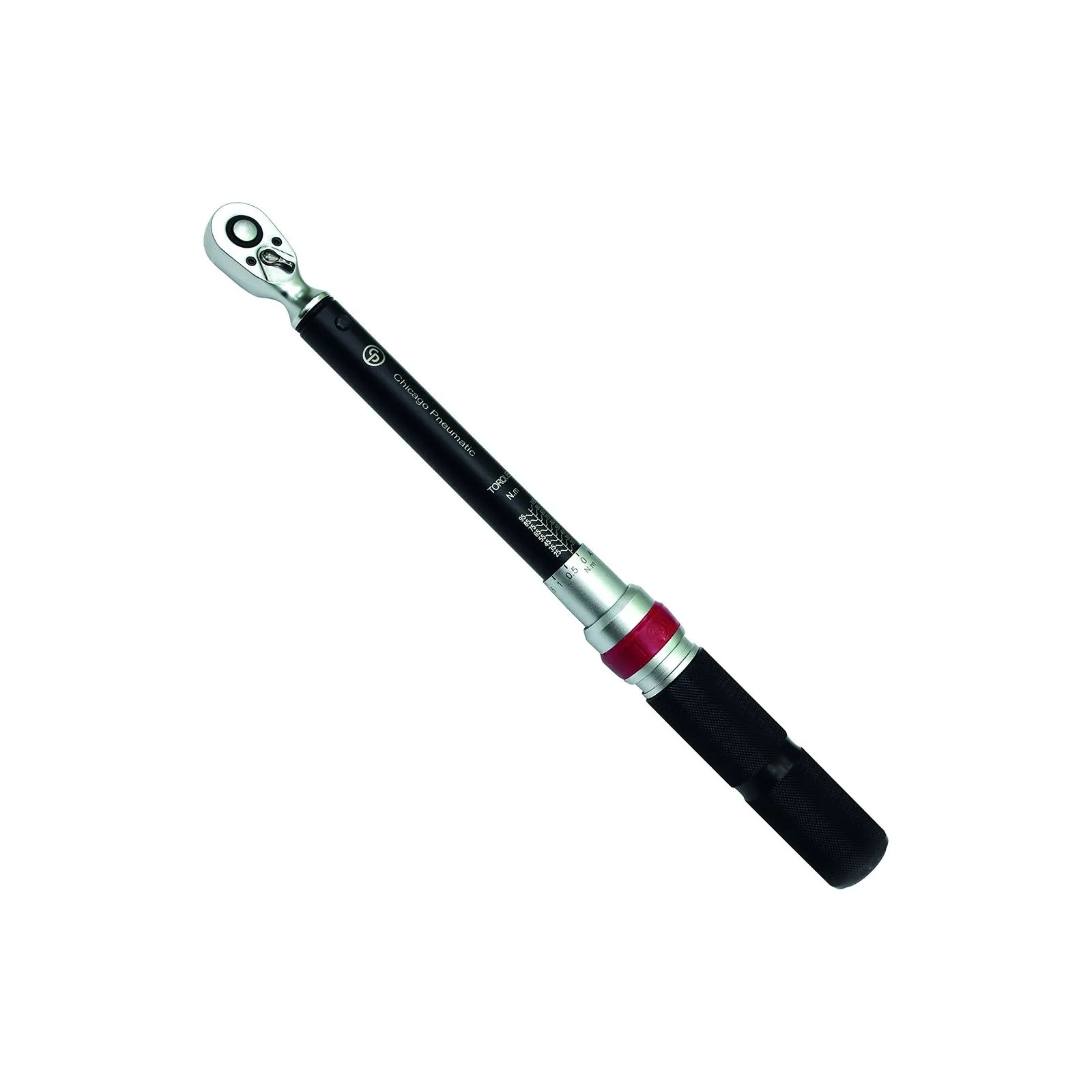

CP8910 - 100 Nm, N.m
CP8910 - 75 lbf*ft, Lbs.ft

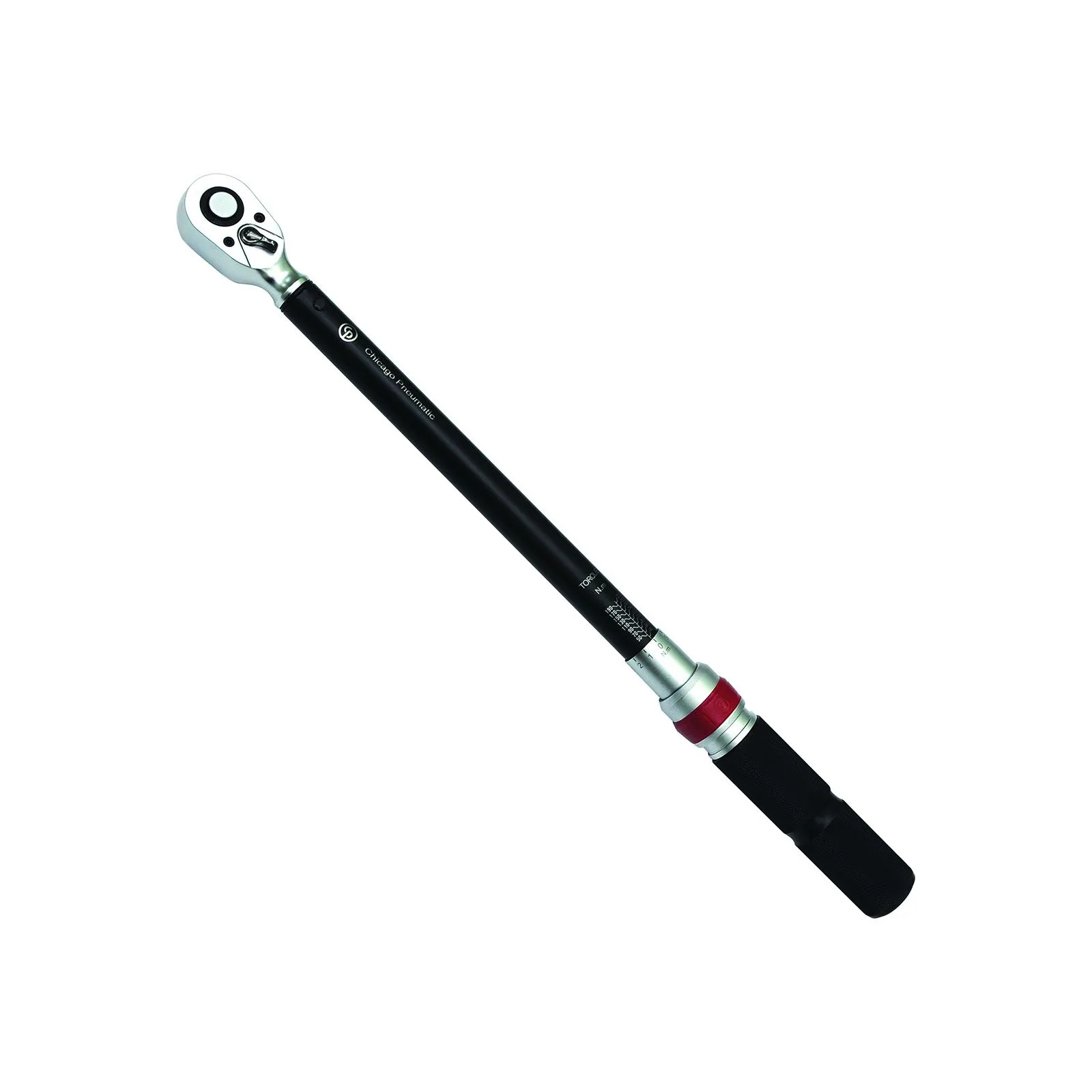

CP8915 - 200 Nm, N.m
CP8917 - 340 Nm, N.m
CP8917 - 250 lbf*ft, Lbs.ft

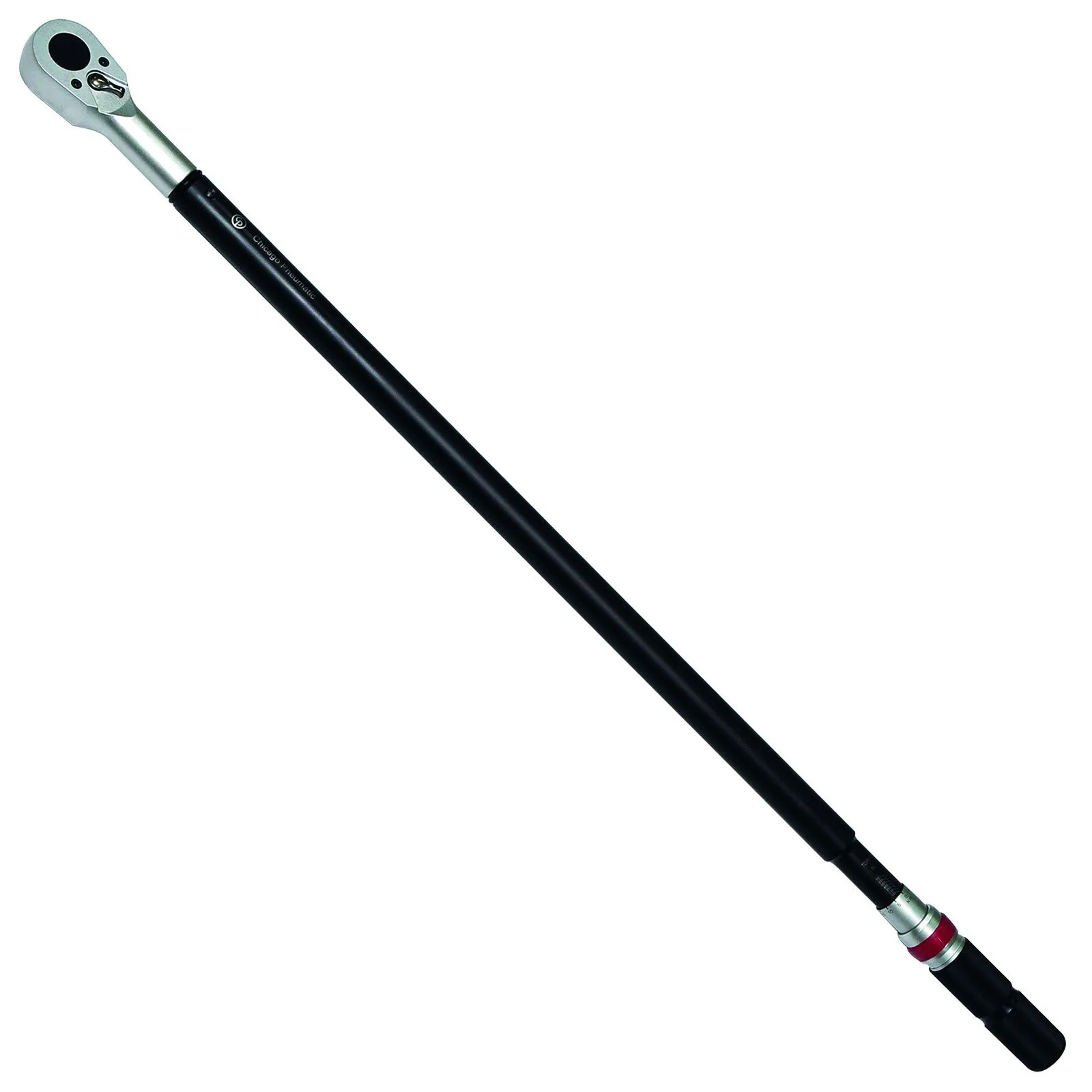

CP8920 - 750 Nm, N.m
CP8920 - 550 lbf*ft, Lbs.ft

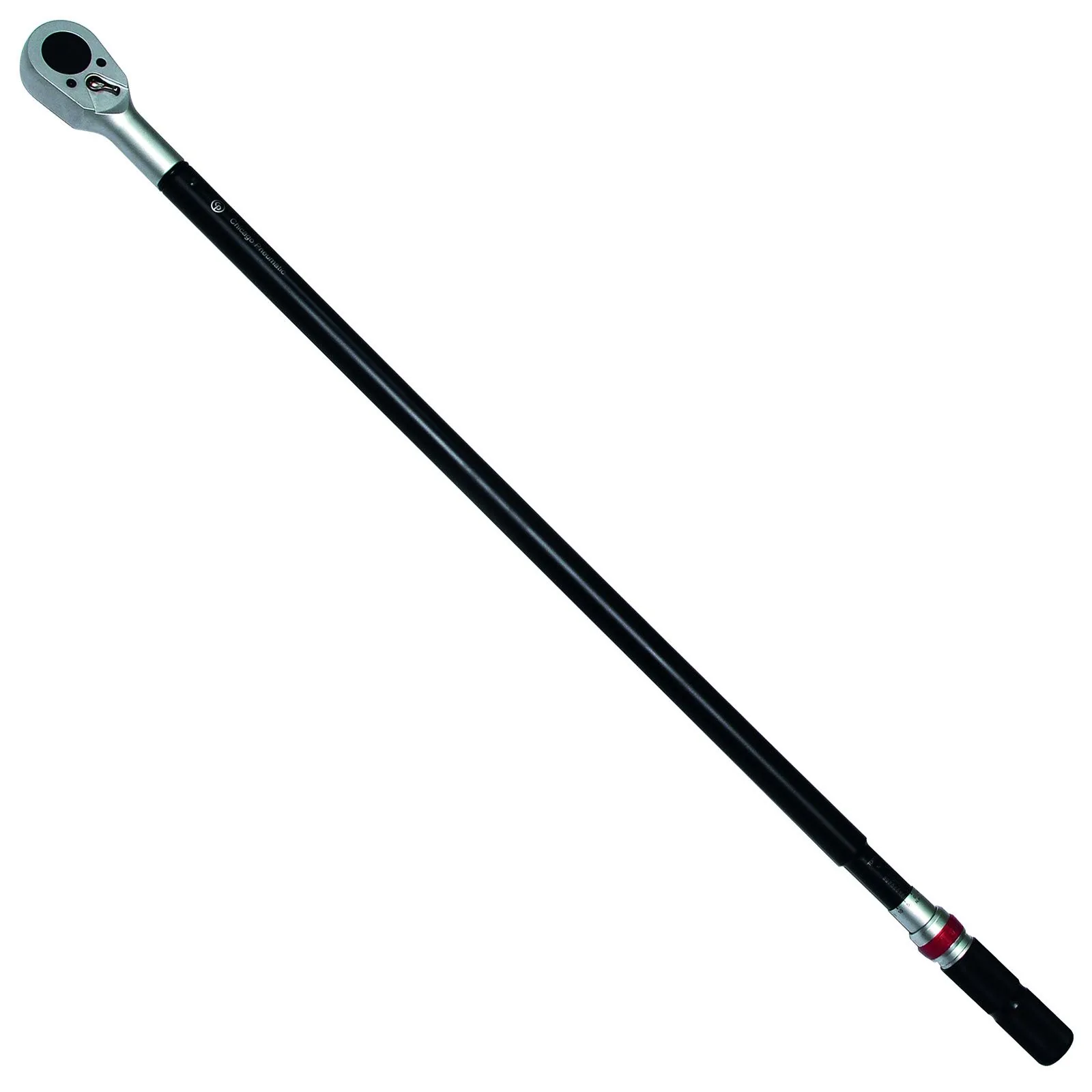

CP8925 - 1000 Nm, N.m
CP8925 - 750 lbf*ft, Lbs.ft
Vendor SKU
8941089050
8941089055
8941089100
8941089105
8941089150
8941089170
8941089175
8941089200
8941089205
8941089250
8941089255
Max torque (ft-lb)
25
250
100
75
200
340
250
750
550
1000
750
Unit Measurement Supported
N.m
lbs.in
N.m
lbs.ft
N.m
N.m
lbs.ft
N.m
lbs.ft
N.m
lbs.ft
Output drive size (in)
1/4
1/4
3/8
3/8
1/2
1/2
1/2
3/4
3/4
1
1
Length (in)
9.65
9.65
16.14
16.14
19.49
24.02
24.02
41.73
41.73
49.41
49.41
Tool Weight (lb)
2.82
2.82
3.31
3.31
3.46
3.88
3.88
12.6
12.6
15
15
Graduation (Nm)
0.1
1
0.5
0.5
1
2
2
5
5
5
5
Min torque (ft-lb)
5
50
20
15
40
60
50
150
110
200
150
Accuracy (%)
-
-
-
-
-
-
-
±4%
±4%
-
-
