Chicago Pneumatic CP9361 Series – Engraving Pens Air Scribe®

Chicago Pneumatic CP9361 Series – Engraving Pens Air Scribe®

$451.00$591.00

Add to Cart
Chicago Pneumatic CP9361 Series – Engraving Pens Air Scribe®
Chicago Pneumatic CP9361 Series - Engraving Pens Air Scribe®
$451.00$591.00

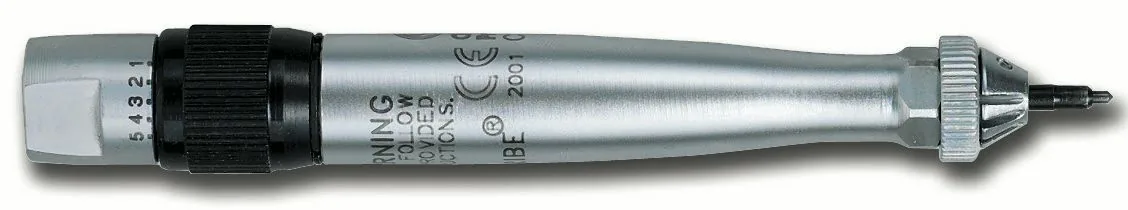

Engraving Pen and Precision Chisel Hammer

Constructed of premium components for a superior durability.

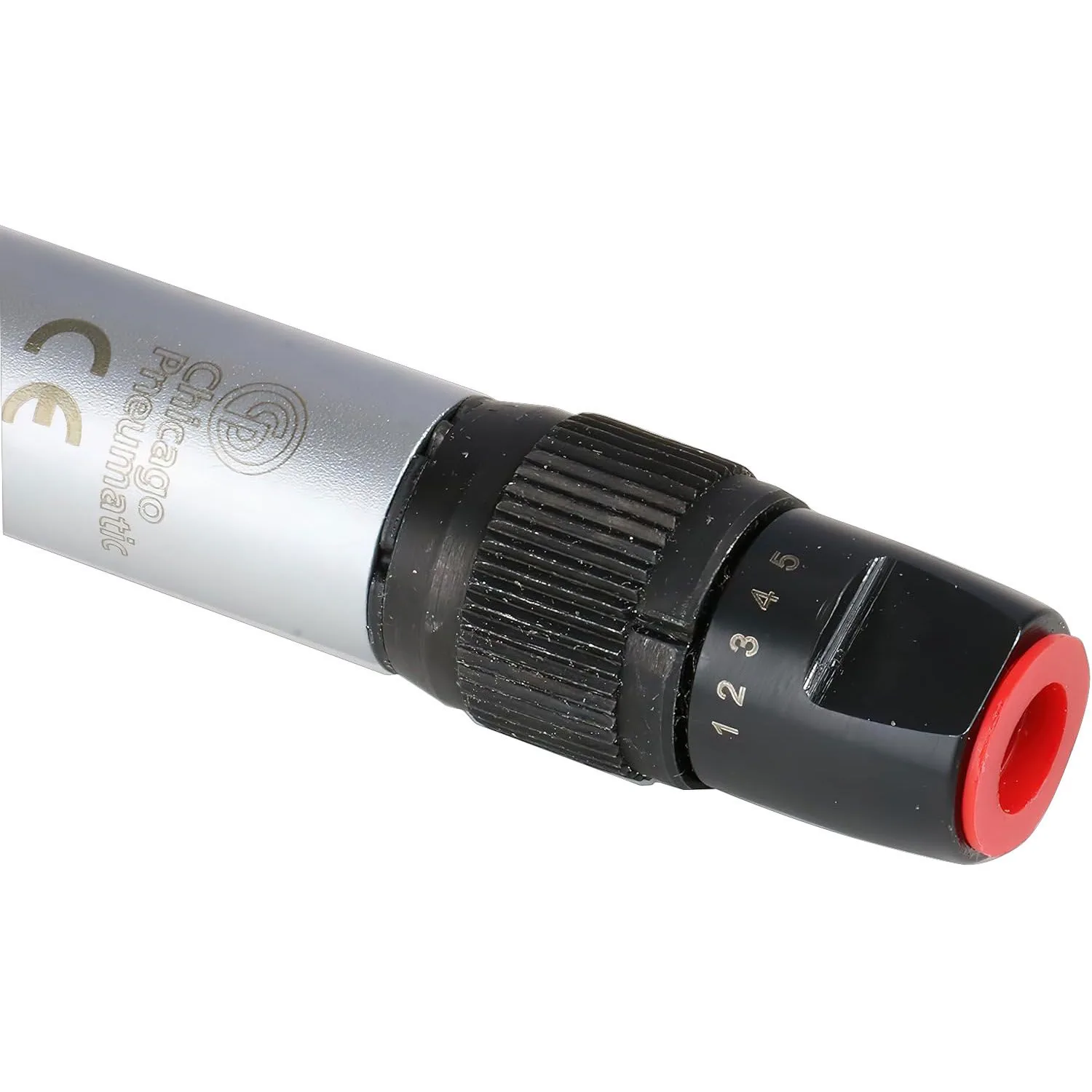

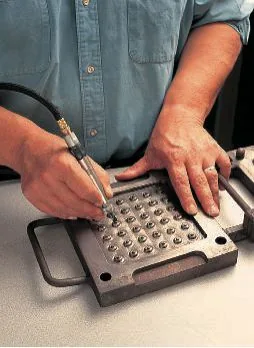

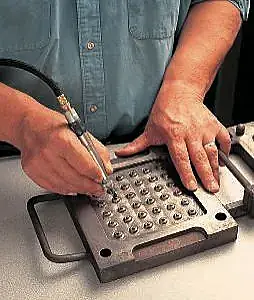

Easy handling and comfortable use with an adjustable power for a variety of applications and materials such as: metals, plastics, ceramics, and glass

  • Highest durability in the market.
  • Convertible to a hammer or a light scaler.
  • Lightweight and easy handling for operator comfort.

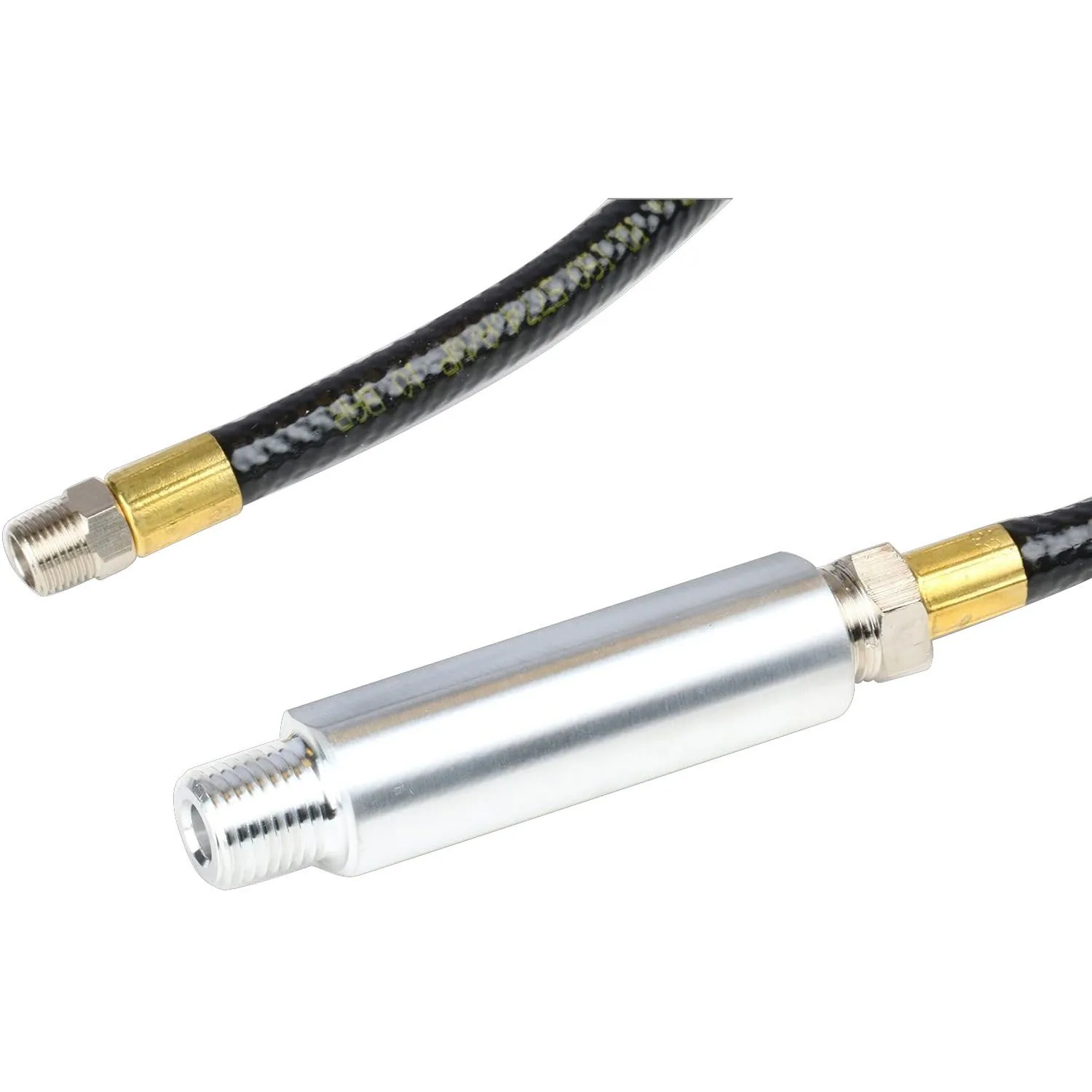

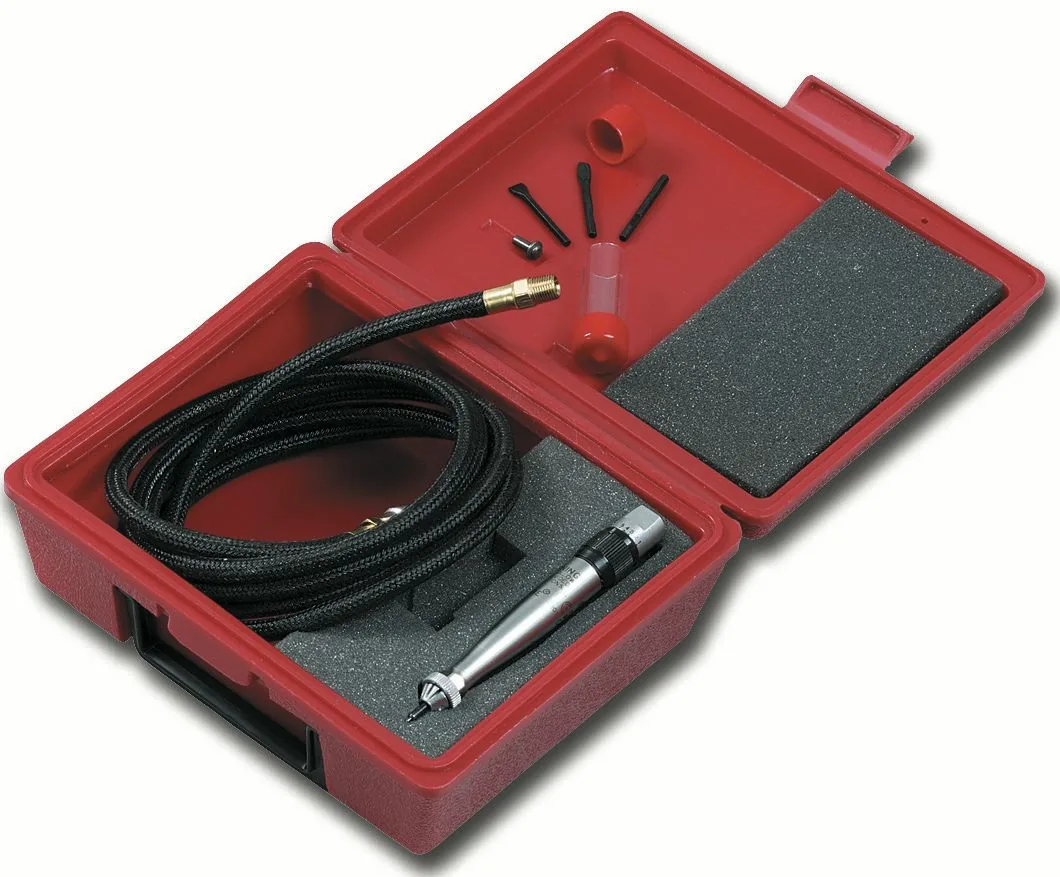

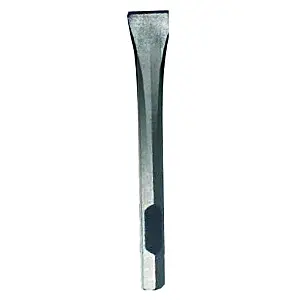

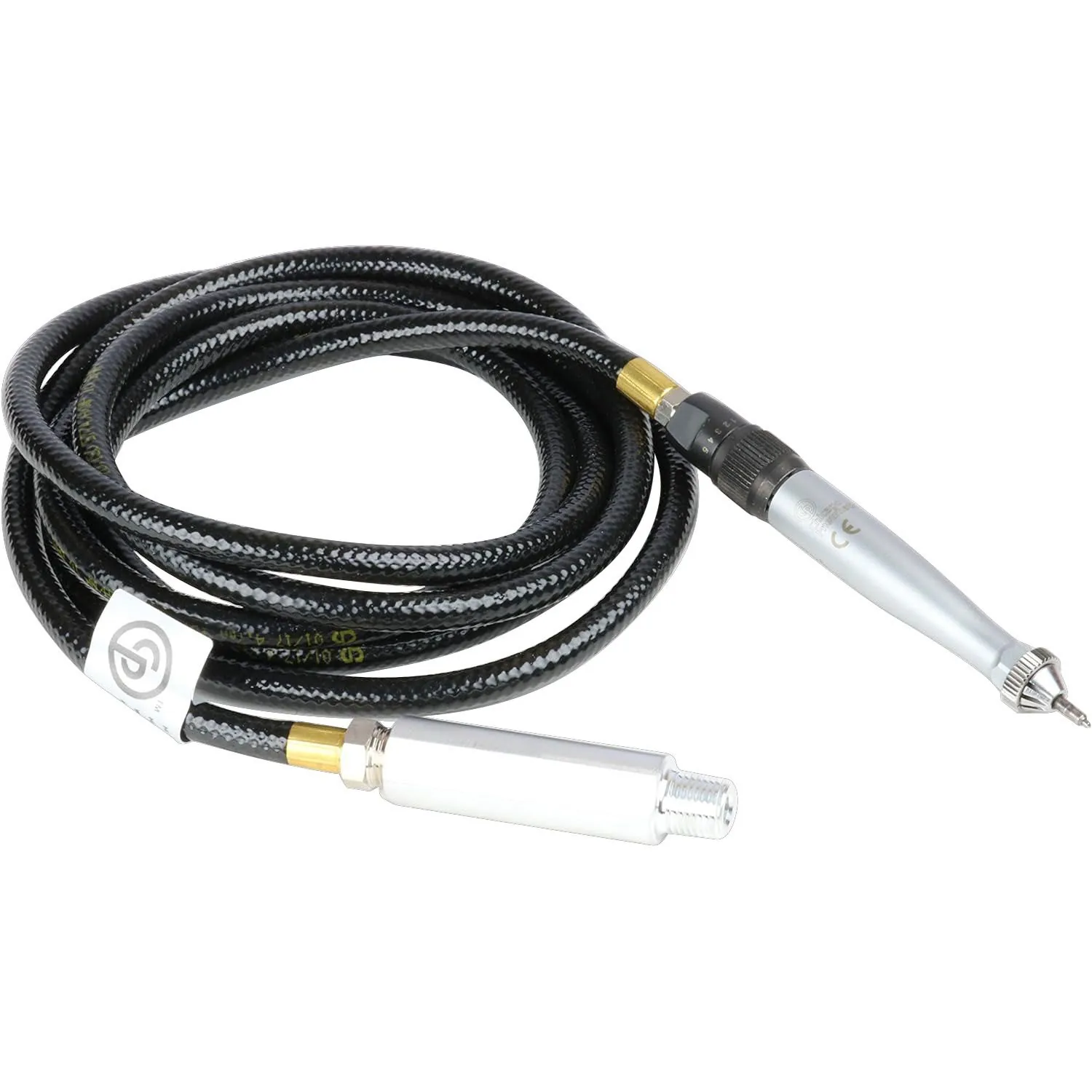

Take advantages of this CP9361 compact, light, durable and efficient chipping hammer. The CP9361 range is defined by 2 models, raw CP9361 and kit CP9361-1 (CP9361, pneumatic hose and filter, stylus, chisels and carrying case).

See the rest of our engraving pens & air scribes and see the related custom industrial tools custom. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Model
Chisel shank diameter (in)
Vibration (m/s²)
Blow per minute (bpm)
Power Source
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Length (in)
Tool Weight (lb)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Chisel shank
Main Material type
Starting System
CI-T012644
Chicago Pneumatic CP9361 - 1/8 Inch (3 mm) Engraving Pen Air Scribe, Hex Shank, Rolling Throttle - 13500 Blow Per Minute
T012644
Tool Only
1/8
16.7
13500
Pneumatic
0.2
1/4
90
0.19
5
0.31
90
79
7.9
Hex
Aluminium
Rolling throttle
CI-T011970
Chicago Pneumatic CP9361-1 - Kit - 1/8 Inch (3 mm) Engraving Pen Air Scribe, Hex Shank Shank, Rolling Throttle - 13500 Blow Per Minute
T011970
Kit (Includes hose, stylus, chisels and case)
1/8
16.7
13500
Pneumatic
0.2
1/4
90
0.19
5
0.31
90
79
7.9
Hex
Aluminium
Rolling throttle
