Chicago Pneumatic New CP3650 Series – Angle Sanders

Chicago Pneumatic New CP3650 Series – Angle Sanders

$1,477.00$1,531.00

Add to Cart

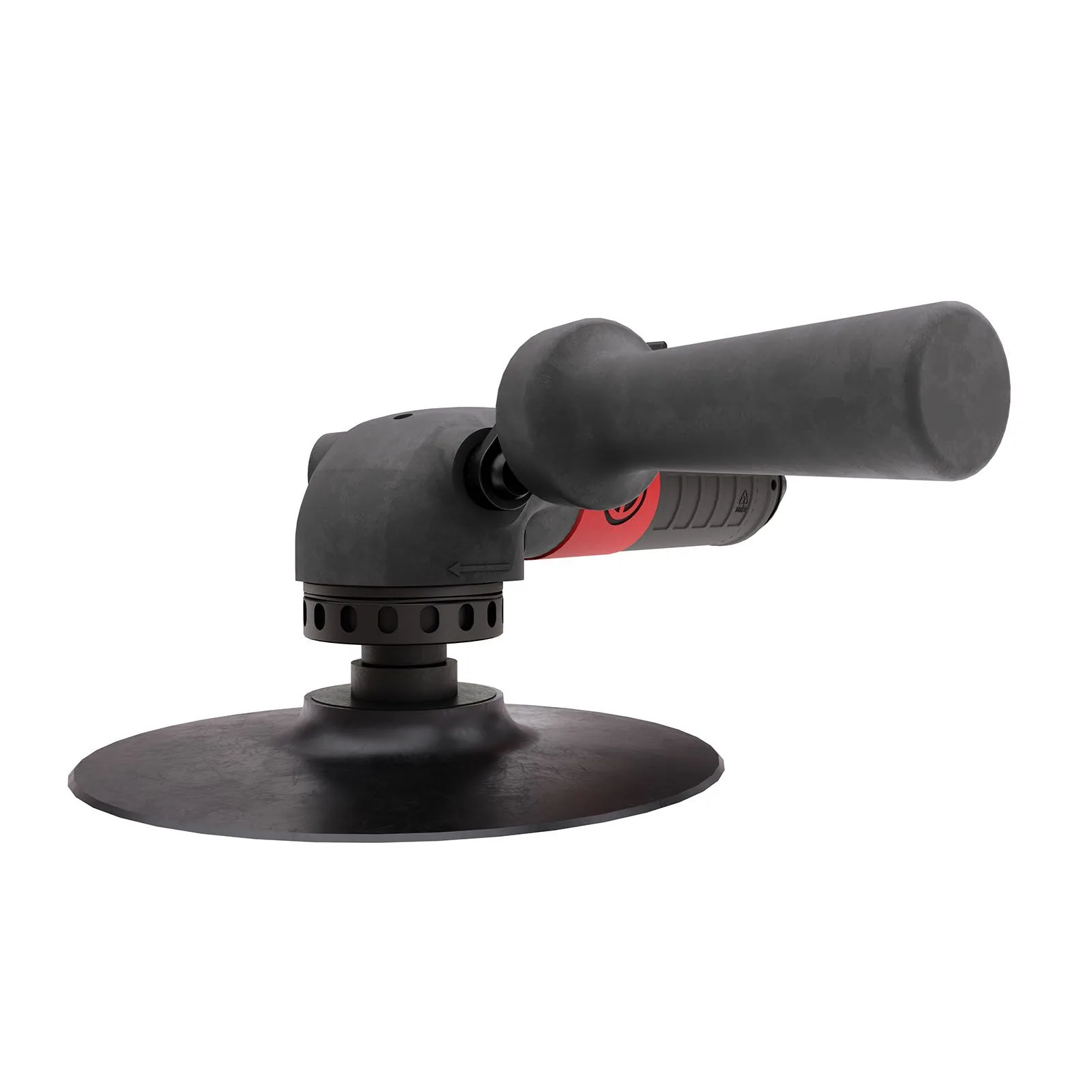

Chicago Pneumatic New CP3650 Series – Angle Sanders
Chicago Pneumatic New CP3650 Series - Angle Sanders
$1,477.00$1,531.00

Lasting Productivity in Any Work Environment

CP3650 now with 25% increased durability and superior ergonomics

  • +25% improved robustness with an exceptional bevel gear life of 2500 hours
  • Governed motor for better productivity and reduced vibration
  • A more durable design with a protective rubber on angle head housing and a steel swiveling air inlet
  • Spindle lock button for fast and easy abrasive disc change
  • Improved ergonomics with an orientable vibration damping side handle and a swiveling air inlet

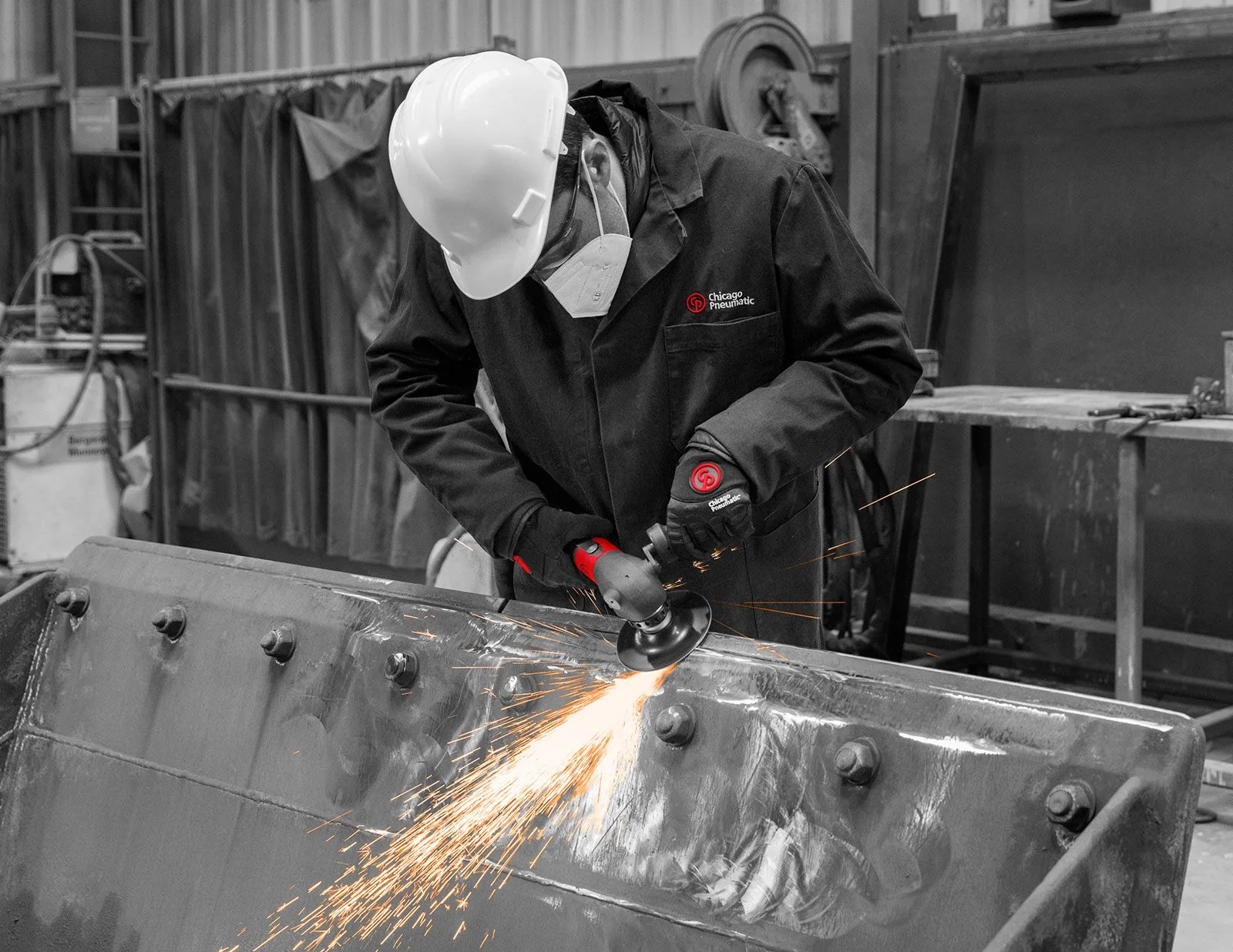

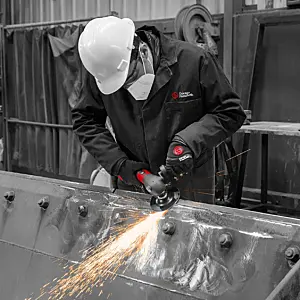

In heavy-duty industrial applications, the CP3650 series is a powerful and durable tool, combining quality and value. This sander ensures sustainable productivity with a 1800W governed motor and extended maintenance intervals. With +25% improved robustness and exceptional bevel gear life, it prioritizes operator safety and comfort through enhanced ergonomics, while achieving a 7% carbon footprint reduction. The innovative CP3650 series delivers sustainable productivity without compromising on operator safety and wellbeing. Refer to the exploded view for an overview of included accessories.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Free Speed (rpm)
Circular Abrasive Pad Size (in)
Output Spindle Thread
Power Source
Height (in)
Length (in)
Width (in)
Side To Center (in)
Tool Weight (lb)
Max power
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Air consumption at free speed (cfm)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Vibration (m/s²)
Air Inlet Thread Type
Overspeed Shut-off
Autobalancer
Exhaust
Governor Type
Main Material type
Rotative Inlet
Spindle Lock
Starting System
Energy Type
CI-6151620460
CP3650-075AB - 7500 rpm, 7 in
6151620460
7500
7
5/8-11
Pneumatic
3.7
9.74
2.68
1.34
3.97
2.31
26.8 1/sNl
3/8
90
0.5
13.1 1/sNl
101
90
3.9
6.6
BSP
No
No
Rear
Ball
Aluminium, Composite over-sleeve
Yes
Yes
Safety lever
Pneumatic
CI-6151620440

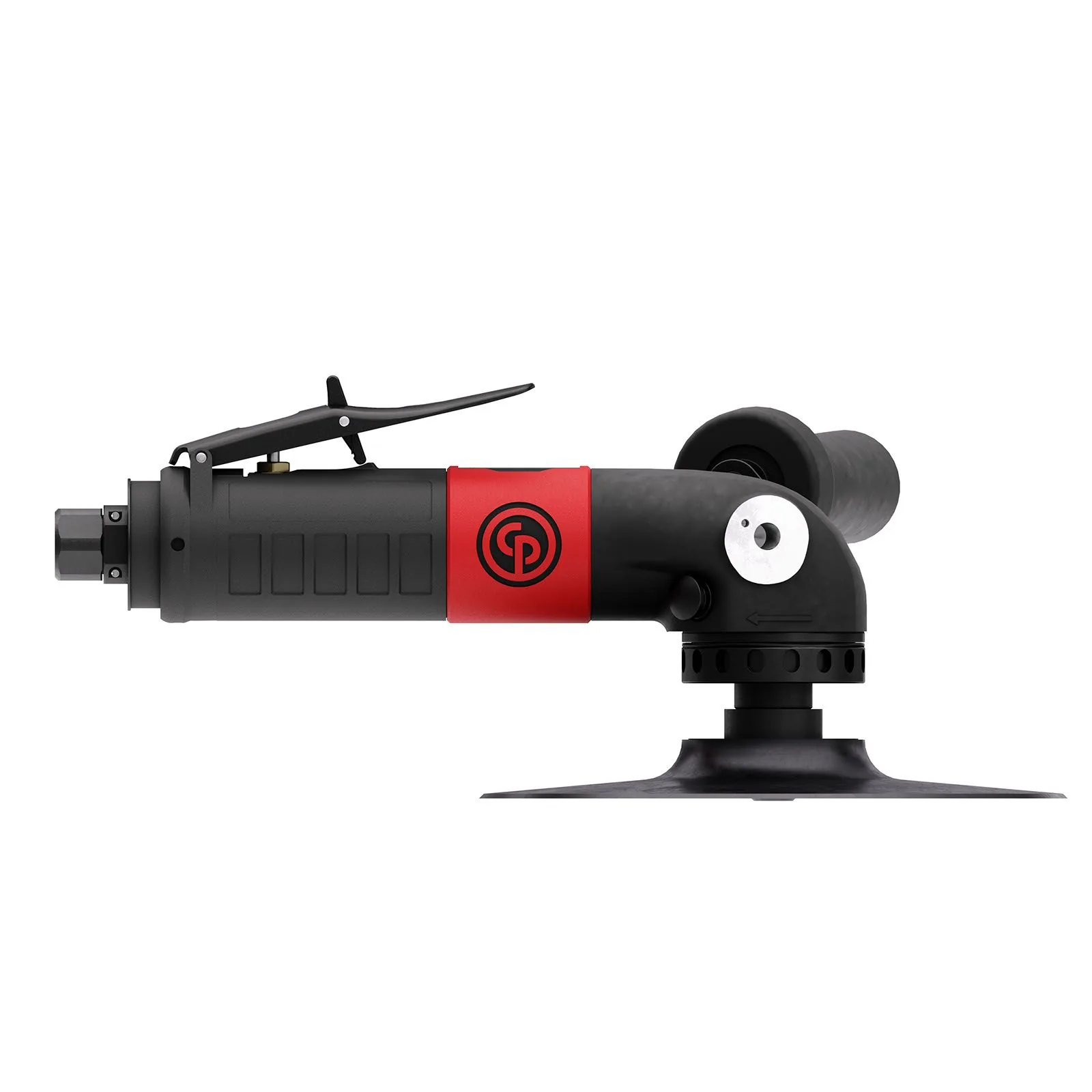

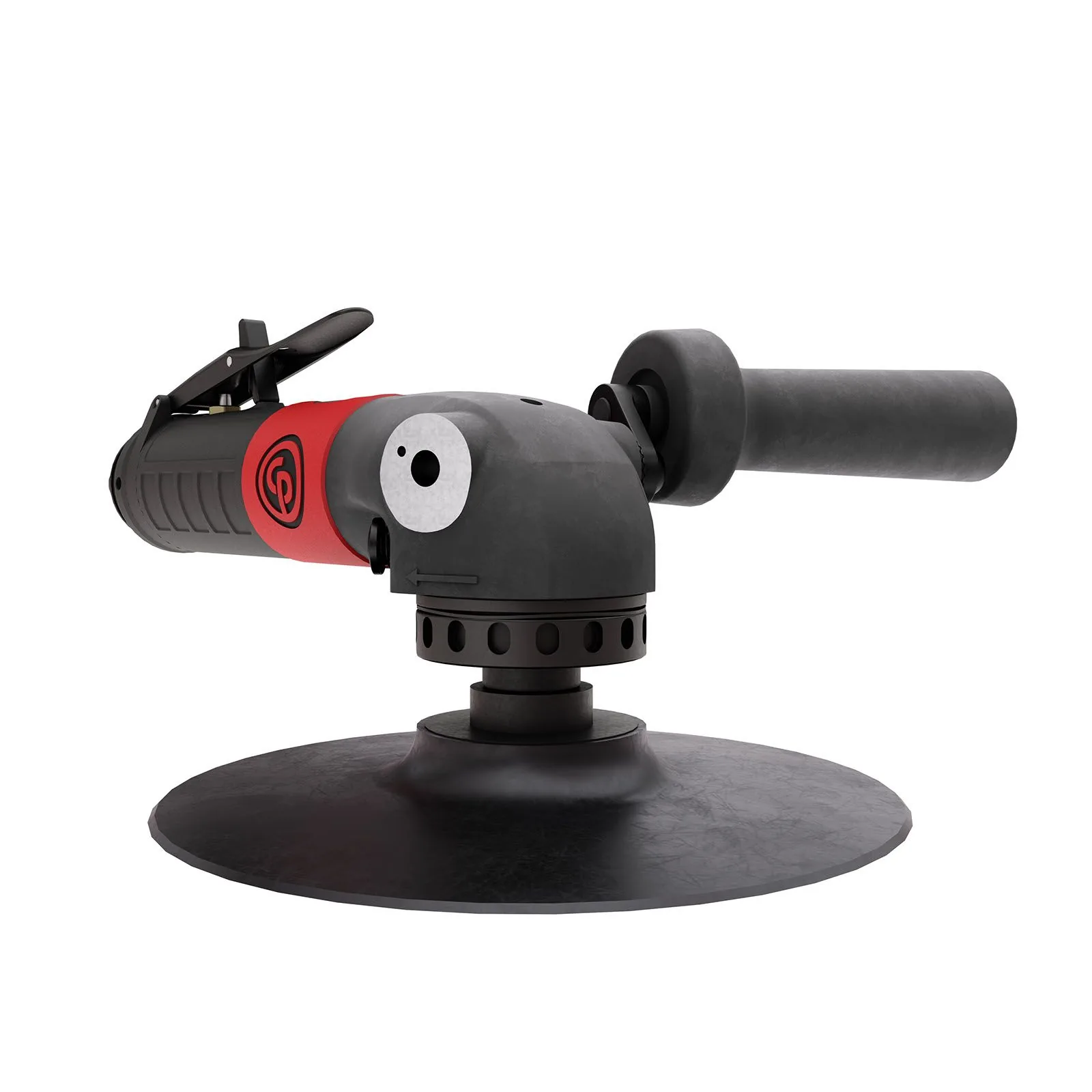

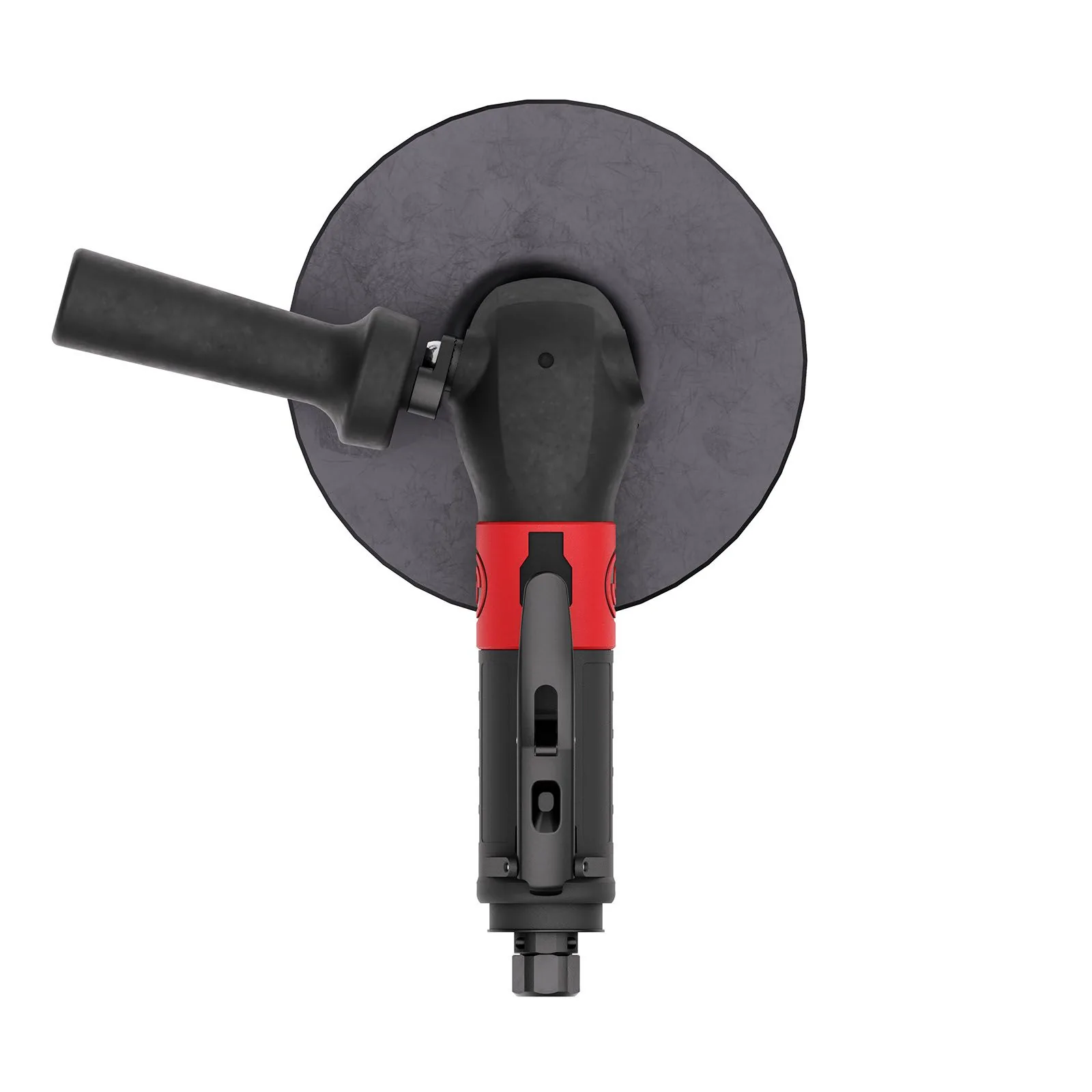

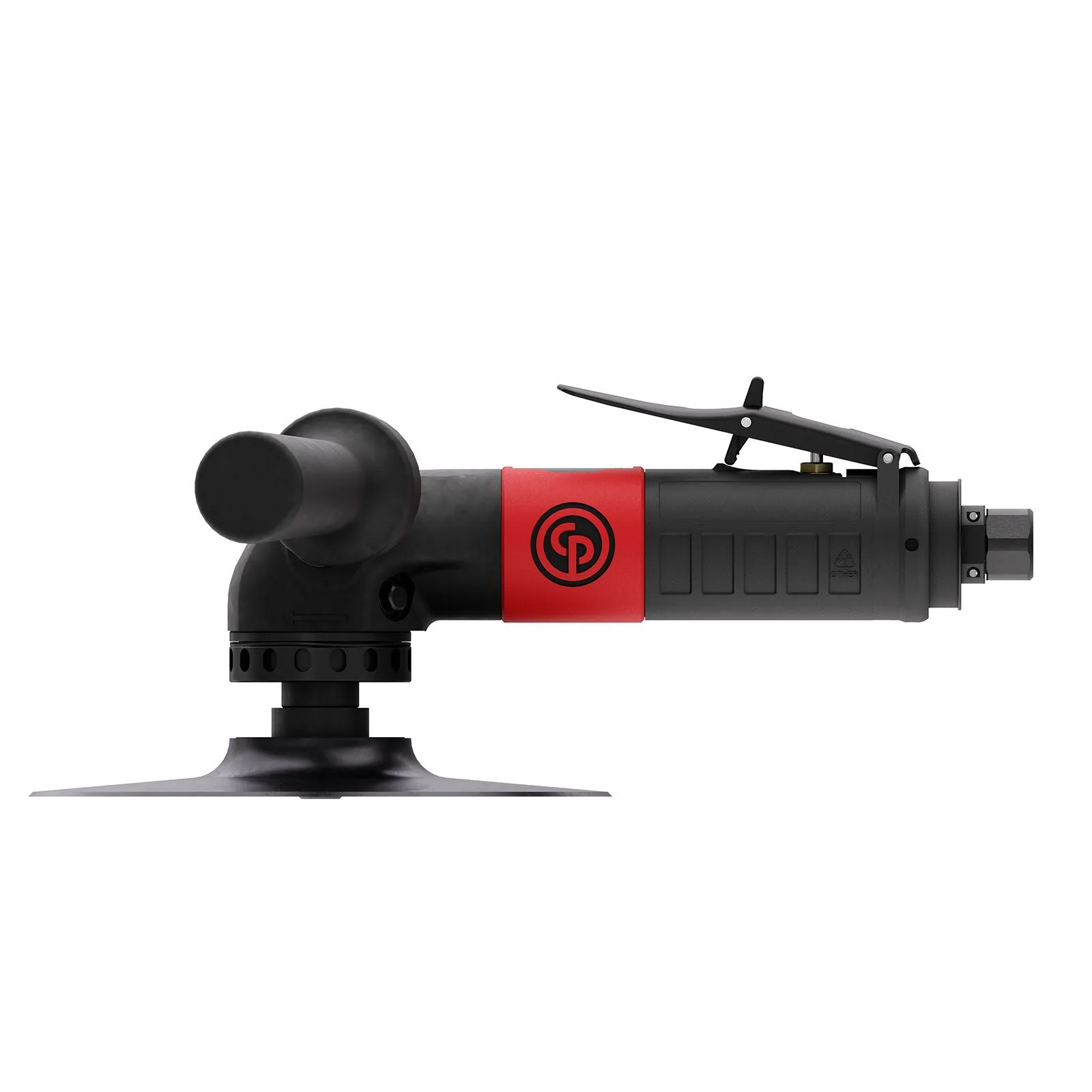

CP3650-085AB - 8500 rpm, 7 in
6151620440
8500
7
5/8-11
Pneumatic
3.7
9.74
2.68
1.34
3.97
2.41
29.8 1/sNl
3/8
90
0.5
17.6 1/sNl
104
93
4.9
7.5
BSP
No
No
Rear
Ball
Aluminium, Composite over-sleeve
Yes
Yes
Safety lever
Pneumatic
CI-6151620420

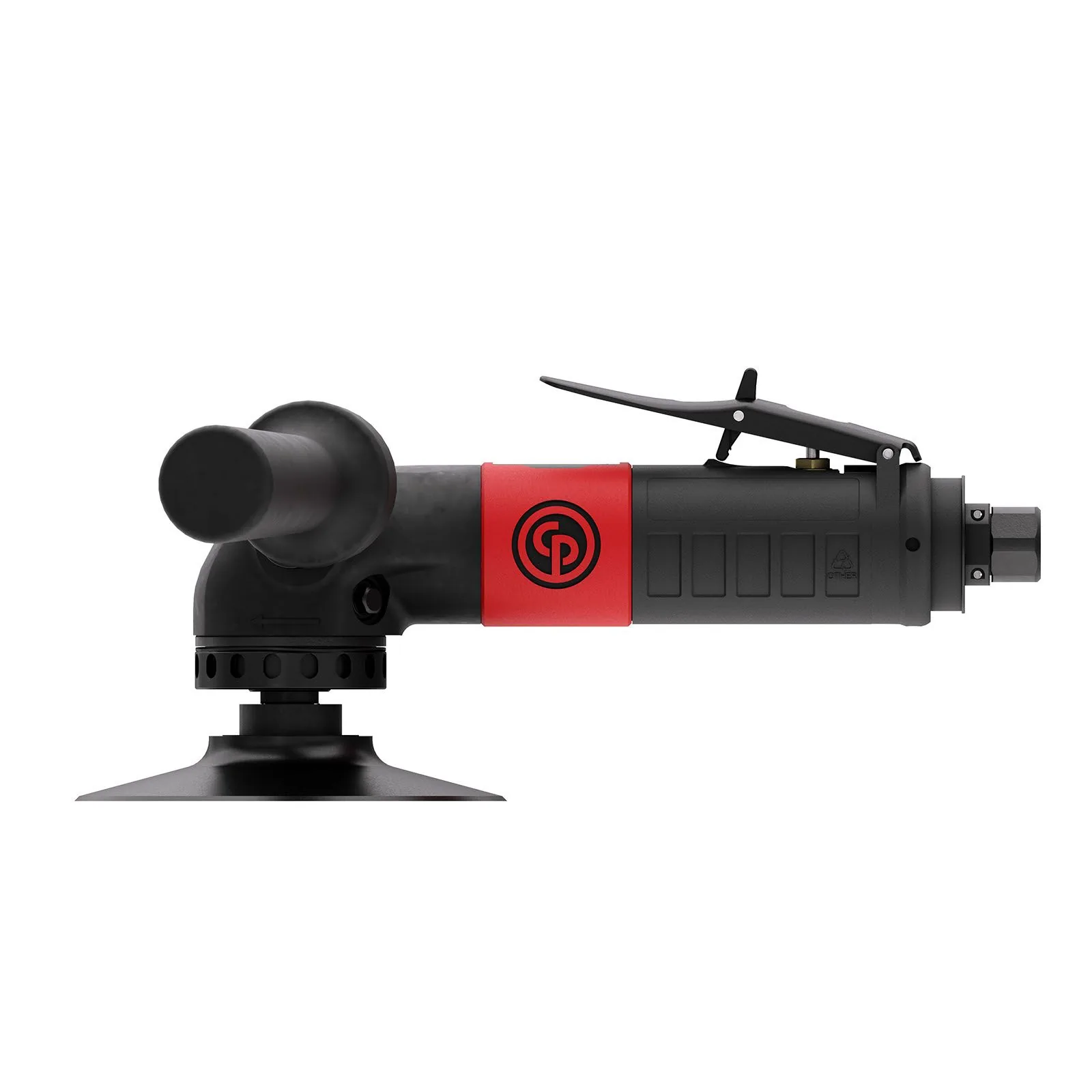

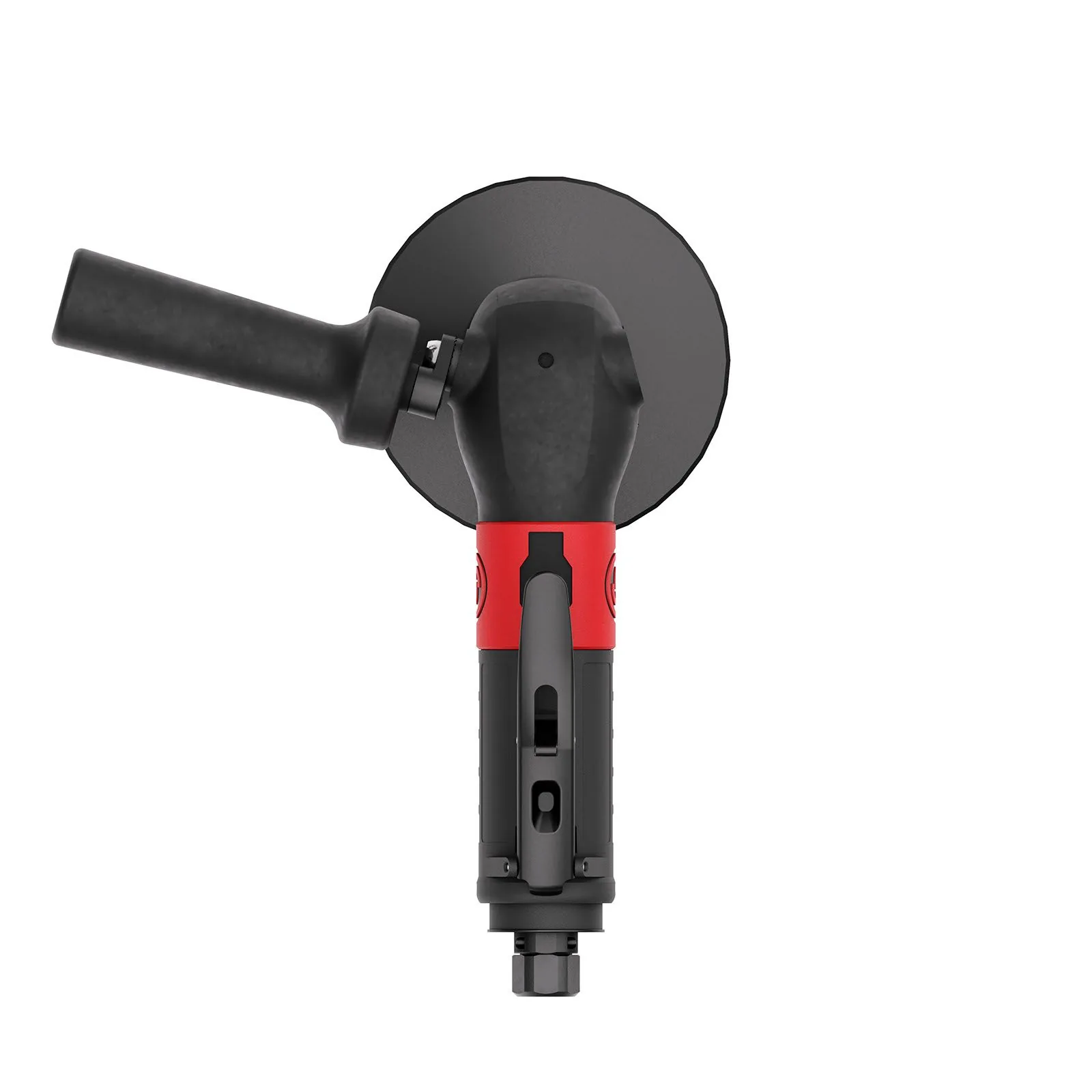

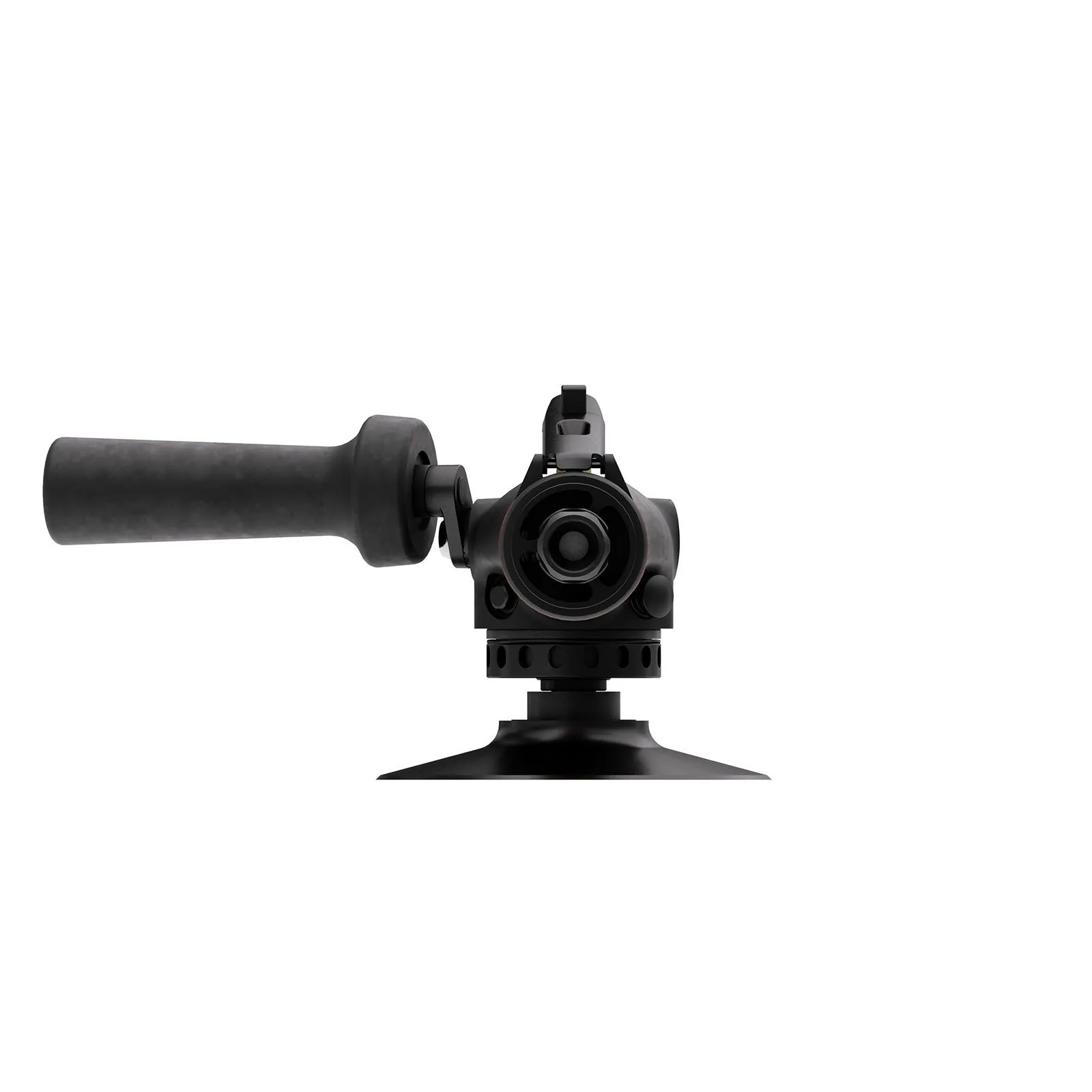

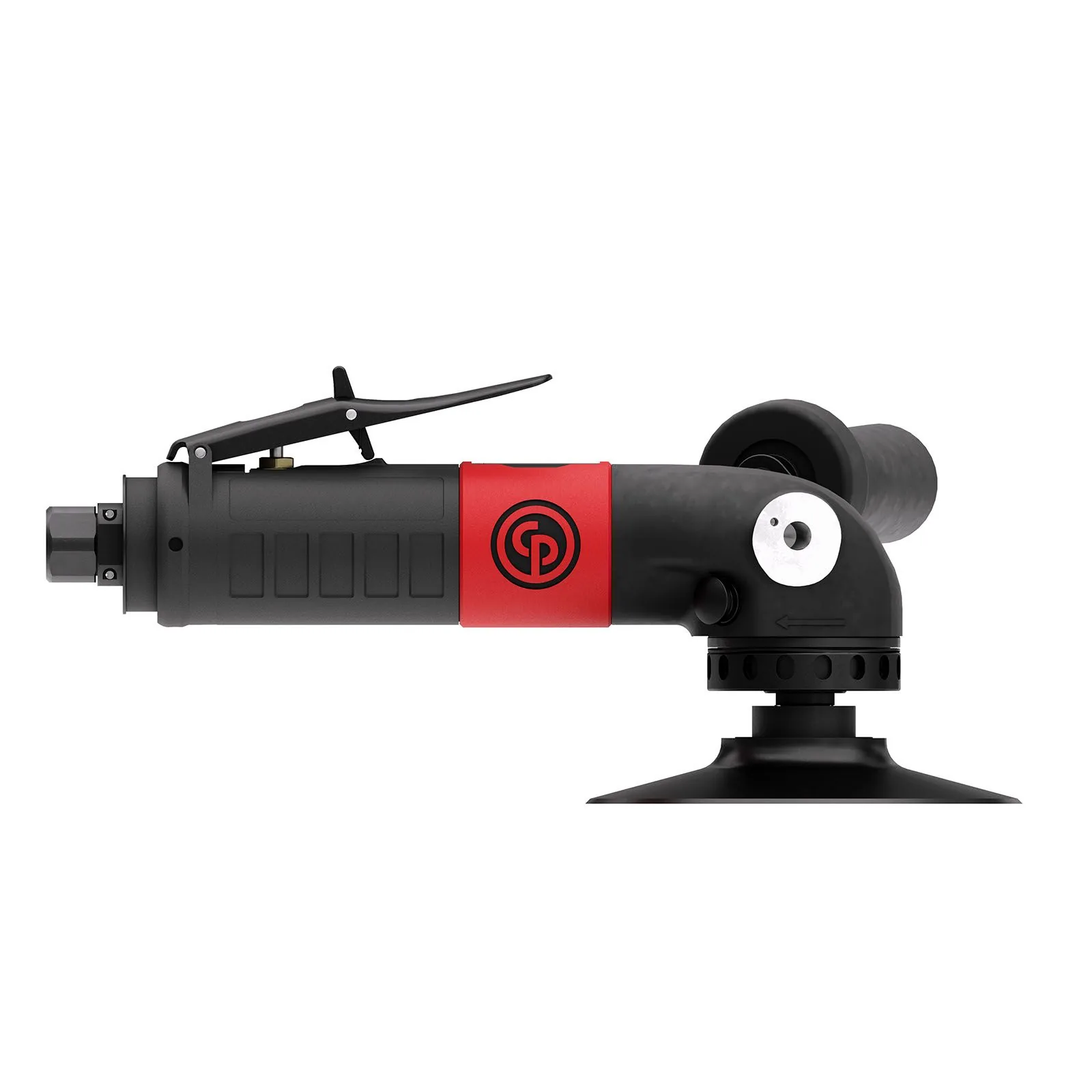

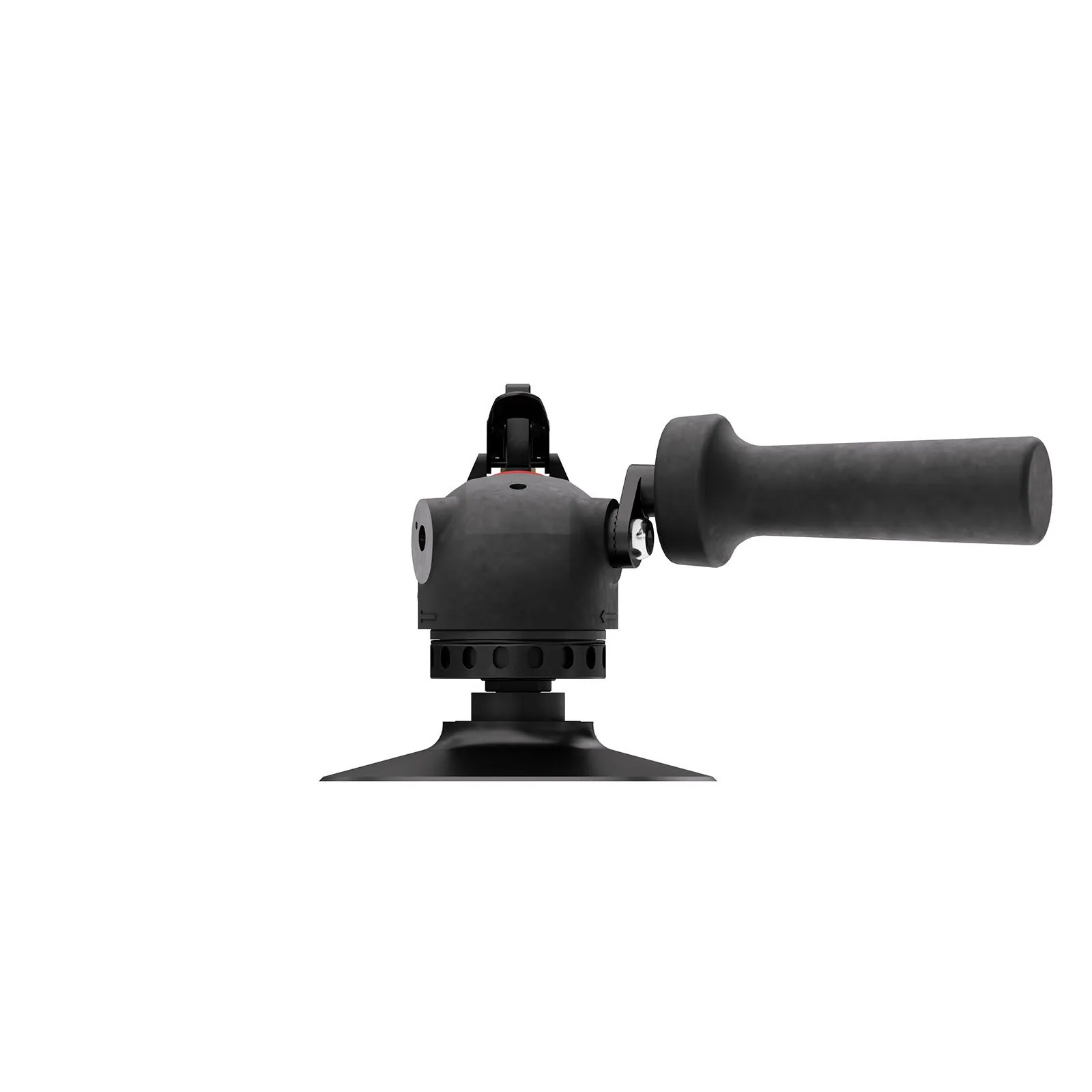

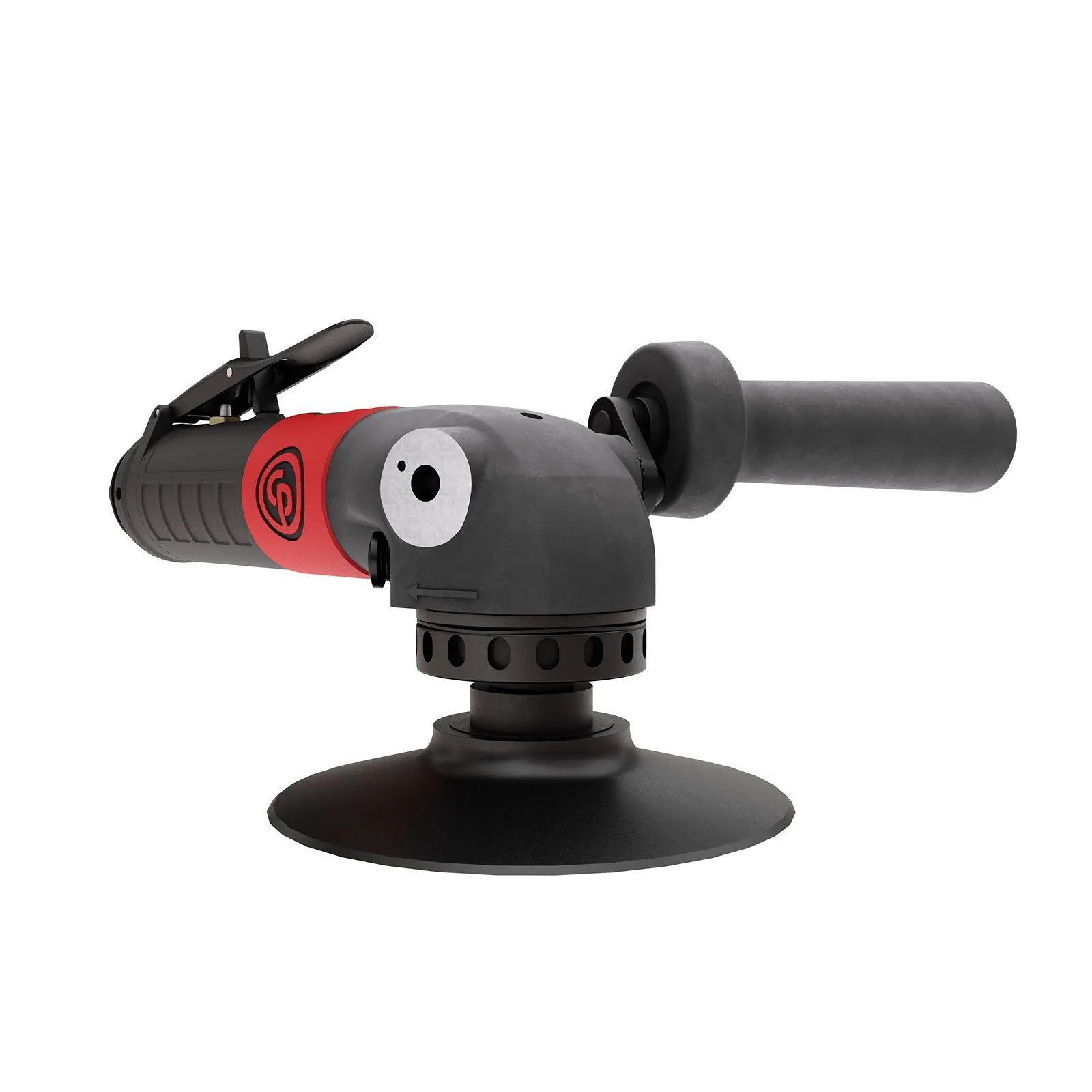

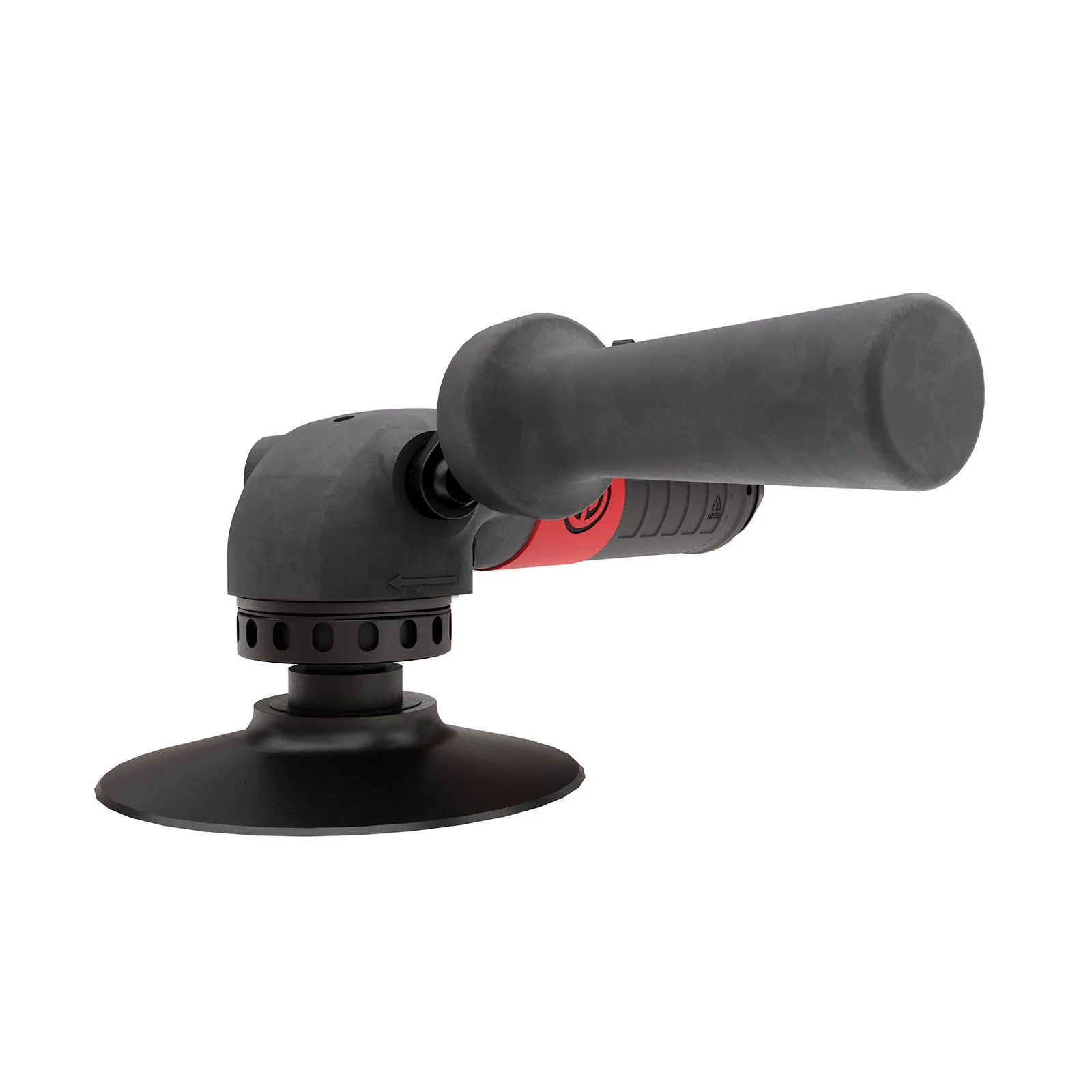

CP3650-120AB - 12000 rpm, 5 in
6151620420
12000
5
5/8-11
Pneumatic
3.7
9.74
2.68
1.34
3.97
2.41
29.8 1/sNl
3/8
90
0.5
17.6 1/sNl
104
93
3.6
8.5
BSP
No
No
Rear
Ball
Aluminium, Composite over-sleeve
Yes
Yes
Safety lever
Pneumatic
