CP CPG 125 Towable Diesel Generator

Visit Chicago Pneumatic store

CP CPG 125 Towable Diesel Generator

$101,640.00 – $103,334.00

Towable diesel generator – 100 kW / 125 kVA prime power, John Deere 4045 HFG06 Tier 4 Final engine, 480Y/277 3-phase and 240/120 single-phase.

Add to Cart
CP CPG 125 Towable Diesel Generator
$101,640.00 – $103,334.00

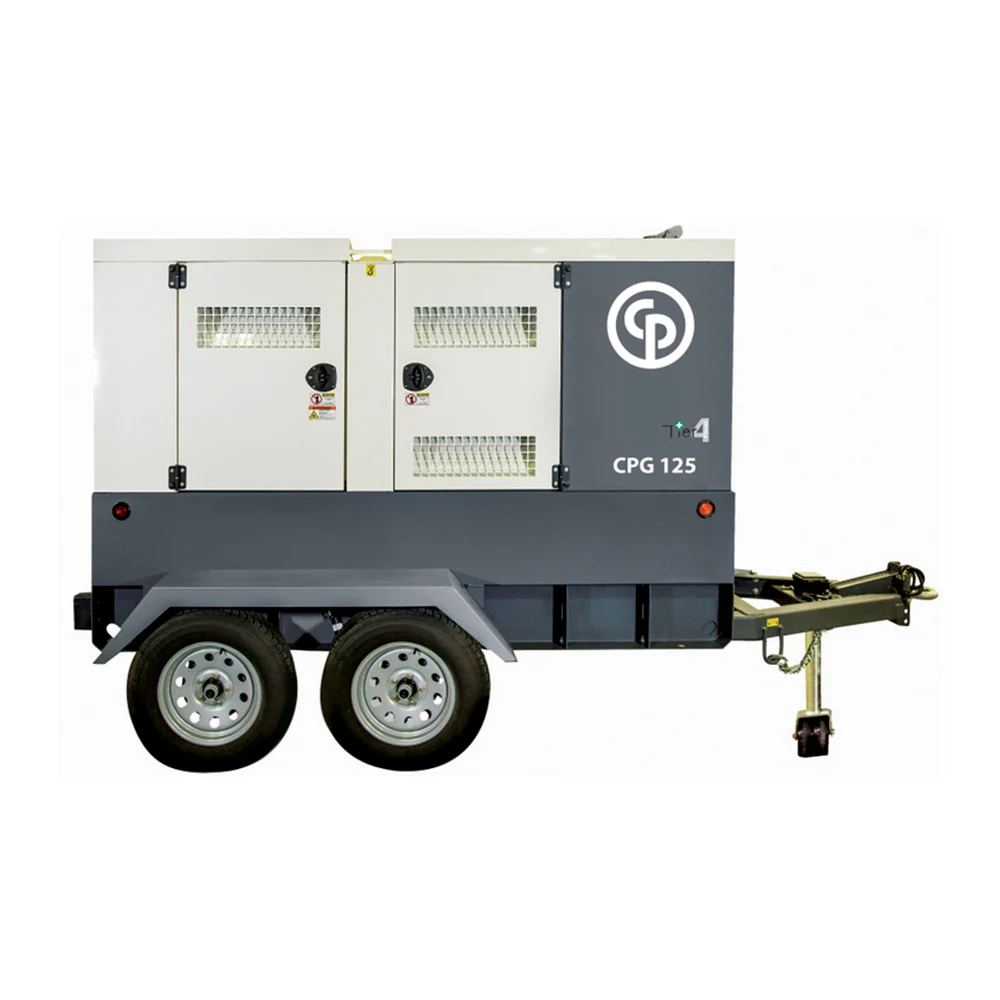

The Chicago Pneumatic CPG 125 is a towable diesel generator delivering 100 kW / 125 kVA of prime power (110 kW / 138 kVA standby) from a John Deere 4045 HFG06 diesel that meets Tier 4 Final emissions. It puts out 480Y/277V three-phase and 240/120V single-phase at 60 Hz through a Leroy Somer alternator with AREP excitation and Class H insulation, and its 166-gallon tank runs 26 hours at 75% load.

  • 100 kW / 125 kVA prime – 110 kW / 138 kVA standby
  • John Deere 4045 HFG06 diesel, Tier 4 Final
  • 480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
  • 166 gal tank – 26.4 hr autonomy at 75% load
  • 73 dB(A) at 23 ft
  • Optional RS package: quick-connect hookup and battery charger

Specifications

SKU
Product Name
Quick Connect Hookup and Battery Charger
Nominal Output (kVA)
Alternator
Emissions stage
Engine
Fuel Autonomy at 75% Load (hr)
Fuel Capacity (Gal)
Fuel consumption at 100% load (gal/hr)
Power Factor
Prime Power (kW/kVA)
Sound Pressure Level at 23 ft (dBA)
Standby Power (kW/kVA)
Voltage
CP-8972823411
CPG 125 JD FT4 EB RS with quick-connect hookup and battery charger
Yes
125
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
John Deere 4045 HFG06, Tier 4 Final
26.4
166
7.06
0.8
100 / 125
73
110 / 138
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
CP-8972823416
CPG 125 JD T4F SV
No
125
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
John Deere 4045 HFG06, Tier 4 Final
26.4
166
7.06
0.8
100 / 125
73
110 / 138
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
