CP CPG 25 Towable Diesel Generator

$35,083.00 – $38,295.00

Towable diesel generator – 20 kW / 25 kVA prime power, Isuzu 4LE2T Tier 4 Final engine, 480Y/277 3-phase and 240/120 single-phase.

Add to Cart
CP CPG 25 Towable Diesel Generator
CP CPG 25 Towable Diesel Generator
$35,083.00 – $38,295.00
$1200 Freight Shipping to lower 48

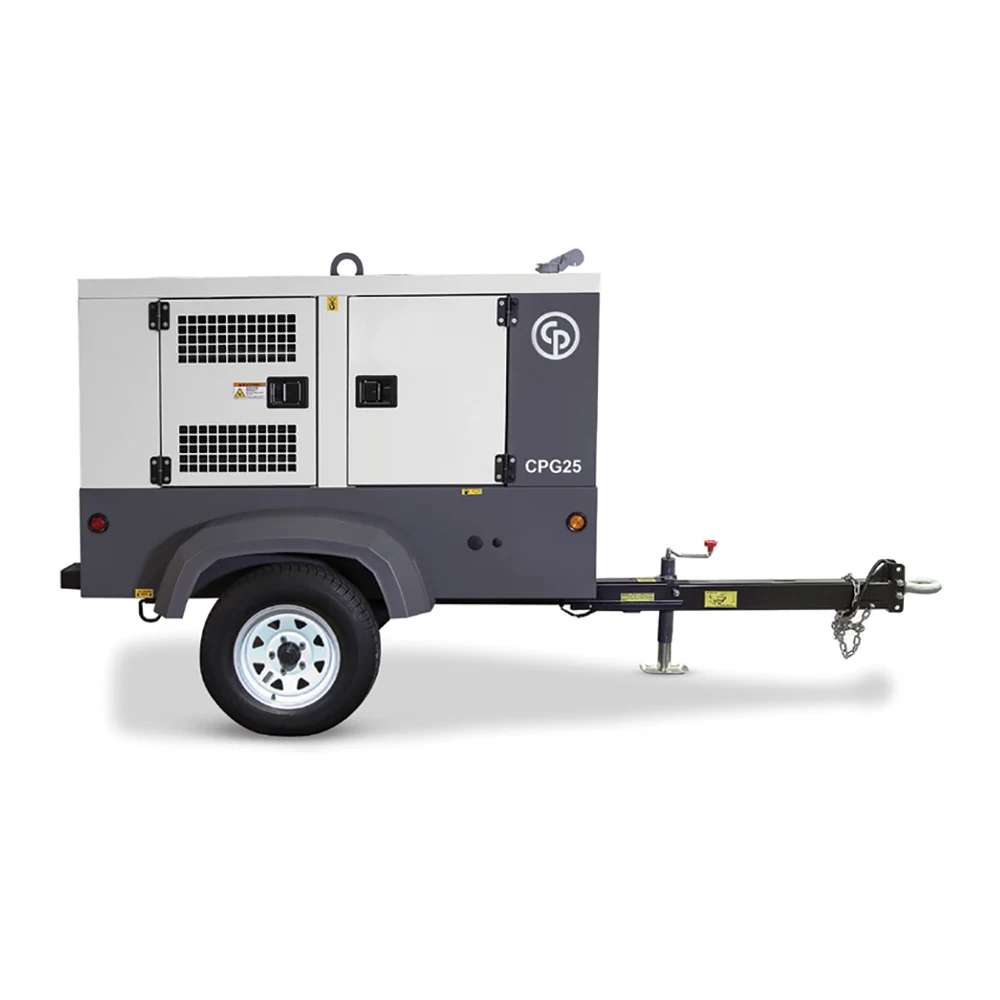

The Chicago Pneumatic CPG 25 is a towable diesel generator delivering 20 kW / 25 kVA of prime power (22 kW / 28 kVA standby) from an Isuzu 4LE2T diesel that meets Tier 4 Final emissions. It puts out 480Y/277V three-phase and 240/120V single-phase at 60 Hz through a Leroy Somer alternator with AREP excitation and Class H insulation, and its 75-gallon tank runs 48 hours at 75% load – the longest autonomy in the CPG range. At 67 dB(A) at 23 feet it’s quiet enough for populated jobsites and events.

  • 20 kW / 25 kVA prime – 22 kW / 28 kVA standby
  • Isuzu 4LE2T diesel, Tier 4 Final
  • 480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
  • 75 gal tank – 48.2 hr autonomy at 75% load
  • 67 dB(A) at 23 ft
  • Optional LRS package: camlock quick-connect hookup and battery charger

Specifications

SKU
Product Name
Quick Connect Hookup and Battery Charger
Nominal Output (kVA)
Alternator
Emissions stage
Engine
Fuel Autonomy at 75% Load (hr)
Fuel Capacity (Gal)
Fuel consumption at 100% load (gal/hr)
Power Factor
Prime Power (kW/kVA)
Sound Pressure Level at 23 ft (dBA)
Standby Power (kW/kVA)
Voltage
CP-8972823407
CPG 25 ID FT4 NB LRS with camlock quick-connect hookup and battery charger
Yes
25
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
Isuzu 4LE2T, Tier 4 Final
48.2
75
1.63
0.8
20 / 25
67
22 / 28
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
CP-8972823412
CPG 25 ID FT4 NB
No
25
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
Isuzu 4LE2T, Tier 4 Final
48.2
75
1.63
0.8
20 / 25
67
22 / 28
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
