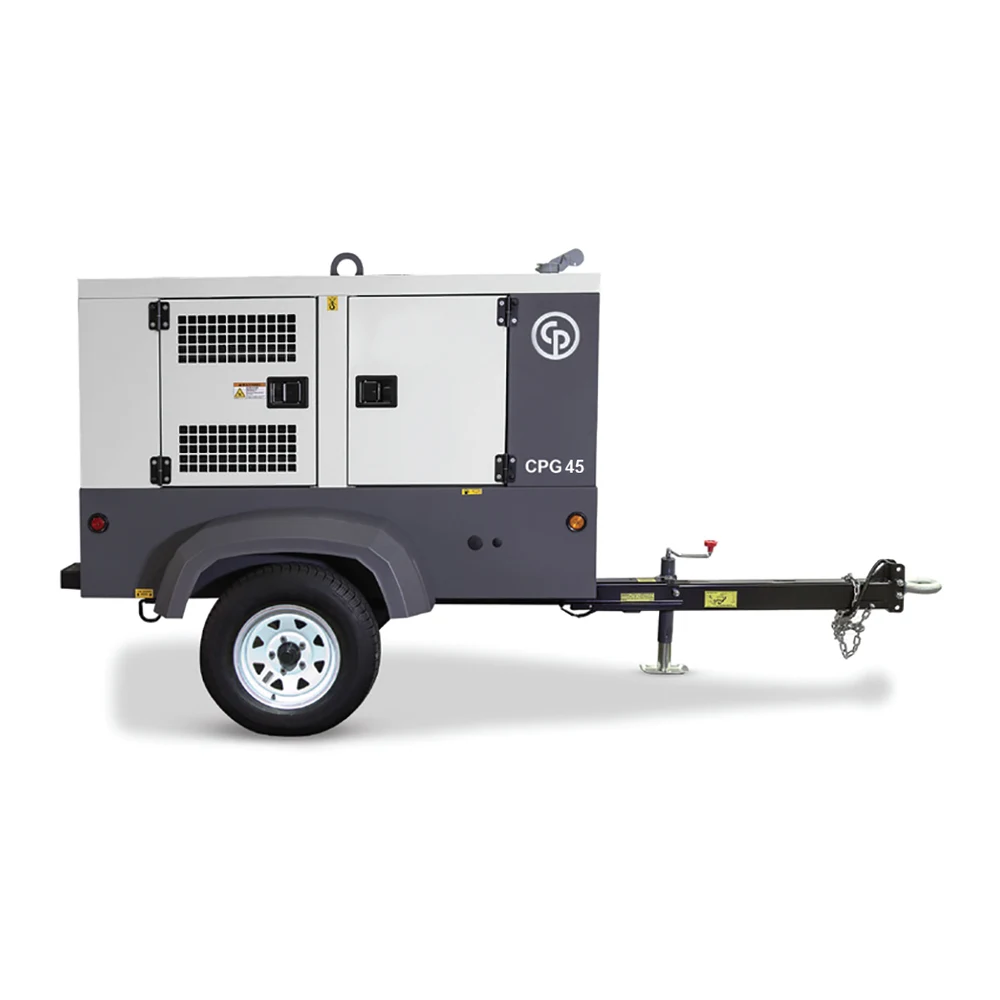

CP CPG 45 Towable Diesel Generator

$43,729.00 – $46,941.00

Towable diesel generator – 36 kW / 45 kVA prime power, Isuzu 4LE2X Tier 4 Final engine, 480Y/277 3-phase and 240/120 single-phase.

Add to Cart
CP CPG 45 Towable Diesel Generator
$43,729.00 – $46,941.00

The Chicago Pneumatic CPG 45 is a towable diesel generator delivering 36 kW / 45 kVA of prime power (40 kW / 50 kVA standby) from an Isuzu 4LE2X diesel that meets Tier 4 Final emissions. It puts out 480Y/277V three-phase and 240/120V single-phase at 60 Hz through a Leroy Somer alternator with AREP excitation and Class H insulation, and its 75-gallon tank runs 31 hours at 75% load. At 67 dB(A) at 23 feet it’s quiet enough for populated jobsites and events.

  • 36 kW / 45 kVA prime – 40 kW / 50 kVA standby
  • Isuzu 4LE2X diesel, Tier 4 Final
  • 480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
  • 75 gal tank – 31.4 hr autonomy at 75% load
  • 67 dB(A) at 23 ft
  • Optional LRS package: quick-connect hookup and battery charger

Specifications

SKU
Product Name
Quick Connect Hookup and Battery Charger
Nominal Output (kVA)
Alternator
Emissions stage
Engine
Fuel Autonomy at 75% Load (hr)
Fuel Capacity (Gal)
Fuel consumption at 100% load (gal/hr)
Power Factor
Prime Power (kW/kVA)
Sound Pressure Level at 23 ft (dBA)
Standby Power (kW/kVA)
Voltage
CP-8972823408
CPG 45 ID FT4 NB LRS with quick-connect hookup and battery charger
Yes
45
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
Isuzu 4LE2X, Tier 4 Final
31.4
75
2.76
0.8
36 / 45
67
40 / 50
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
CP-8972823413
CPG 45 ID T4F NB
No
45
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
Isuzu 4LE2X, Tier 4 Final
31.4
75
2.76
0.8
36 / 45
67
40 / 50
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
