CP CPG 70 Towable Diesel Generator

Visit Chicago Pneumatic store

CP CPG 70 Towable Diesel Generator

$72,989.00 – $74,477.00

Towable diesel generator – 56 kW / 70 kVA prime power, Isuzu 4JJ1X Tier 4 Final engine, 480Y/277 3-phase and 240/120 single-phase.

Add to Cart
CP CPG 70 Towable Diesel Generator
$72,989.00 – $74,477.00

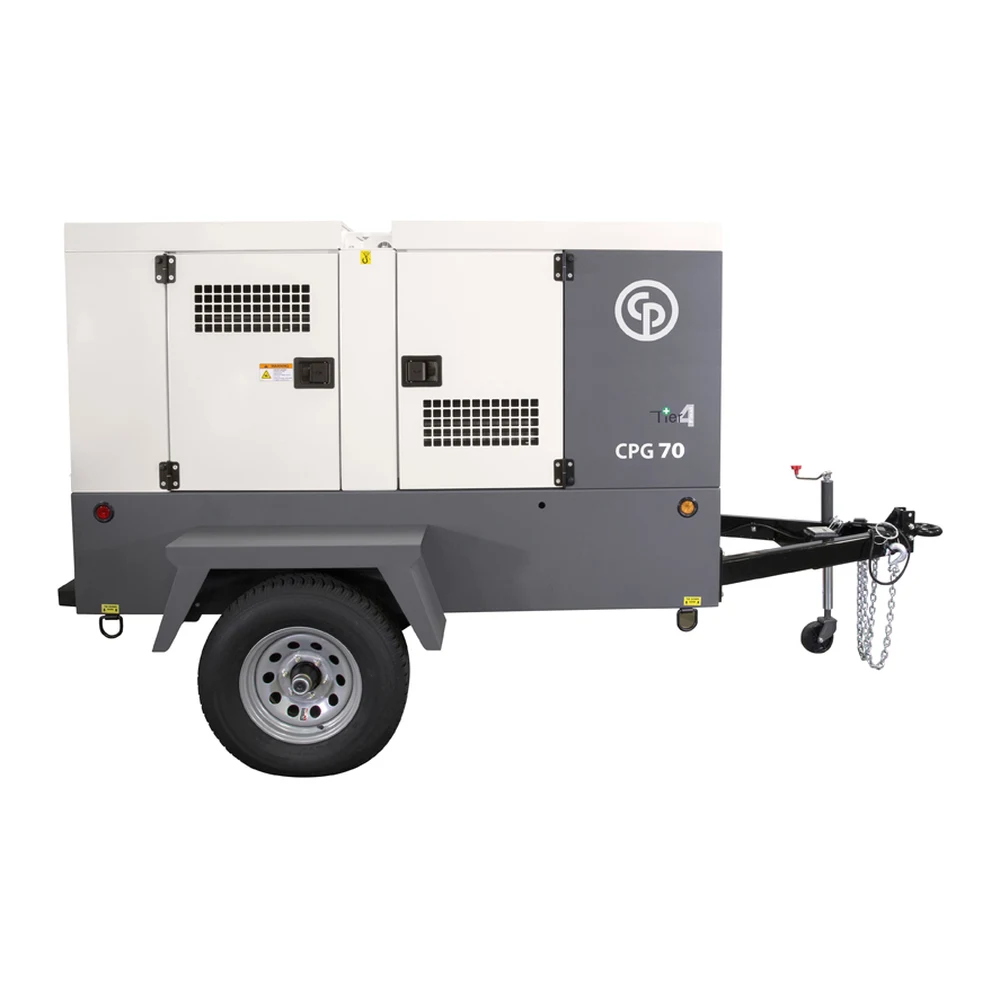

The Chicago Pneumatic CPG 70 is a towable diesel generator delivering 56 kW / 70 kVA of prime power (60 kW / 75 kVA standby) from an Isuzu 4JJ1X diesel that meets Tier 4 Final emissions. It puts out 480Y/277V three-phase and 240/120V single-phase at 60 Hz through a Leroy Somer alternator with AREP excitation and Class H insulation, and its 110-gallon tank runs 25 hours at 75% load. At 67 dB(A) at 23 feet it’s quiet enough for populated jobsites and events.

  • 56 kW / 70 kVA prime – 60 kW / 75 kVA standby
  • Isuzu 4JJ1X diesel, Tier 4 Final
  • 480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
  • 110 gal tank – 25.1 hr autonomy at 75% load
  • 67 dB(A) at 23 ft
  • Optional LRS package: quick-connect hookup and battery charger

Specifications

SKU
Product Name
Quick Connect Hookup and Battery Charger
Nominal Output (kVA)
Alternator
Emissions stage
Engine
Fuel Autonomy at 75% Load (hr)
Fuel Capacity (Gal)
Fuel consumption at 100% load (gal/hr)
Power Factor
Prime Power (kW/kVA)
Sound Pressure Level at 23 ft (dBA)
Standby Power (kW/kVA)
Voltage
CP-8972823409
CPG 70 ID T4F EB LRS with quick-connect hookup and battery charger
Yes
70
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
Isuzu 4JJ1X, Tier 4 Final
25.1
110
3.95
0.8
56 / 70
67
60 / 75
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
CP-8972823414
CPG 70 ID T4F EB
No
70
Leroy Somer, AREP excitation, Class H insulation
Tier 4 Final
Isuzu 4JJ1X, Tier 4 Final
25.1
110
3.95
0.8
56 / 70
67
60 / 75
480Y/277V 3-phase and 240/120V 1-phase, 60 Hz
