Carrier base plate and adapter plate not included. Epiroc attachments mount to the carrier through a carrier-specific base plate, adapter plate and bolt kit, which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing.

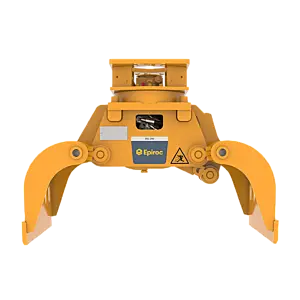

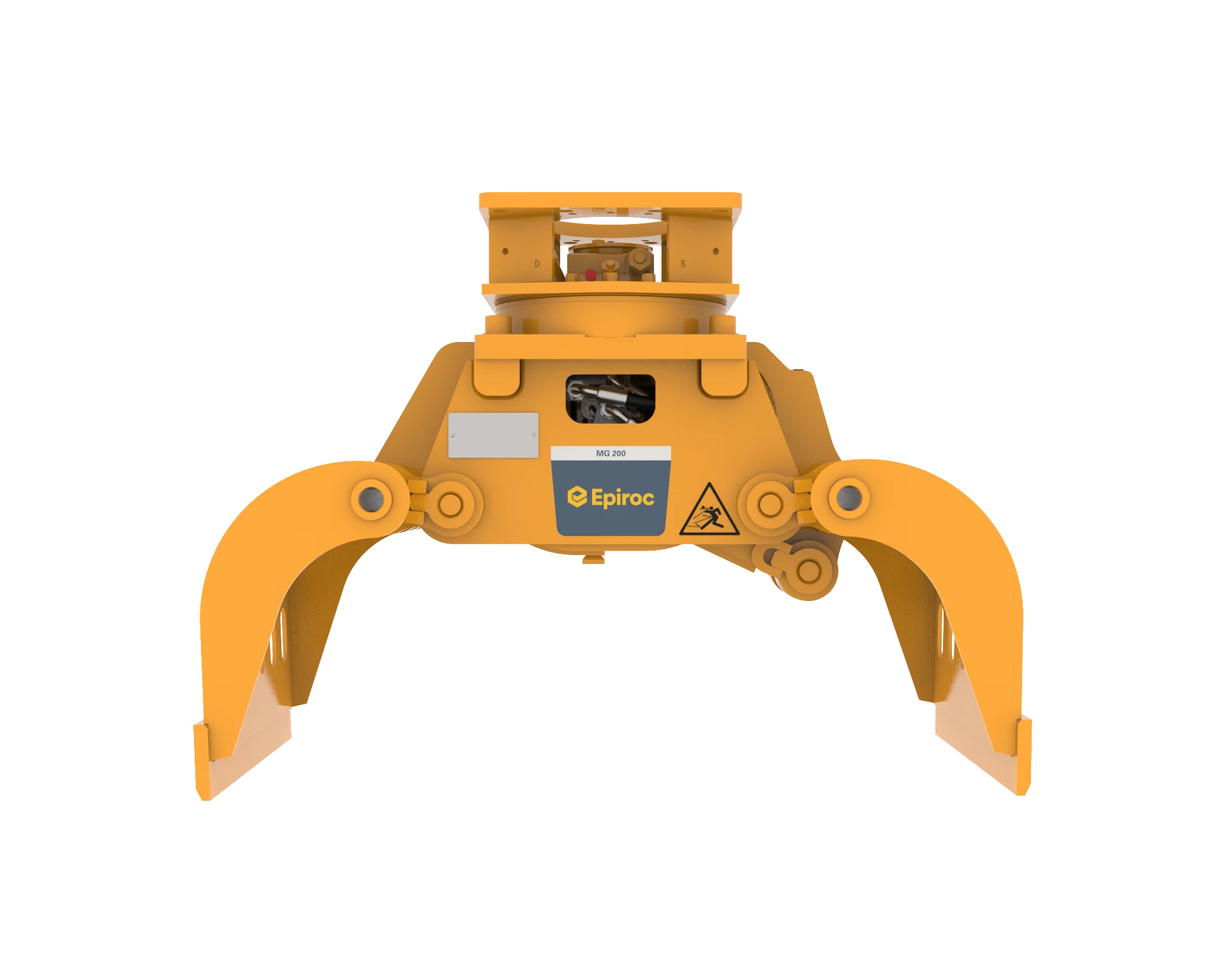

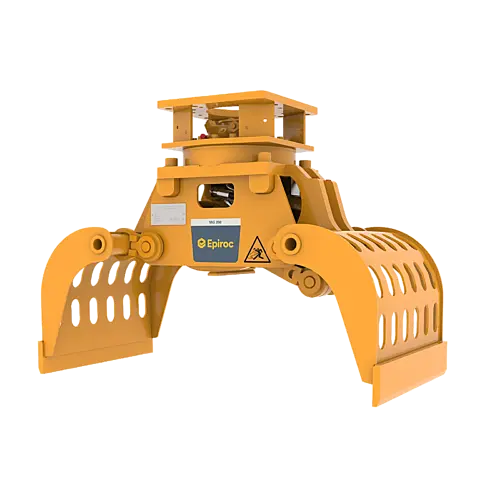

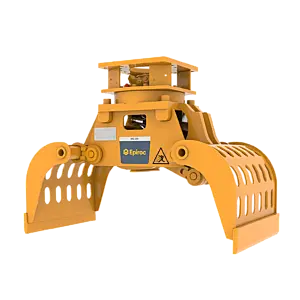

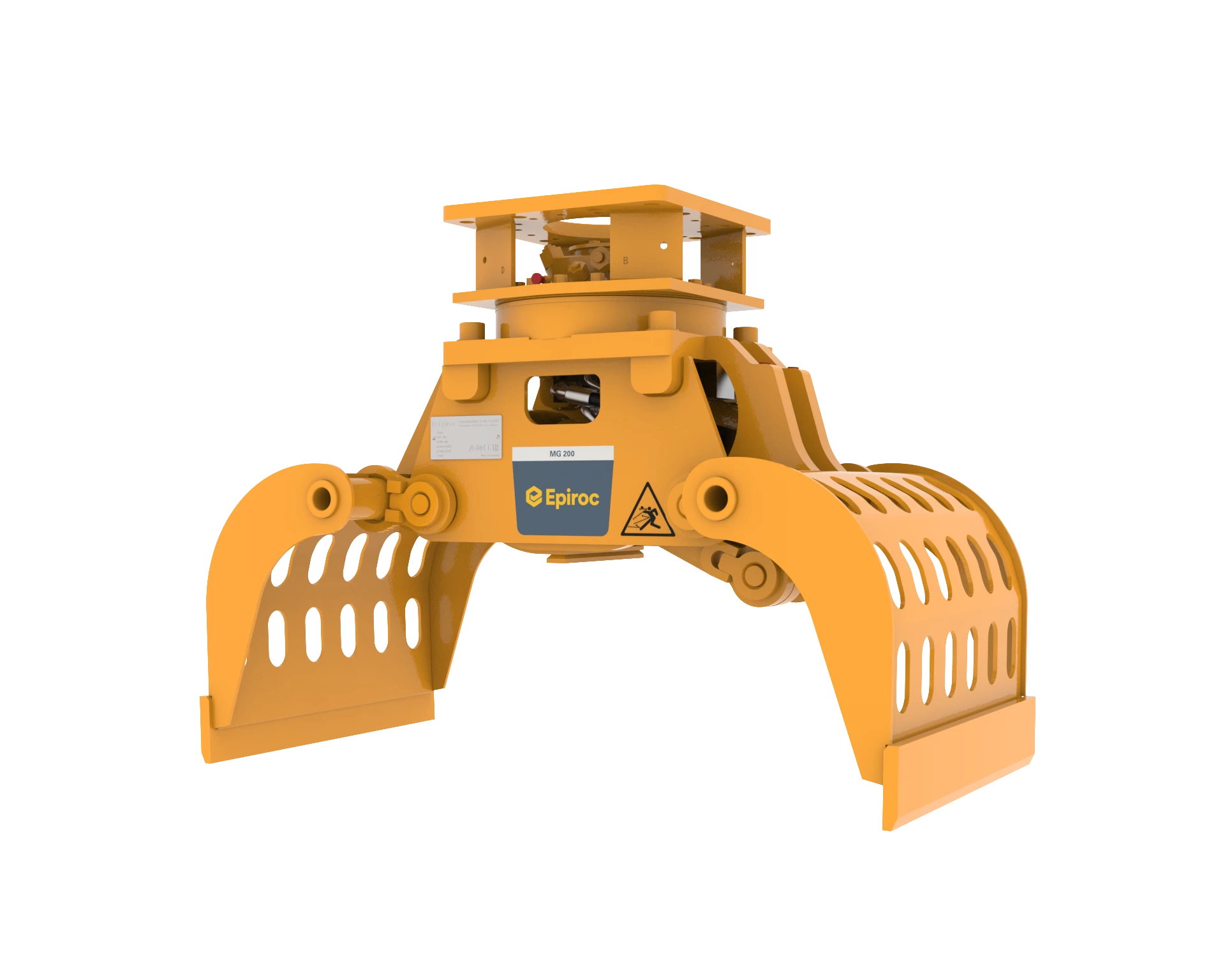

The Epiroc MG 200 R is a hydraulic multi grapple for 2,600–8,800 lb (1.2–4 t) excavators, built for loading and sorting material and for demolishing wooden and masonry structures.
Service weight 475 lb (216 kg) with an average-sized adapter plate; product weight 395 lb (180 kg). Max. closing force 1.7 US tons (1.5 t). Jaw opening 33.1 in. (841 mm), grapple width 17.7 in. (450 mm), loading volume 0.07 cu yd (0.05 m³). Oil flow 6.6 gpm (25 l/min) at up to 4,350 psi (300 bar); rotation circuit 1.3–2.6 gpm (5–10 l/min) at up to 2,465 psi (170 bar). 360° endless hydraulic rotation positions the shells precisely, and the rotation can be switched off for non-rotating use.
Epiroc multi grapples load and sort material and take down wooden and masonry structures with a steady grip and virtually constant closing force. An integrated mechanical stop takes load off the cylinders, the solid perforated shells keep the load in view, and the cutting blades are replaceable and reversible. Optional tooth blades (MG 400–2300) suit block and stone handling, and optional bolt-on side plates (MG 400–1500) hold fine-grained material and debris.
Service parts on the MG 200 R Multi Grapple breakdown (serial DEQ236111, 236432, DEQ246150-246292, DGR240084 and later): blade kit 3372100007, cylinder seal kit 3376678150, rotary seal kit 3376678152, hydraulic motor seal kits 3363124373 / 3376678151, life ring seal kit 3376678108 and label kits 3363106249 / 3363125005, and connection hoses 3363094540 / 3363094541. See the MG 200 R Multi Grapple parts diagram for every part, and the full Epiroc excavator attachments range.
- Fits 2,600–8,800 lb (1.2–4 t) excavators; service weight 475 lb (216 kg)
- 1.7 US tons (1.5 t) closing force; 33.1 in. (841 mm) jaw opening
- 0.07 cu yd (0.05 m³) loading volume, 17.7 in. (450 mm) grapple width
- 360° endless hydraulic rotation, integrated mechanical stop, reversible blades
- 6.6 gpm (25 l/min) at up to 4,350 psi (300 bar); rotation 1.3–2.6 gpm at 2,465 psi
- Carrier base plate and adapter plate not included; contact us for exact pricing
