Carrier base plate and adapter plate not included. Epiroc attachments mount to the carrier through a carrier-specific base plate, adapter plate and bolt kit, which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing.

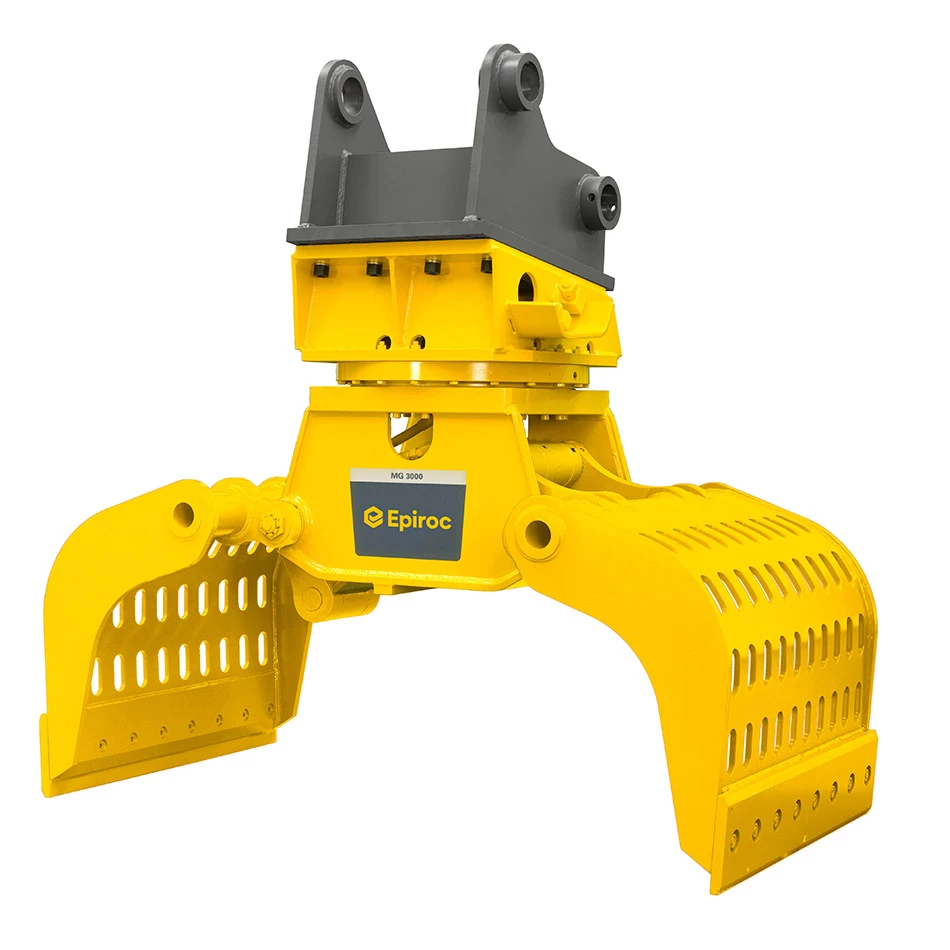

The Epiroc MG 3000 R is a hydraulic multi grapple for 77,200–110,200 lb (35–50 t) excavators, built for loading and sorting material and for demolishing wooden and masonry structures.
Service weight 7,200 lb (3,265 kg) with an average-sized adapter plate; product weight 6,615 lb (3,000 kg). Max. closing force 9.9 US tons (9 t). Jaw opening 96.9 in. (2,460 mm), grapple width 59.1 in. (1,500 mm), loading volume 1.7 cu yd (1.3 m³). Oil flow 47.6–52.8 gpm (180–200 l/min) at up to 5,075 psi (350 bar); rotation circuit 7.9–9.2 gpm (30–35 l/min) at up to 3,045 psi (210 bar). 360° endless hydraulic rotation positions the shells precisely, and the rotation can be switched off for non-rotating use.
Epiroc multi grapples load and sort material and take down wooden and masonry structures with a steady grip and virtually constant closing force. An integrated mechanical stop takes load off the cylinders, the solid perforated shells keep the load in view, and the cutting blades are replaceable and reversible. Optional tooth blades (MG 400–2300) suit block and stone handling, and optional bolt-on side plates (MG 400–1500) hold fine-grained material and debris.
Service parts on the MG 3000 R Multi Grapple breakdown (serial DEQ166242-DEQ246330, DGR256010 and later): blade kit 3363126661, hydraulic motor seal kit 3363126618 and label kit 3363116758, and connection hoses 3360992340 / 3361853859 / 3363031767 / 3363034399. See the MG 3000 R Multi Grapple parts diagram for every part, and the full Epiroc excavator attachments range.
- Fits 77,200–110,200 lb (35–50 t) excavators; service weight 7,200 lb (3,265 kg)
- 9.9 US tons (9 t) closing force; 96.9 in. (2,460 mm) jaw opening
- 1.7 cu yd (1.3 m³) loading volume, 59.1 in. (1,500 mm) grapple width
- 360° endless hydraulic rotation, integrated mechanical stop, reversible blades
- 47.6–52.8 gpm (180–200 l/min) at up to 5,075 psi (350 bar); rotation 7.9–9.2 gpm at 3,045 psi
- Carrier base plate and adapter plate not included; contact us for exact pricing
