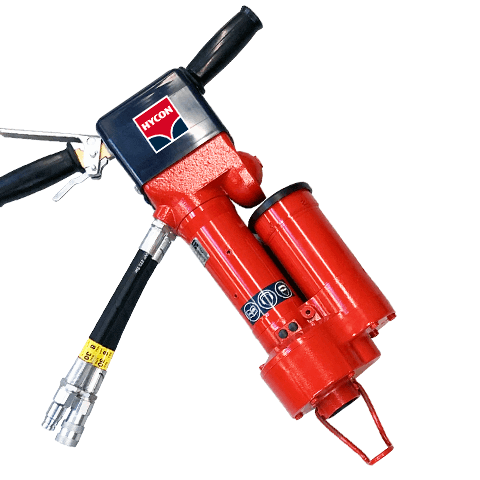

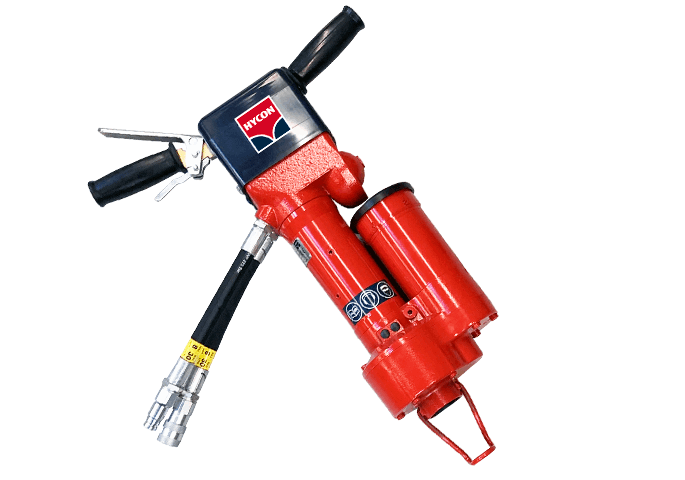

The HYCON HRD30 is an all-in-one high-performing handheld rock drill designed for the most demanding drilling applications in granite and concrete up to 2.4 meters of drilling depths.
Using standard integral drill steel with air-flushing from the integrated compressor and a high-performing hydraulic impact and rotation unit makes the HRD30 the most effective handheld rock drill available. The airflow of the integrated compressor is sufficient for most standard drilling in granite or concrete.
Compact in size, the HRD30 performs in line (or better) with larger pneumatic-type drills where costly and large compressors make getting and transporting to job sites challenging.
The HRD30 rock drill is ideal for anchoring holes and blast- or splitting holes measuring 25-50 mm, depending on the drilling depth. It also delivers more precise hole sizes for non-dynamite destruction solutions such as expanding smoke cartridges or an expanding cracking agent (Bentonamit).
Weight [kg / lbs] 29 / 64
Dimensions L x W [mm / inch] 722 x 460 / 28.5 x 18
Oil flow [LPM / GPM] 30 / 8
Working presure [bar / psi] 130 / 1885
Max pressure [bar / psi] 172 / 2500
Drill rod shank HEX [mm] 22 x 108
Rotation CCW [rpm] 320
Blow frequency [Hz] 40
Flushing air flow [LPM / CFM] 10
Sound power level LWa [dB] 105
Vibration level, 3 axis [m/s2] 13
