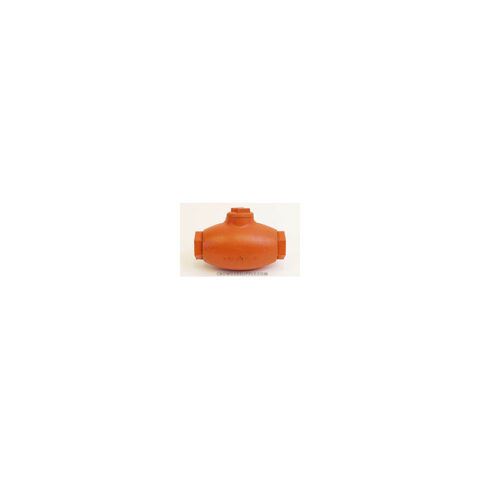

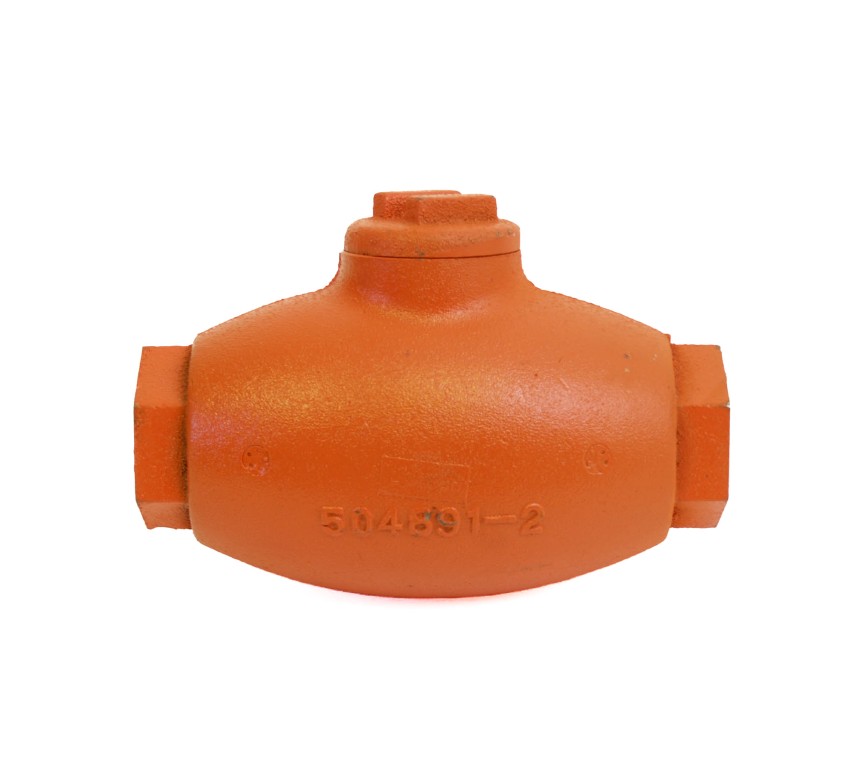

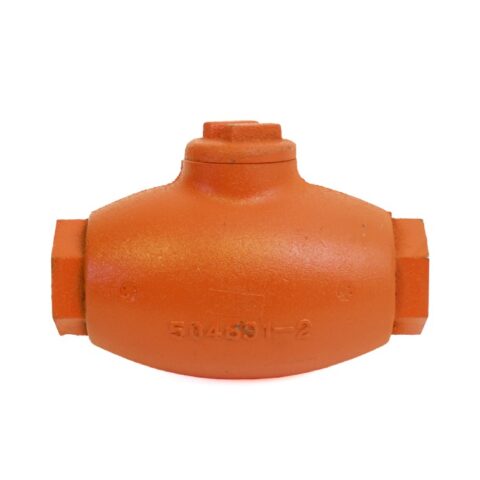

The Joy football style line oiler is a 1.5 pint (0.71 liter) in-line lubricator built from rugged malleable steel for rock drills and other pneumatic tools in underground mining and construction. Its weighted sipper nozzle rotates around the bore pipe so the intake stays at maximum depth in the reservoir, emptying every drop of oil no matter how the oiler sits on the line.
A twist of the rotating nozzle adjusts delivery from low to high flow, and the straight-through bore passes maximum air with minimal pressure drop; 1-1/4 in. female NPT threads drop straight into a standard drill air line. Charge it with pneumatic tool and rock drill oil an eco-friendly blend is also stocked and see our other hose oilers for larger reservoirs.
- 1.5 pint (0.71 liter) oil capacity in a rugged malleable steel body
- Weighted rotating sipper nozzle keeps the intake at maximum depth to empty the full reservoir

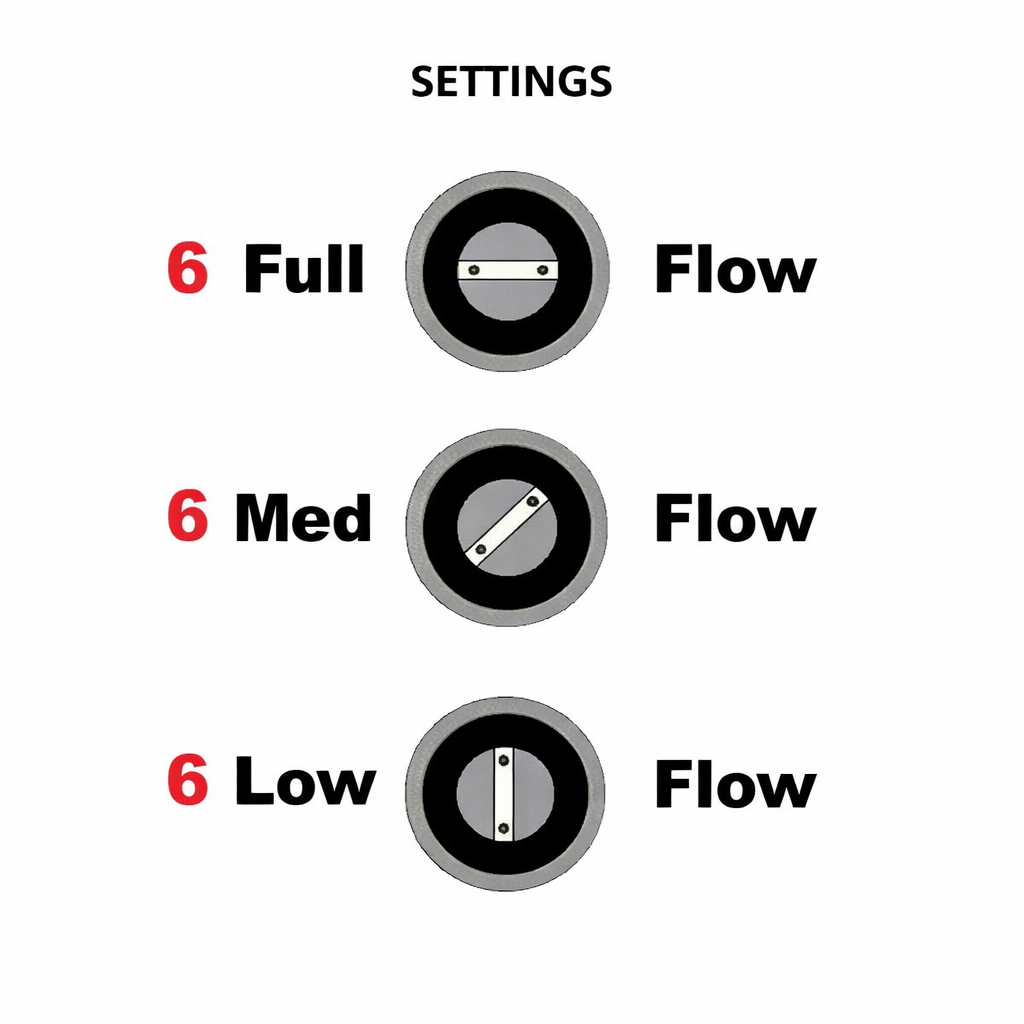

- Nozzle twists from low to high flow rate for precise lubrication control
- Straight-through bore allows maximum air flow with minimal line pressure drop
- Thread size 1-1/4 in. female NPT; wide throat filler for fast refills; weight 10 lb
- Stocked in Denver by Crowder Supply
Joy Football Line Oiler FAQ
What does a line oiler actually do?
It meters rock drill oil into the compressed-air line so the tool downstream lubricates itself as it runs reducing wear and extending the service life of rock drills and other pneumatic tools.
How do I adjust the oil feed?
Twist the rotating nozzle to move from low to high flow. The weighted sipper rotates around the bore pipe to keep the intake at maximum depth, so the full 1.5 pint reservoir gets used.
Will it fit my air line?
It installs with 1-1/4 in. female NPT threads on a straight-through bore, passing maximum air flow with minimal line pressure drop.
