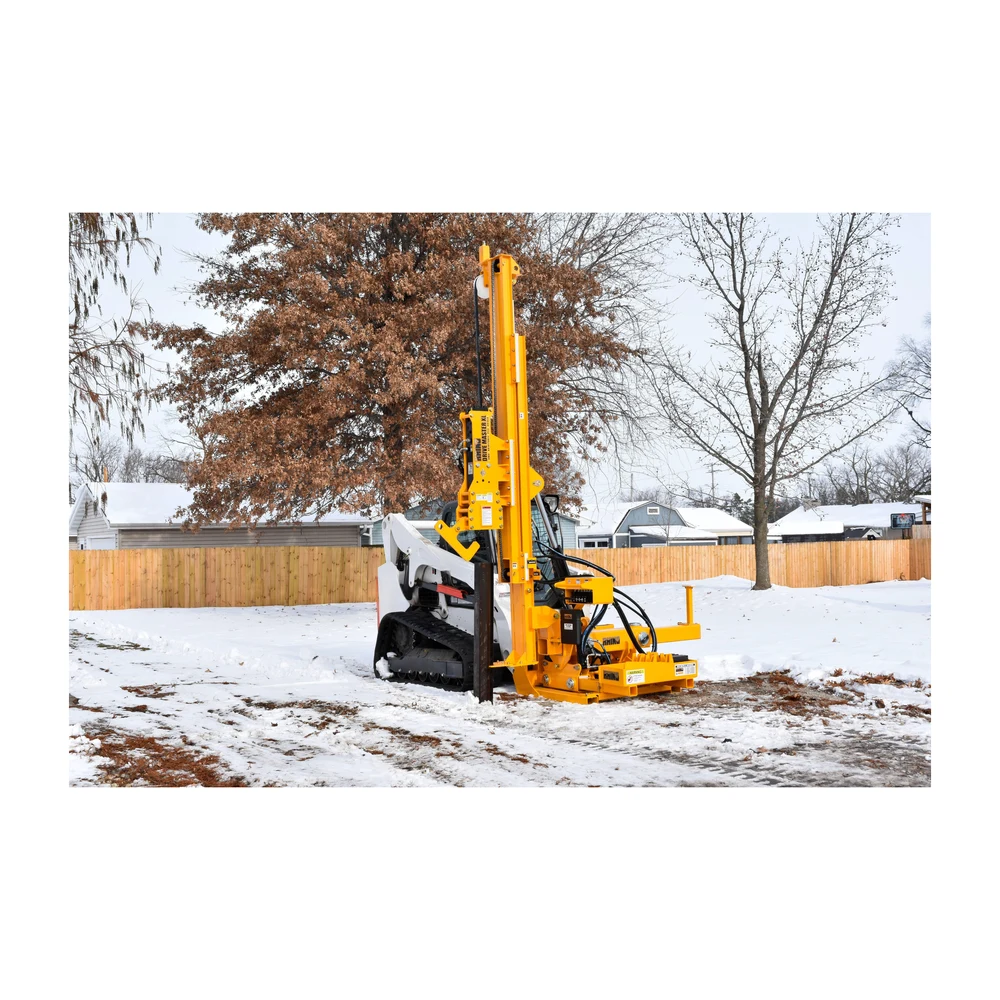

The Rhino Drive Master XL is an omni-adjustable skid steer pile driver for fast, precise, plumb pile installation – solar field test pile, equipment pile, remediation work, highway guardrail install and repair, and larger fence jobs. A Furukawa FX55 hydraulic hammer delivers 800 ft-lb per stroke at roughly 500 to 1,000 blows a minute, and the mono-block design has only two moving parts. The mast tilts 2 degrees right, 90 degrees left and 10 degrees front to back, the attachment adjusts 10 in. front-to-back and 24 in. left-to-right, and it drives piles up to 15 ft tall. Seven adapters and guide plates cover common pile types, with custom sizes available. Built and supported in the USA with a 3-year unit warranty and 2 years on the hammer.
- 800 ft-lb (1,085 J) impact energy per stroke
- Approx. 500-1,000 blows per minute
- Furukawa FX55 hammer, mono-block, 2-year warranty
- Omni-adjustable mast for plumb piles on uneven terrain
- Piles up to 15 ft tall; drives within 30 in. of grade (8 in. with extended cap)
- Replaces a self-propelled pile driver on most jobs
