Rhino Guardrail Pro Skid Steer Pile Driver

Rhino Guardrail Pro Skid Steer Pile Driver

$51,969.00

Omni-adjustable skid steer pile driver for highway guardrail posts – 800 ft-lb Furukawa hammer, posts to 8.5 ft. Made in USA.

Add to Cart
Rhino Guardrail Pro Skid Steer Pile Driver
Rhino Guardrail Pro Skid Steer Pile Driver
$51,969.00
$1200 Freight Shipping to lower 48

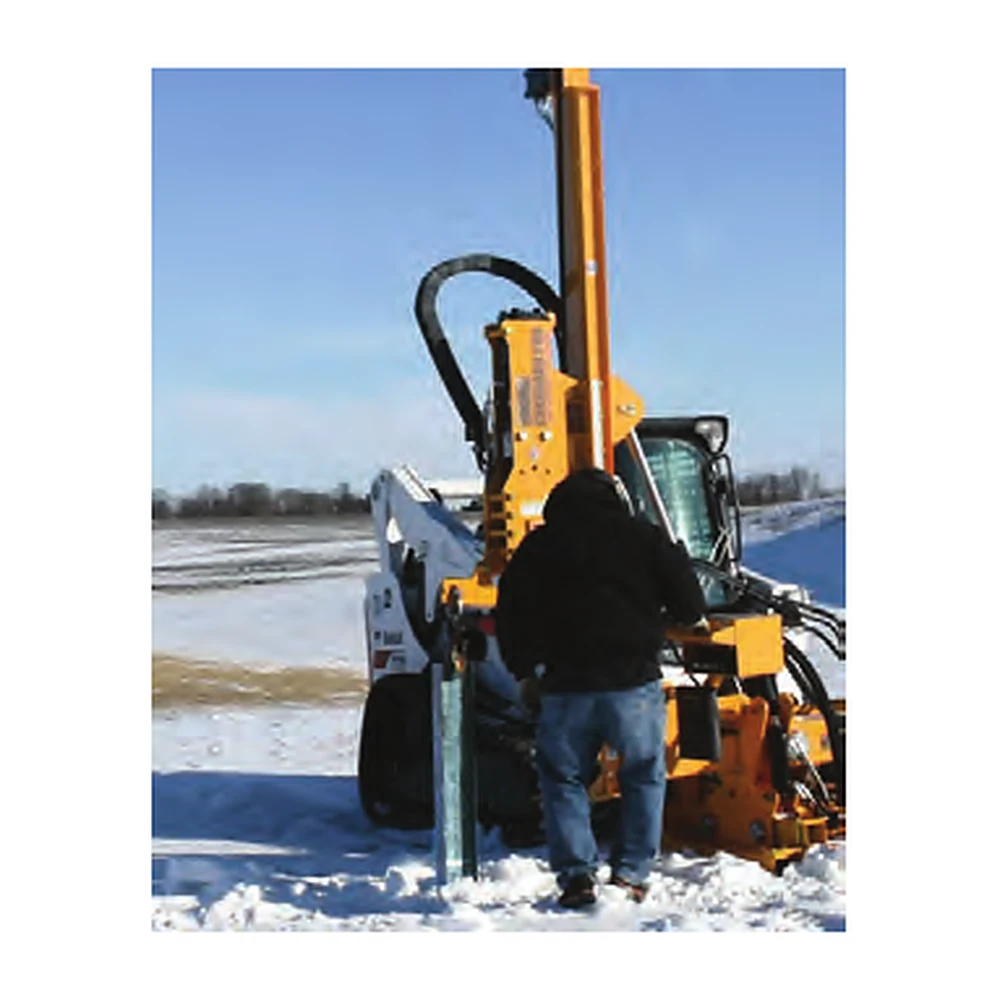

The Rhino Guardrail Pro is an omni-adjustable skid steer pile driver built to expedite installation of steel and timber highway guardrail posts. A Furukawa FX55 hydraulic hammer delivers 800 ft-lb per stroke at roughly 500 to 1,000 blows a minute, with a mono-block design that has only two moving parts. The mast tilts 2 degrees right, 90 degrees left and 10 degrees front to back, the attachment adjusts 10 in. front-to-back and 24 in. left-to-right, and the driving head and bottom guide each hold the post for plumb driving up to 8.5 ft tall. Mounts to most hydraulic skid steers with the universal plate. Built and supported in the USA with a 1-year unit warranty and 2 years on the hammer. For ground-mount solar pile work, see the Rhino Solar Pro.

  • 800 ft-lb (1,085 J) impact energy per stroke
  • Approx. 500-1,000 blows per minute
  • Furukawa FX55 hammer, mono-block, 2-year warranty
  • Omni-adjustable mast for plumb posts on uneven terrain
  • Guardrail posts up to 8.5 ft tall
  • Optional pile puller kit and post adapters

Specifications

SKU
Product Name
Power Source
Blows per Minute
Folded Transport Size
Hammer
Impact Energy
Maximum Post Height
Unit Weight
RHINO360002
Guardrail Pro omni-adjustable skid steer mounted pile driver unit - Rhino part no. 360002.
Hydraulic
Approx. 500-1,000
5 ft 8 in H x 3 ft 10 in W x 10 ft 7 in L
Furukawa FX55, 2-year warranty
800 ft-lb (1,085 J) per stroke
8 ft 5 in (2.6 m)
2,600 lb (1,179 kg)
