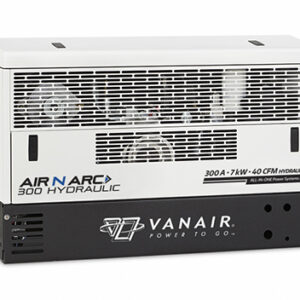

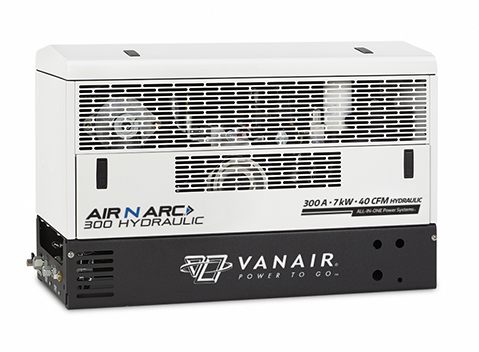

The Vanair Air N Arc 300 Hydraulic runs five forms of power off your truck’s hydraulic system – no engine at all. It delivers the full Air N Arc 300 package: 40 CFM rotary screw compressor at up to 175 PSIG with new Auto Start/Stop Technology (bypasses hydraulic flow after 2.5 minutes idle), a 270 amp welder at 100 percent duty cycle (CC 40-300A, CV 15-30V), a 7 kW peak / 6.8 kW continuous generator, and 300A boost / 50A charge. Choose the 19 GPM multifunction model or the 14.5 GPM reduced-flow single-function model that suits Ford Super Duty and Dodge trucks. Includes a 12VDC air inlet heater and integrated hydraulic cooler rated to 110 F.
- Hydraulically driven – no engine, no fuel
- 40 CFM rotary screw at up to 175 PSIG
- Auto Start/Stop hydraulic bypass
- 270A at 100% duty; 7 kW generator
- 19 GPM multifunction or 14.5 GPM single-function
- 621 lb dry with control panel
