Vanair PowerFlex Modular Power System

Vanair PowerFlex Modular Power System

QUOTE

Modular engine-driven power – 40 CFM air plus your choice of 6.8 kW electric and 13 GPM hydraulics. Four configurations.

Add to Cart
Vanair PowerFlex Modular Power System
Vanair PowerFlex Modular Power System
QUOTE
$150 Freight Shipping to lower 48

Vanair PowerFlex modular power systems let you buy only the functions you need – truck engine off, power on. Every model carries a 40 CFM rotary screw compressor at up to 150 PSI; from there, choose air with a 6.8 kW generator (AE Diesel or AE Gas), air with 13 GPM / 3,000 PSI crane hydraulics (AH), or all three (AEH). Diesel models run a 25 HP Kubota Tier 4 Final; the AE Gas runs a 26.5 HP EFI Kohler. No welder, boost or charge – that is what the Air N Arc line adds. Lifetime warranty on the rotary screw air end.

  • Modular: pick air, electric, hydraulic or combinations
  • 40 CFM rotary screw on every model
  • 6.8 kW generator on AE and AEH models
  • 13 GPM / up to 3,000 PSI hydraulics on AH and AEH
  • 25 HP Kubota diesel or 26.5 HP EFI Kohler gas
  • Anti-idle compliant – truck engine off

Specifications

SKU
Product Name
System Functions
Power Source
Compressor
Dimensions
Engine
Generator (AE/AEH)
Hydraulics (AH/AEH)
Warranty

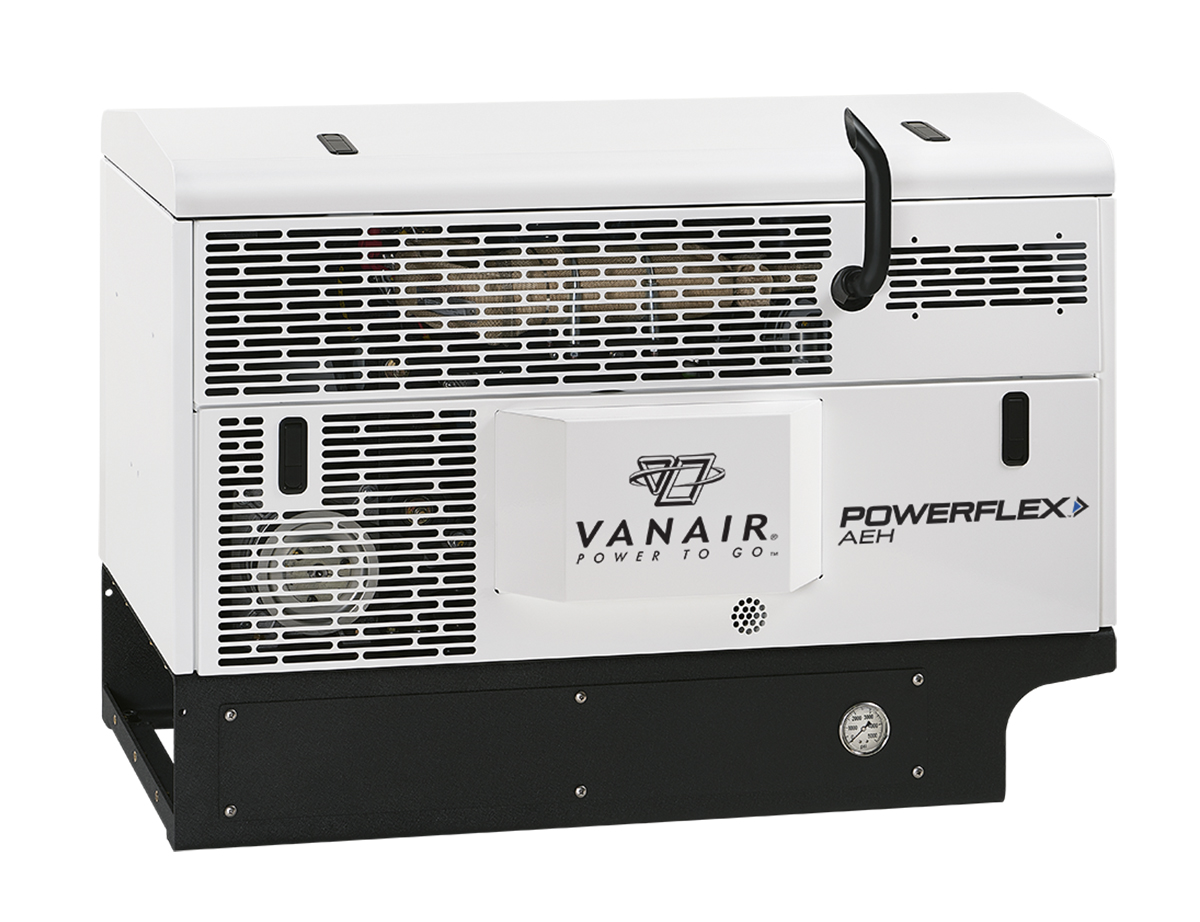

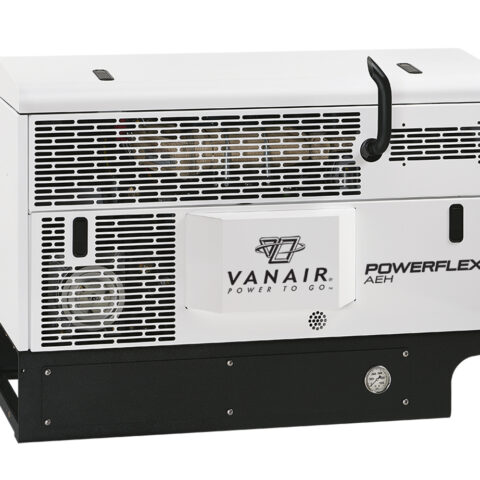

VAN-POWERFLEX-AEH
PowerFlex AEH - 40 CFM air, 6.8 kW generator, 13 GPM hydraulics; 25 HP Kubota T4F. 870 lb dry.
Air + Electric + Hydraulic (Diesel)
Diesel
Rotary screw, 40 CFM up to 150 PSI (AE Gas: 175 PSIG)
47.6L x 21.0W x 33.4H in (diesel models)
25 HP Kubota T4F diesel / 26.5 HP EFI Kohler gas
6.8 kW @ 60 Hz, 120/240V
Up to 13 GPM, up to 3,000 PSI (relief 3,300 PSI)
Lifetime air end

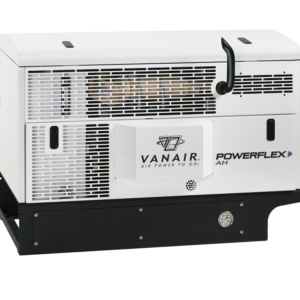

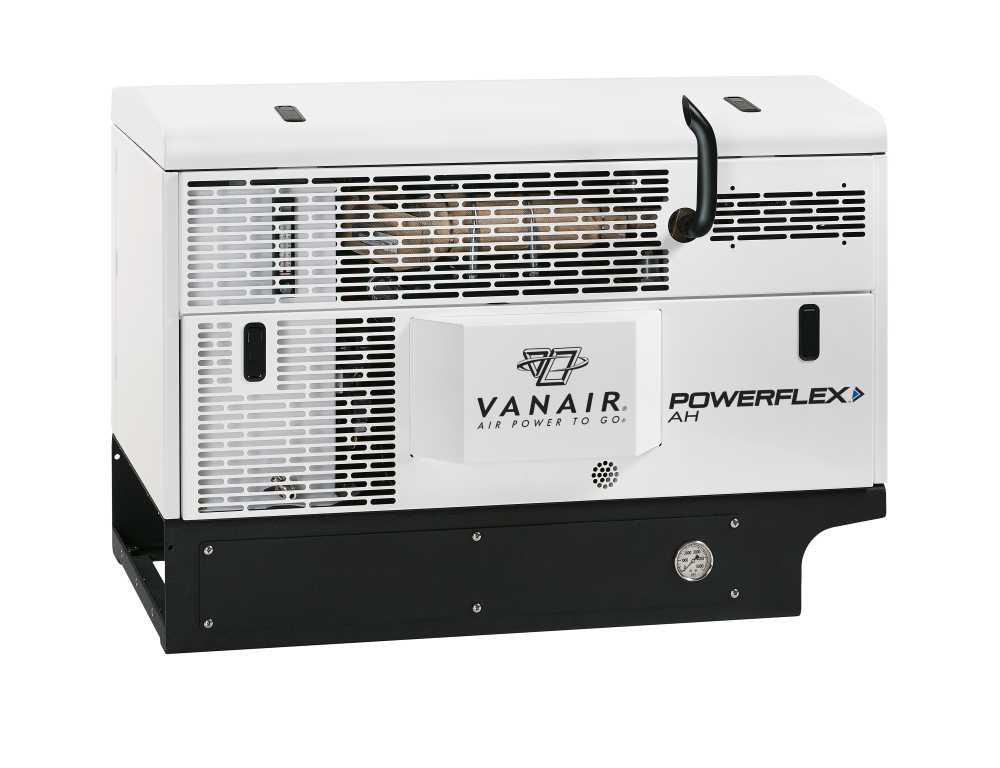

VAN-POWERFLEX-AH
PowerFlex AH - 40 CFM air and 13 GPM hydraulics with integrated reservoir; 25 HP Kubota T4F. 802 lb dry.
Air + Hydraulic (Diesel)
Diesel
Rotary screw, 40 CFM up to 150 PSI (AE Gas: 175 PSIG)
47.6L x 21.0W x 33.4H in (diesel models)
25 HP Kubota T4F diesel / 26.5 HP EFI Kohler gas
6.8 kW @ 60 Hz, 120/240V
Up to 13 GPM, up to 3,000 PSI (relief 3,300 PSI)
Lifetime air end

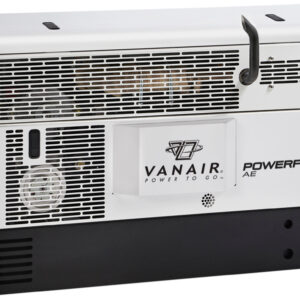

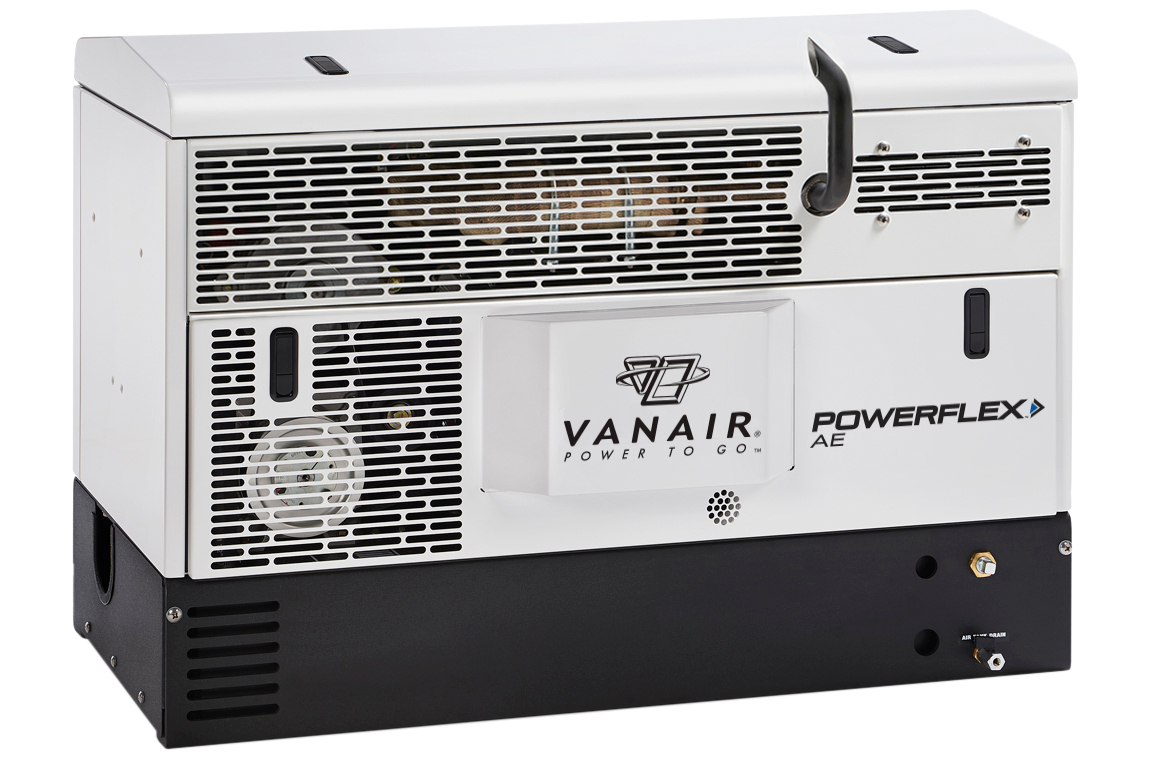

VAN-POWERFLEX-AED
PowerFlex AE Diesel - 40 CFM air and 6.8 kW generator; 25 HP Kubota T4F. 790 lb dry.
Air + Electric (Diesel)
Diesel
Rotary screw, 40 CFM up to 150 PSI (AE Gas: 175 PSIG)
47.6L x 21.0W x 33.4H in (diesel models)
25 HP Kubota T4F diesel / 26.5 HP EFI Kohler gas
6.8 kW @ 60 Hz, 120/240V
Up to 13 GPM, up to 3,000 PSI (relief 3,300 PSI)
Lifetime air end

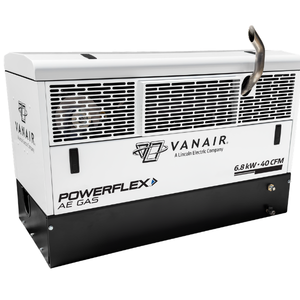

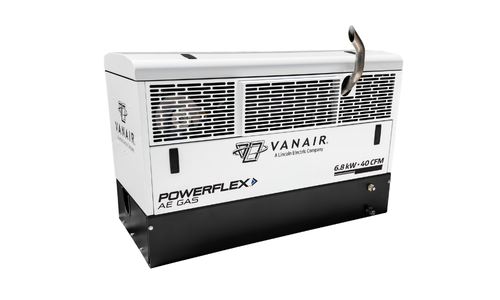

VAN-POWERFLEX-AEG
PowerFlex AE Gas - 40 CFM air (up to 175 PSIG) and 6.8 kW generator; 26.5 HP EFI Kohler. 630-675 lb dry.
Air + Electric (Gas)
Gas
Rotary screw, 40 CFM up to 150 PSI (AE Gas: 175 PSIG)
47.6L x 21.0W x 33.4H in (diesel models)
25 HP Kubota T4F diesel / 26.5 HP EFI Kohler gas
6.8 kW @ 60 Hz, 120/240V
Up to 13 GPM, up to 3,000 PSI (relief 3,300 PSI)
Lifetime air end
