Hydraulic Post Drivers
About the Tool
Rhino’s extremely successful pneumatic driver, the PD55, can be found in rental yards and professional fencing companies all over the county and has long been considered an essential and reliable tool for the industry. Now Rhino has incorporated some of the elements of the PD55 into their Hydraulic Driver giving it unprecedented versatility and ease of use. The HP60 can now accept all of the standard chuck adaptors used in their PD55 driver which will allow for better post alignment and percussive energy transfer.
Once again, it is evident that Rhino is the industry leader – not just another follower.
The Rhino HPD 60 is a high-performance hydraulic post driver and is perfect for fencing, road signs, farm, ranch, forestry, vineyards, gaurdrails, anchors, tent stakes - essentially any driving job. Capable of driving nearly any post profile, this driver is a hydraulic powerhouse! For taller applications, use the remote valve.
Unlike other hydraulic drivers, the Rhino HPD 60 is nearly maintenance free. Continuous lubrication keeps maintenance at a minimum and extends tool life.
The Rhino HPD 60 can be used with the HPP 13 or HPP 18V Power Packs as well as other hydraulic power systems such as a utility truck or mini excavator with the use of Rhino's flow control devices.
HPD 60
| Part | Description | Price |
|---|---|---|
| 801010 | HPD 60 Includes 3-7/8" ID Master Chuck and 1 set of 12" x 1/2" Hydraulic Whip Hoses with flat face Quick Couplings |
$3,828.00 Add |
For 2 3/8" & Smaller Posts Only
| Part | Description | Price |
|---|---|---|
| 801013 | HPD 60 Includes 2½" Chuck-Loc™ with Locking Nut System and 1 set of 12" x 1/2" Hydraulic Whip Hoses with flat face Quick Couplings |
$3,828.00 Add |
Typically $250-$500 LTL Shipping
LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to residential addresses will be higher.
HPD-60 Accessories and Power Packs
| Part | Description | Price |
|---|---|---|
| 801230 | HPP 14 Power Pack | $6,378.00 Add |
| 801214 | HPP 18V Power Pack | $8,376.00 Add |

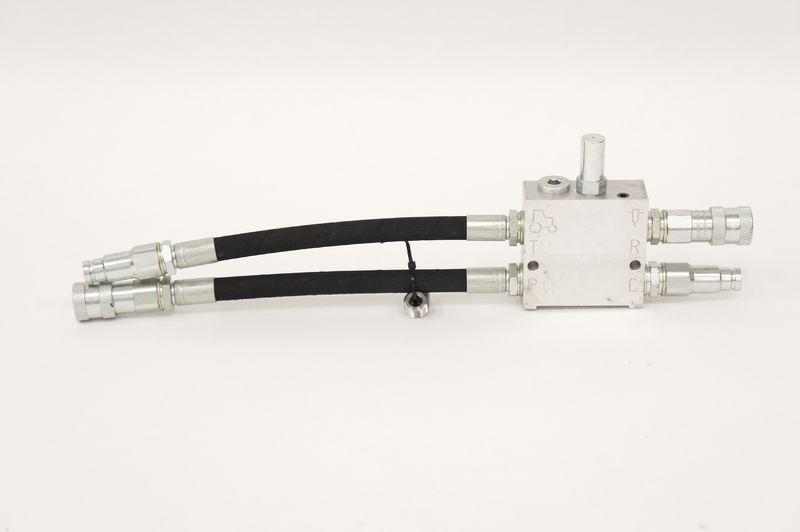

| 801005 | Oil Flow Diverter* | $1,023.00 Add |
| 801011 | Remote Valve with 6" whip hose and 6' hose | $997.00 Add |
| 801226 | Extension Hose (20') | $664.10 Add |
| 801227 | Extension Hose (30') | $664.10 Add |
Specifications
| Part No. | 801010 | $3,828.00 Add |
|---|---|---|
| Standard Equipment |
|
|
| Part No | 801013 | $3,828.00 Add |
| Standard Equipment |
|
|
| Weight, lb | 60.5 | |
| Length (w/o Chuck), in | 26 | |
| Oil flow, gpm | 8 | |
| Working pressure, psi | 1750 | |
| Max. return pressure, psi | 220 | |
| Blow frequency, bpm | 1380 | |
| Blow energy, lb/ft | 70 | |
| Vibration level (3 axis) m/s2 | <9.6 | |
| Post size max. dia. in | 3-7/8" | |
Adaptors
HPD-60 Compatible PD55 Chuck Adaptors
Please note that the HPD Master Chuck is required with the following chuck adaptors.
| Part | Description | Price |
|---|---|---|

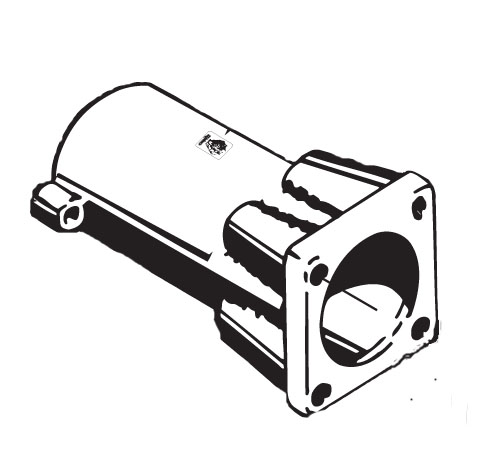

| 801016 | HPD Master Chuck Required for use with PD-55 Adaptors. Included with purchase of HPD 60. |
$226.71 Add |
| 70609 | 3-1⁄2" ID Chuck Adapter | $214.12 Add |
| 70610 | 3" ID Chuck Adapter | $214.12 Add |
| 70611 | 2-1⁄2" ID Chuck Adapter | $214.12 Add |
| 70612 | 2" ID Chuck Adapter | $214.12 Add |
| 70613 | 1-1⁄2" ID Chuck Adapter | $214.12 Add |
| 70614 | 1" ID Chuck Adapter | $214.12 Add |
| 70617 | Channel Post Chuck Adapter: 1 - 1-1⁄2 lbs/ft Posts | $214.12 Add |
| 70618 | Channel Post Chuck Adapter: 2 - 2-3⁄4 lbs/ft Posts | $214.12 Add |
| 70619 | Channel Post Chuck Adapter: 3 - 4 lbs/ft Posts | $214.12 Add |
| 70615 | 2" PD 55 Heavy Chuck Adapter | $238.16 Add |
Drive Caps
Drive caps are necessary to minimize damage to posts being driven.
| 71260 | 2" Drive Cap Schedule 40 Pipe with T-Bar and Clip |
$303.43 Add |
| 71261 | 2-1⁄2" Drive Cap Schedule 40 Pipe with T-Bar and Clip |
$303.43 Add |
| 71262 | 3" Drive Cap Schedule 40 Pipe with T-Bar and Clip |
$333.20 Add |
Other Adaptors
| 801012 | 2-1⁄2" Square Chuck (HPD 60 Square Chuck: 2-9⁄16" x 2-9⁄16") |
QUOTE Add |
Break-Away Systems
Please note that the HPD Master Chuck is required with the Break-Away Systems. A chuck adaptor and drive cap are also required.
| Part | Description | Price |
|---|---|---|
| 801016 | HPD Master Chuck Required for use with break-away systems. Included with purchase of HPD 60. |
$226.71 Add |
| 70832 | Chuck Adaptor For the Channel Post Break-Away Anchor system. |
$238.16 Add |
| 70836 | Drive Cap For the Channel Post Break-Away Anchor system. |
$409.91 Add |
| 71014 | Chuck Adaptor For the Square Tube Break-Away Anchor system. |
$238.16 Add |
| 71004 | 1-1⁄4" Drive Cap For the Square Tube Break-Away Anchor system. |
$409.91 Add |
| 71005 | 1-1⁄2" Drive Cap For the Square Tube Break-Away Anchor system. |
$409.91 Add |
| 71006 | 1-3⁄4" Drive Cap For the Square Tube Break-Away Anchor system. |
$409.91 Add |
| 71007 | 2" Drive Cap For the Square Tube Break-Away Anchor system. |
$409.91 Add |
| 71008 | 2-1⁄4" Drive Cap For the Square Tube Break-Away Anchor system. |
$409.91 Add |
| 71009 | 2-1⁄2" Drive Cap For the Square Tube Break-Away Anchor system. |
$409.91 Add |
| 801023 | 4-1⁄4" Round Master Chuck | $964.09 Add |
| 801021 | 4-1⁄16" x 4-1⁄16" Square Master Chuck | $1,019.05 Add |
Chuck-Lok Adaptors
Chuck Lok adaptors can only be used with the Chuck Lok Chuck system.
| 801018 | 2-1⁄2" Chuck-Lok Chuck w/Locking Nut - Required | $220.00 Add |
| 300900 | 1" Chuck-Lok Adapter | $40.19 Add |
| 300895 | 1-3⁄4" Chuck-Lok Adapter | $40.19 Add |
| 300902 | 2" Chuck-Lok Adapter | $40.19 Add |
