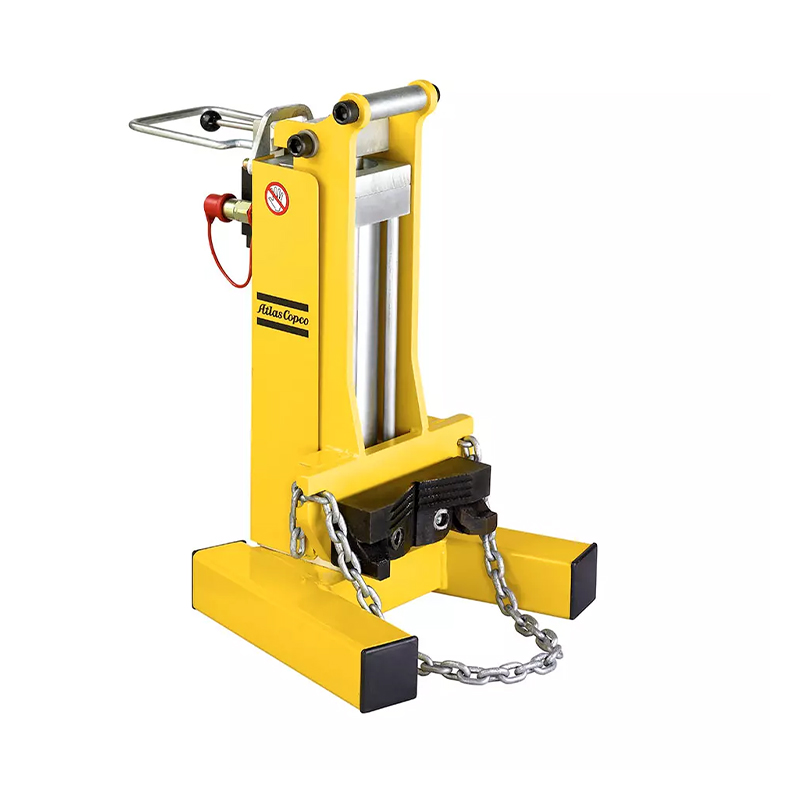

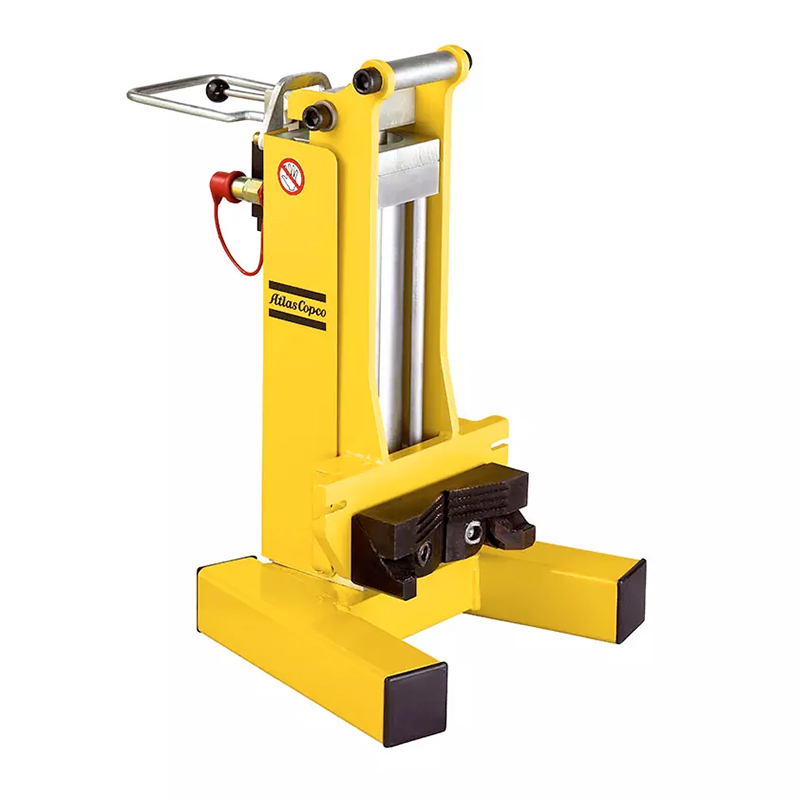

The Atlas Copco LPP 10HD is a hydraulic post puller that removes wooden posts, steel posts including IPE, HPE and UPE profiles round and square steel tubes, fence posts and anchors up to 7.8 in. (200 mm) in diameter. Its integrated jaw and automatic chain tightening clamp grip the post while the 132 lb tool applies up to 10 tons of pulling force, lifting posts straight out without excavation.
The LPP 10HD runs on 5 to 11 gpm of oil flow at 1,450 to 2,320 PSI working pressure supplied by a hydraulic power pack or a carriers auxiliary hydraulic circuit with return line pressure capped at 435 PSI. Order it with a built-in on/off valve or a hose-mounted remote valve. When the posts go back in, Atlas Copcos hydraulic post drivers handle the driving side of the same job.
- Removes posts, poles, beams and tubes up to 7.8 in. (200 mm) in diameter
- Integrated jaw with automatic chain tightening clamp no manual rigging on each post
- Pulling force of 13,228 lb, rising to 22,046 lb (10 tons) at full pull
- Hydraulic requirements: 5 to 11 gpm oil flow, 1,450 to 2,320 PSI working pressure, 435 PSI max return line pressure
- Tool weight 132 lb; choice of built-in on/off valve or hose-mounted remote on/off valve
- Pulls wooden posts, steel IPE, HPE and UPE profiles, round and square tubes, fence posts and anchors
- Stocked by Crowder Supply in Denver
