Carrier base plate and adapter plate not included. Epiroc bulk pulverizers mount to the carrier through a carrier-specific base plate and adapter plate (with bolt kit), which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plates and bolts.

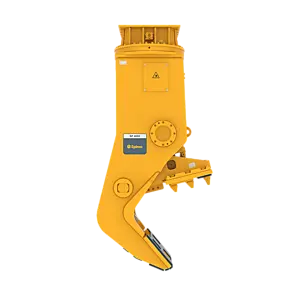

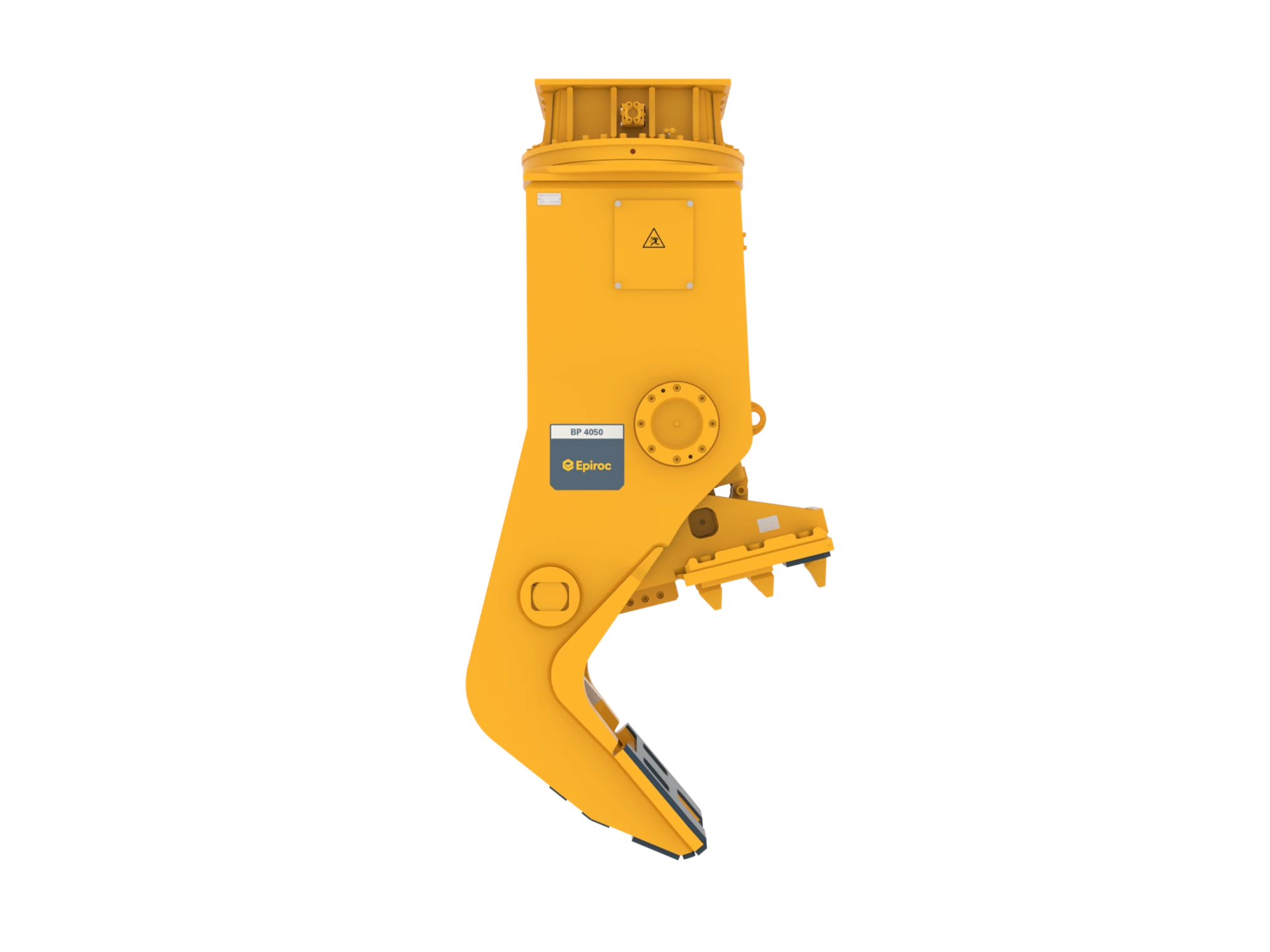

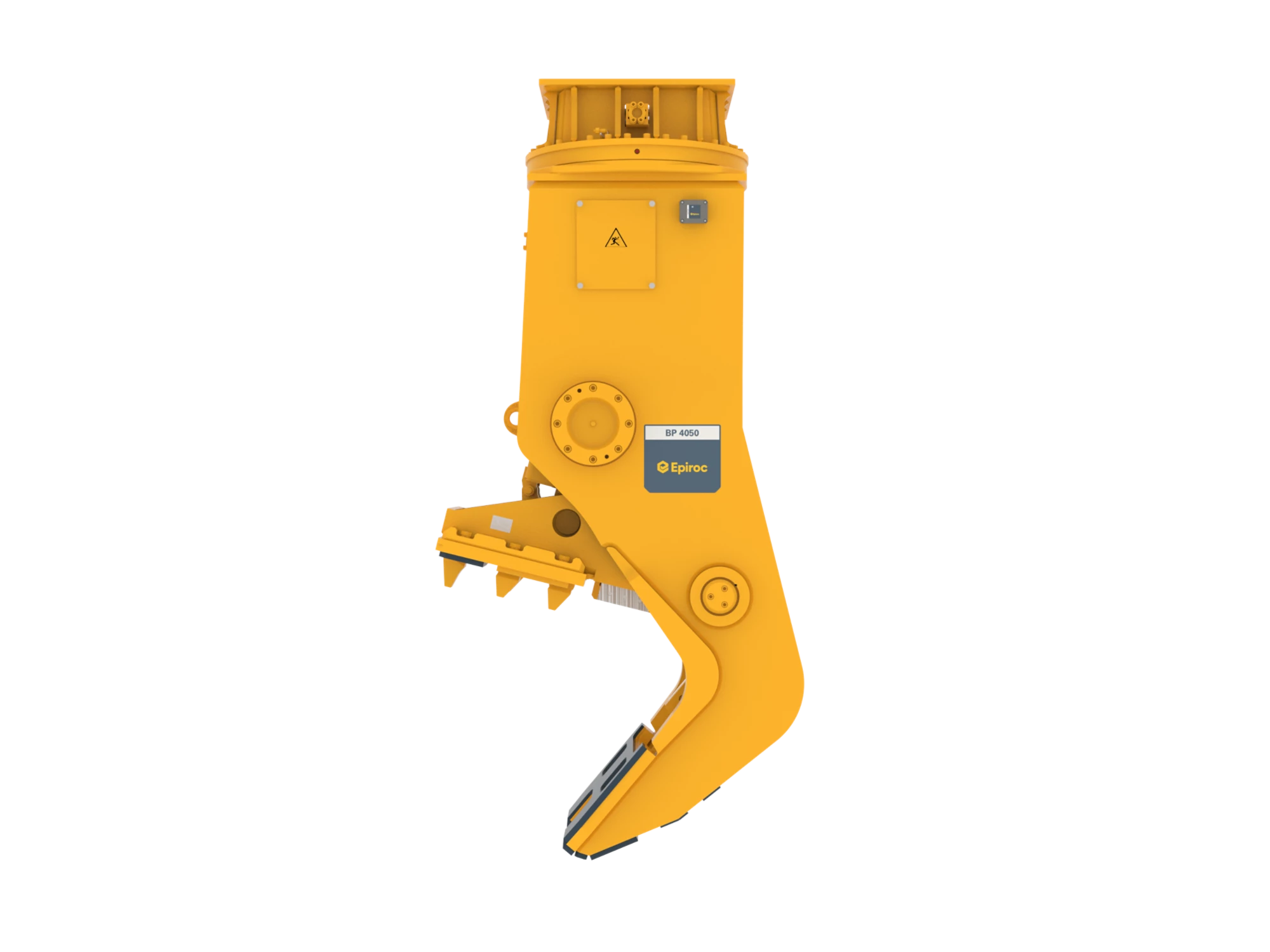

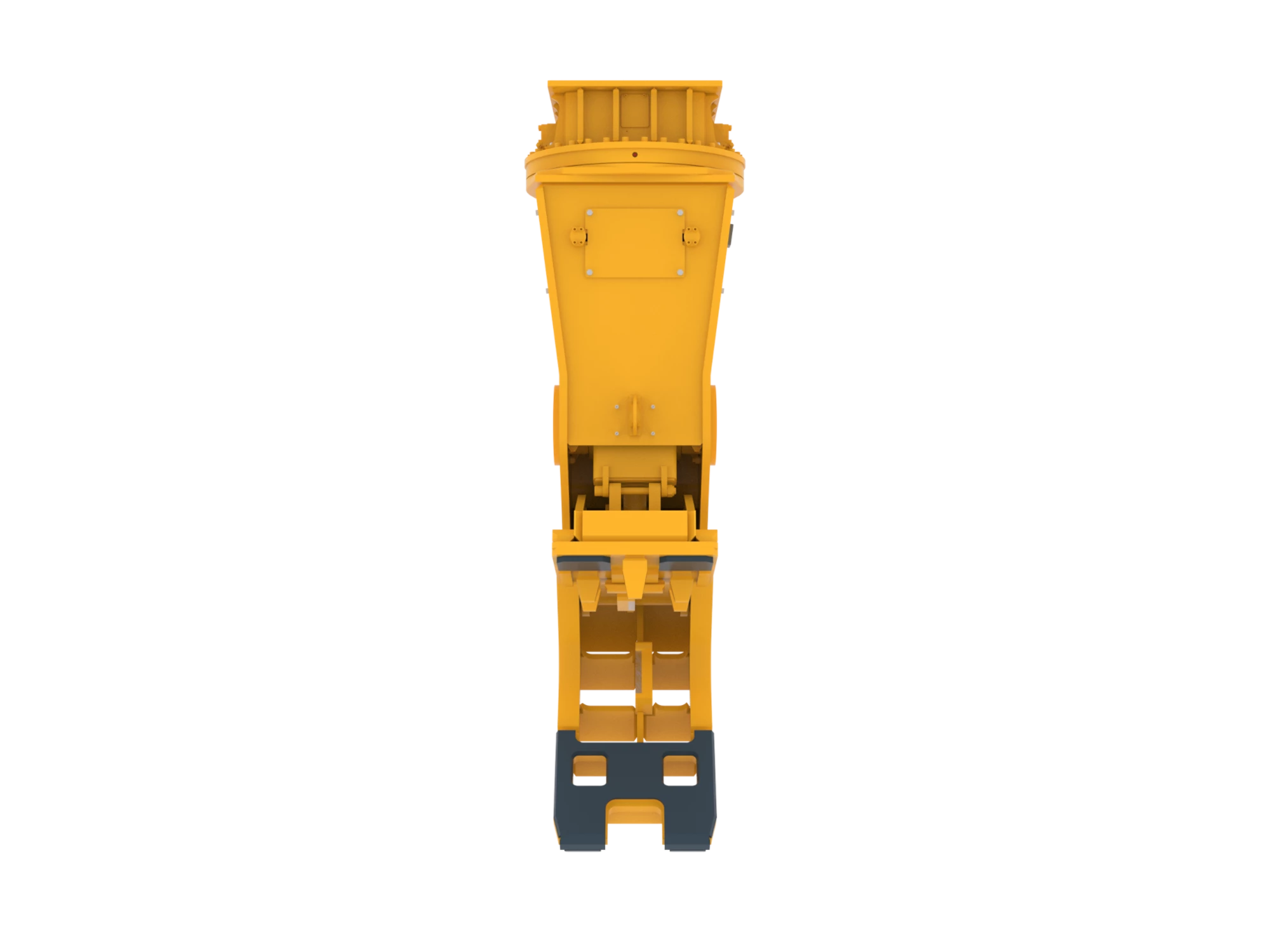

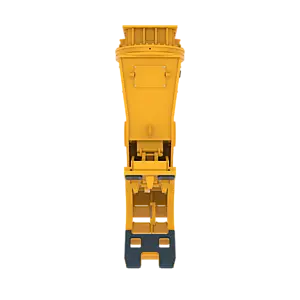

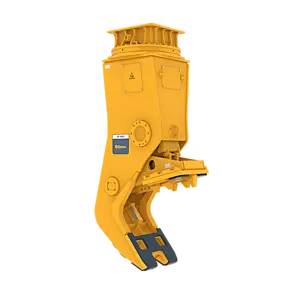

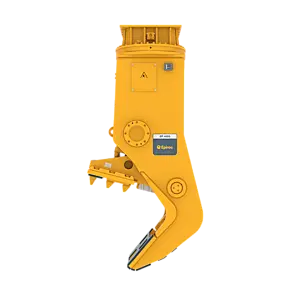

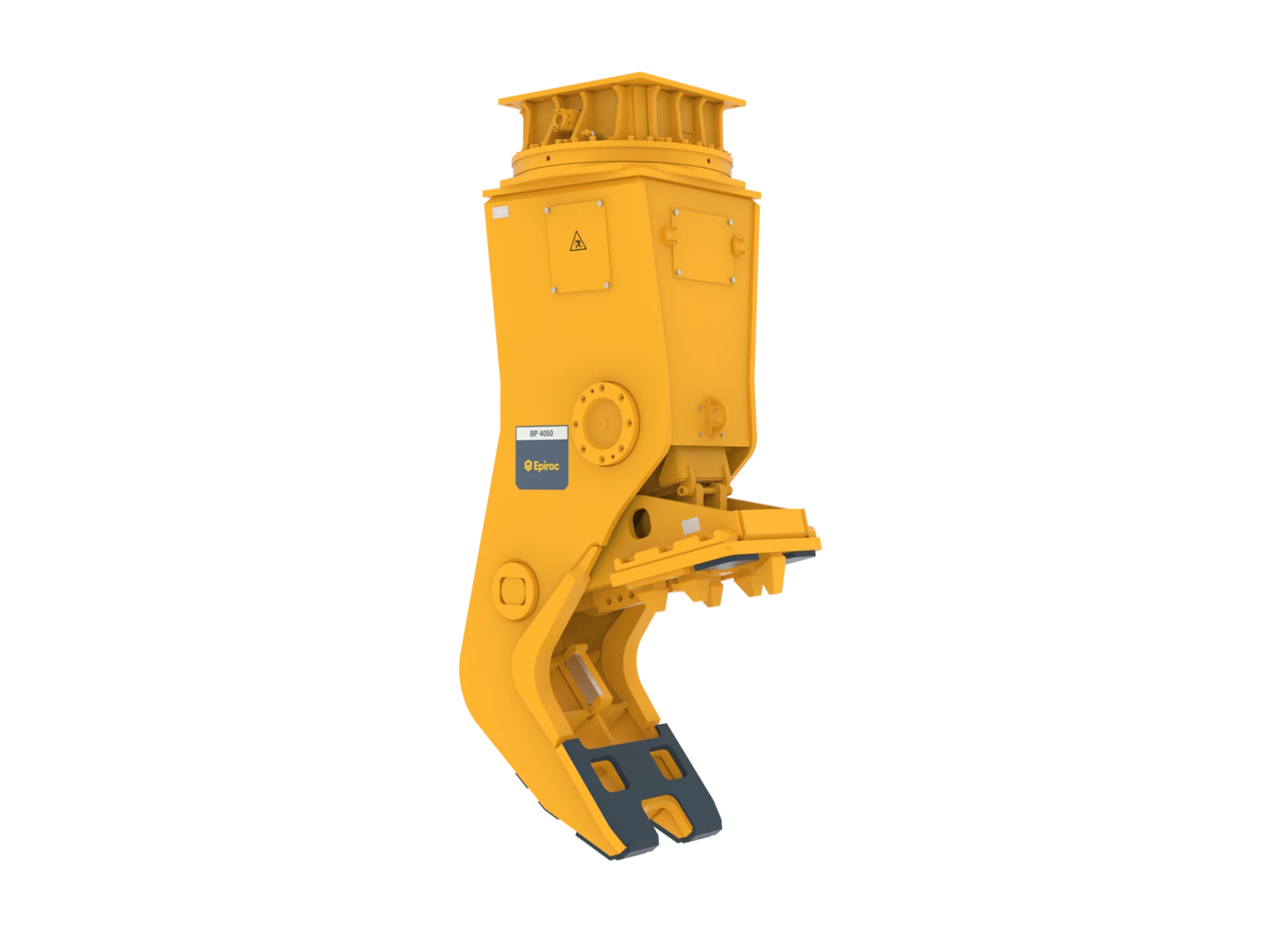

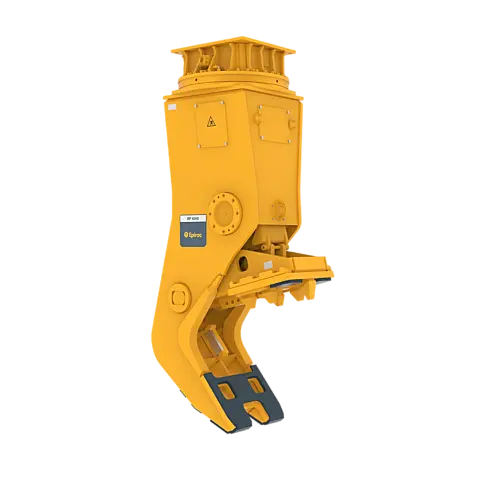

The Epiroc BP 4050 R is a rotating hydraulic bulk pulverizer for 94,800–121,300 lb (43–55 t) excavators, with an angled jaw that separates rebar from concrete in secondary reduction.

Service weight 11,885 lb (5,390 kg) with an average-sized adapter plate; product weight 10,890 lb. Cutting force at the upper blades 342 US tons (310 t); crushing force at the jaw tip 144 US tons (131 t). Jaw opening 47.2 in. (1,200 mm), jaw depth 31.5 in., blade length 9.4 in. Cycle time 3.1 s opening / 3.3 s closing. Oil flow 79.3–105.7 gpm (300–400 l/min) at up to 5,075 psi (350 bar); rotation circuit 9.2–13.2 gpm at up to 2,465 psi.

The angled jaw separates rebar from concrete in secondary reduction. A piston rod guard protects the hydraulic cylinder, an integrated speed valve shortens working cycles, the tooth plate is replaceable, and the cutting blades are replaceable and reversible. 360° endless hydraulic rotation positions the jaws precisely.

Use it for secondary reduction on demolition and recycling sites: the jaws crush concrete debris on the ground and free the rebar, so the concrete and the steel can be recycled separately.

Service parts on the BP 4050 / BP 4050 R Bulk Pulverizer parts breakdown (serial DEQ239233 and later, DGR240001 and later) include the cutter blades kit 3363127196, label kit 3363125852, speed valve seal kit 3363127334, rotary seal kit 3363083066, hydraulic motor and housing seal kit 3363126309 and connection hoses 3363031767 (110 in.), 3363034399 (138 in.), 3363106493 (1.26 in.), 3363106494 (1.26 in.). The HATCON LTE telematics kit is sold separately. See the full Epiroc pulverizers range.

• Fits 94,800–121,300 lb (43–55 t) excavators; service weight 11,885 lb (5,390 kg)
• 342 US tons (310 t) cutting force at the upper blades; 144 US tons at the jaw tip
• 47.2 in. (1,200 mm) jaw opening, replaceable tooth plate, reversible cutting blades
• 360° endless hydraulic rotation, integrated speed valve, piston rod guard
• 79.3–105.7 gpm (300–400 l/min) at up to 5,075 psi (350 bar)
• Carrier base plate and adapter plate not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
