Carrier base plate and adapter plate not included. Epiroc concrete busters mount to the carrier through a carrier-specific base plate and adapter plate (with bolt kit), which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plates and bolts.

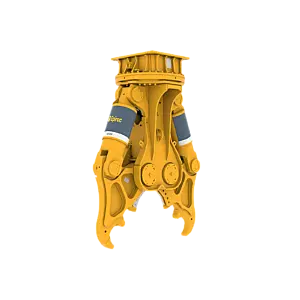

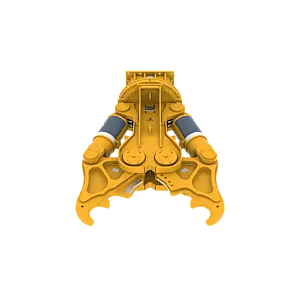

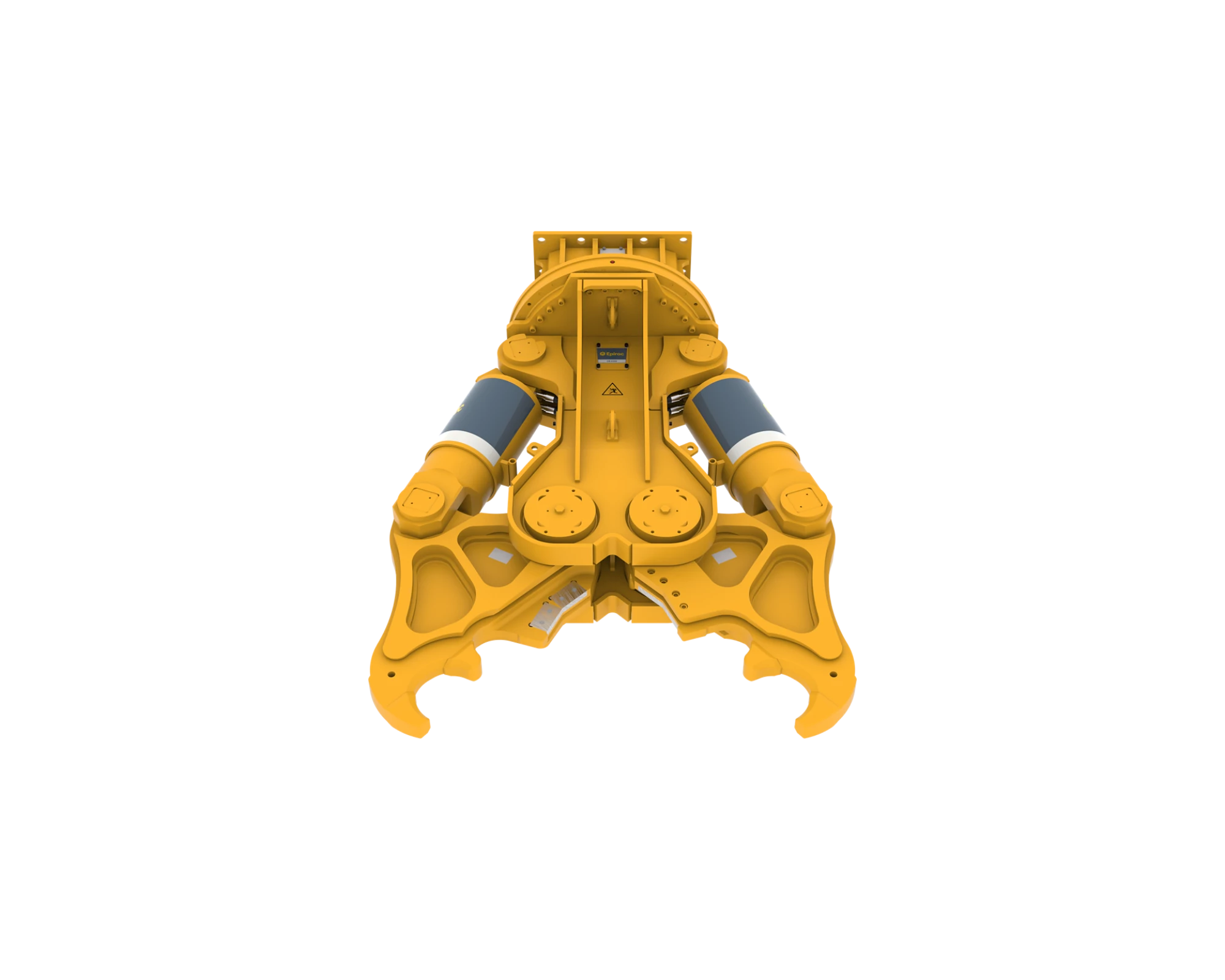

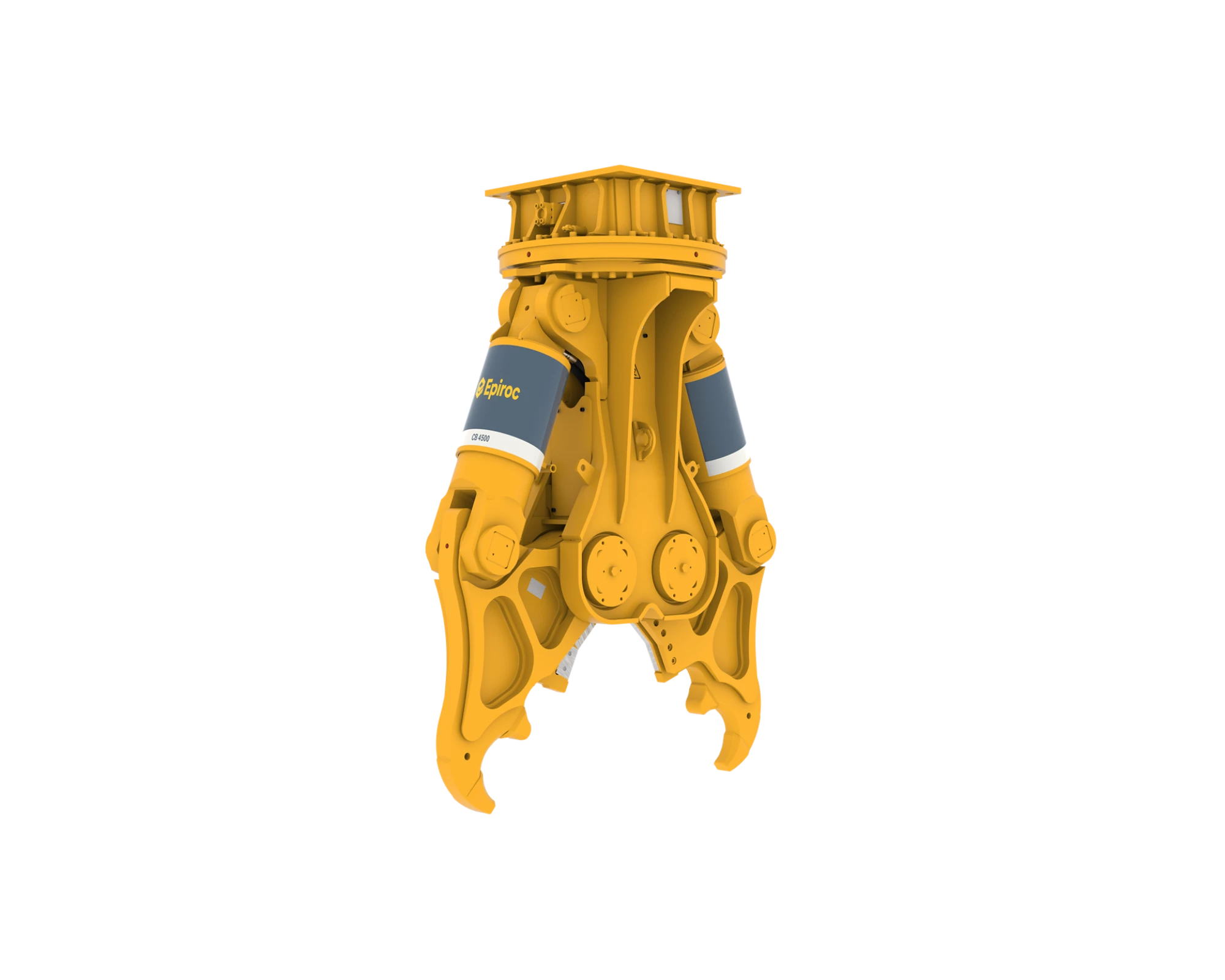

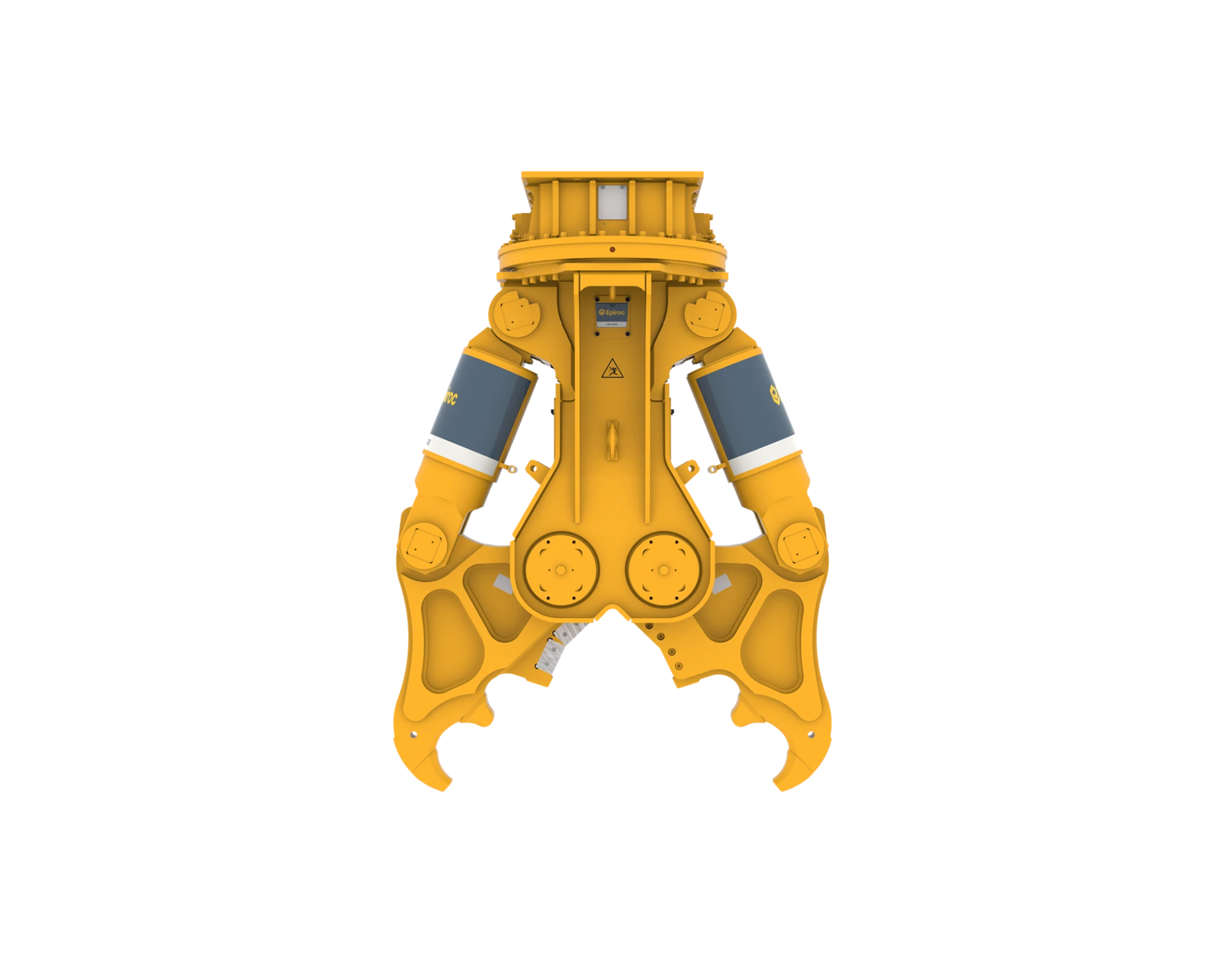

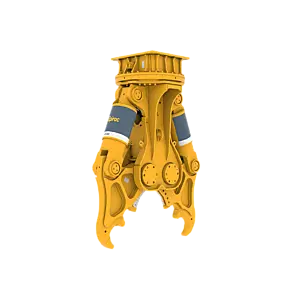

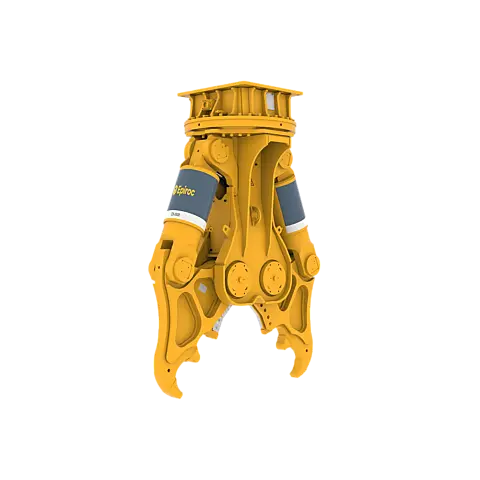

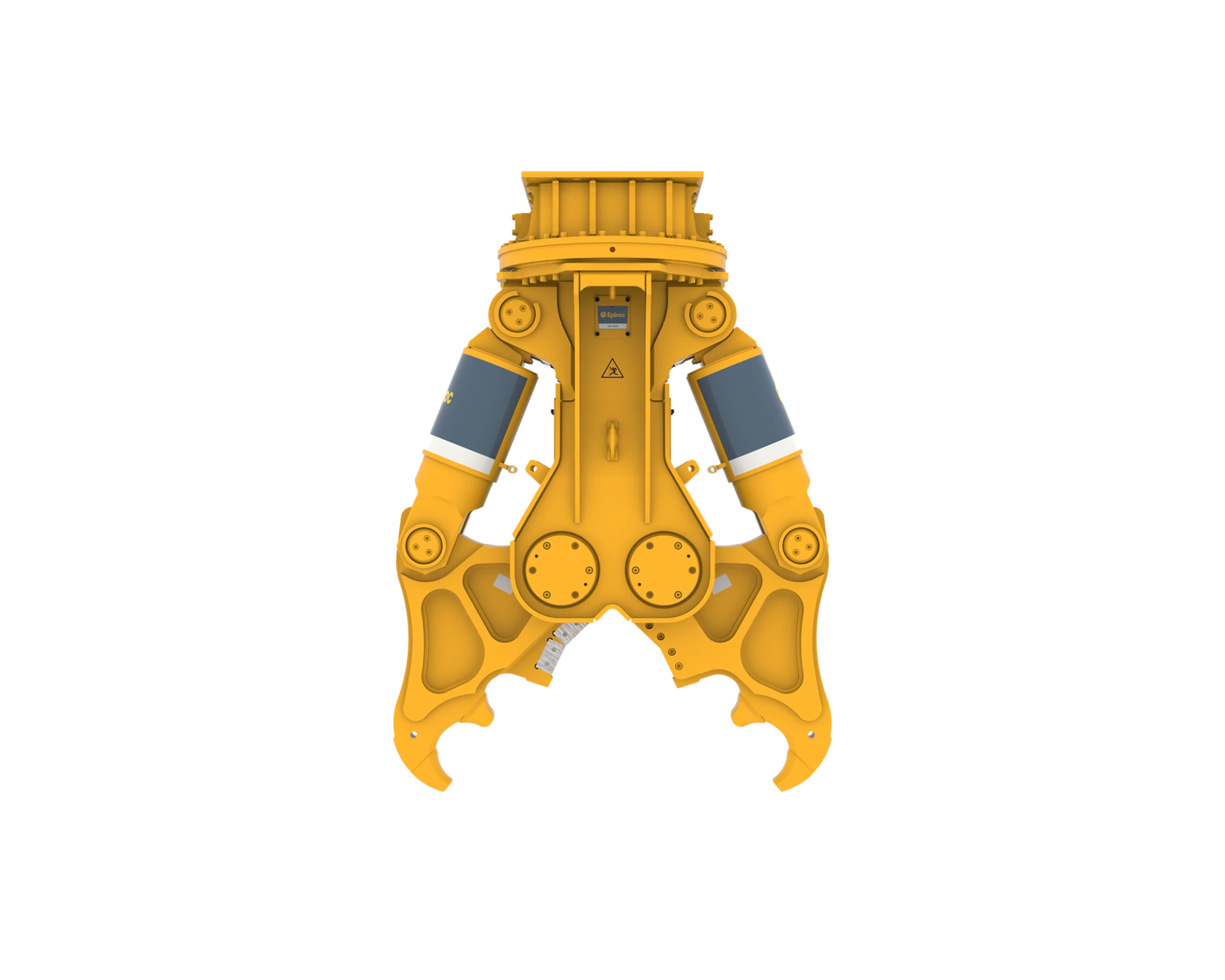

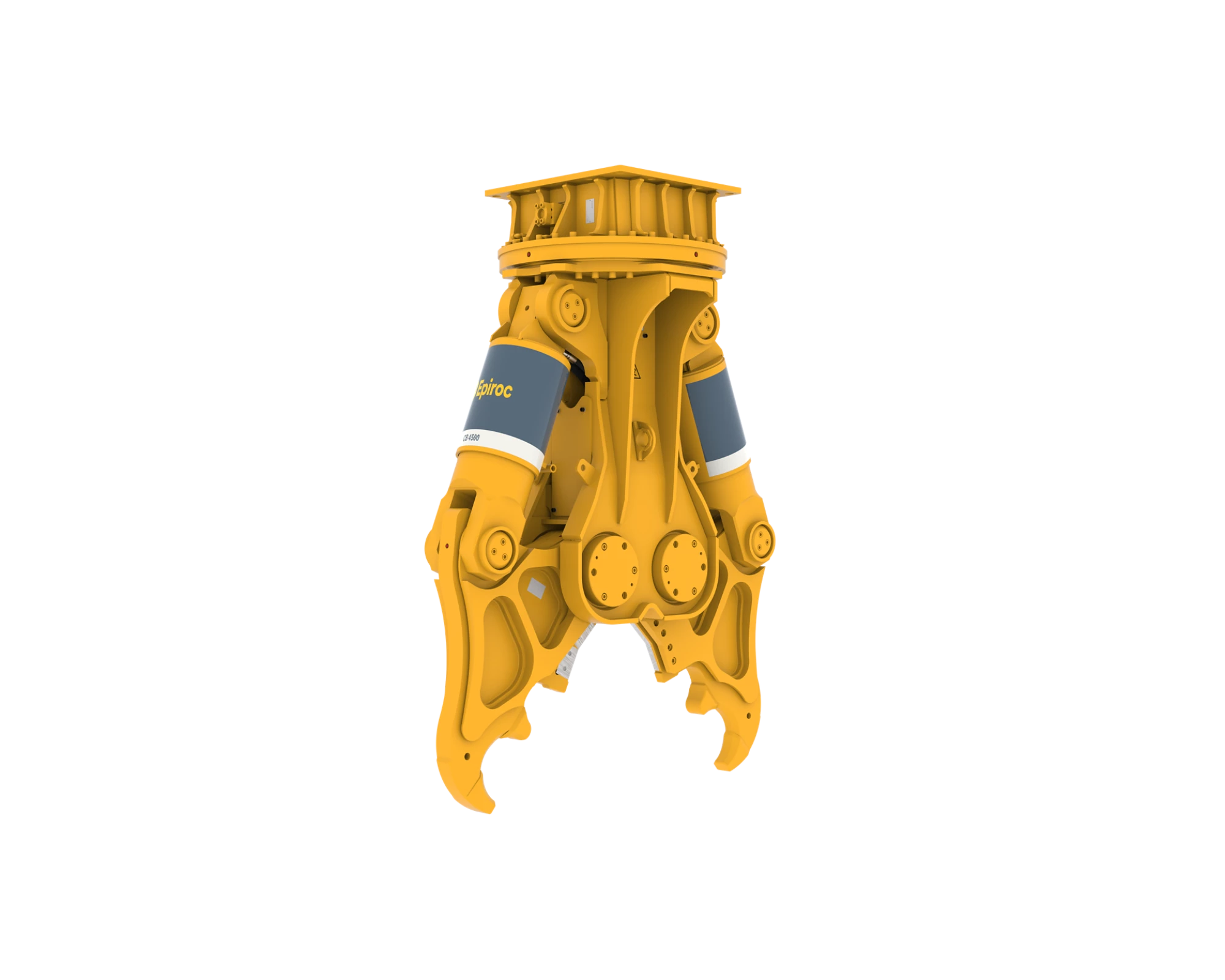

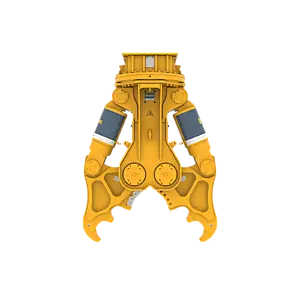

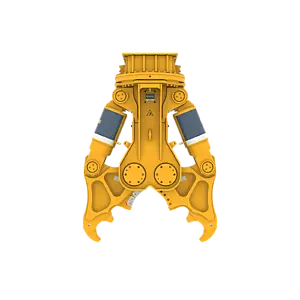

The Epiroc CB 4500 is a hydraulic concrete buster for excavators in the 88,200–121,300 lb (40–55 t) class, built for primary demolition of wide reinforced concrete structures. Service weight is 10,250 lb (4,650 kg) with an average-sized adapter plate; product weight 9,470 lb (4,295 kg).

Cutting force at the upper blades is 441 US tons (400 t) and crushing force at the jaw tip 143 US tons (130 t). Jaw opening 55.1 in. (1,400 mm), jaw depth 31.9 in. (810 mm), blade length 11 in. (280 mm). Cycle time 3.6 s opening / 2.6 s closing at maximum oil flow. Oil flow 79.3–105.7 gpm (300–400 l/min) at up to 5,075 psi (350 bar); rotation circuit 13.2 gpm (50 l/min) at up to 1,670 psi (115 bar).

Two hydraulic cylinders deliver virtually constant closing force, and two independently moving jaws eliminate displacement force, lowering stress on the carrier. An integrated speed valve shortens working cycles, piston rod guards protect the cylinders, and the cutting blades are replaceable and reversible. 360° endless hydraulic rotation positions the jaws precisely.

Use it for primary demolition of reinforced concrete structures: walls, slabs, beams and columns in buildings, bridges and industrial plants. The jaws crush the concrete while the blades at the top of the jaws cut through the reinforcing steel, so the carrier can take down wide sections without a separate shear.

Service parts on the CB 4500 parts breakdown (serial DEQ219120, DGR240001 and later) include the cutter blades kit 3363124644, label kit 3363121886, casing hose kit 3363121887, cylinder seal kit 3363124861, rotary seal kit 3363083066, hydraulic motor and housing seal kit 3363126309 and speed valve seal kit 3363106314, and connection hoses 3363031767 (110 in.), 3363034399 (138 in.), 3363106493 (110 in.) and 3363106494 (138 in.). The HATCON LTE telematics kit is sold separately. See the full Epiroc concrete busters range.

• Carrier weight class 88,200–121,300 lb (40–55 t); service weight 10,250 lb (4,650 kg)
• Cutting force 441 US tons (400 t) at the upper blades; crushing force 143 US tons (130 t) at the jaw tip
• Jaw opening 55.1 in. (1,400 mm); jaw depth 31.9 in. (810 mm); blade length 11 in. (280 mm)
• Oil flow 79.3–105.7 gpm at up to 5,075 psi; rotation 13.2 gpm at up to 1,670 psi
• 360° endless hydraulic rotation; integrated speed valve; piston rod guards; replaceable and reversible cutting blades
• Carrier base plate and adapter plate not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
