Carrier base plate and adapter plate not included. Epiroc concrete busters mount to the carrier through a carrier-specific base plate and adapter plate (with bolt kit), which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plates and bolts.

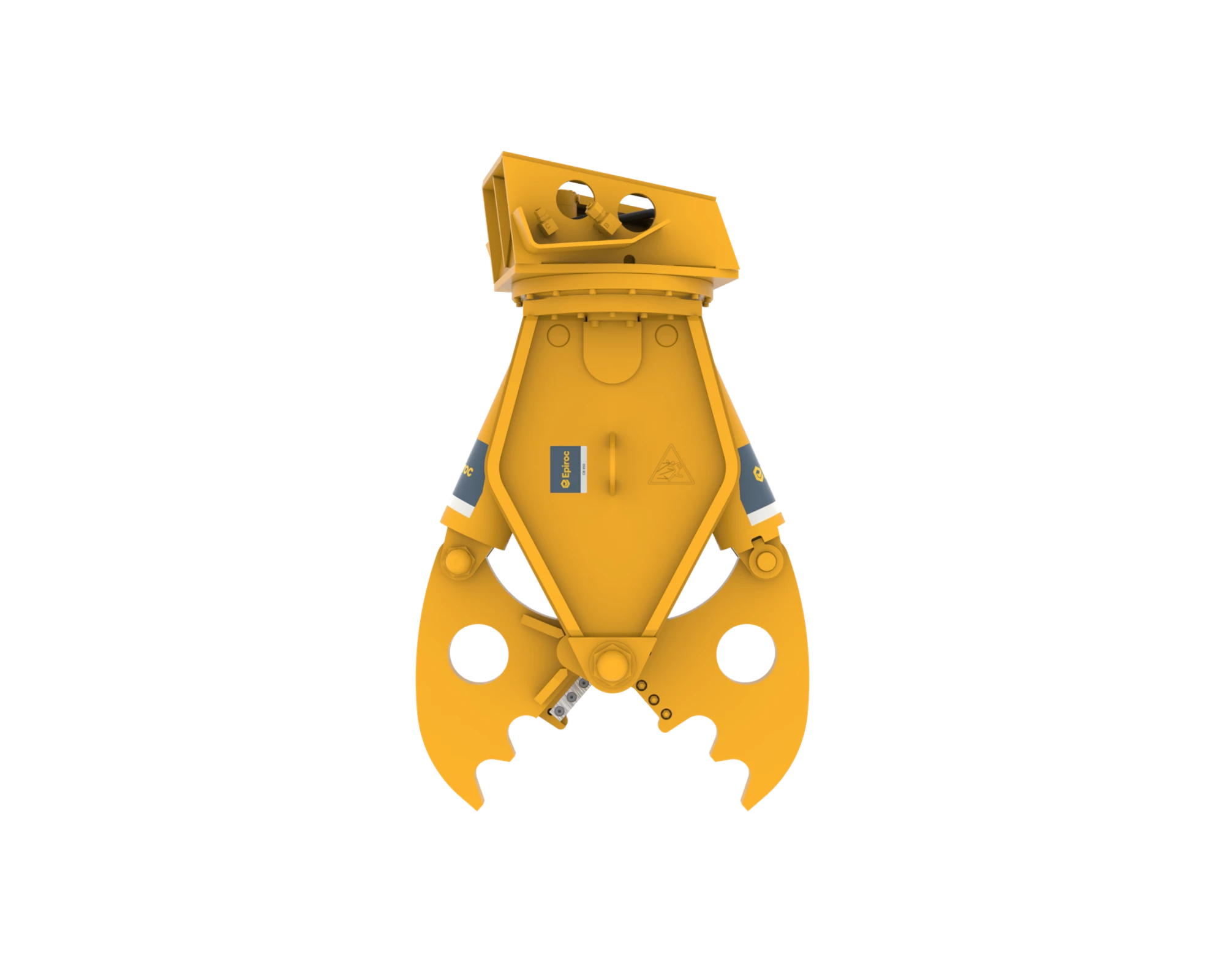

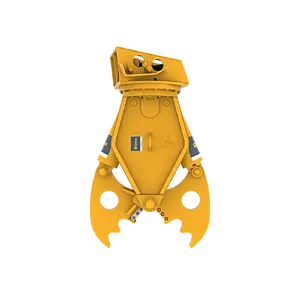

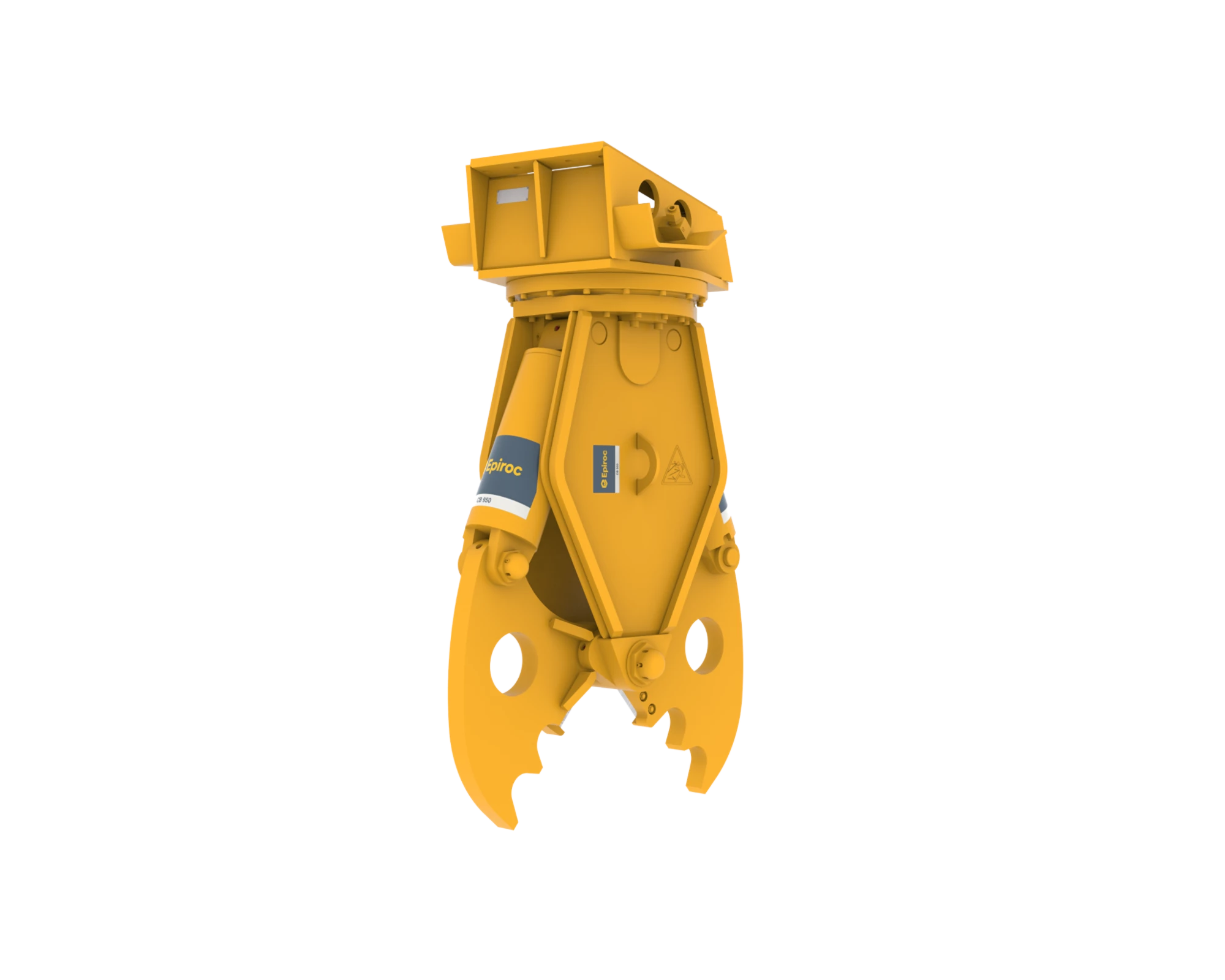

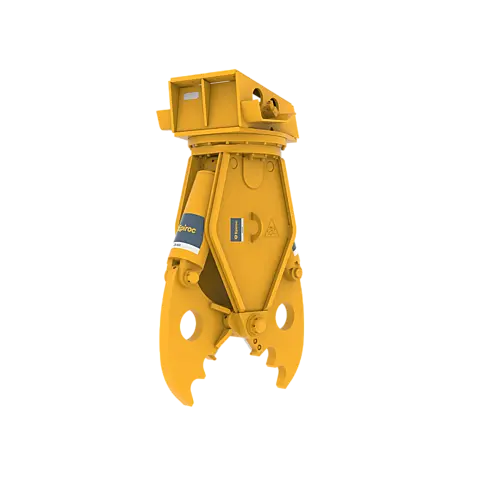

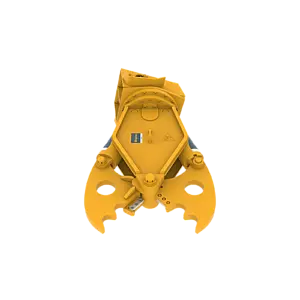

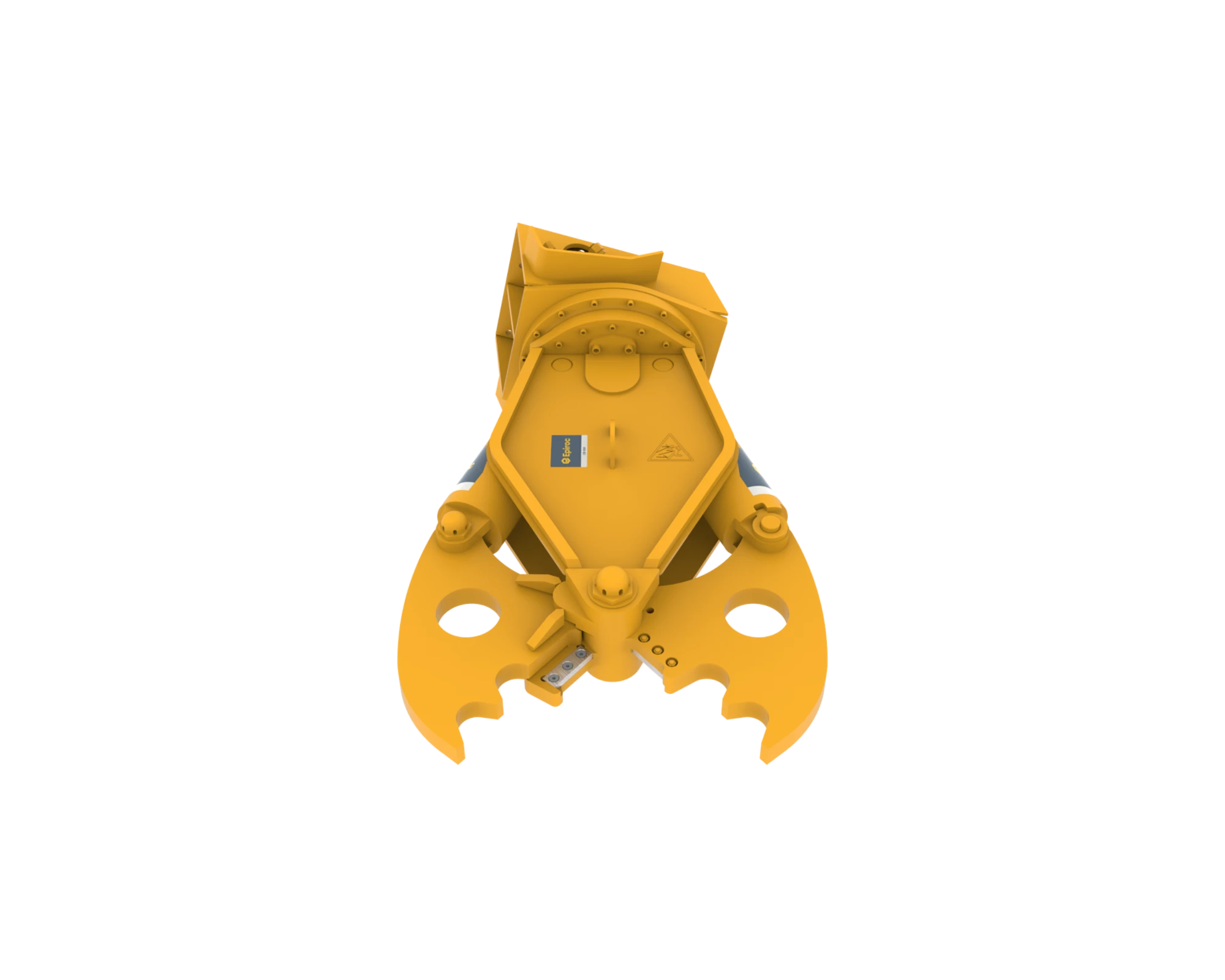

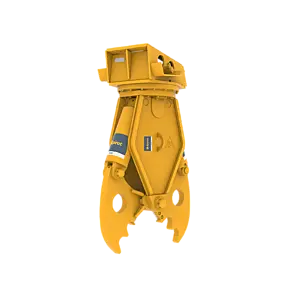

The Epiroc CB 950 is a hydraulic concrete buster for excavators in the 24,300–37,500 lb (11–17 t) class, built for primary demolition of wide reinforced concrete structures. Service weight is 2,070 lb (940 kg) with an average-sized adapter plate; product weight 1,750 lb (794 kg).

Cutting force at the upper blades is 344 US tons (312 t) and crushing force at the jaw tip 60.6 US tons (55 t). Jaw opening 26.8 in. (680 mm), jaw depth 12.8 in. (324 mm), blade length 5.5 in. (140 mm). Cycle time 5.8 s opening / 5.0 s closing at maximum oil flow. Oil flow 23.8–47.6 gpm (90–180 l/min) at up to 5,075 psi (350 bar); rotation circuit 5.3–6.6 gpm (20–25 l/min) at up to 3,045 psi (210 bar).

Two hydraulic cylinders deliver virtually constant closing force, and two independently moving jaws eliminate displacement force, lowering stress on the carrier. An integrated speed valve shortens working cycles, piston rod guards protect the cylinders, and the cutting blades are replaceable and reversible. 360° endless hydraulic rotation positions the jaws precisely.

Use it for primary demolition of reinforced concrete structures: walls, slabs, beams and columns in buildings, bridges and industrial plants. The jaws crush the concrete while the blades at the top of the jaws cut through the reinforcing steel, so the carrier can take down wide sections without a separate shear.

Service parts on the CB 950 parts breakdown (serial DEQ229229, DEQ229255 and later) include the cutter blades kit 3372100018, label kit 3363125641, cylinder seal kit 3363125925, cylinder seal kit 3376676145 and hydraulic motor seal kit 3376682182, and connection hoses 3363106495 (79 in.) and 3363094540 (79 in.). The HATCON LTE telematics kit is sold separately. See the full Epiroc concrete busters range.

• Carrier weight class 24,300–37,500 lb (11–17 t); service weight 2,070 lb (940 kg)
• Cutting force 344 US tons (312 t) at the upper blades; crushing force 60.6 US tons (55 t) at the jaw tip
• Jaw opening 26.8 in. (680 mm); jaw depth 12.8 in. (324 mm); blade length 5.5 in. (140 mm)
• Oil flow 23.8–47.6 gpm at up to 5,075 psi; rotation 5.3–6.6 gpm at up to 3,045 psi
• 360° endless hydraulic rotation; integrated speed valve; piston rod guards; replaceable and reversible cutting blades
• Carrier base plate and adapter plate not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
