Carrier base plate and adapter plate not included. Epiroc combi cutters mount to the carrier through a carrier-specific base plate and adapter plate (with bolt kit), which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plates and bolts.

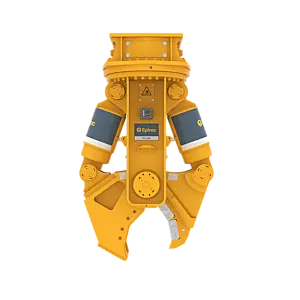

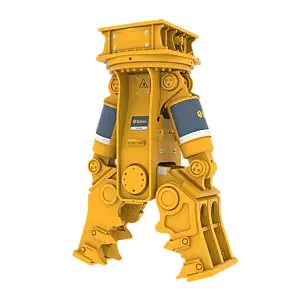

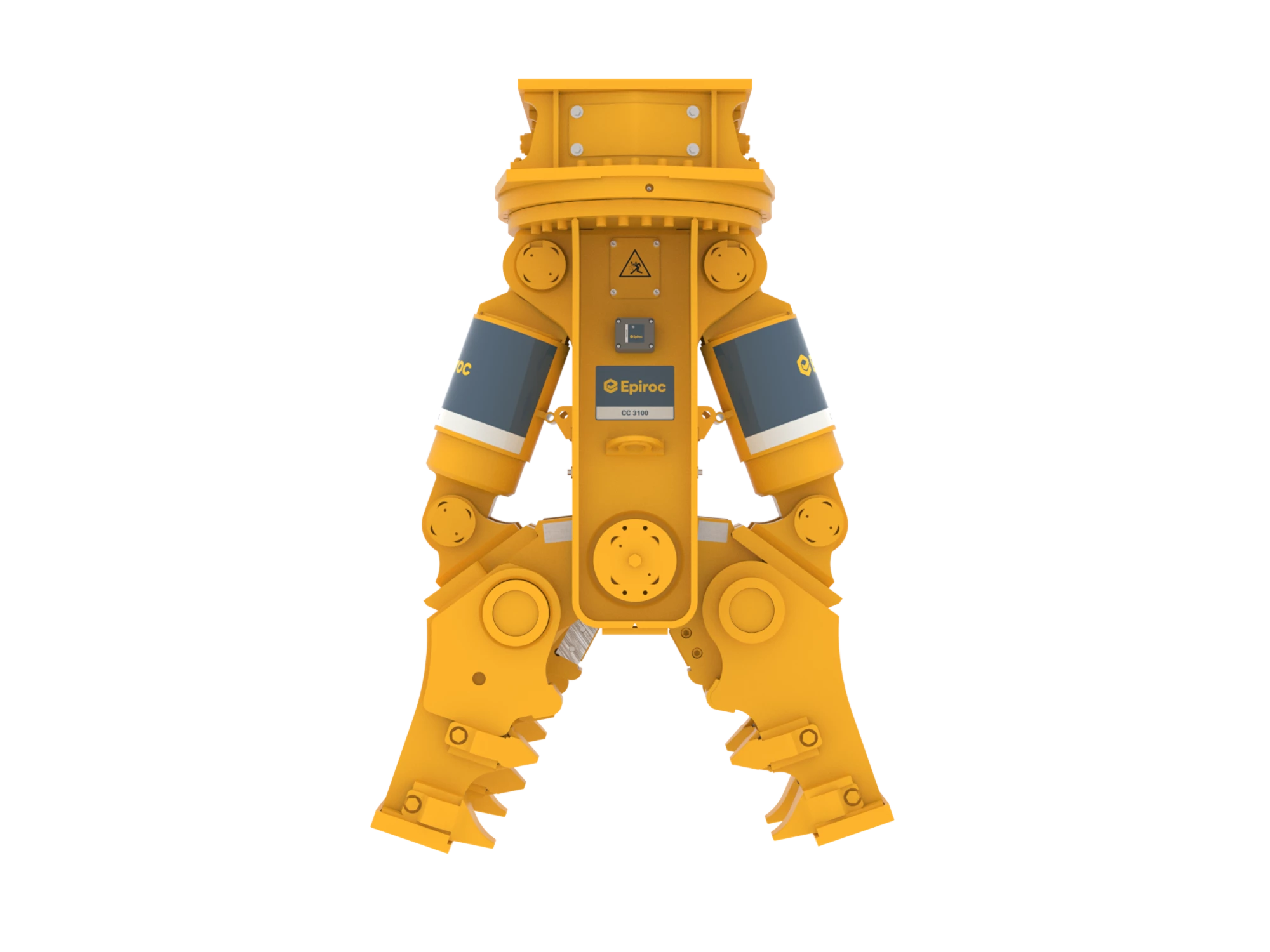

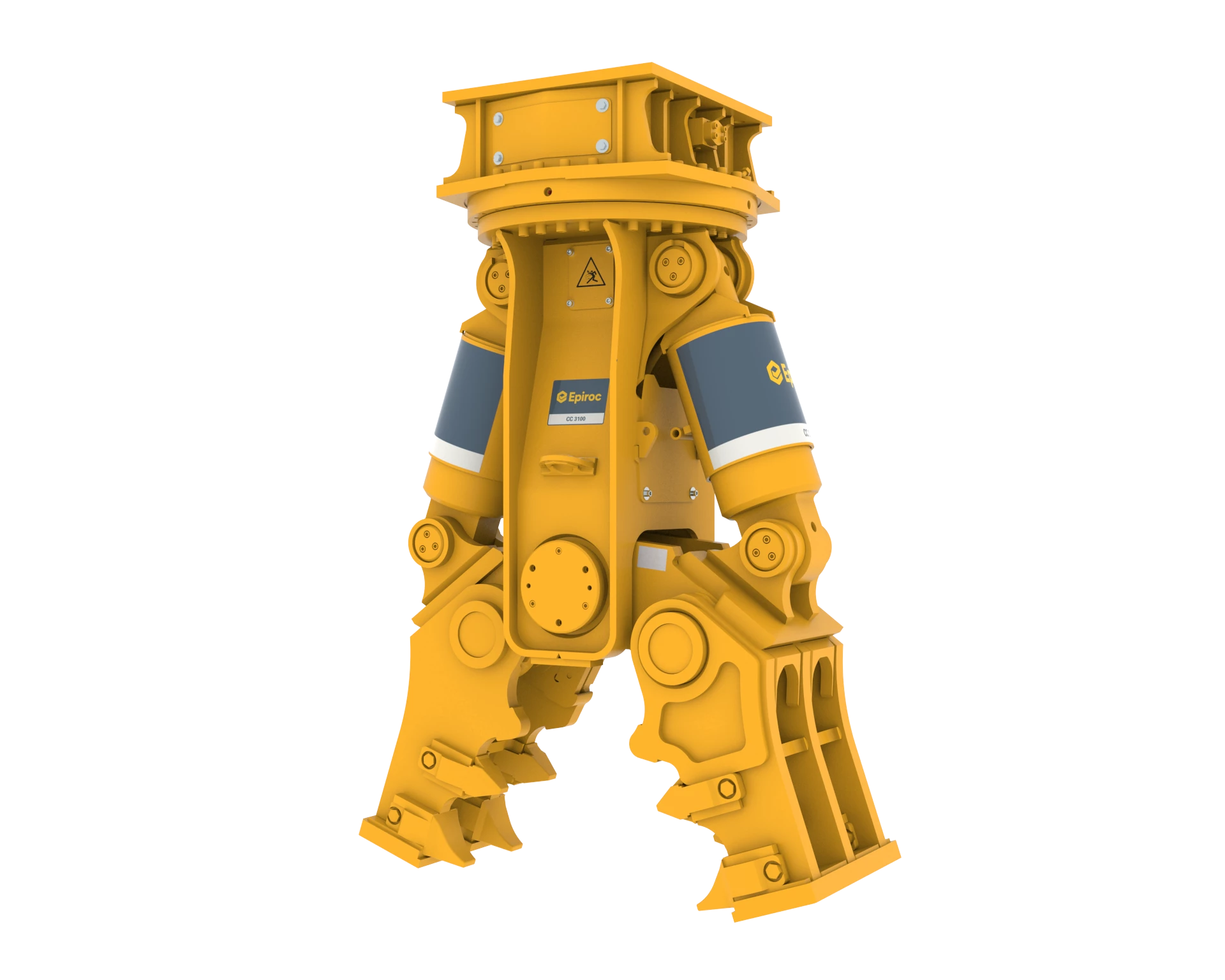

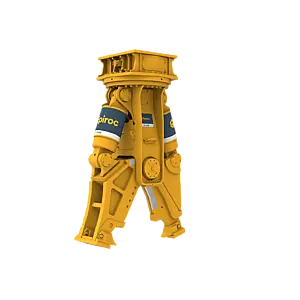

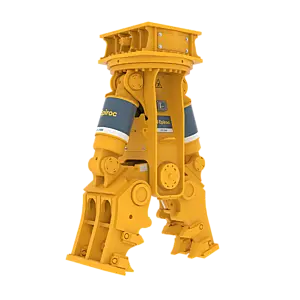

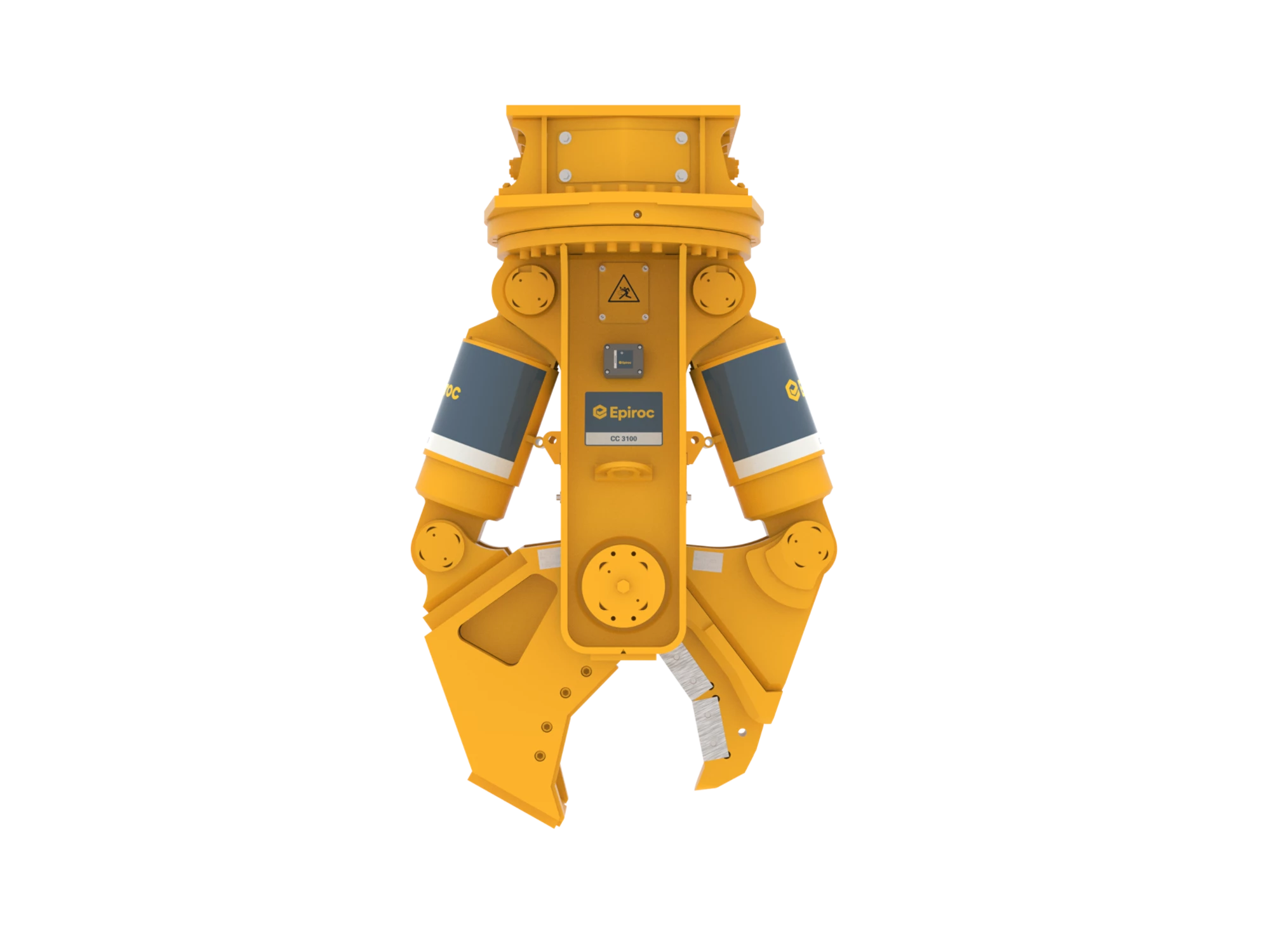

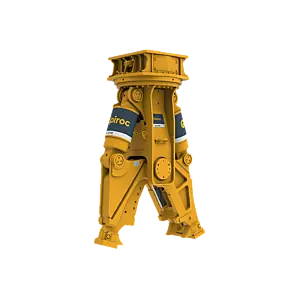

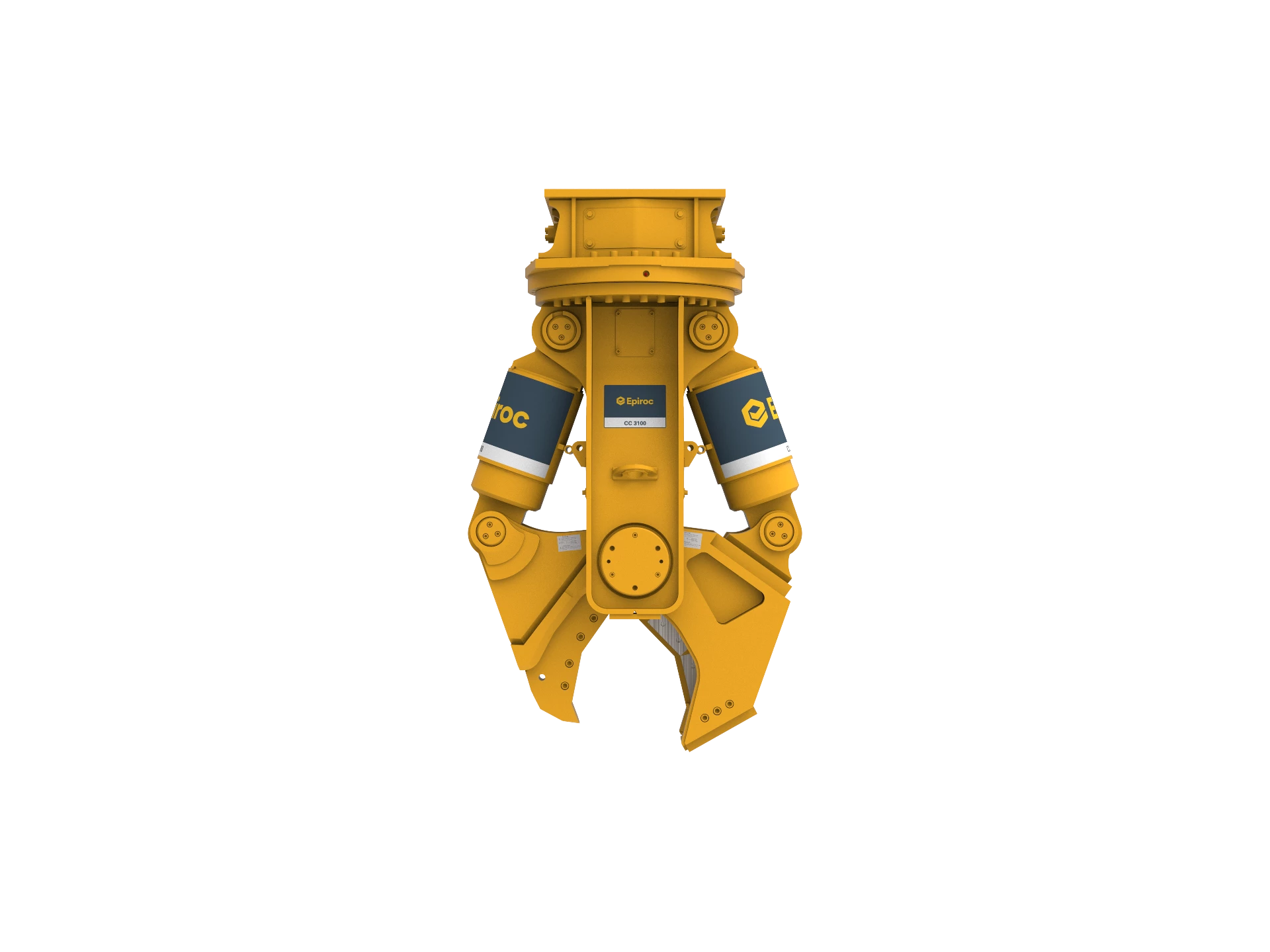

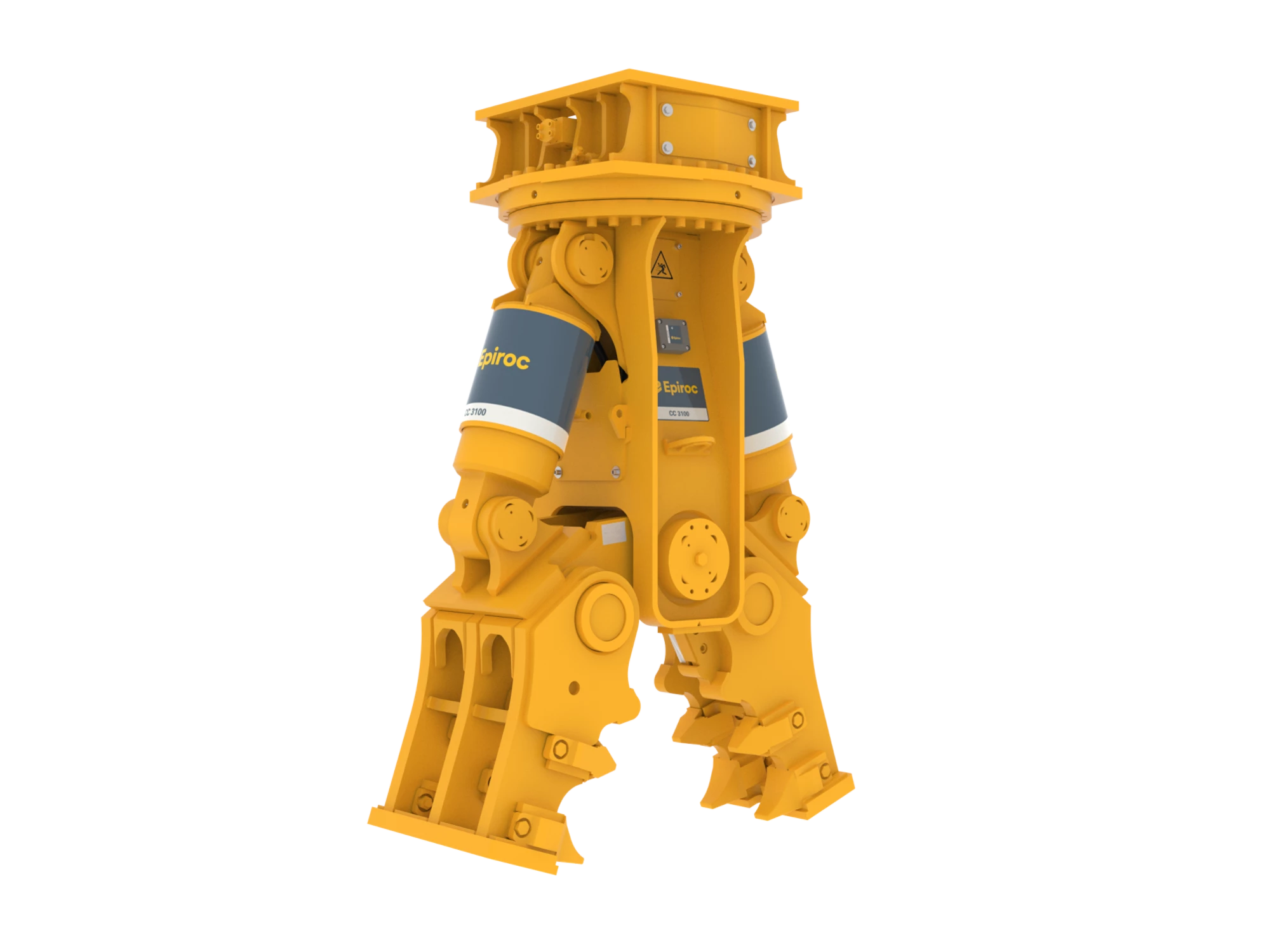

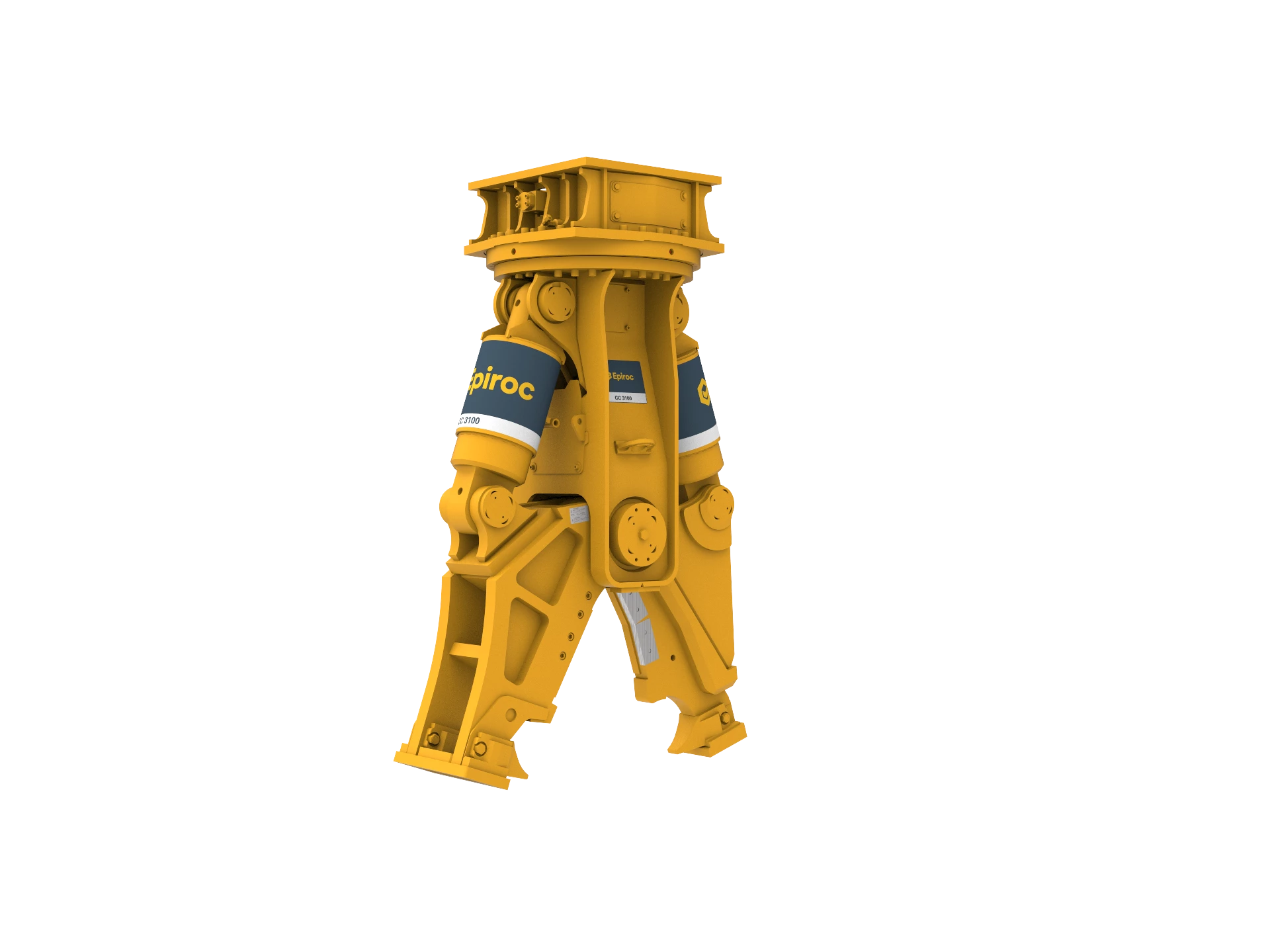

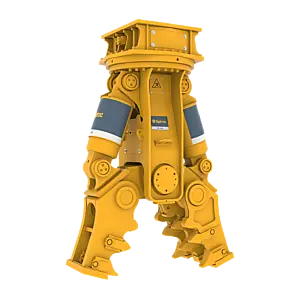

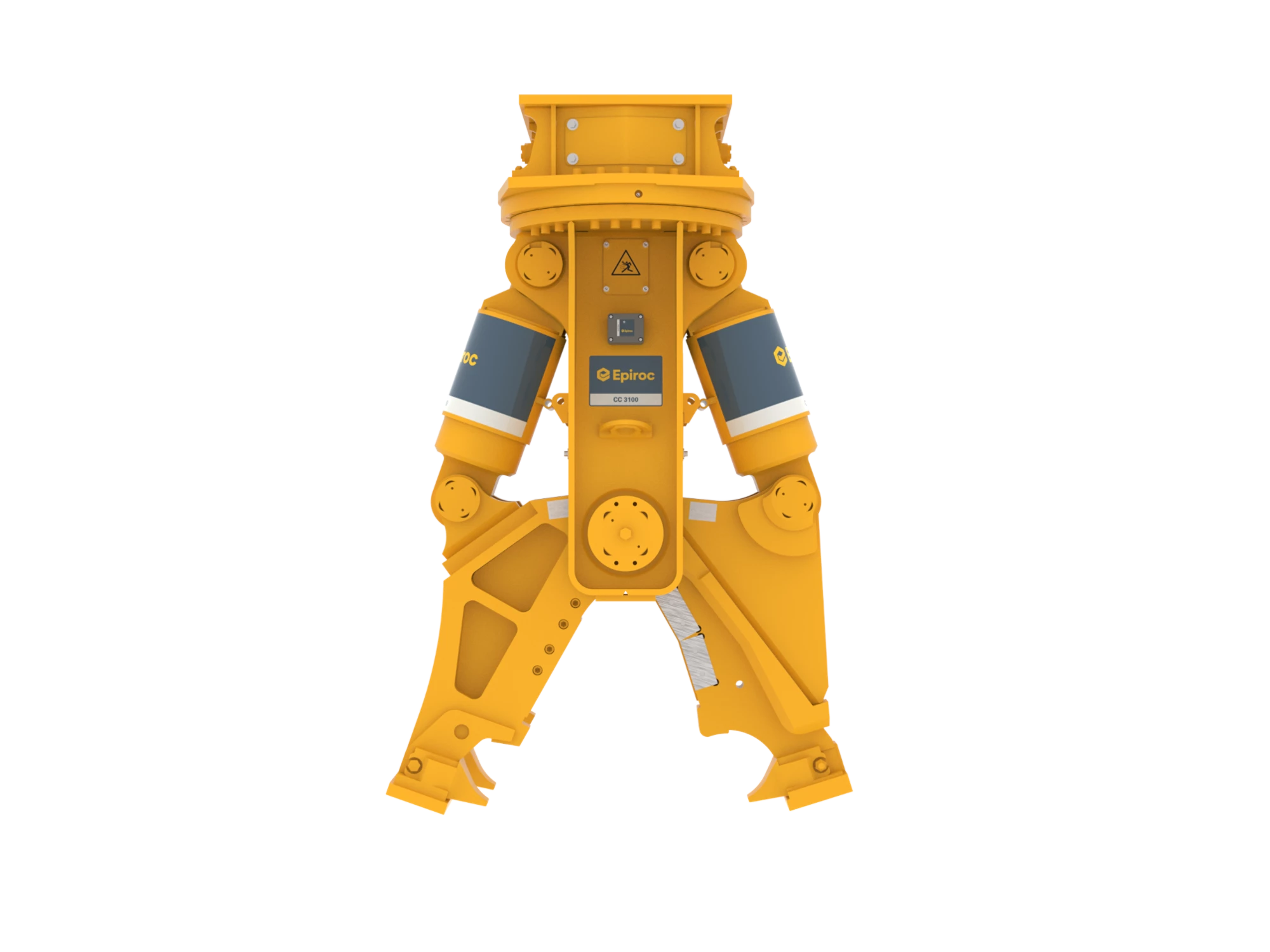

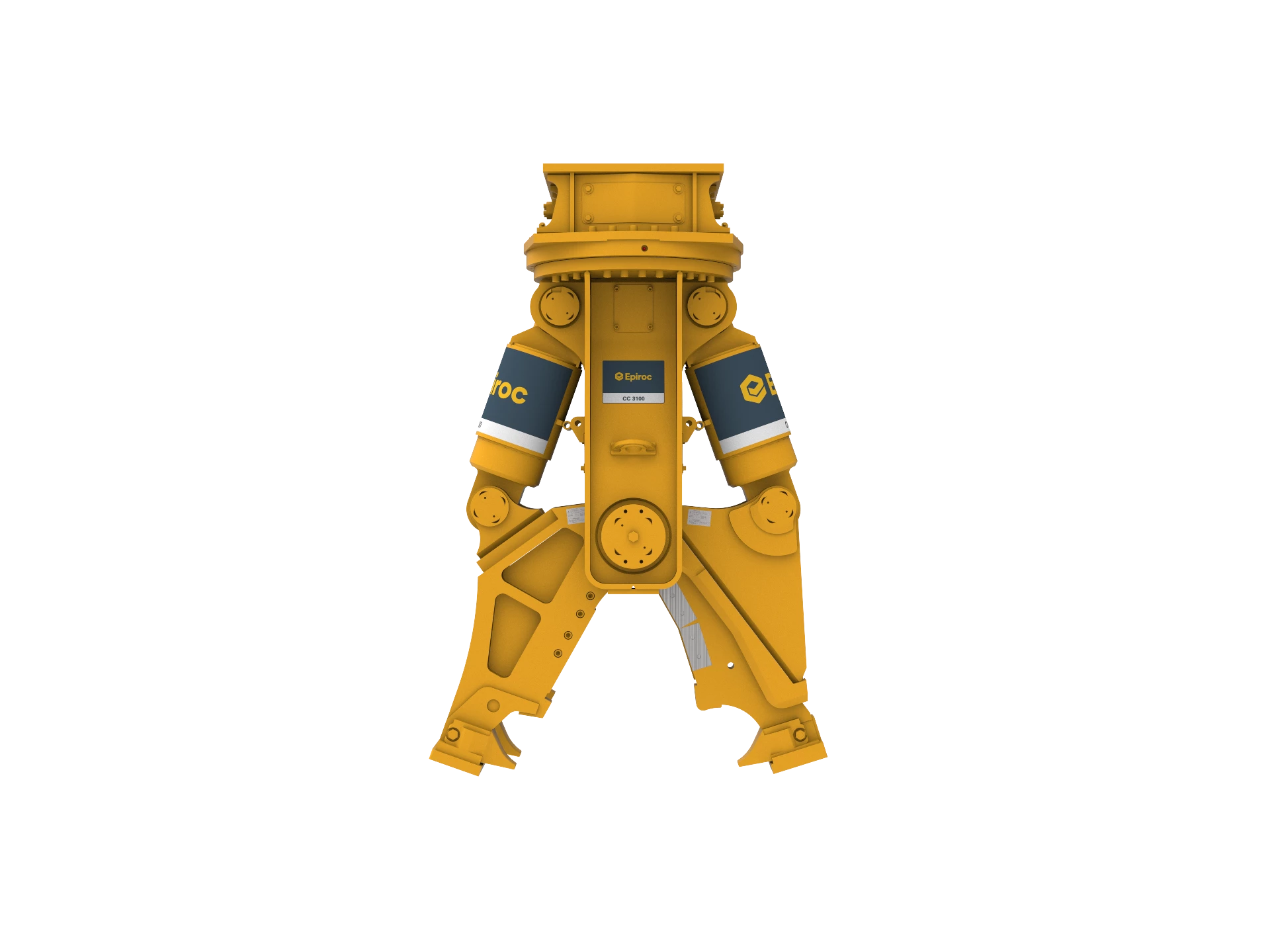

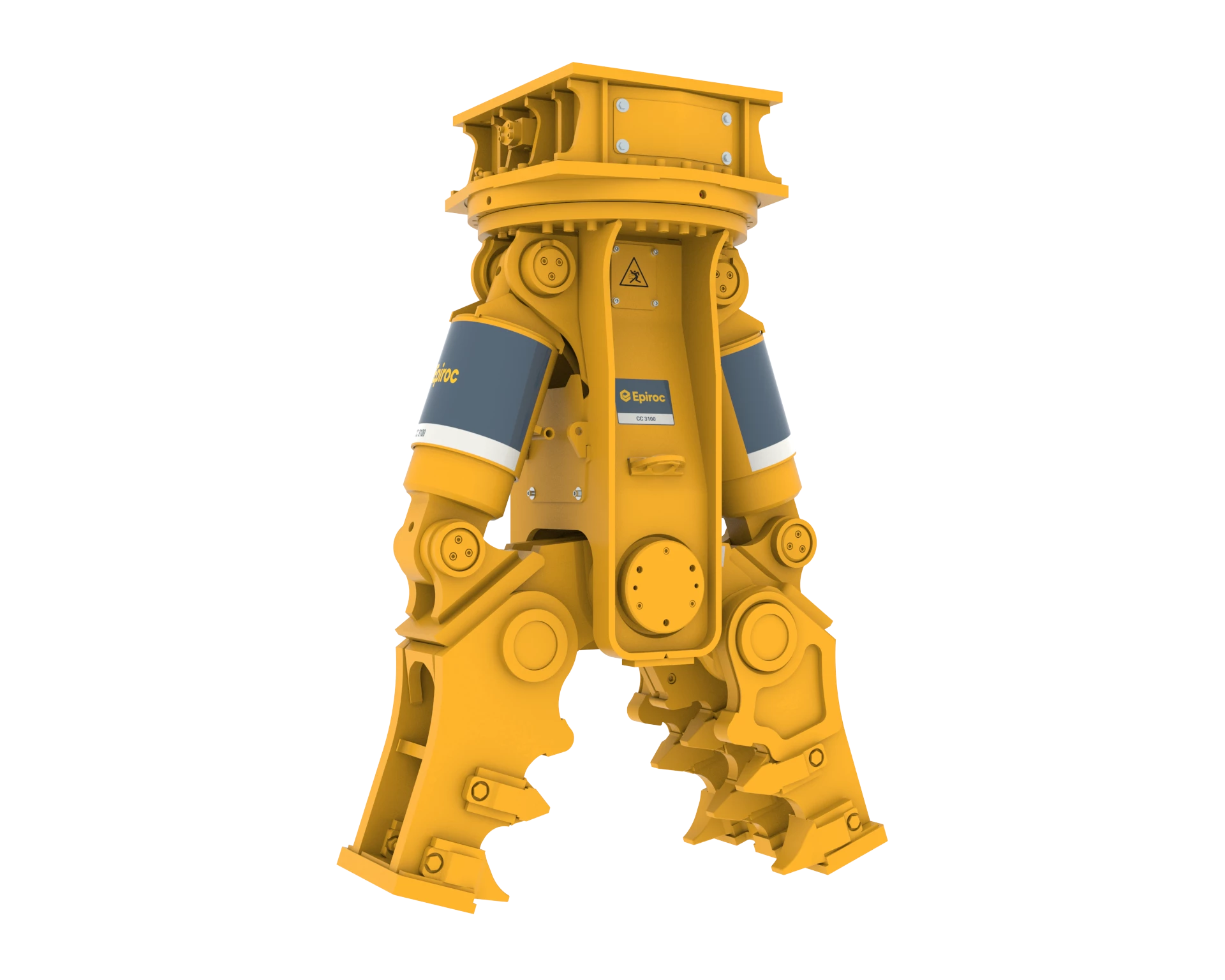

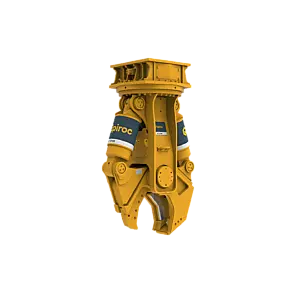

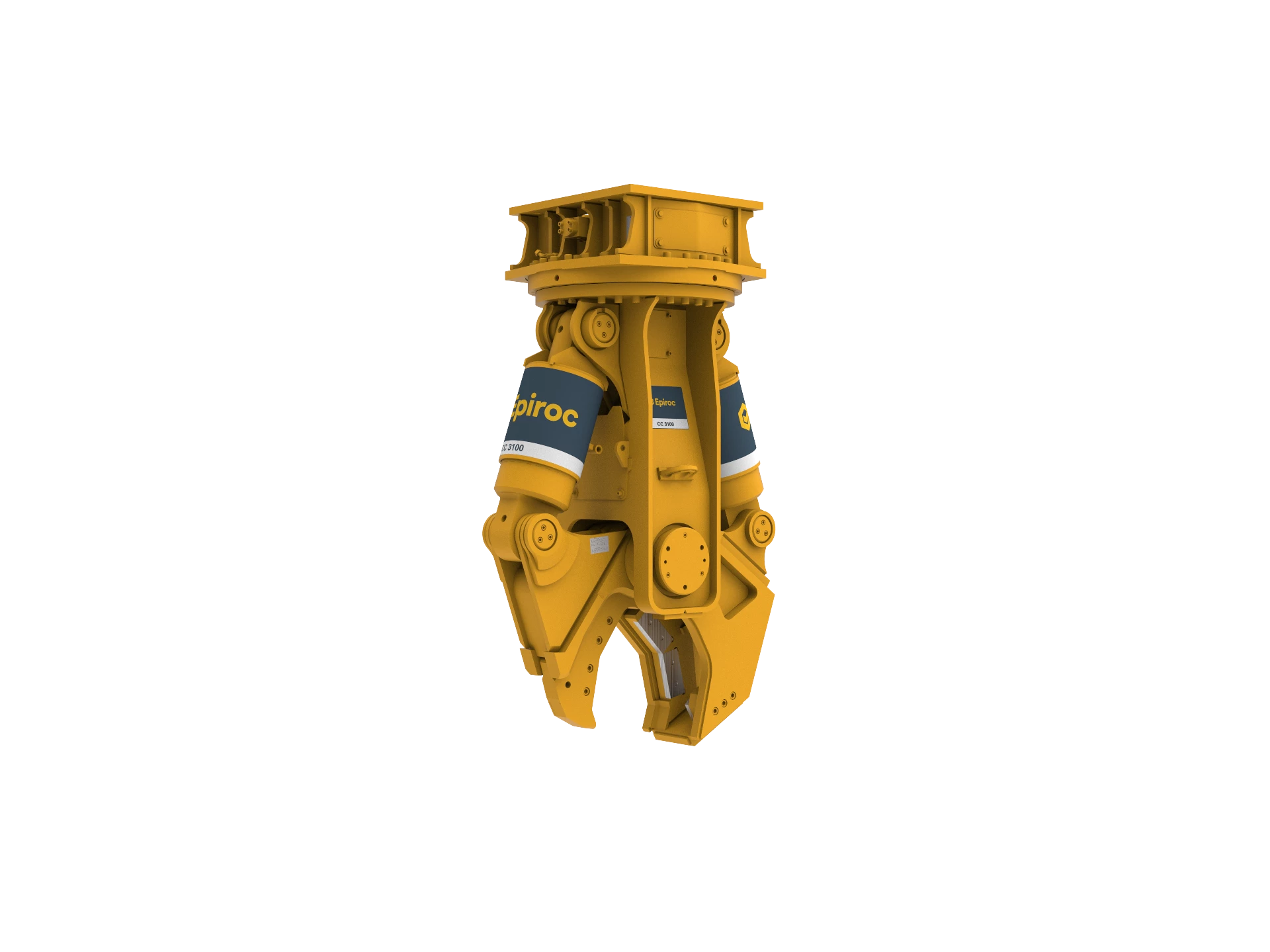

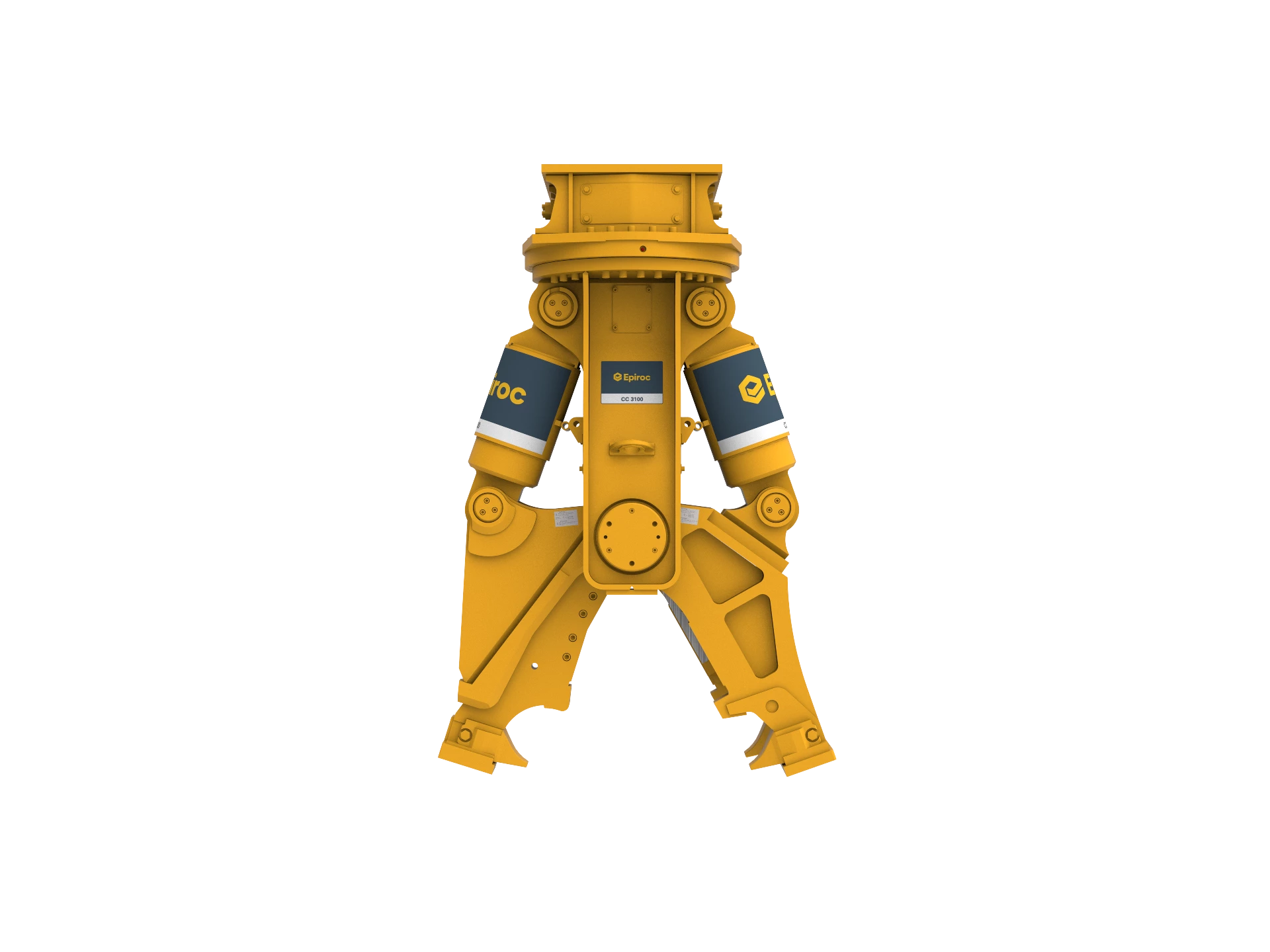

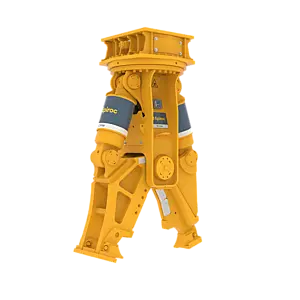

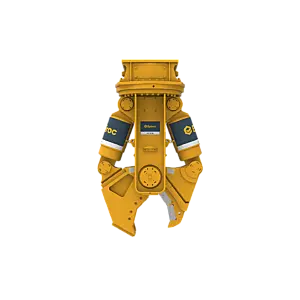

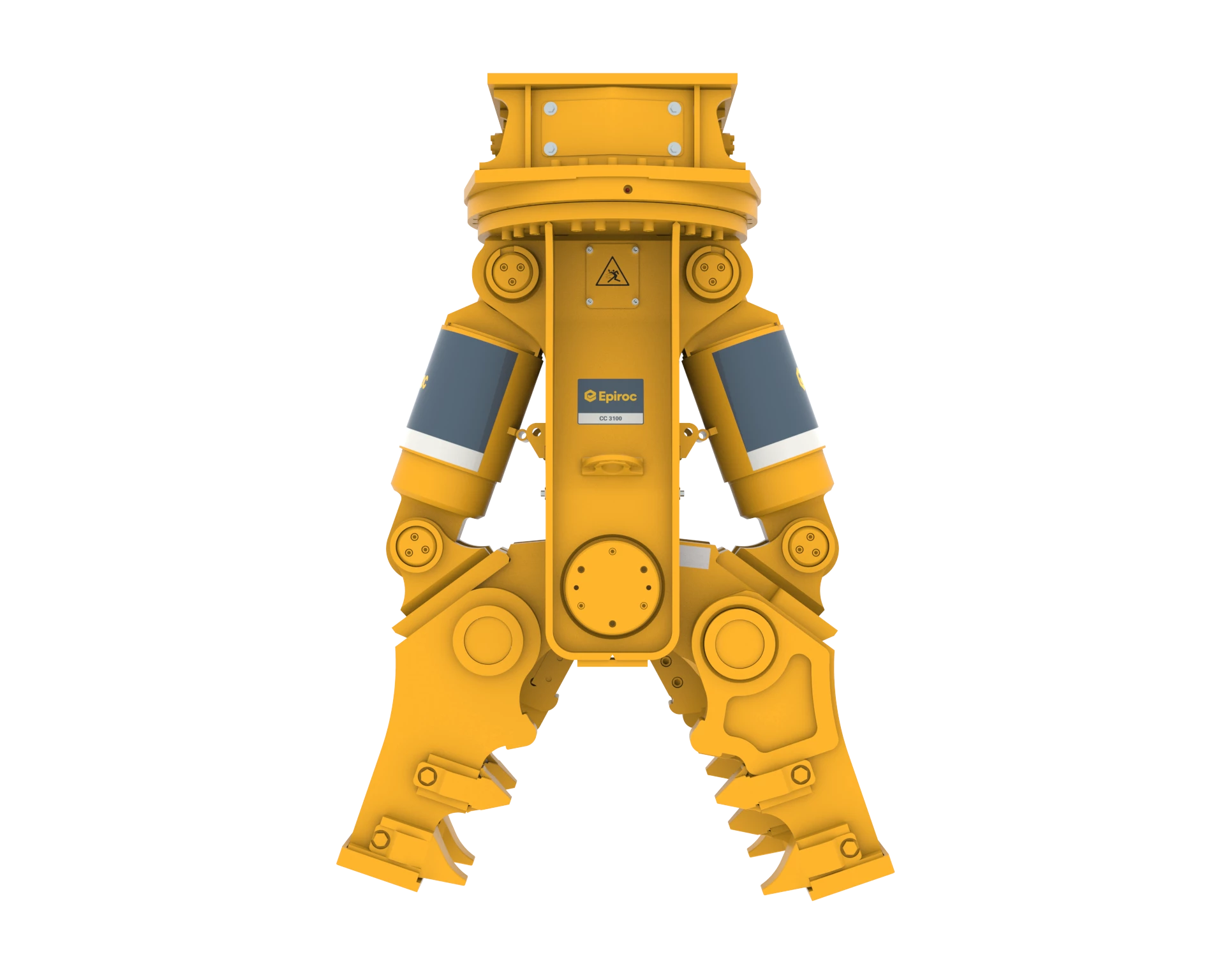

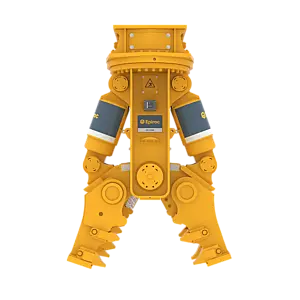

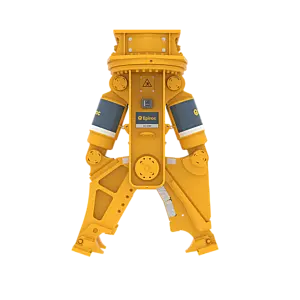

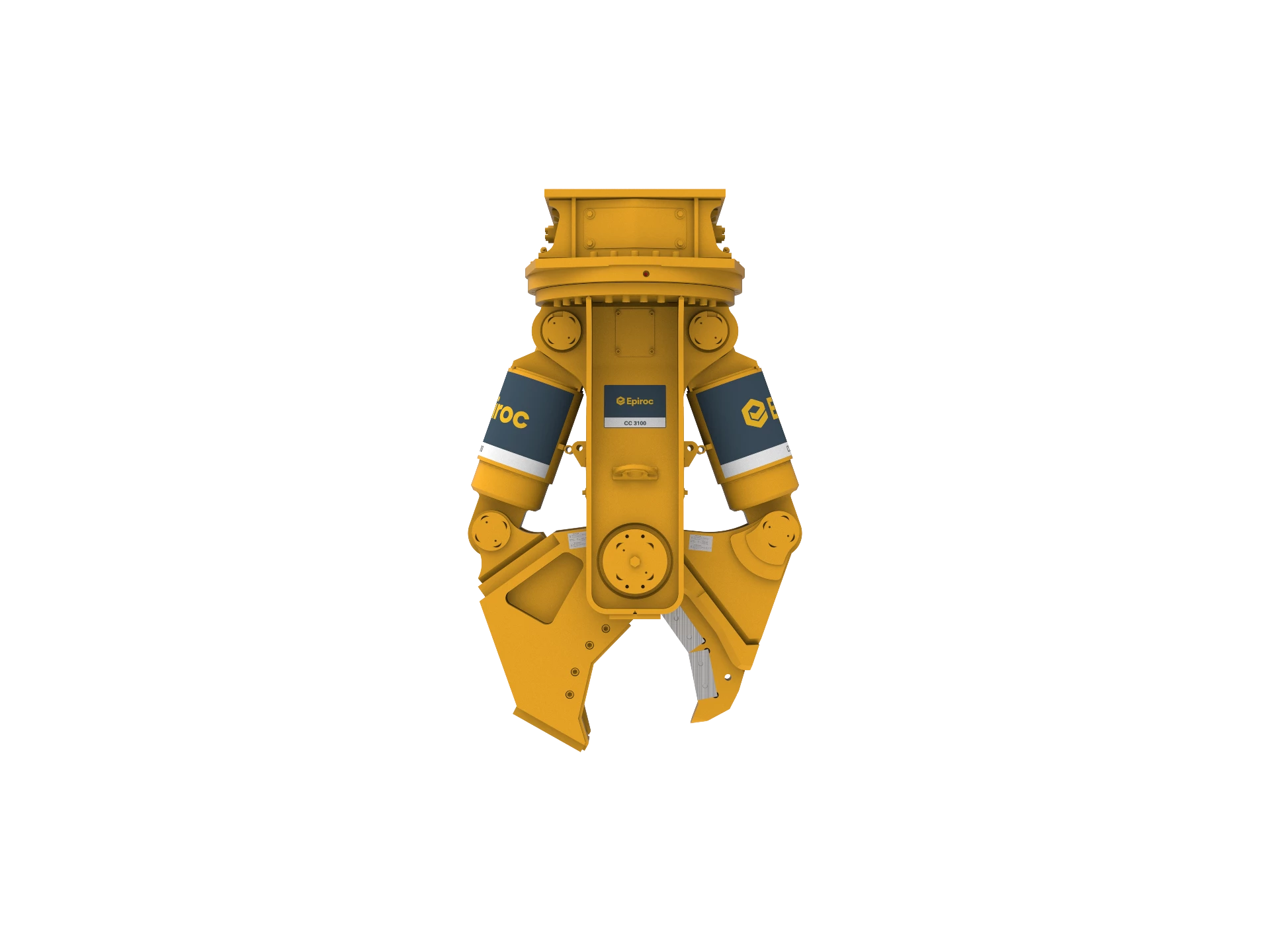

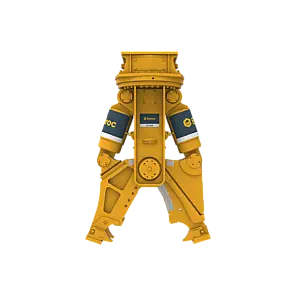

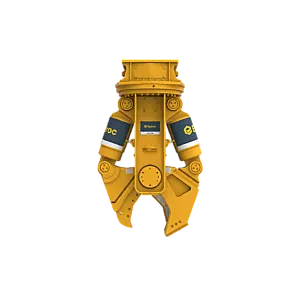

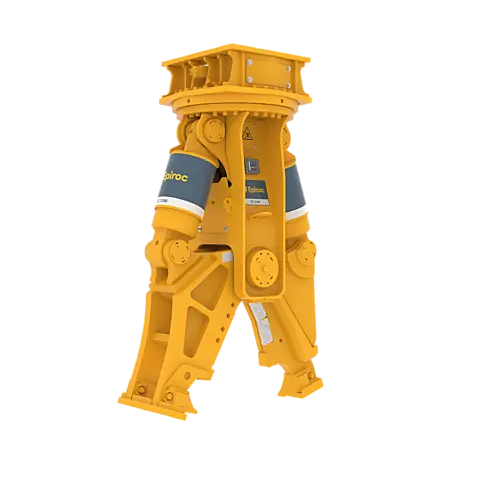

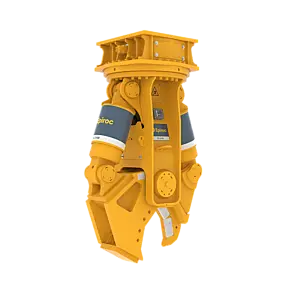

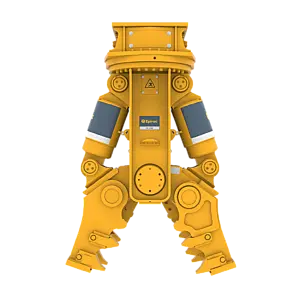

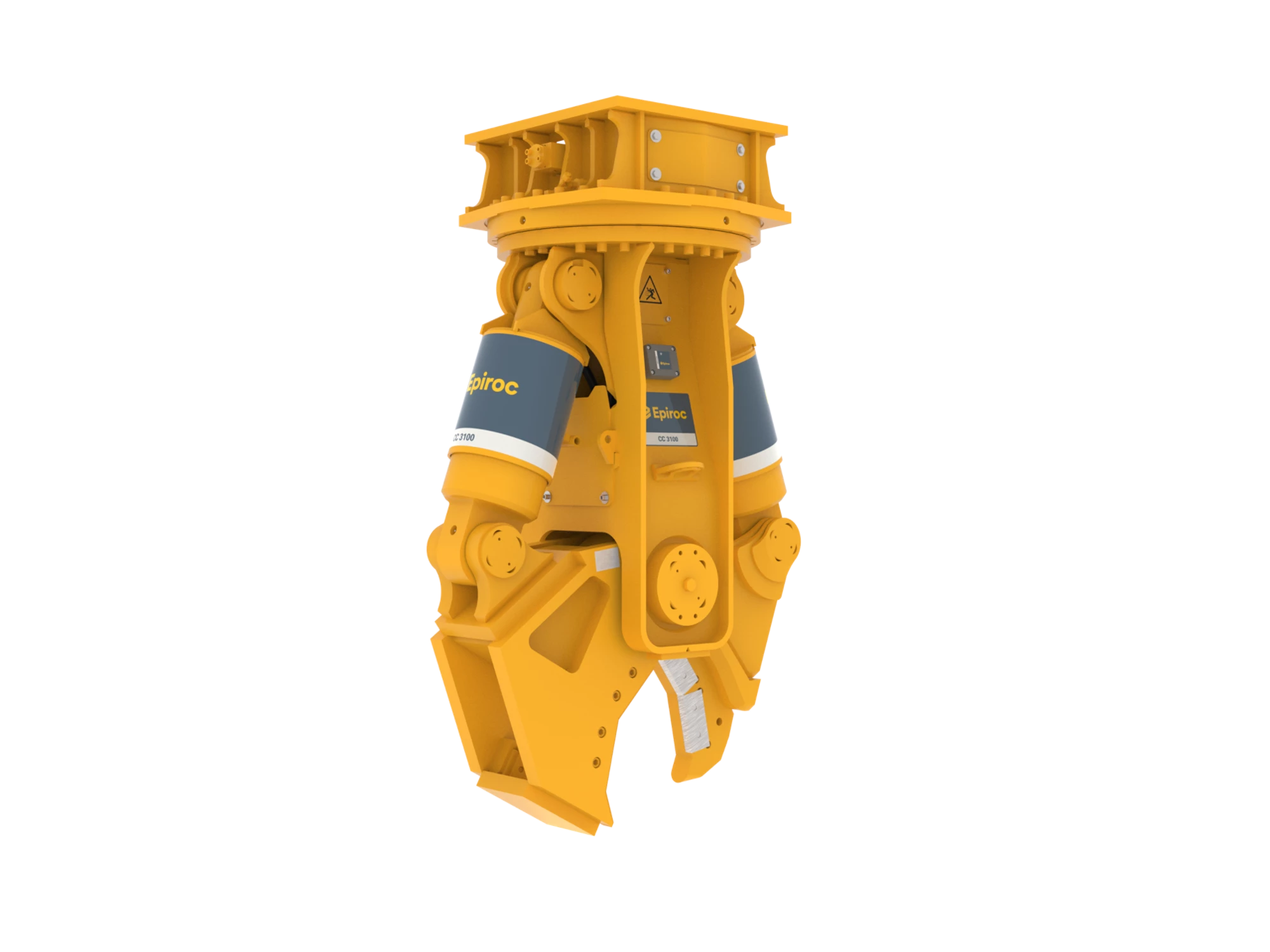

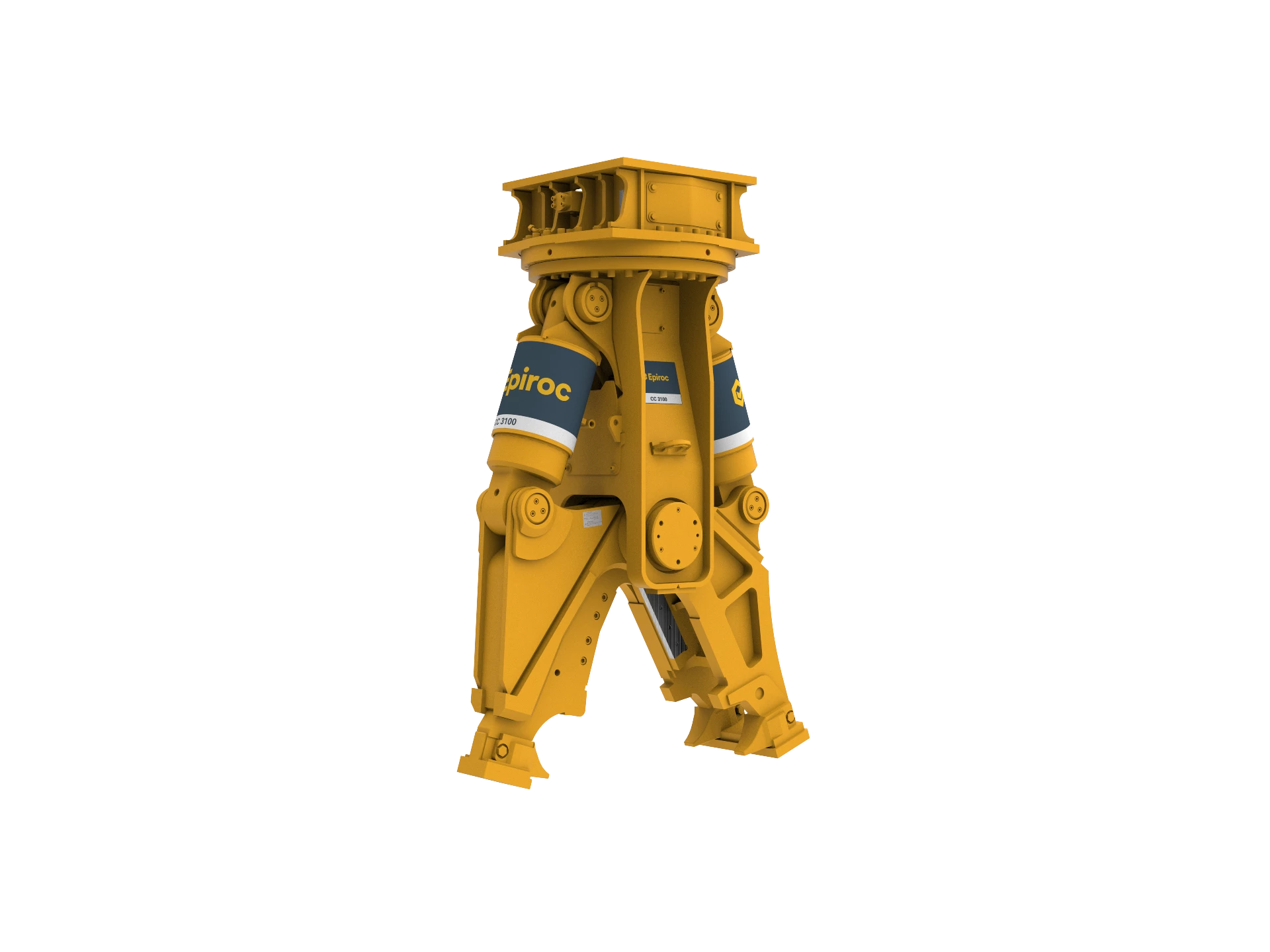

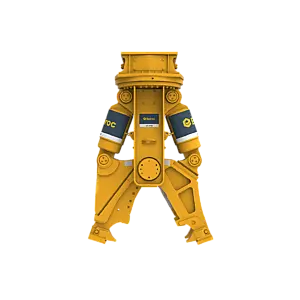

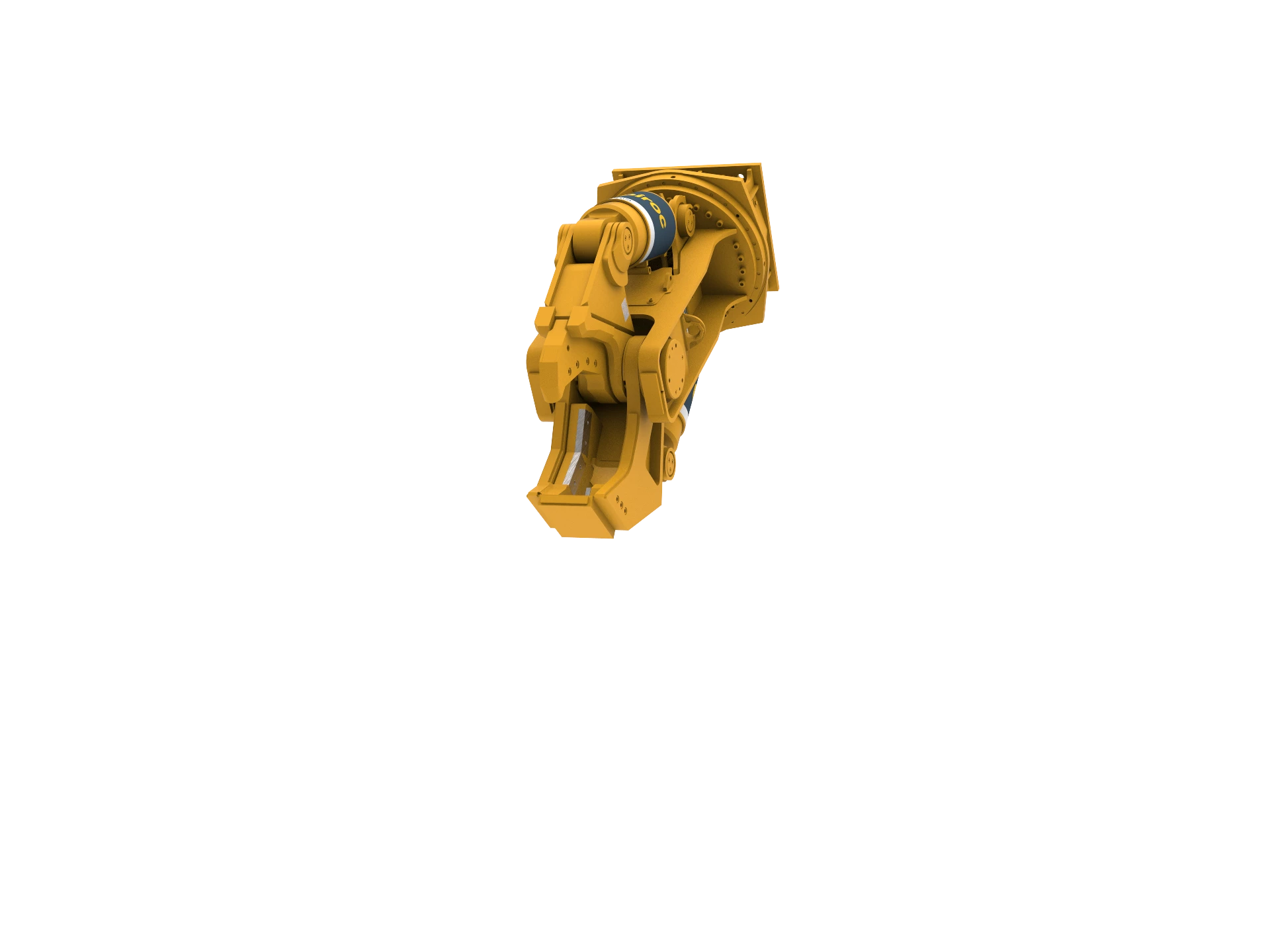

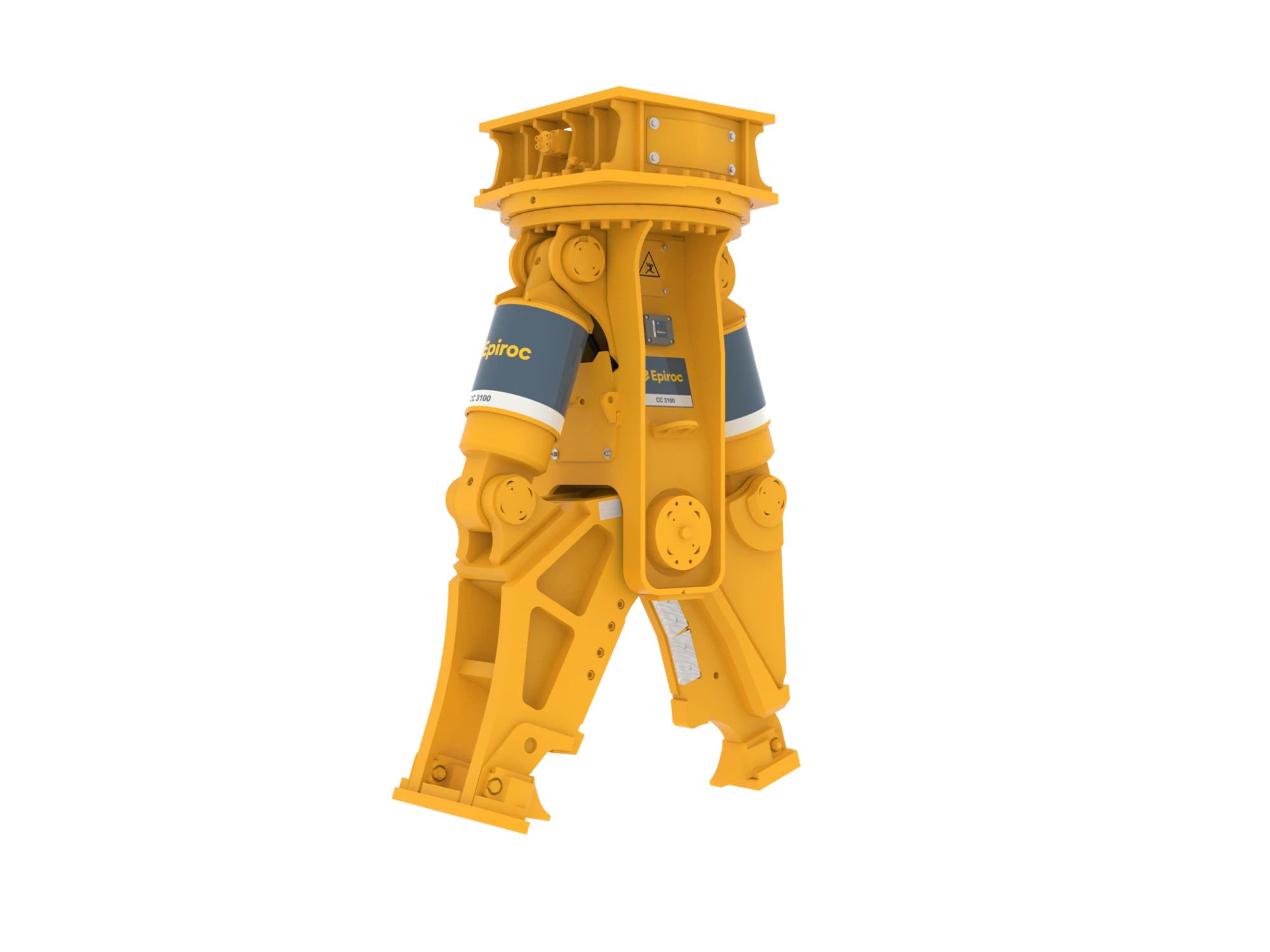

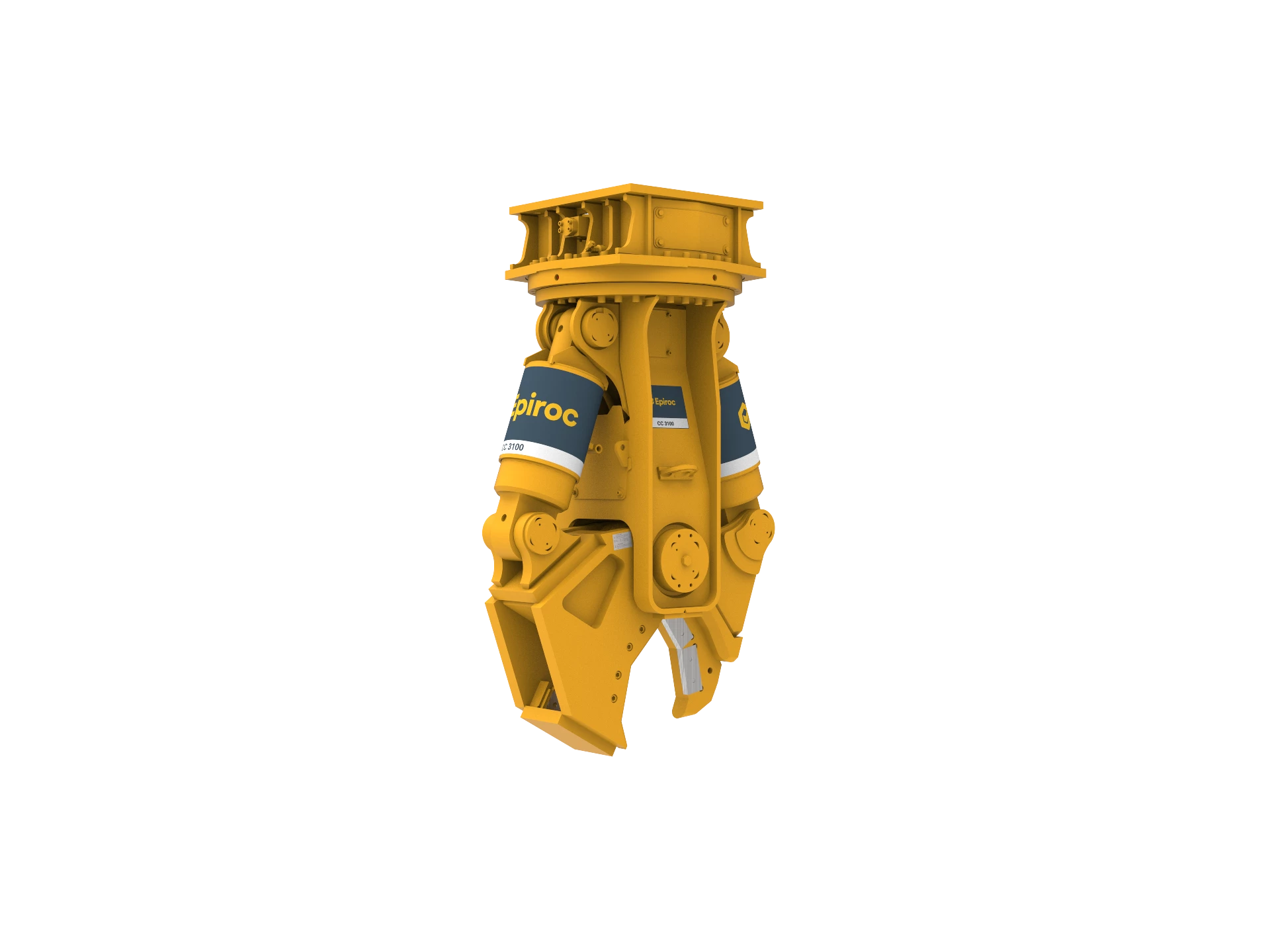

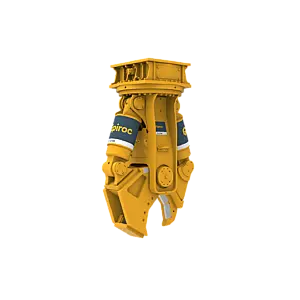

The Epiroc CC 3100 is a hydraulic combi cutter for 55,100–88,200 lb (25–40 t) excavators, with interchangeable U (universal), S (steel cutting) and P (pulverizer) jaw sets for primary demolition, secondary reduction and steel cutting.

Cutting force at the jaw tip 474 US tons (430 t) on every jaw set. Service weight 6,315–7,715 lb (2,865–3,500 kg) depending on the jaw set; jaw opening up to 34.3 in. Cycle time 3.1 s opening / 2.9 s closing. Oil flow 39.6–66 gpm (150–250 l/min) at up to 5,075 psi (350 bar); rotation circuit 9.2–13.2 gpm at up to 2,465 psi.

Two hydraulic cylinders deliver virtually constant closing force, and two independently moving jaws eliminate displacement force, lowering stress on the carrier. The CAPS coupling and positioning system lets the crew change jaw sets on site. An integrated speed valve shortens working cycles, piston rod guards protect both cylinders, the crushing teeth of the U and P jaws are replaceable, and the cutting blades are replaceable and reversible. 360° endless hydraulic rotation positions the jaws precisely.

Use it for primary demolition and secondary reduction of concrete structures with the U (universal) jaws, cutting steel beams, pipes, tanks and rebar with the S (steel cutting) jaws, and crushing concrete into recyclable material with the P (pulverizer) jaws, so one carrier tool covers the whole job.

Service parts on the CC 3100 Combi Cutter parts breakdown (serial DEQ189082–DEQ249055, DGR240002 and later) include the casing hose kit 3363120638, cutter blades kit 3363120639 (U jaws), cutter blades kit 3363122093 (S jaws), cutter blades kit 3363124186 (P jaws), cylinder seal kit 3363121119, label kit 3363120637, sliding plate kit 3363122094 (S jaws), tip of tooth kit 3363091058 (U jaws), tip of tooth kit 3363122652 (P jaws), rotary seal kit 3363083066, hydraulic motor and housing seal kit 3363126309, speed valve seal kit 3363091927 and connection hoses 3363031767 (110 in.), 3363034399 (138 in.), 3363094645 (91 in.), 3363094646 (110 in.). The HATCON LTE telematics kit is sold separately. See the full Epiroc combi cutters range.

• Fits 55,100–88,200 lb (25–40 t) excavators; service weight 6,900 lb with U jaws
• 474 US tons (430 t) cutting force at the jaw tip on all jaw sets
• U, S and P jaw sets change on site with the CAPS coupling and positioning system
• 360° endless hydraulic rotation, integrated speed valve, piston rod guards on both cylinders
• 39.6–66 gpm (150–250 l/min) at up to 5,075 psi; replaceable, reversible cutting blades
• Carrier base plate and adapter plate not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
