Carrier base plate and adapter plate not included. Epiroc demolition pulverizers mount to the carrier through a carrier-specific base plate and adapter plate (with bolt kit), which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plates and bolts.

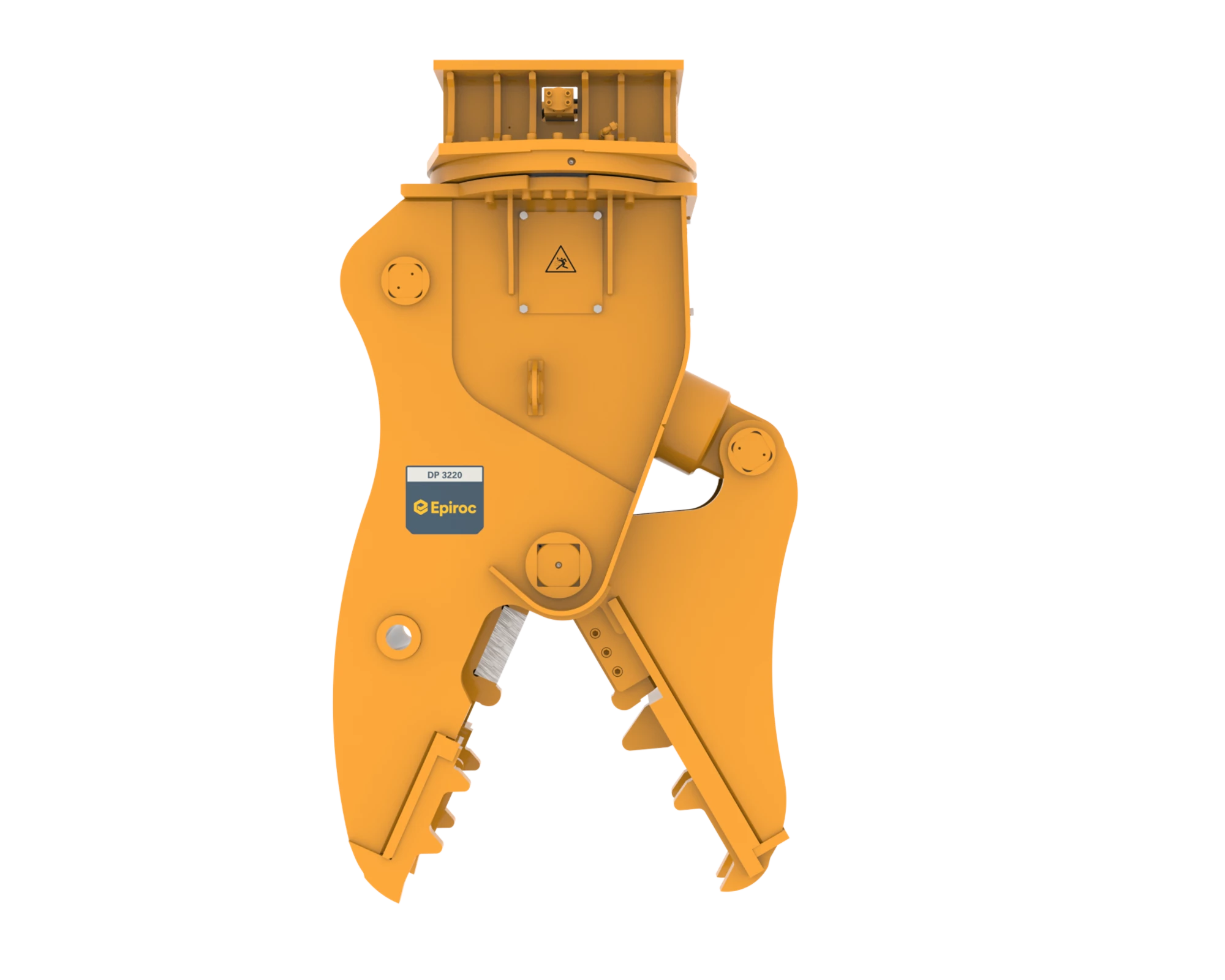

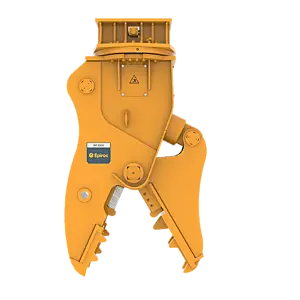

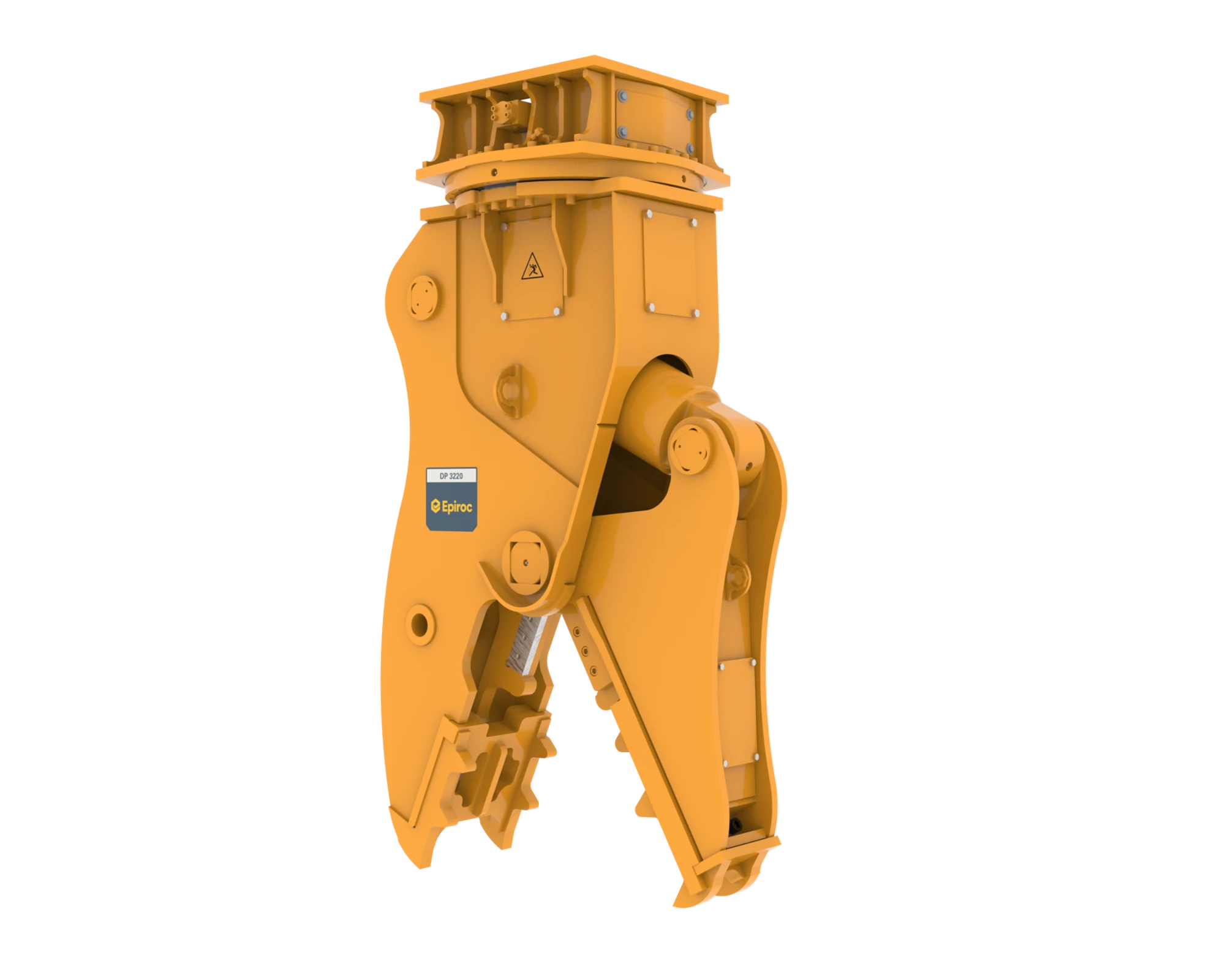

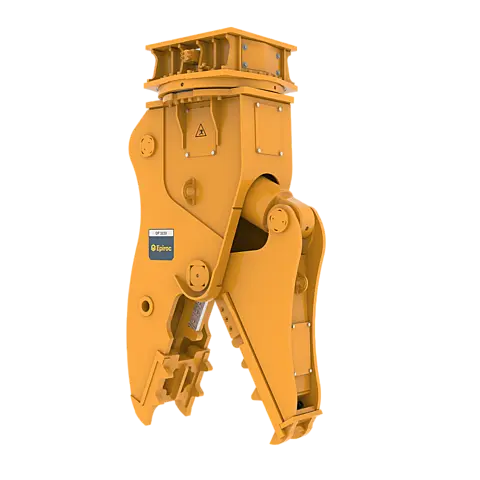

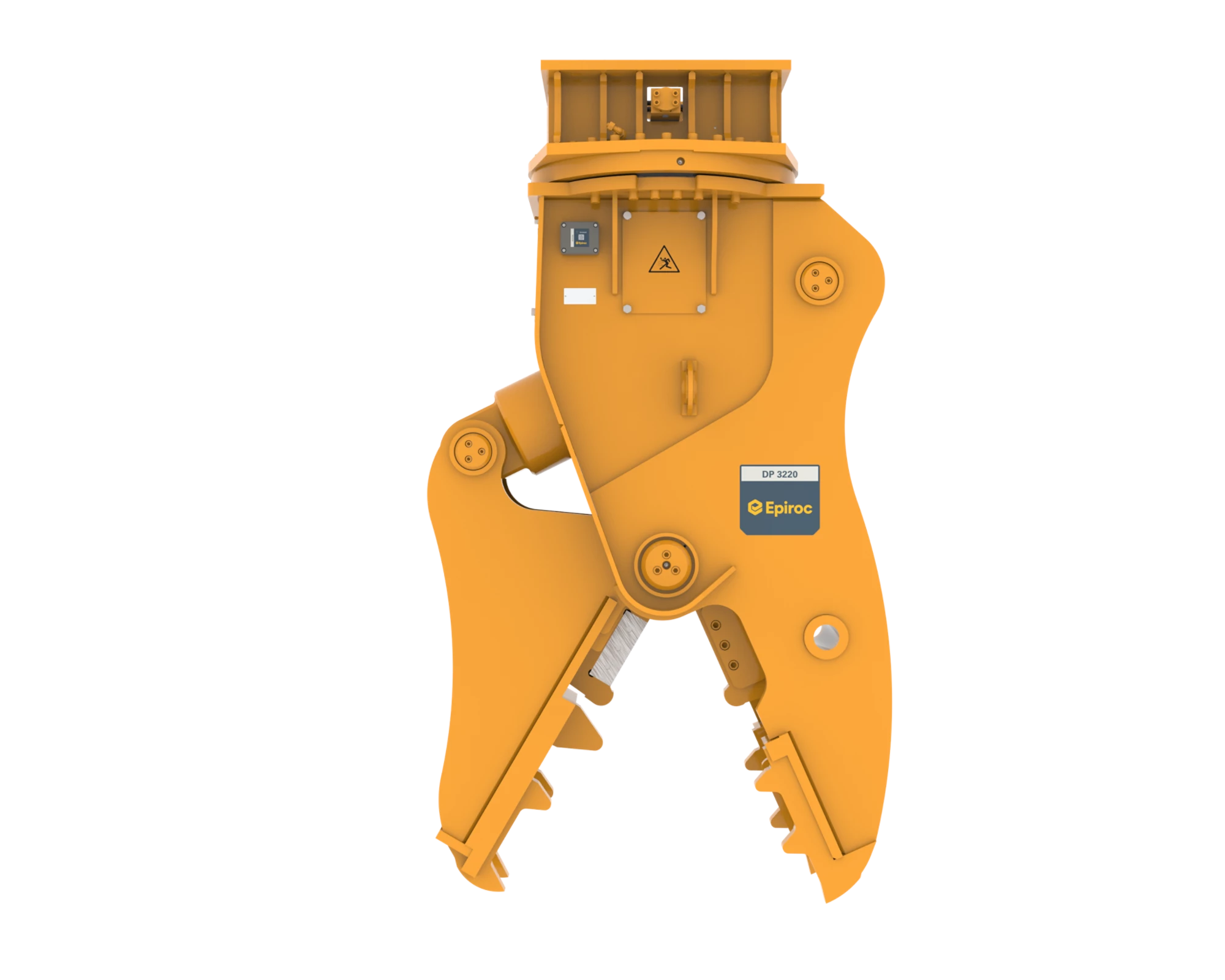

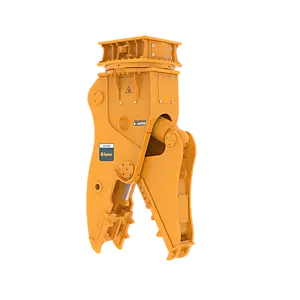

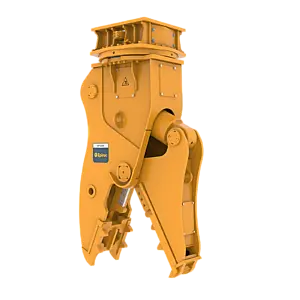

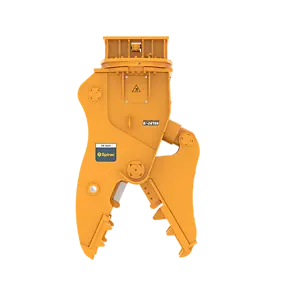

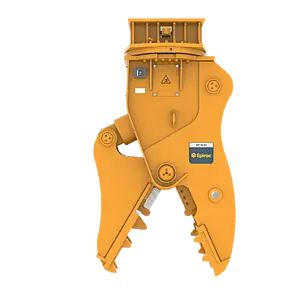

The Epiroc DP 3220 is a hydraulic demolition pulverizer for 57,300–99,200 lb (26–45 t) excavators, with a straight jaw design for primary demolition and secondary reduction of reinforced and non-reinforced concrete. Offered as Standard or with the Performance Booster (PB).

Service weight 7,165 lb (3,250 kg) with a medium-sized adapter. Cutting force at the upper blades 429 US tons (389 t), 521 US tons (473 t) with the Performance Booster; crushing force at the jaw tip 112 / 137 US tons. Jaw opening 39.5 in. (1,003 mm), jaw depth 39.1 in., blade length 9.4 in. Oil flow 52.8–79.3 gpm (200–300 l/min) at up to 5,075 psi (350 bar); rotation circuit 9.2–13.2 gpm at up to 2,465 psi.

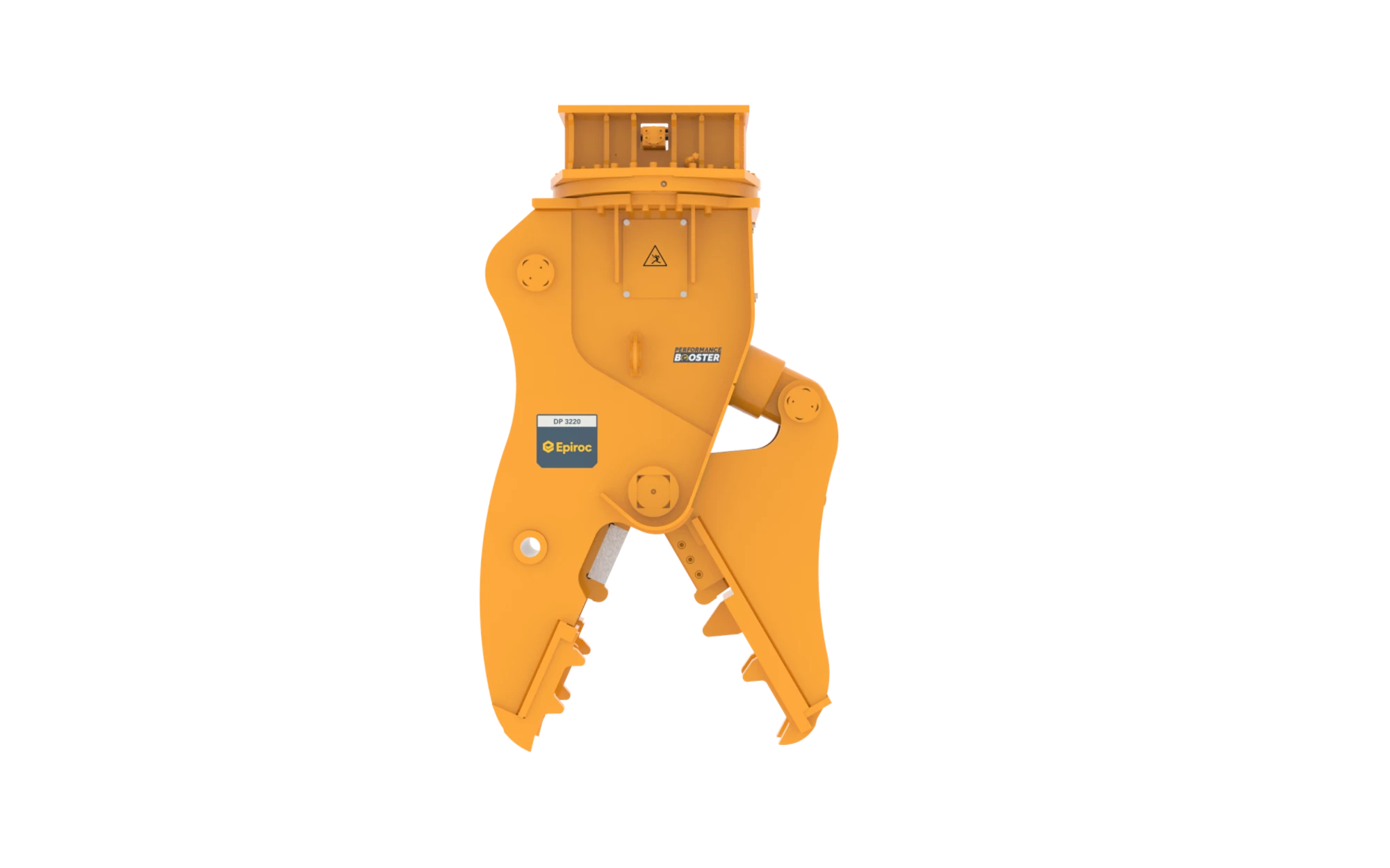

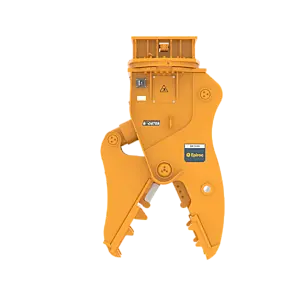

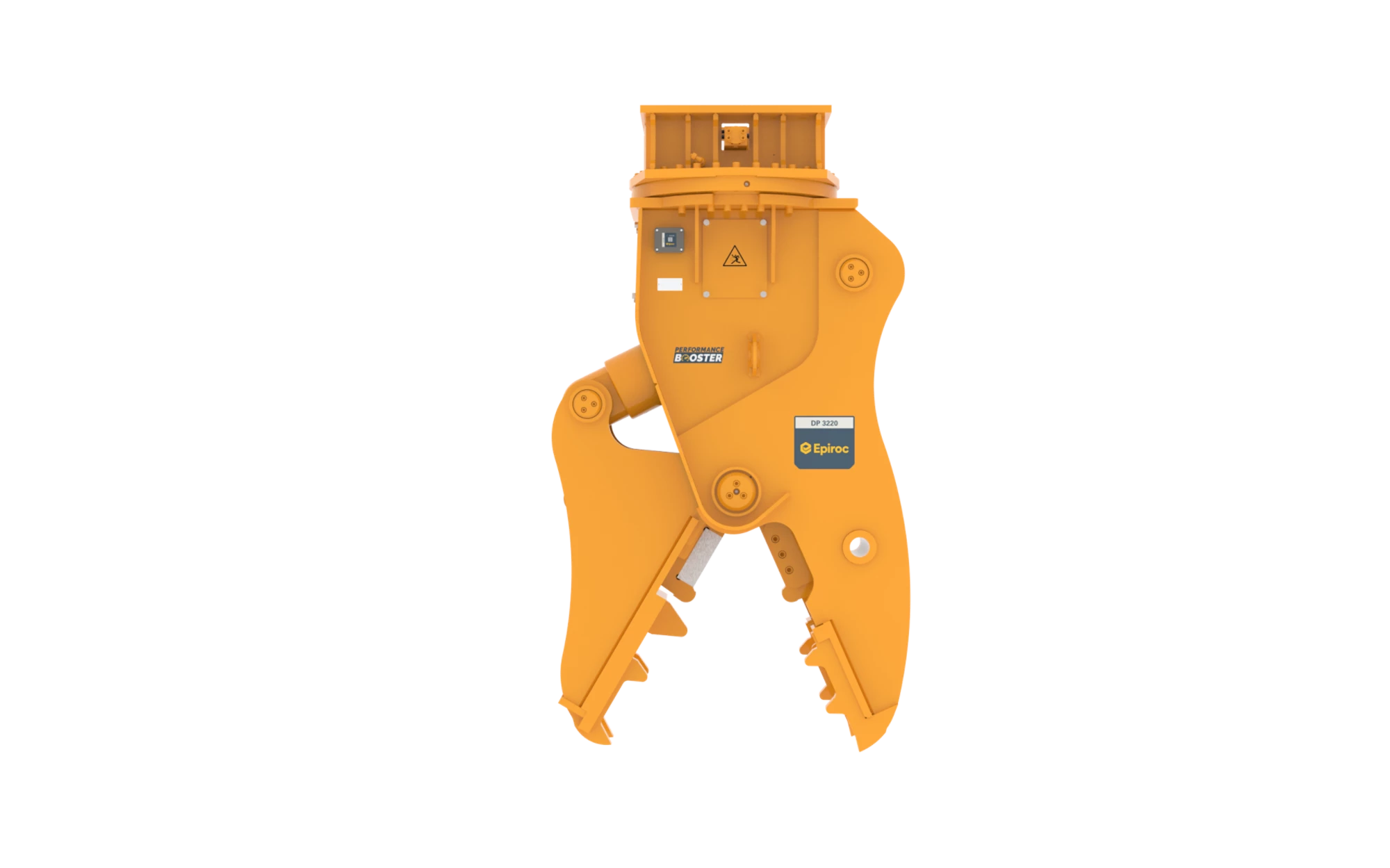

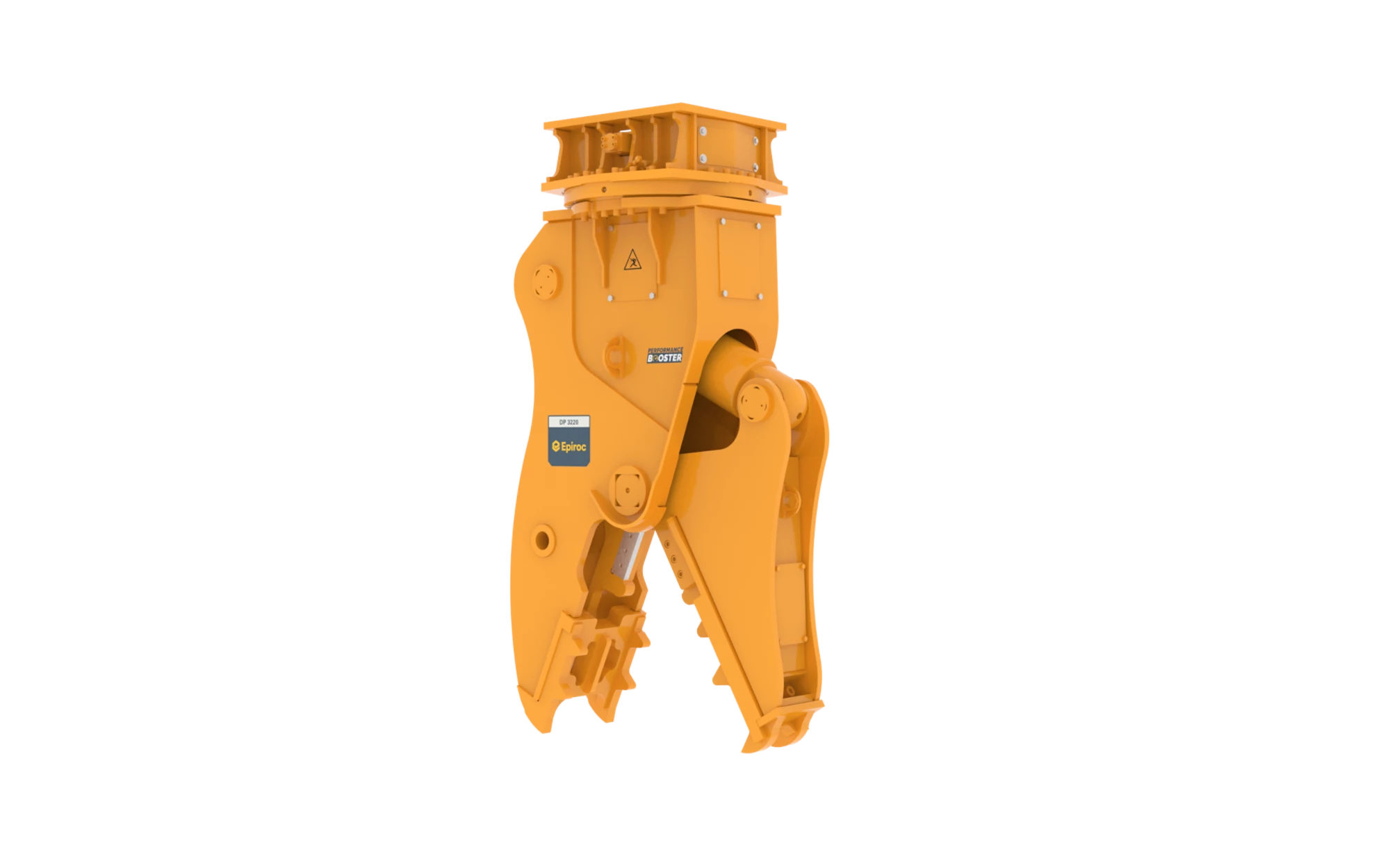

The straight jaw design handles primary demolition and secondary reduction of reinforced and non-reinforced concrete. 360° endless hydraulic rotation positions the jaws precisely, the standard version has a speed valve, and the robust design needs no cylinder rod protection. Cutting blades are replaceable and reversible, and the wear plate fixing system allows wear plate changes on site. The optional Performance Booster (PB configuration) raises cutting force and shortens the opening cycle, and it can be retrofitted to existing pulverizers.

Use it for primary demolition of walls, slabs, beams and columns, and for secondary reduction of demolition concrete on the ground, where the jaws crush the concrete and the blades cut the reinforcing steel.

Service parts on the DP 3220 Demolition Pulverizer parts breakdown (serial DGR250026 and later) include the cutter blades kit 3363129805, cylinder seal kit 3363129807, housing tooth plate kit 3363129806, jaw tooth plate kit 3363129814, PB cylinder plug kit 3363129895, PB cylinder seal kit 3363129894, speed valve seal kit 3363127334, rotary seal kit 3363083066, hydraulic motor and housing seal kit 3363126309 and connection hoses 3363031767 (110 in.), 3363034399 (138 in.), 3363094645 (91 in.), 3363094646 (110 in.). The HATCON LTE telematics kit is sold separately. See the full Epiroc pulverizers range.

• Fits 57,300–99,200 lb (26–45 t) excavators; service weight 7,165 lb (3,250 kg)
• 429 US tons (389 t) cutting force at the upper blades; 521 US tons with Performance Booster
• 39.5 in. (1,003 mm) jaw opening, 39.1 in. jaw depth, reversible cutting blades
• Optional Performance Booster (PB) shortens the opening cycle; can be retrofitted to the standard pulverizer
• 360° endless hydraulic rotation; 52.8–79.3 gpm at up to 5,075 psi (350 bar)
• Carrier base plate and adapter plate not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
