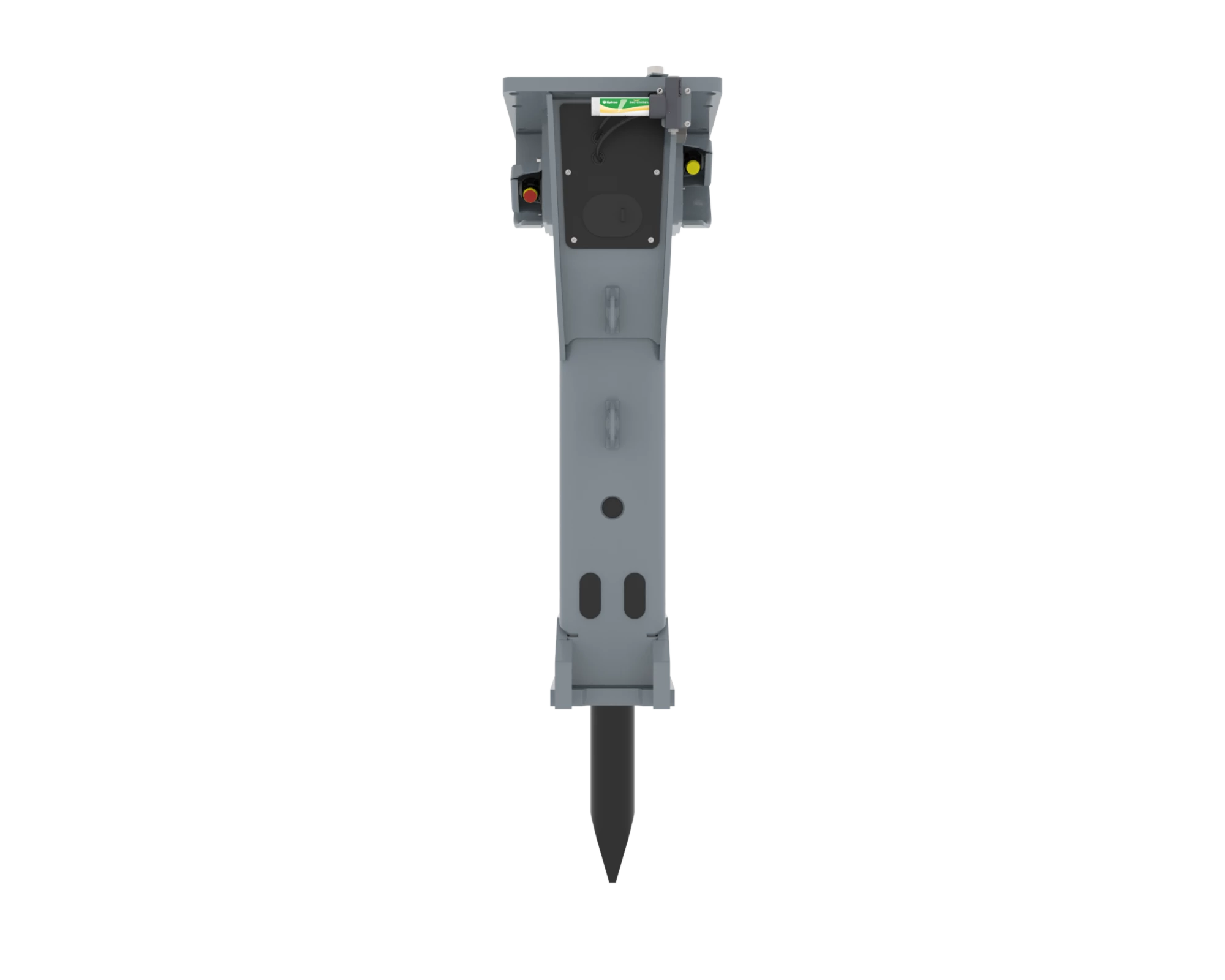

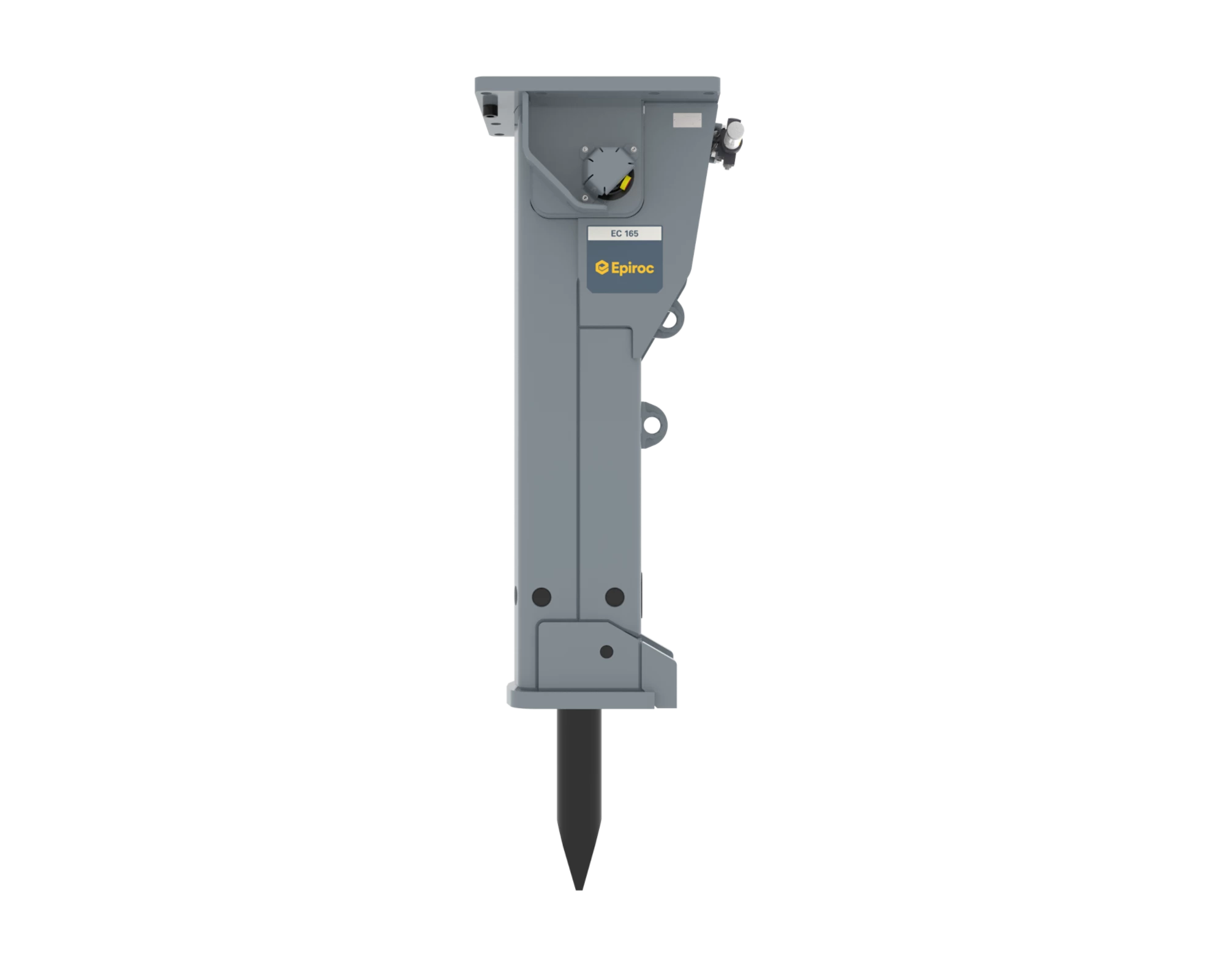

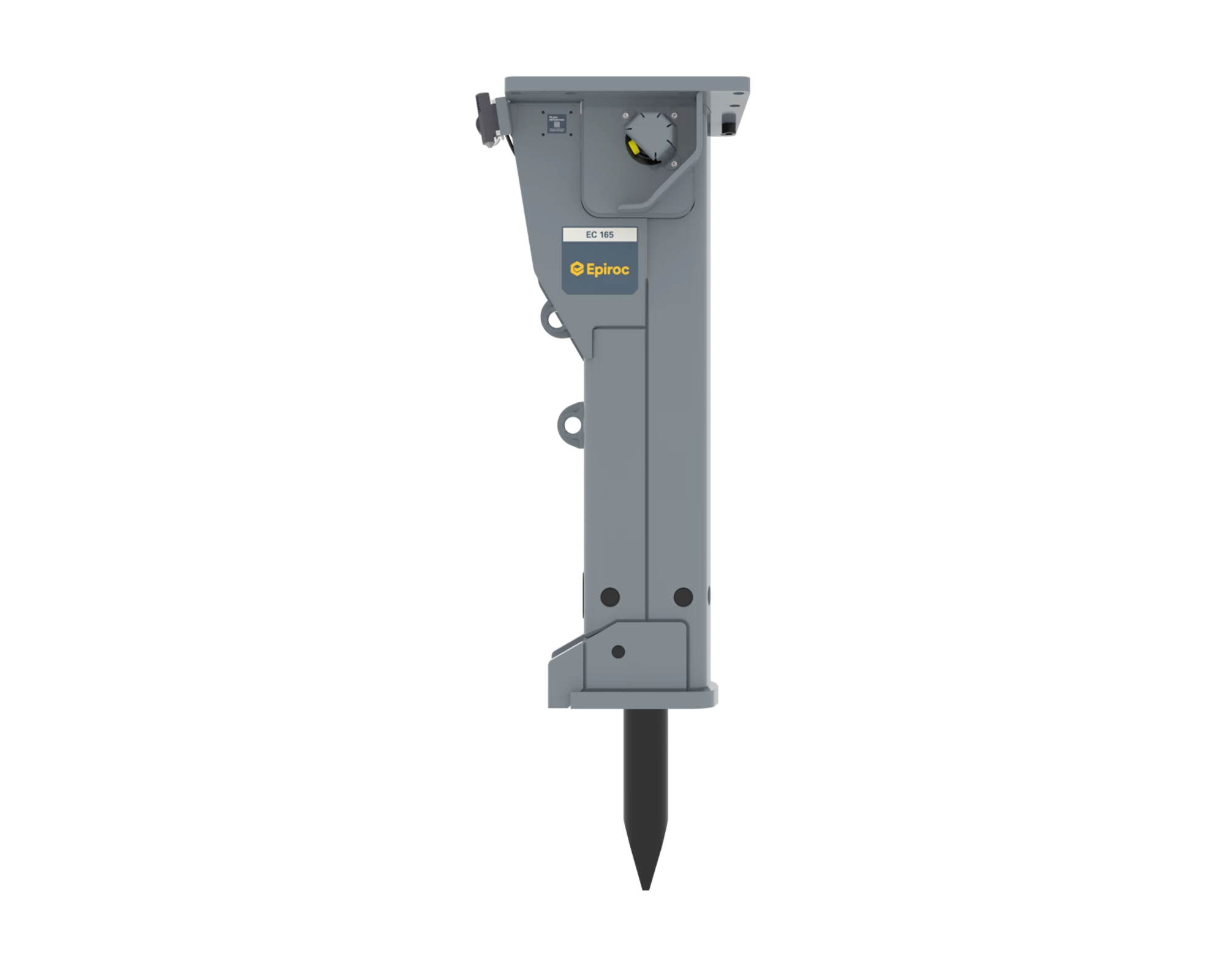

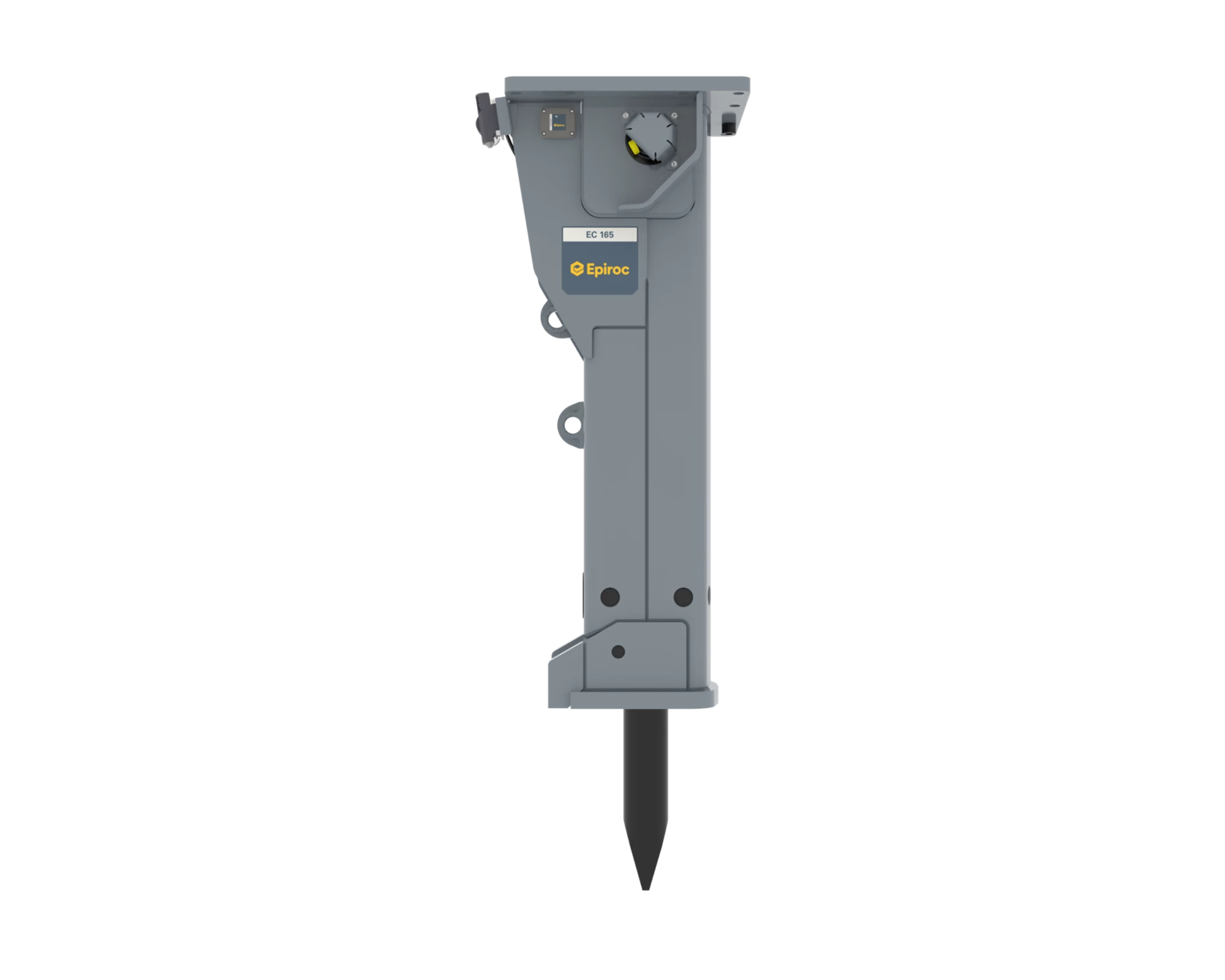

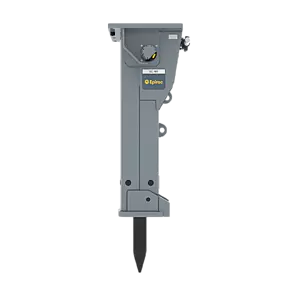

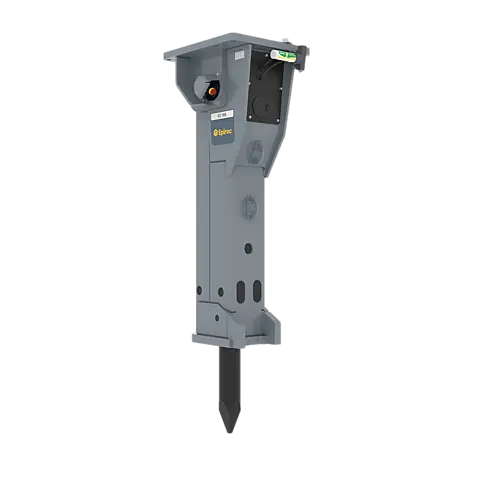

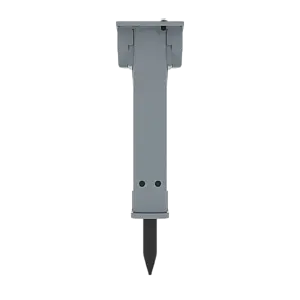

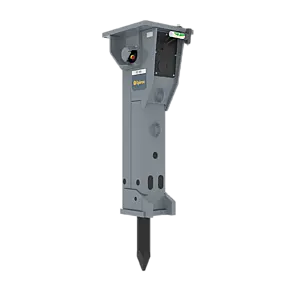

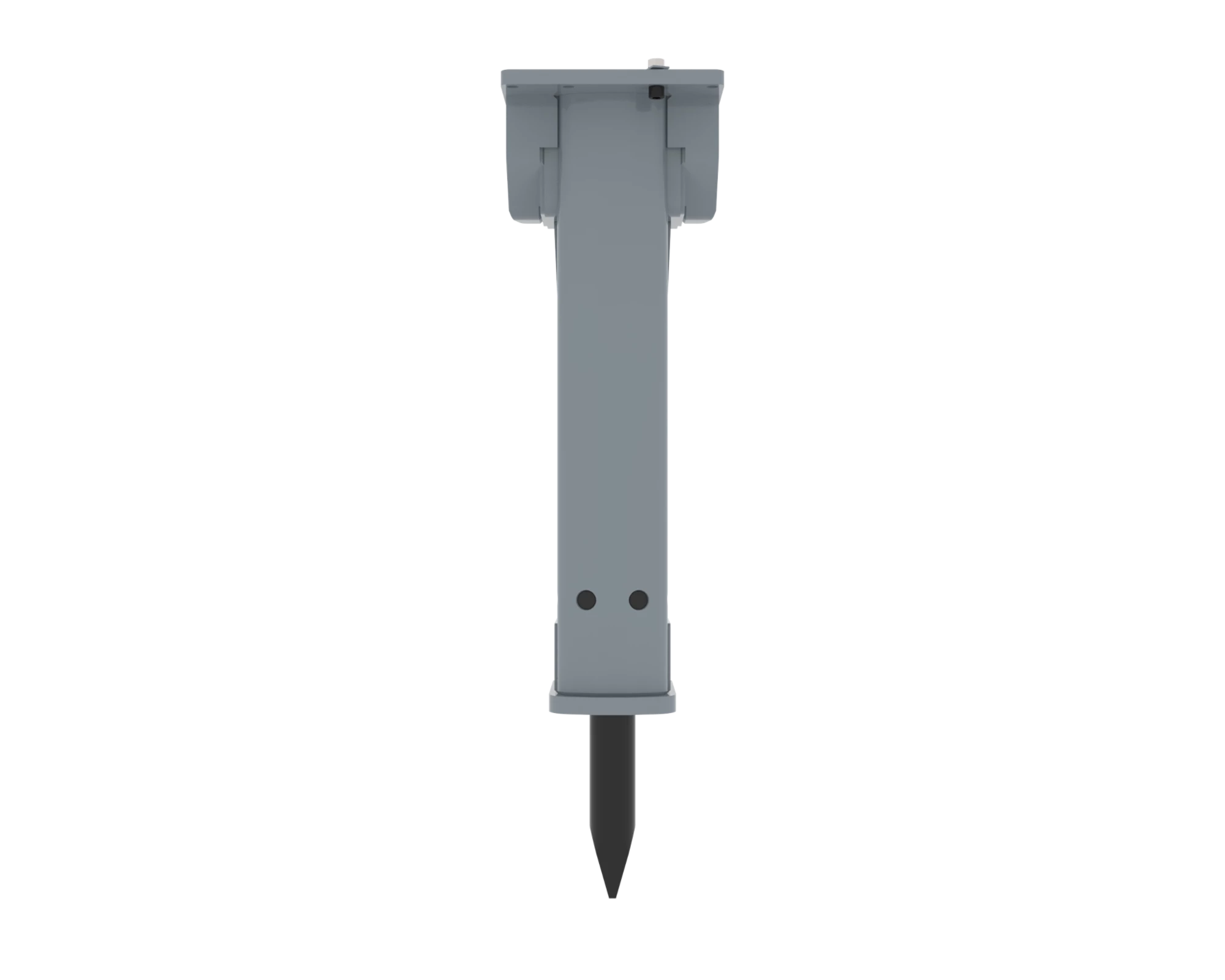

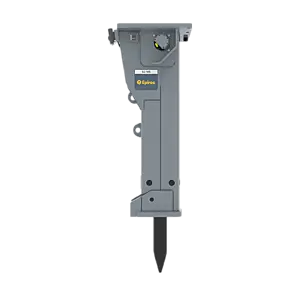

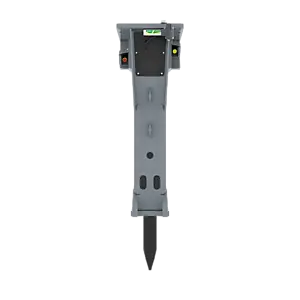

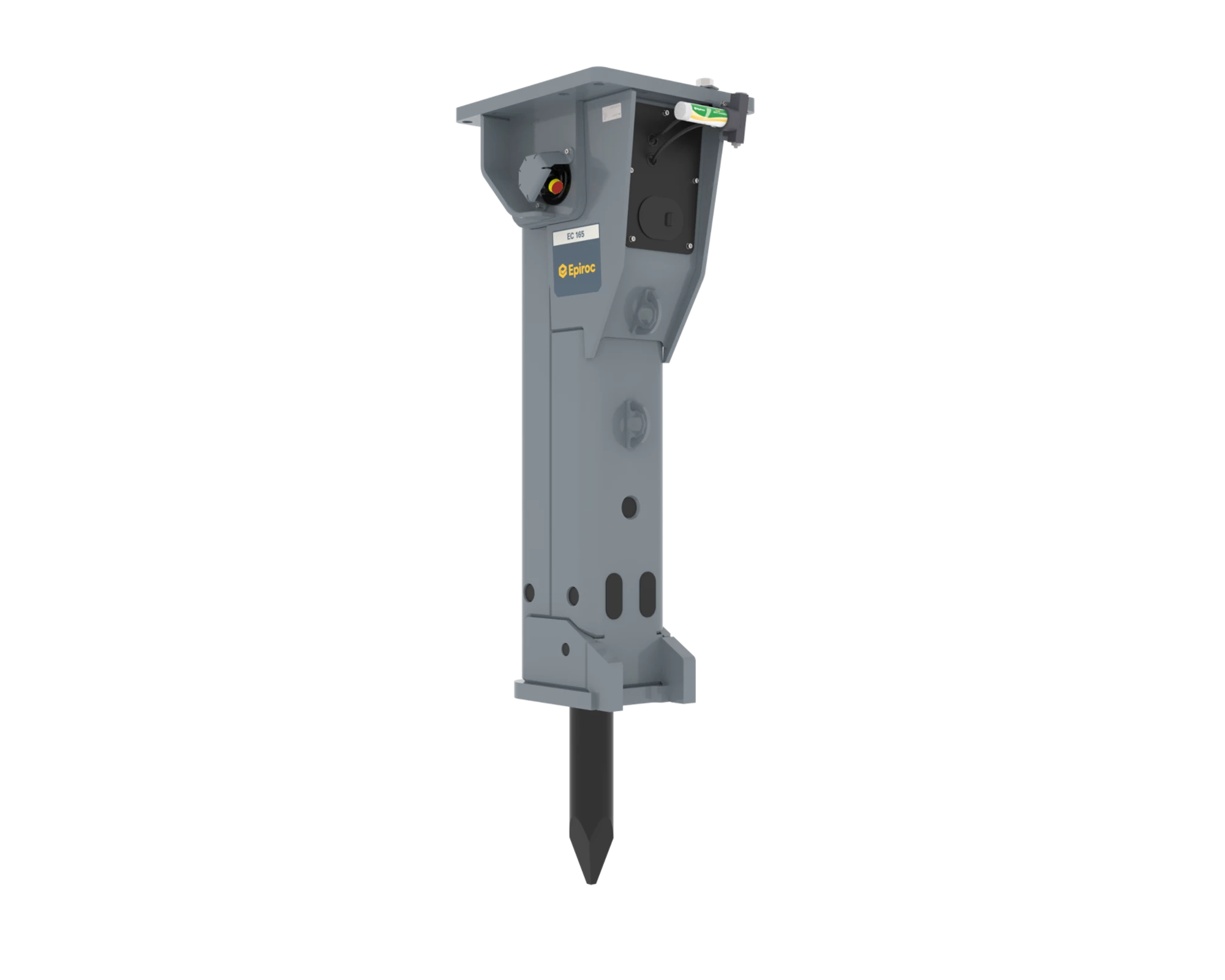

The Epiroc EC 165T is a 6,610 lb (3,000 kg) Essential range hydraulic breaker for excavators and other carriers in the 77,200–121,300 lb (35–55 t) class. It drives a 6.5 in. (165 mm) working tool at 540–800 bpm (AutoStart mode) or 380–580 bpm (AutoStop mode), on 58.1–71.3 gpm (220–270 l/min) of oil flow at 2,320–2,610 psi (160–180 bar) and up to 109 HP (81 kW) of hydraulic input.

Epiroc builds the EC range as a durable, reliable breaker for day-to-day jobs. Hybrid technology uses an integrated nitrogen piston accumulator for constant impact energy, safe start-up and smooth operation. VibroSilenced Plus isolates the percussion mechanism from the breaker box on non-metallic suspension and seals every opening, which lowers noise and vibration, and the internal control valve and EnergyRecovery system raise operating efficiency. On the EC 165T, double tool retainer bars hold the working tool; percussion chamber ventilation uses a built-in check valve to reduce dust intake into the tool guiding area and percussion chamber; the StrokeControl valve combines stroke length and start-up mode switching so the operator can match the breaker to the application. This CL configuration comes with the ContiLube II self-bleeding automatic lubrication pump for continuous greasing of the working tool. Moil points, chisels and blunt tools are under Epiroc working tools, and the EC 165T parts breakdown lists the seal and label kits. See the full Epiroc hydraulic breakers range.

• Carrier weight class 77,200–121,300 lb (35–55 t); service weight 6,610 lb (3,000 kg)
• Working tool 6.5 in. (165 mm) diameter; double tool retainer bars
• Impact rate 540–800 bpm (AutoStart mode) or 380–580 bpm (AutoStop mode); max hydraulic input 109 HP (81 kW)
• Oil flow 58.1–71.3 gpm (220–270 l/min); operating pressure 2,320–2,610 psi (160–180 bar); guaranteed sound power 123 dB(A)
• ContiLube II automatic lubrication, Hybrid technology, VibroSilenced Plus, EnergyRecovery, internal control valve, percussion chamber ventilation, StrokeControl valve
• Supplied as Epiroc configuration 3363120164 (EC 165T CL); carrier adapter plates are carrier-specific and quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
