Carrier adapter plate not included. Epiroc hydraulic breakers mount to the carrier through a carrier-specific adapter plate (base plate, adapter plate and bolt kit), which is not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plate and bolt kit.

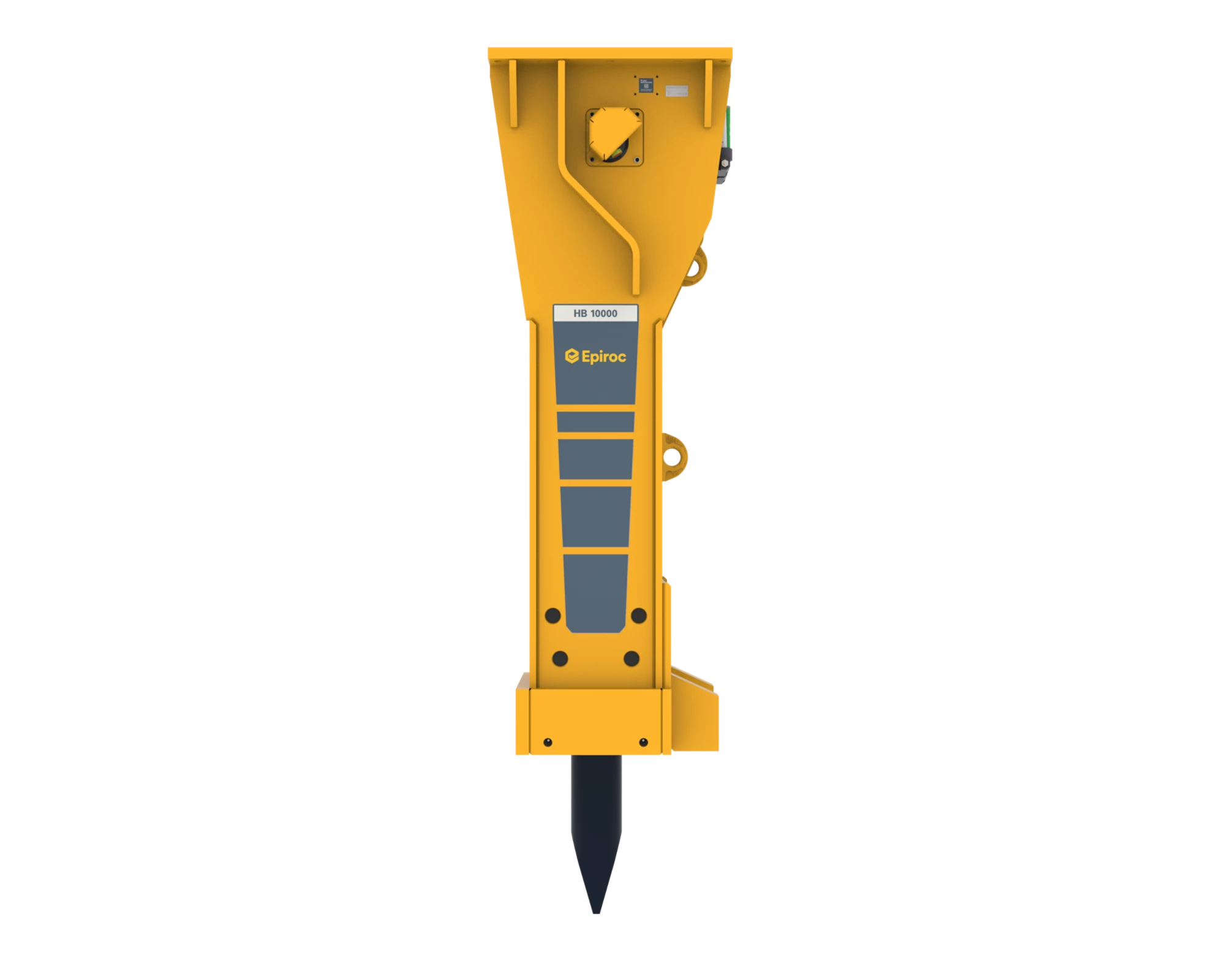

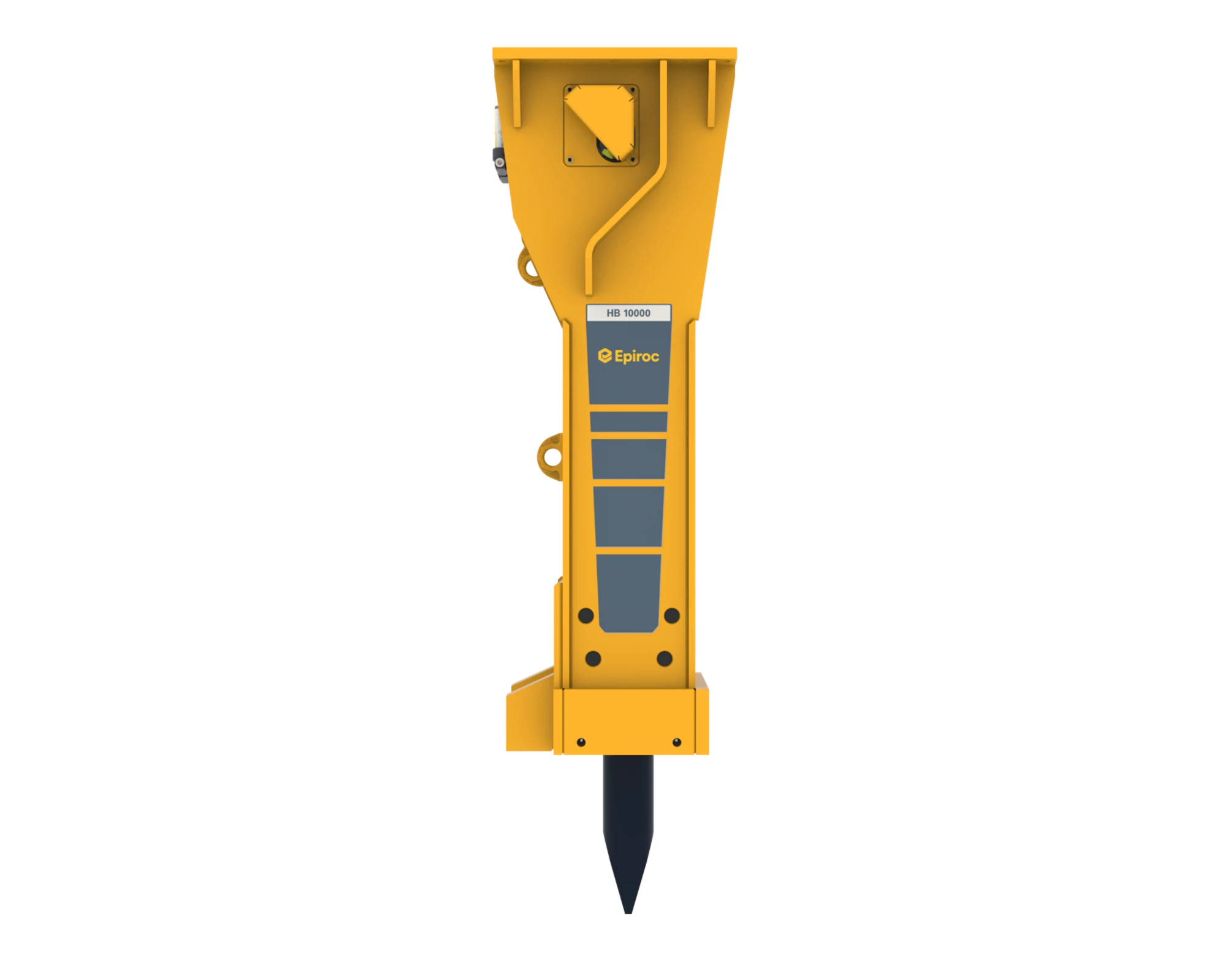

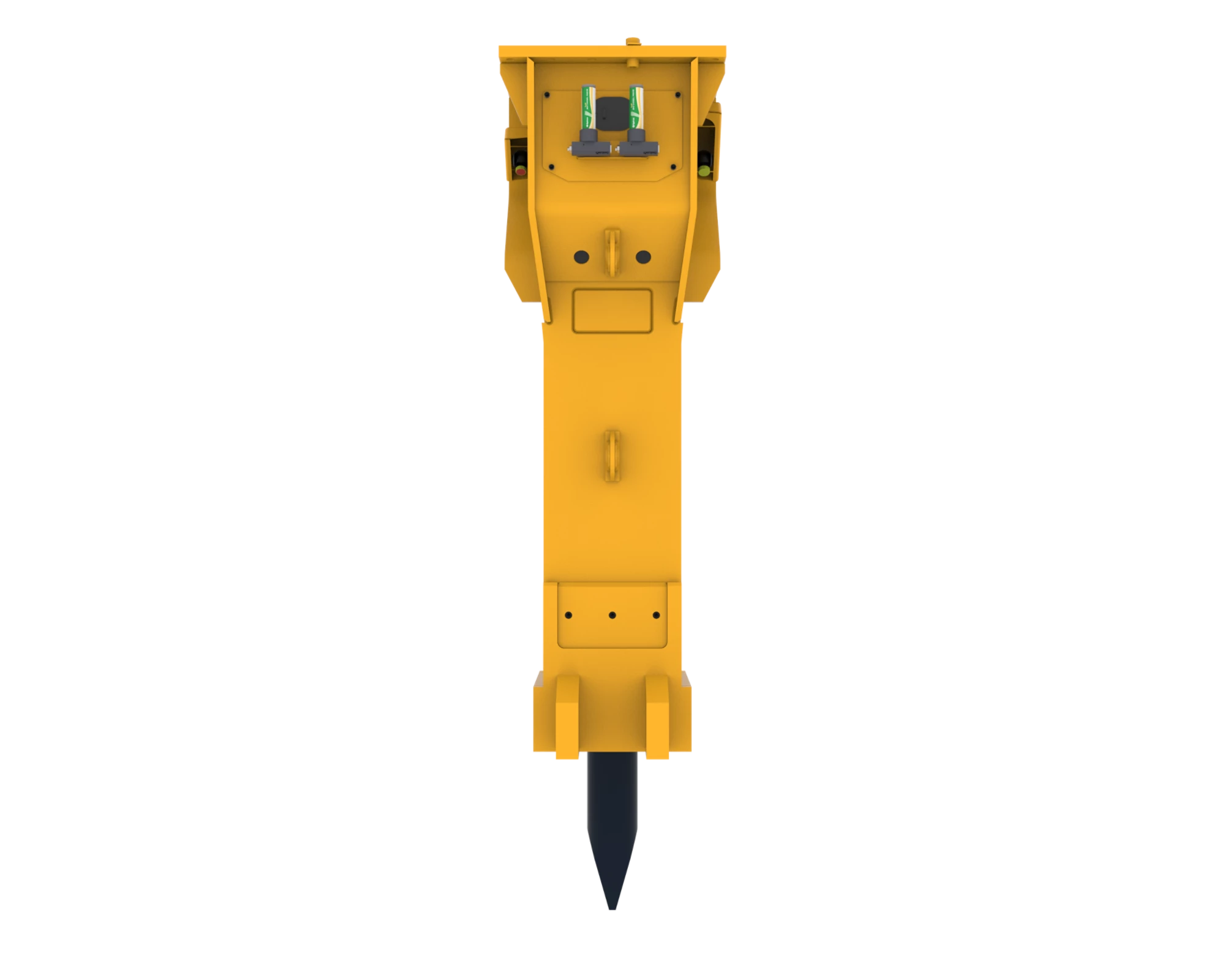

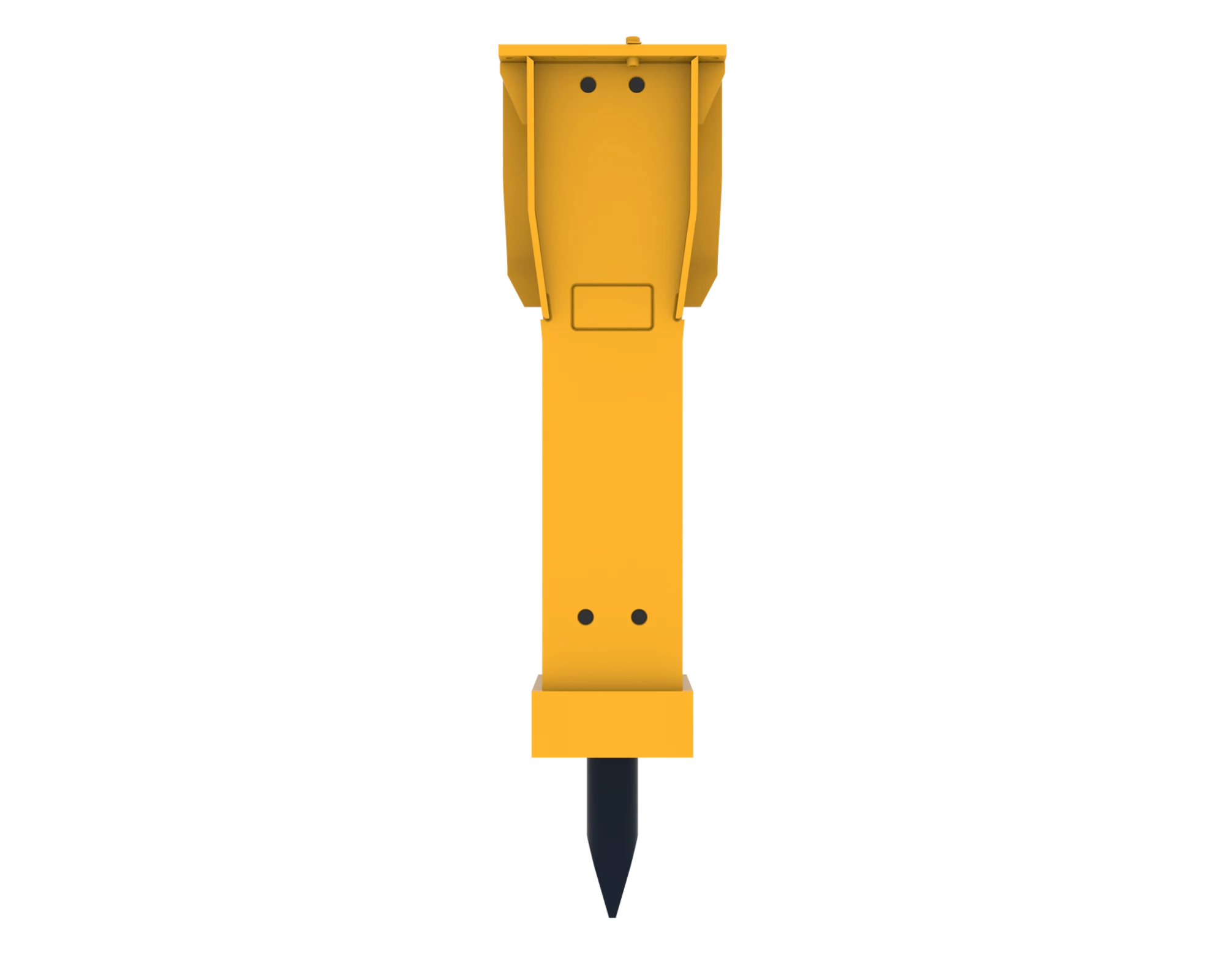

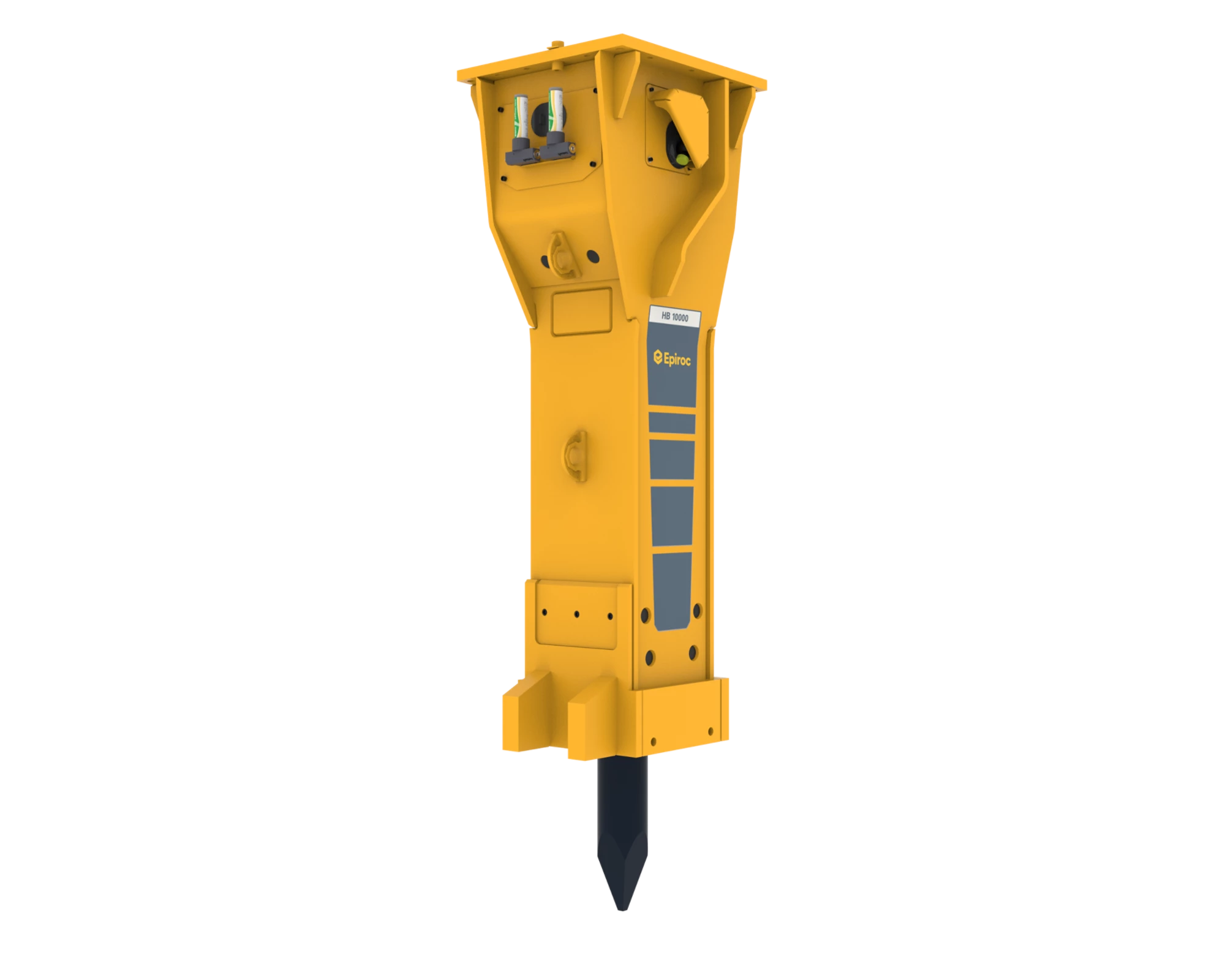

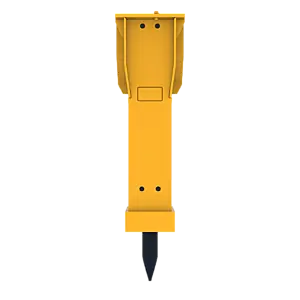

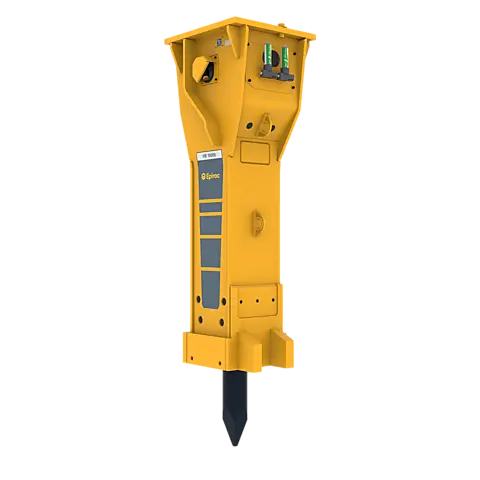

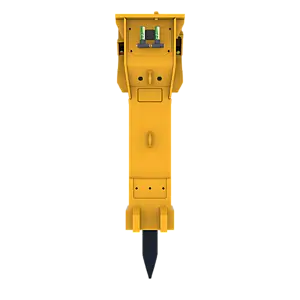

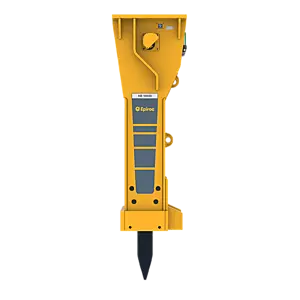

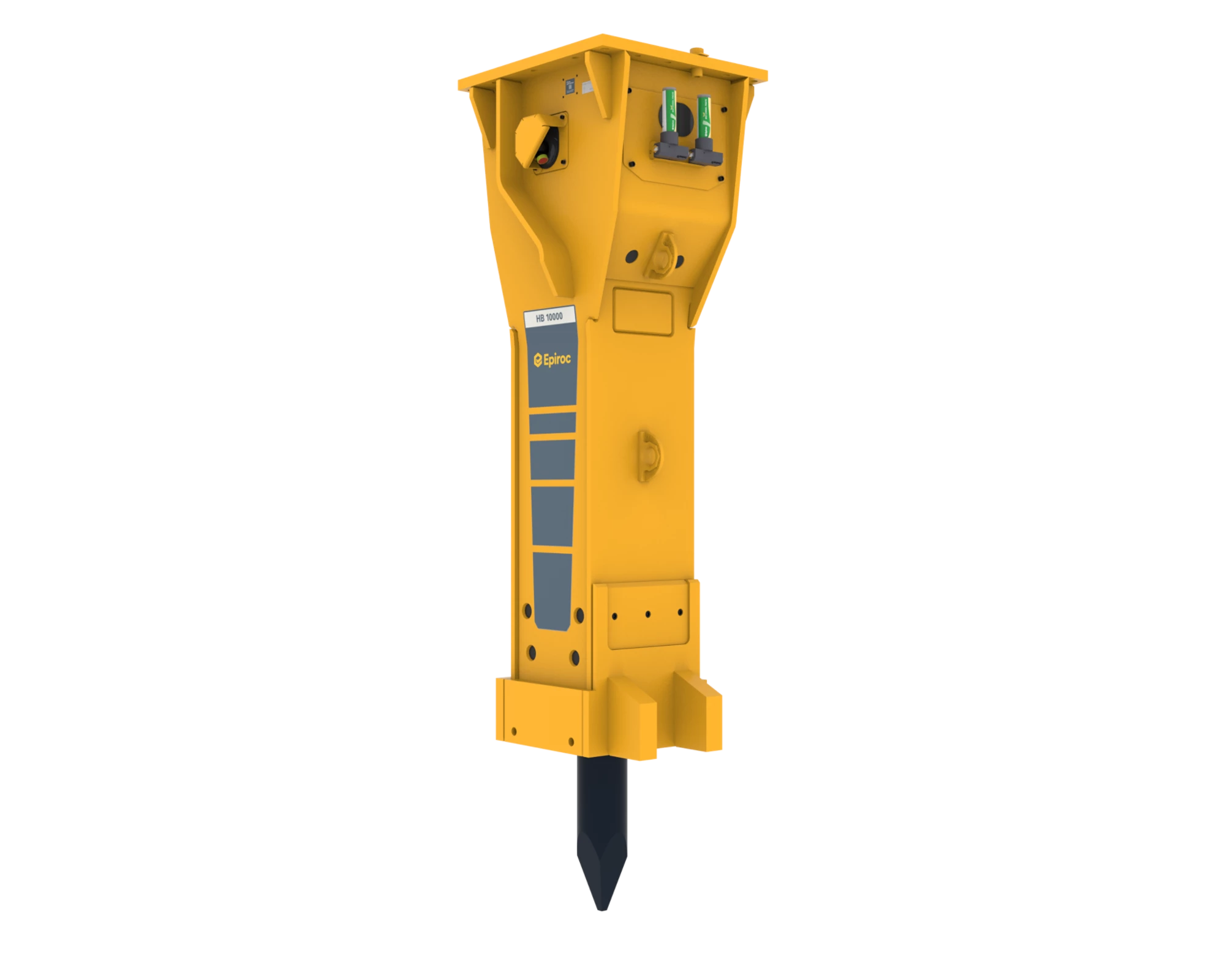

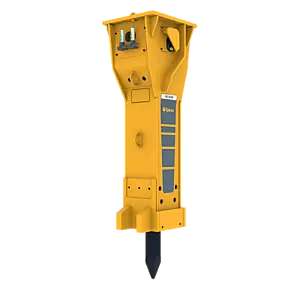

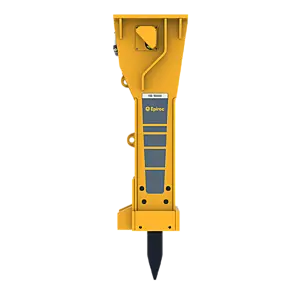

The Epiroc HB 10000 DP is a 22,000 lb (10,000 kg) Premium range hydraulic breaker for excavators and other carriers in the 187,500–308,700 lb (85–140 t) class. It drives a 9.45 in. (240 mm) working tool at 250–380 bpm on 118.9–140 gpm (450–530 l/min) of oil flow at 2,320–2,610 psi (160–180 bar) and up to 213.2 HP (159 kW) of hydraulic input.

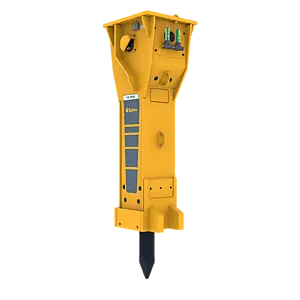

The HB is the Epiroc Premium range heavy breaker, built for efficiency and performance with high durability. VibroSilenced Plus isolates the percussion mechanism from the breaker box to cut noise and vibration. The Intelligent Protection System (IPS) on IPS configurations starts the breaker in AutoStart mode, switches to AutoStop as contact pressure on the tool rises and shuts the breaker off when the tool breaks through, which prevents blank firing; AutoControl shifts the piston between short and long strokes to suit the material. DUST configurations carry the DustProtector II sealing system, which keeps dust out of the tool guiding area in dry, dusty work. HATCON connectivity (operating hours, location and service intervals through My Epiroc) can be retrofitted with the HATCON kit.

The HB 10000 DP is offered here in the B DUST (IPS), S DUST (IPS) configurations, using the configuration codes Epiroc lists for this model; pick the one your carrier and application call for, or call us if you are not sure. Moil points, chisels and blunt tools are under Epiroc working tools, and the HB 10000 DP parts breakdown lists the seal, lower breaker part and refurbishment kits. See the full Epiroc hydraulic breakers range.

• Carrier weight class 187,500–308,700 lb (85–140 t); service weight 22,000 lb (10,000 kg)
• Working tool 9.45 in. (240 mm) diameter; working length of tool 31.5 in. (800 mm)
• Impact rate 250–380 bpm; max hydraulic input 213.2 HP (159 kW)
• Oil flow 118.9–140 gpm (450–530 l/min); operating pressure 2,320–2,610 psi (160–180 bar); guaranteed sound power 123 dB(A)
• Premium range; VibroSilenced Plus; IPS (AutoStart, AutoStop, AutoControl) on IPS configurations; DustProtector II on DUST configurations; HATCON retrofit available
• Carrier adapter plate and bolt kit not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
