Carrier adapter plate not included. Epiroc hydraulic breakers mount to the carrier through a carrier-specific adapter plate (base plate, adapter plate and bolt kit), which is not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plate and bolt kit.

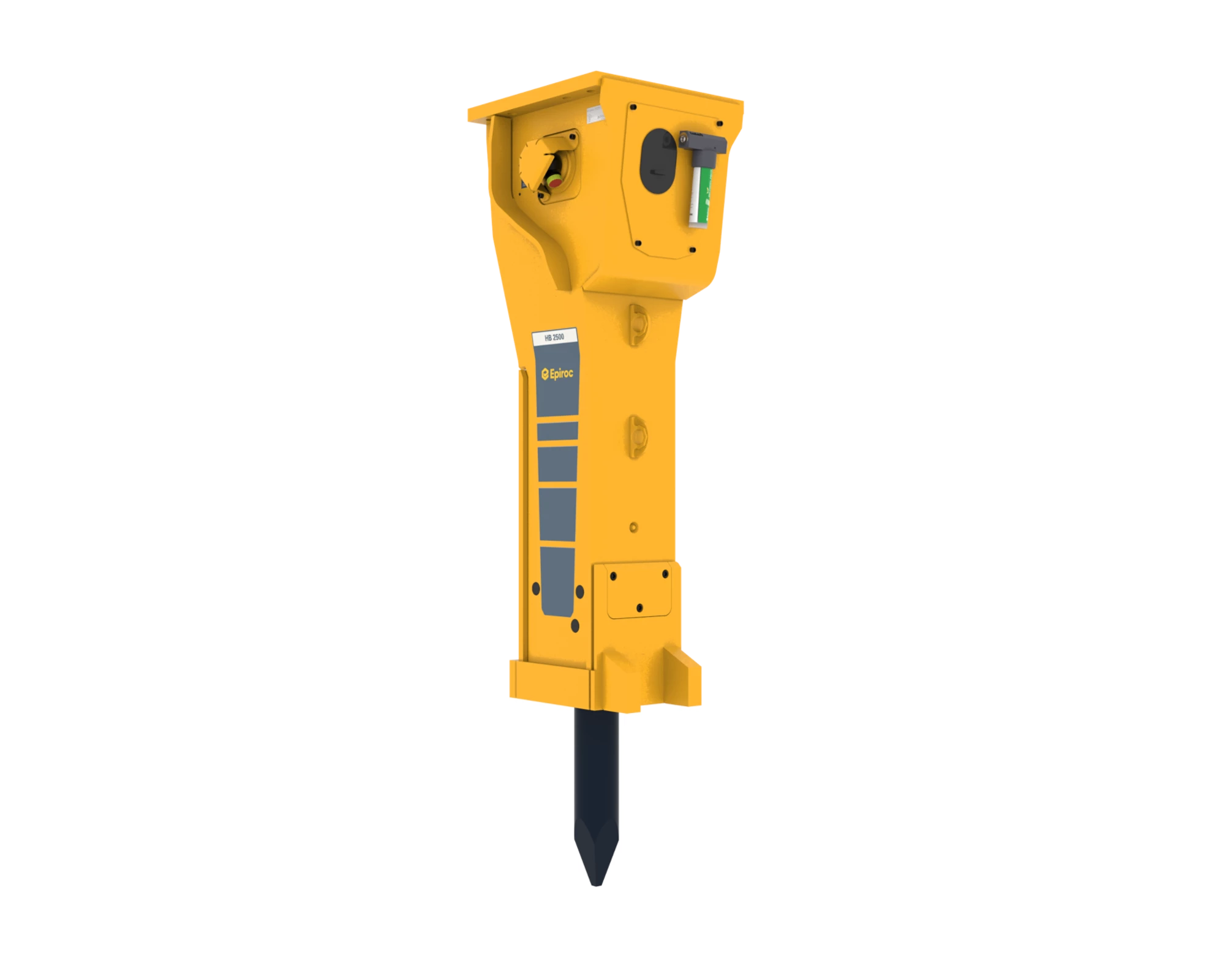

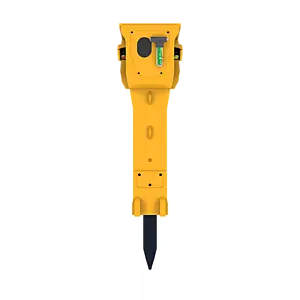

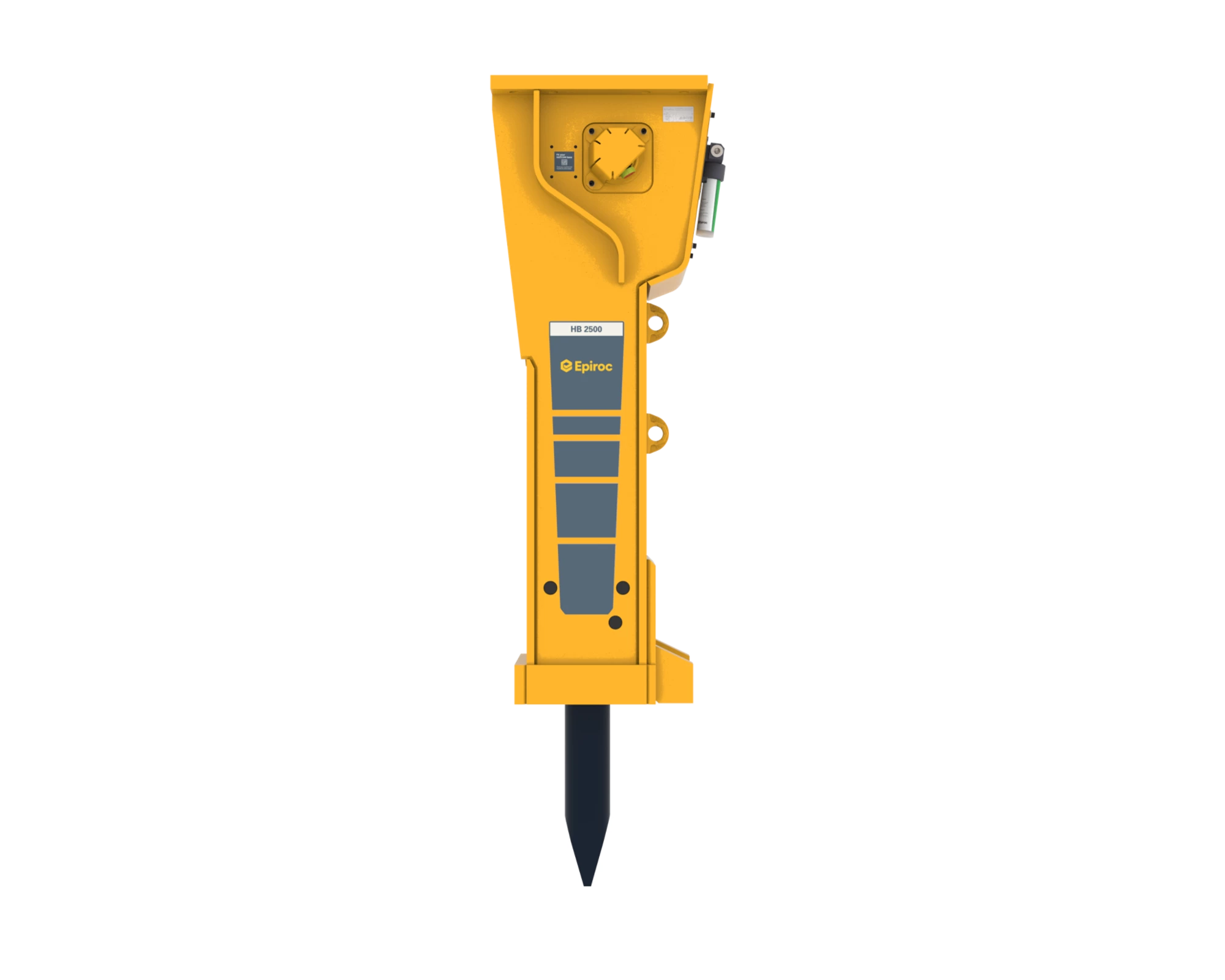

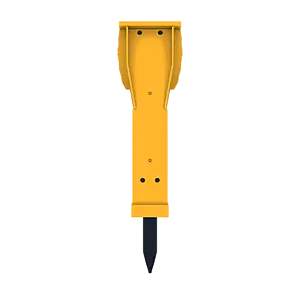

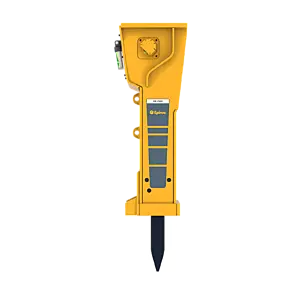

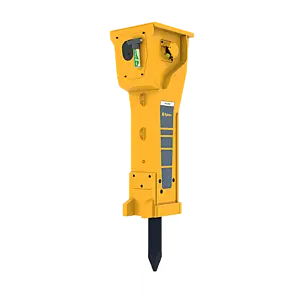

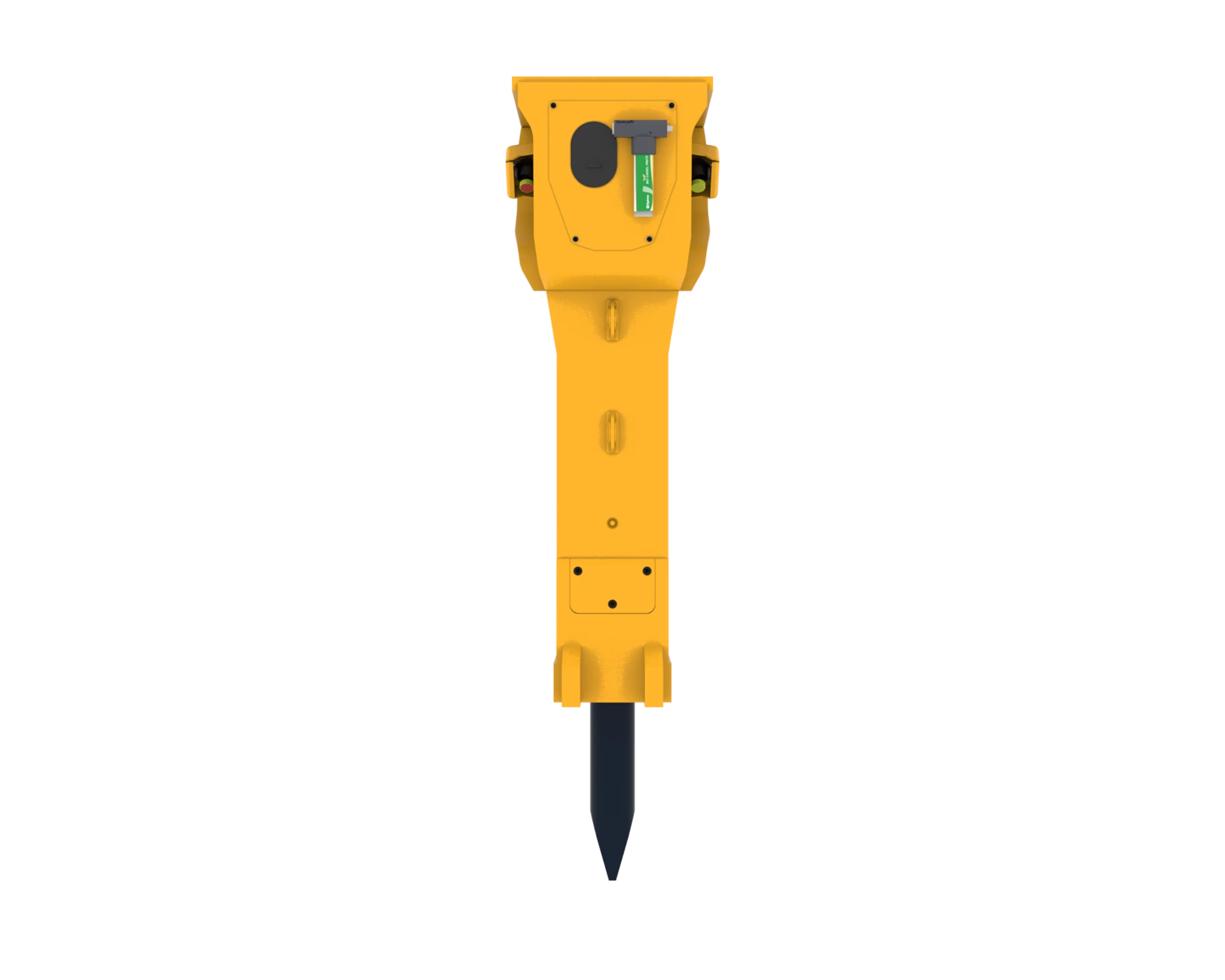

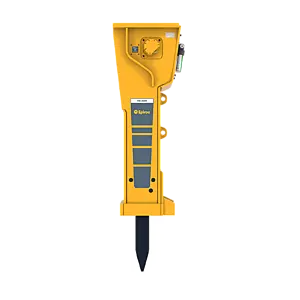

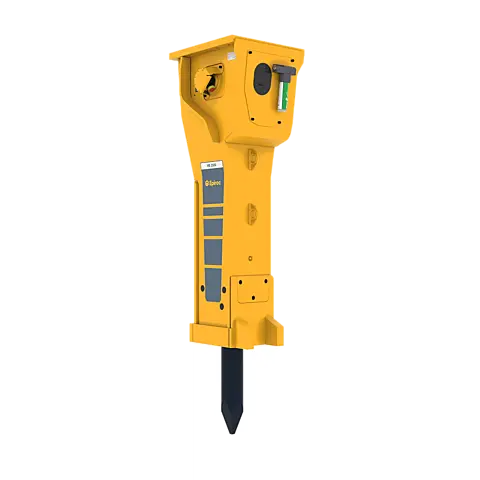

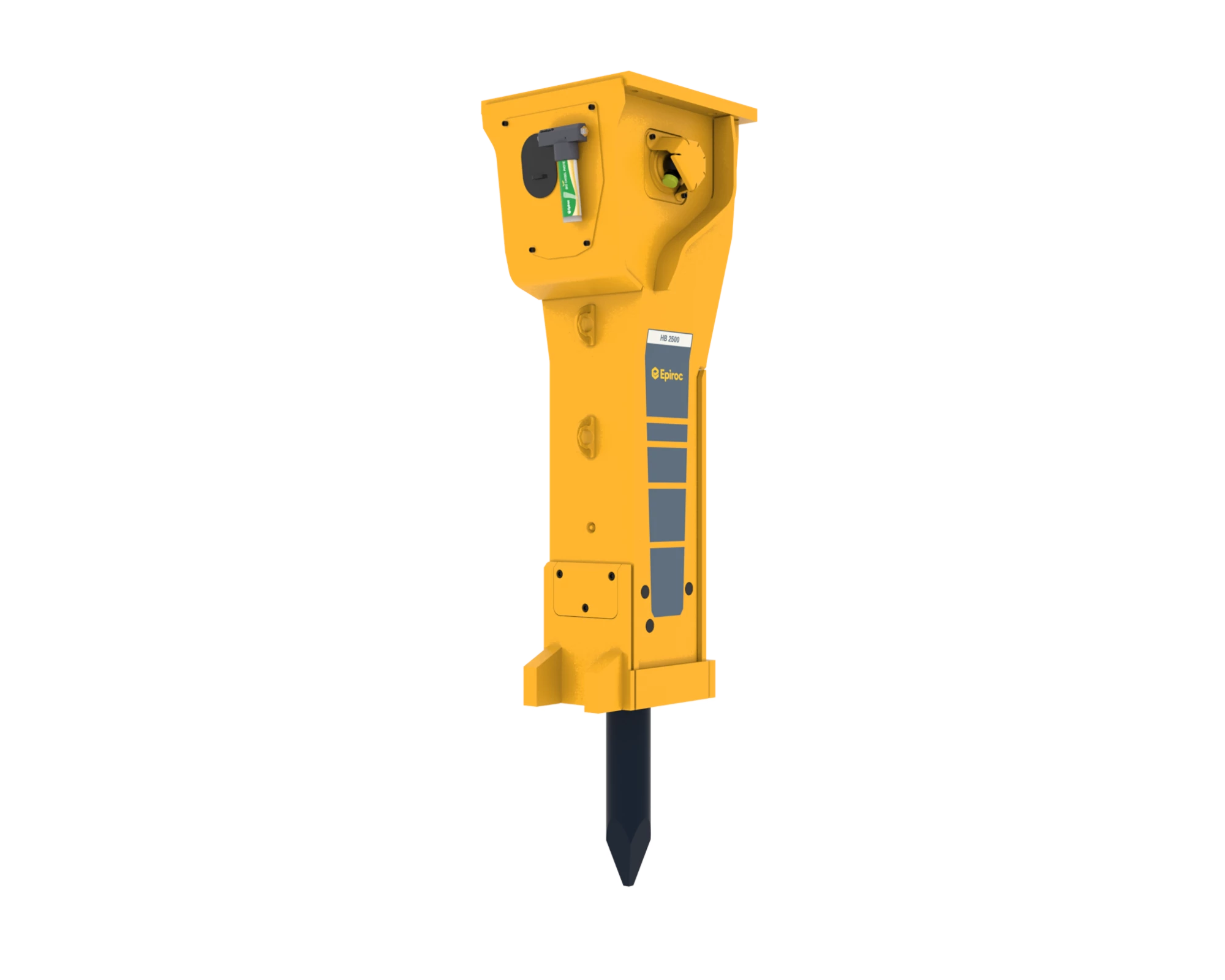

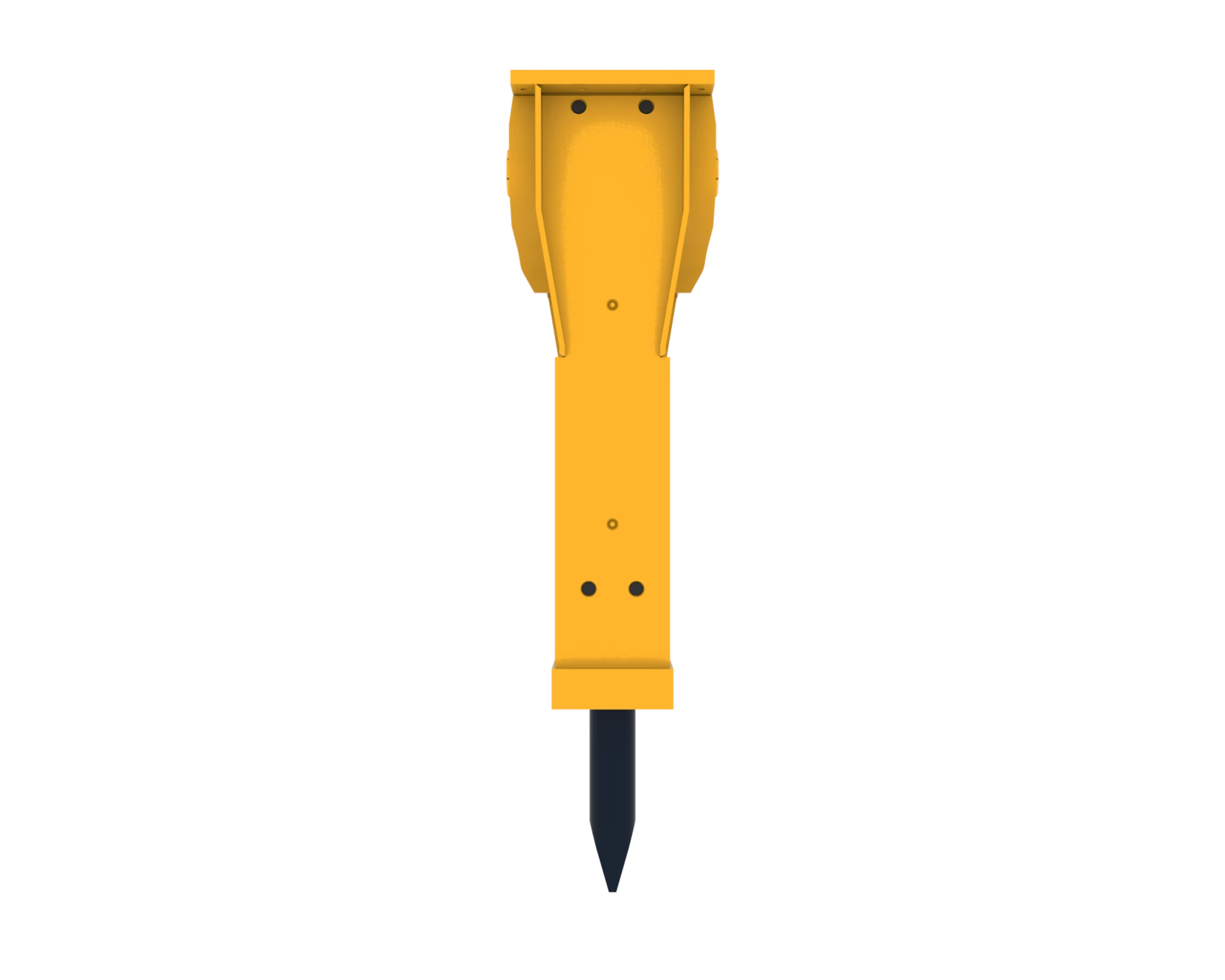

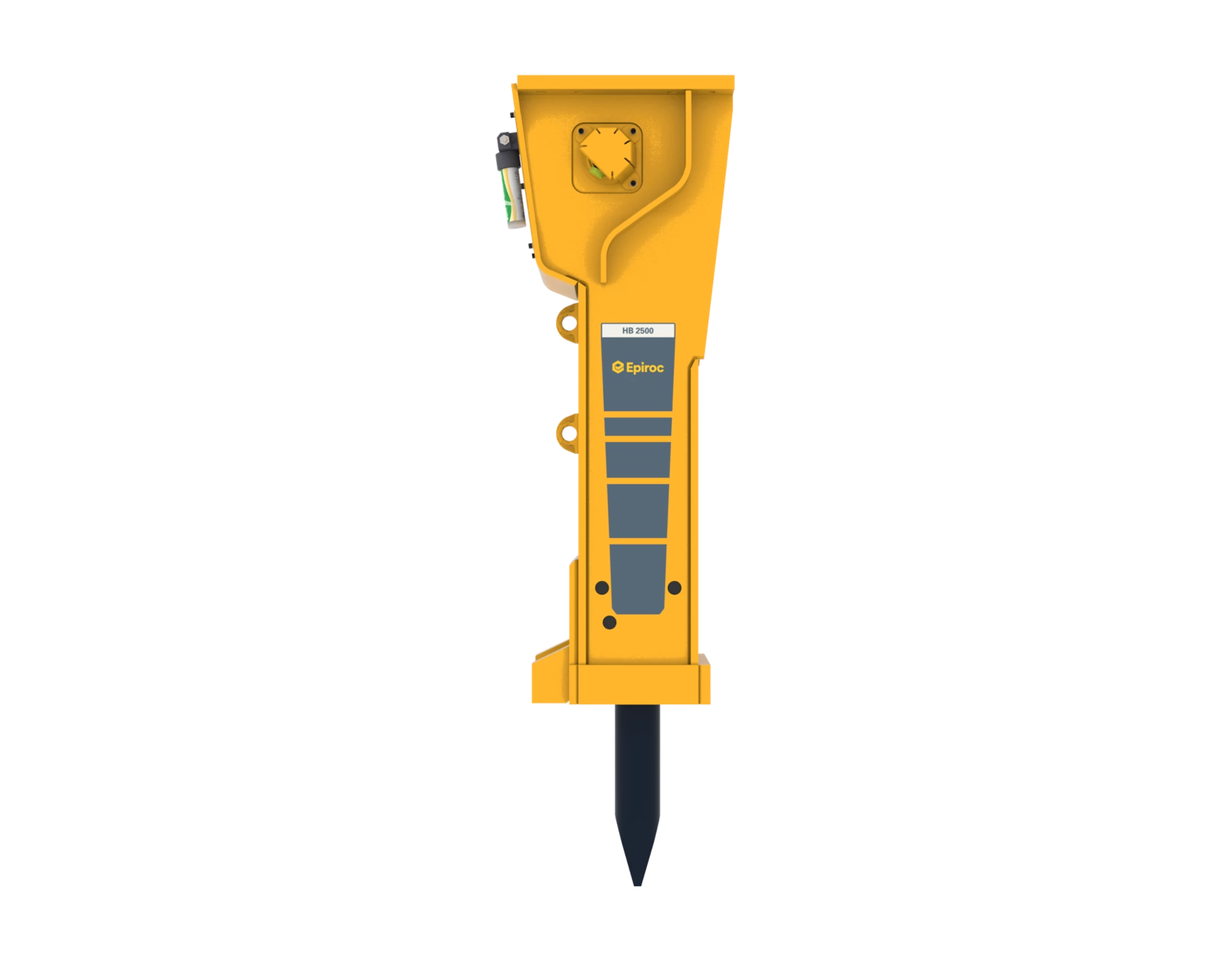

The Epiroc HB 2500 is a 5,500 lb (2,500 kg) Premium range hydraulic breaker for excavators and other carriers in the 59,500–101,000 lb (27–46 t) class. It drives a 6.1 in. (155 mm) working tool at 280–580 bpm on 44.9–58.1 gpm (170–220 l/min) of oil flow at 2,320–2,610 psi (160–180 bar) and up to 88.5 HP (66 kW) of hydraulic input.

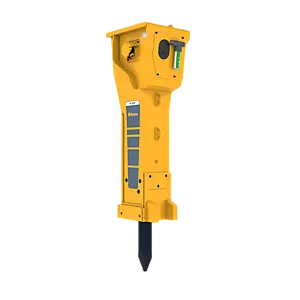

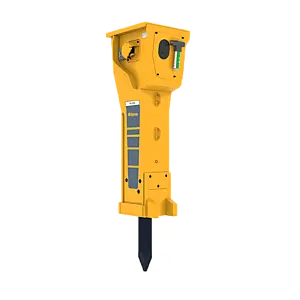

The HB is the Epiroc Premium range heavy breaker, built for efficiency and performance with high durability. VibroSilenced Plus isolates the percussion mechanism from the breaker box to cut noise and vibration. DUST configurations carry the DustProtector II sealing system, which keeps dust out of the tool guiding area in dry, dusty work. HATCON connectivity (operating hours, location and service intervals through My Epiroc) can be retrofitted with the HATCON kit.

The HB 2500 is offered here in the B, B DUST, S, S DUST configurations, using the configuration codes Epiroc lists for this model; pick the one your carrier and application call for, or call us if you are not sure. Moil points, chisels and blunt tools are under Epiroc working tools, and the HB 2500 parts breakdown lists the seal, lower breaker part and refurbishment kits. See the full Epiroc hydraulic breakers range.

• Carrier weight class 59,500–101,000 lb (27–46 t); service weight 5,500 lb (2,500 kg)
• Working tool 6.1 in. (155 mm) diameter; working length of tool 25.2 in. (640 mm)
• Impact rate 280–580 bpm; max hydraulic input 88.5 HP (66 kW)
• Oil flow 44.9–58.1 gpm (170–220 l/min); operating pressure 2,320–2,610 psi (160–180 bar); guaranteed sound power 121 dB(A)
• Premium range; VibroSilenced Plus; DustProtector II on DUST configurations; HATCON retrofit available
• Carrier adapter plate and bolt kit not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
