Carrier adapter plate not included. Epiroc hydraulic breakers mount to the carrier through a carrier-specific adapter plate (base plate, adapter plate and bolt kit), which is not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plate and bolt kit.

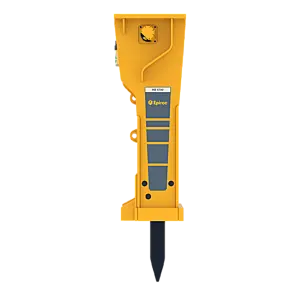

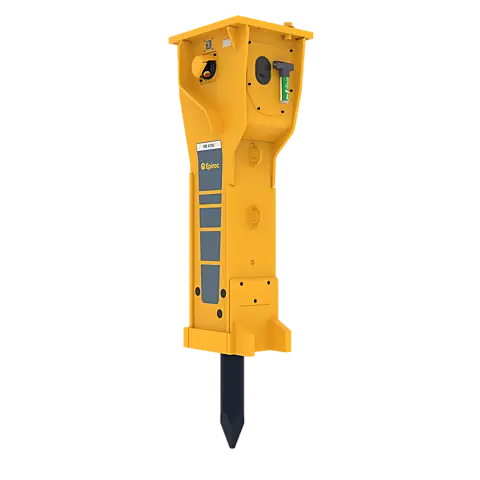

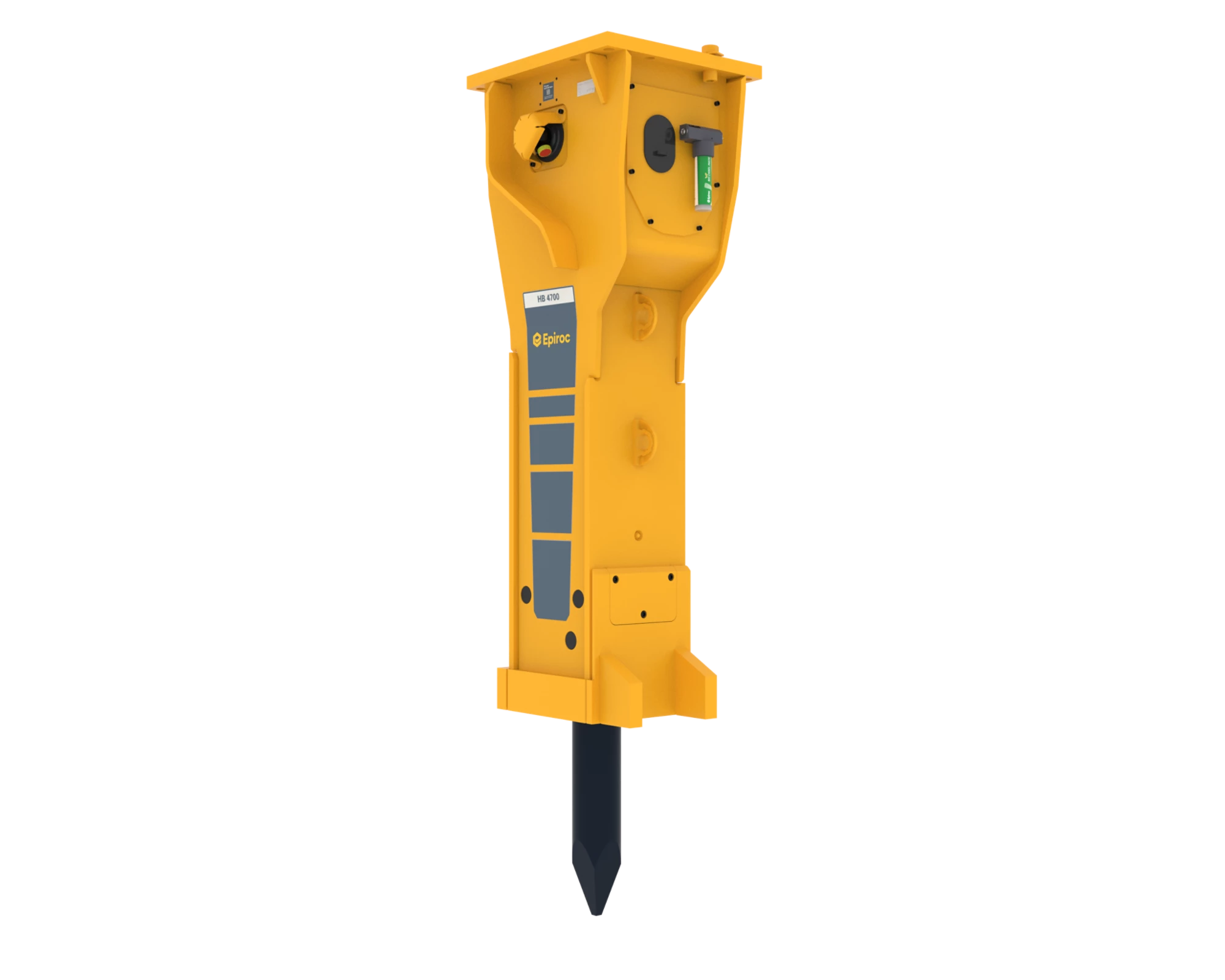

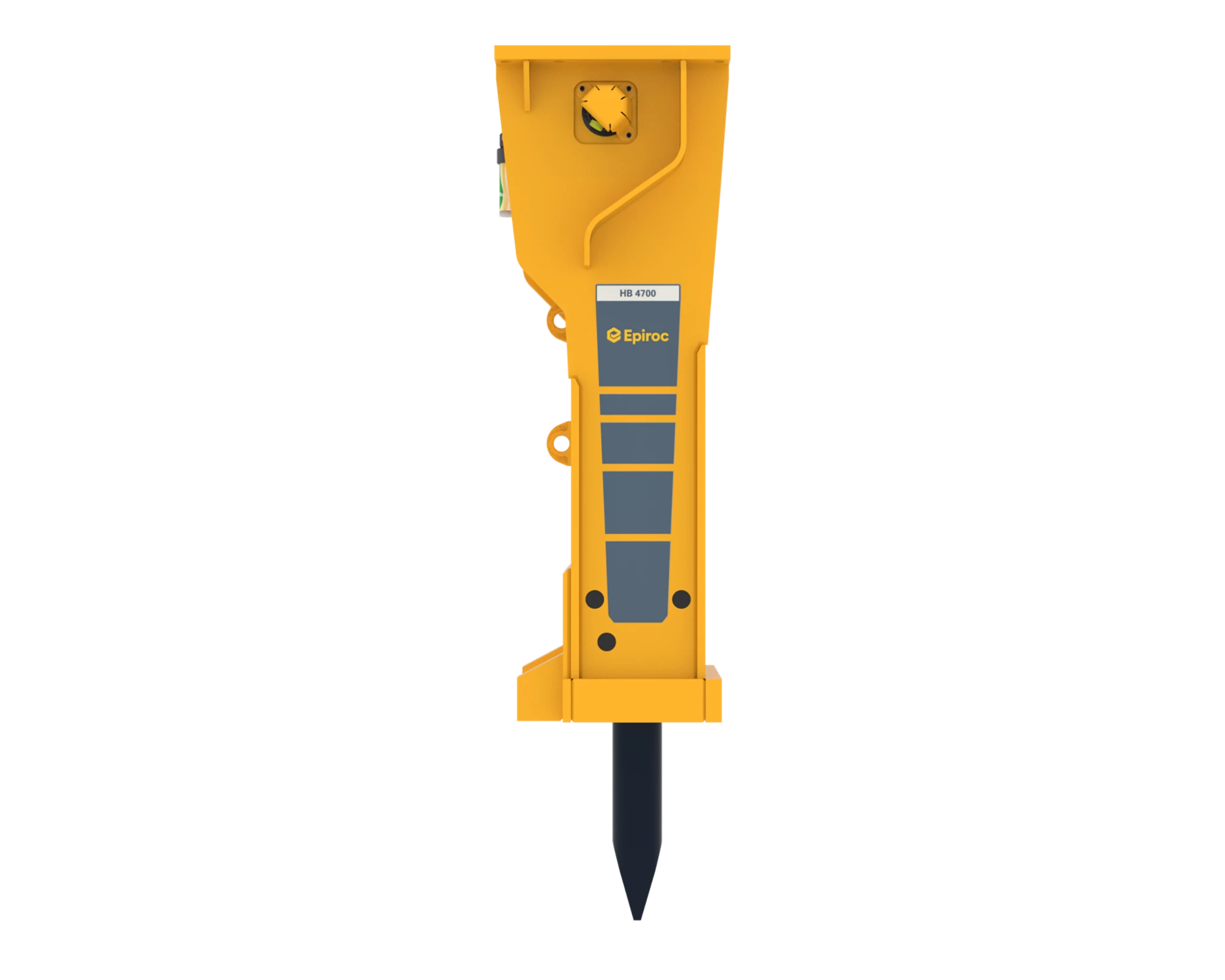

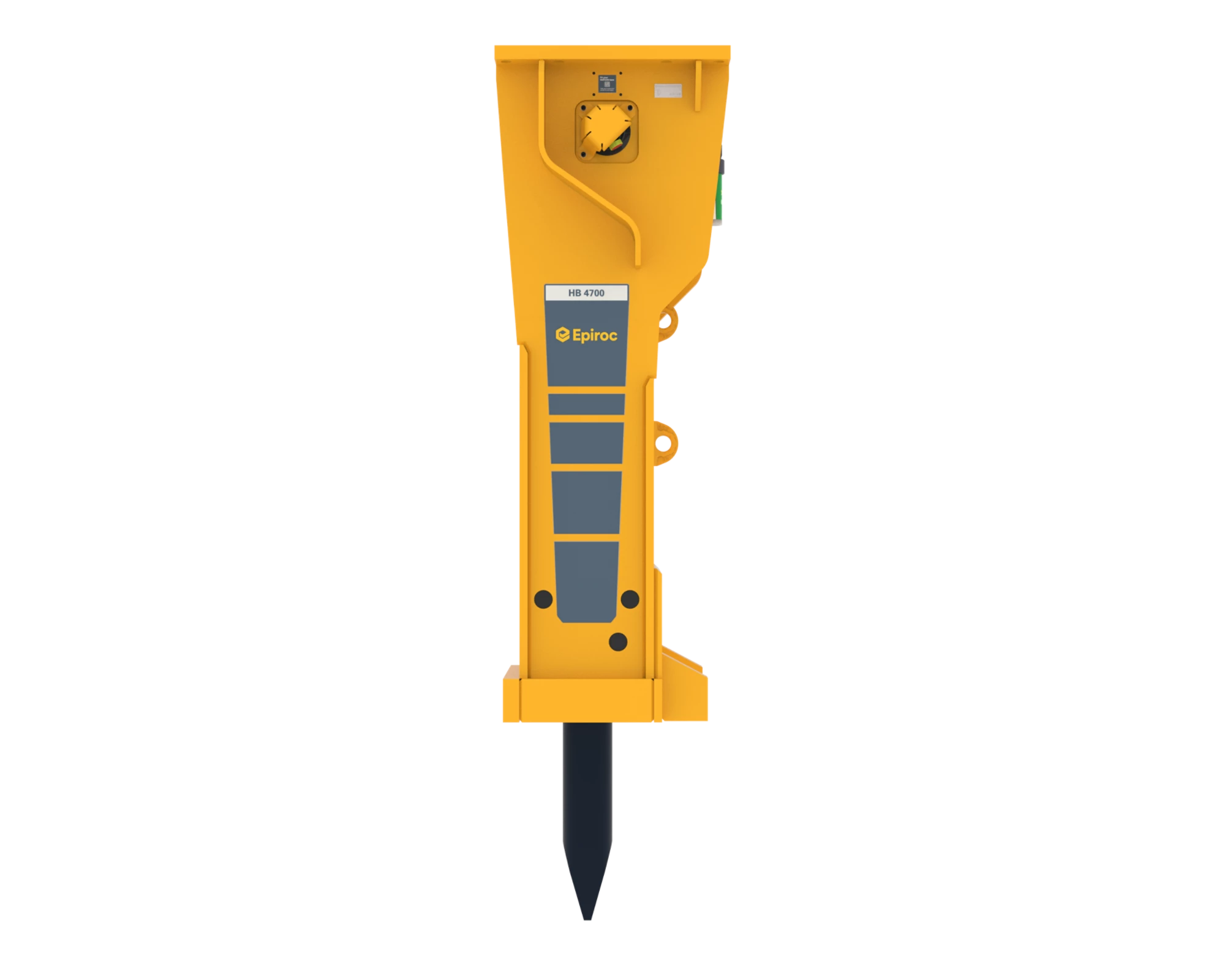

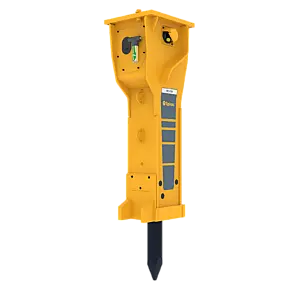

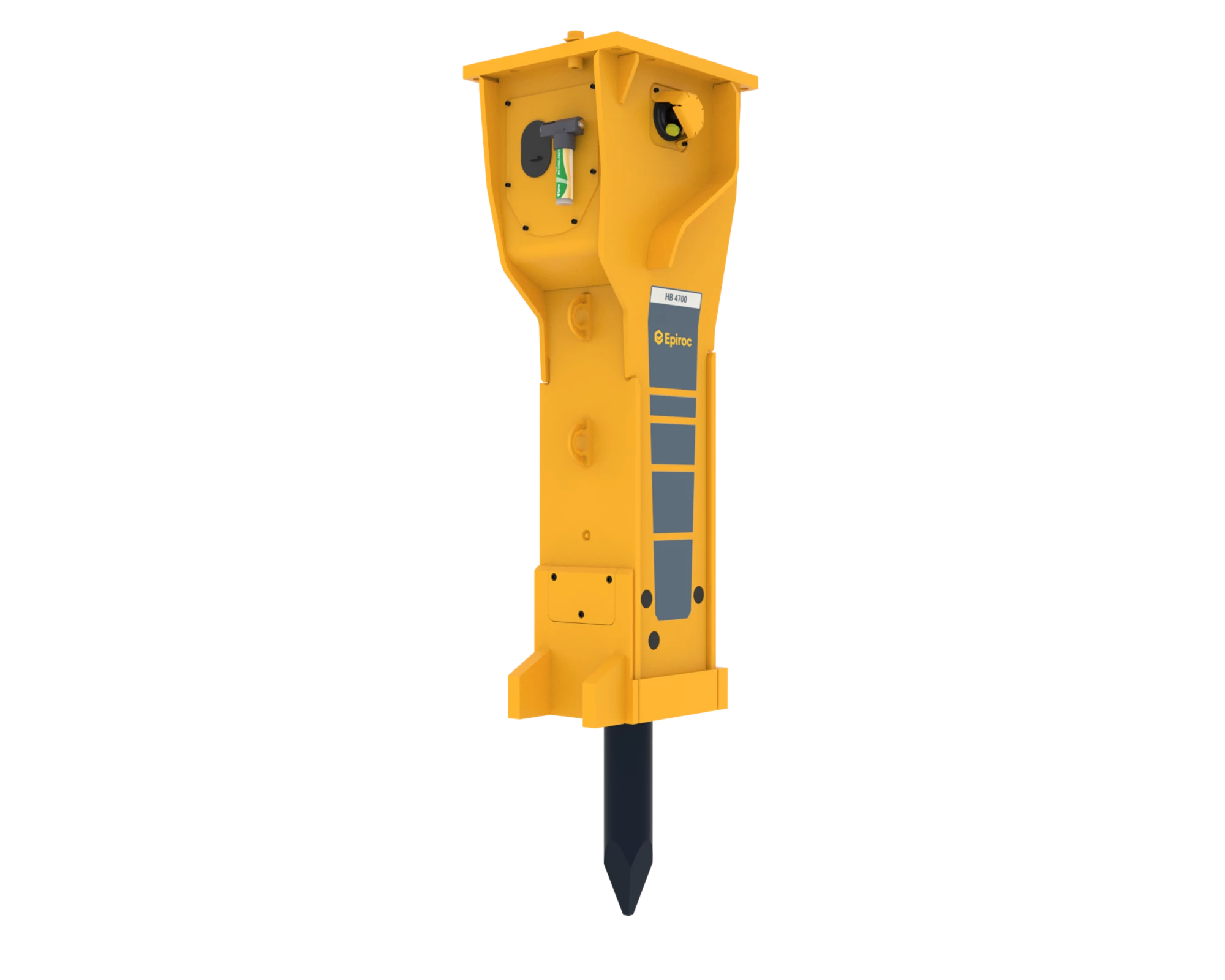

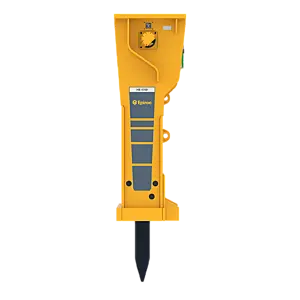

The Epiroc HB 4700 is a 10,400 lb (4,700 kg) Premium range hydraulic breaker for excavators and other carriers in the 99,000–176,000 lb (45–80 t) class. It drives a 7.48 in. (190 mm) working tool at 280–540 bpm on 68.7–95.1 gpm (260–360 l/min) of oil flow at 2,320–2,610 psi (160–180 bar) and up to 144.8 HP (108 kW) of hydraulic input.

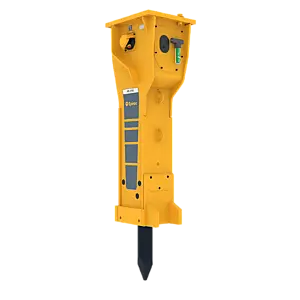

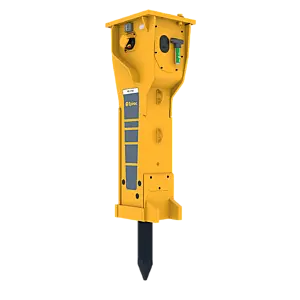

The HB is the Epiroc Premium range heavy breaker, built for efficiency and performance with high durability. VibroSilenced Plus isolates the percussion mechanism from the breaker box to cut noise and vibration. DUST configurations carry the DustProtector II sealing system, which keeps dust out of the tool guiding area in dry, dusty work. HATCON connectivity (operating hours, location and service intervals through My Epiroc) can be retrofitted with the HATCON kit.

The HB 4700 is offered here in the B, B DUST, S configurations, using the configuration codes Epiroc lists for this model; pick the one your carrier and application call for, or call us if you are not sure. Moil points, chisels and blunt tools are under Epiroc working tools, and the HB 4700 parts breakdown lists the seal, lower breaker part and refurbishment kits. See the full Epiroc hydraulic breakers range.

• Carrier weight class 99,000–176,000 lb (45–80 t); service weight 10,400 lb (4,700 kg)
• Working tool 7.48 in. (190 mm) diameter; working length of tool 31.1 in. (790 mm)
• Impact rate 280–540 bpm; max hydraulic input 144.8 HP (108 kW)
• Oil flow 68.7–95.1 gpm (260–360 l/min); operating pressure 2,320–2,610 psi (160–180 bar); guaranteed sound power 126 dB(A)
• Premium range; VibroSilenced Plus; DustProtector II on DUST configurations; HATCON retrofit available
• Carrier adapter plate and bolt kit not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
