Carrier adapter plate not included. Epiroc hydraulic breakers mount to the carrier through a carrier-specific adapter plate (base plate, adapter plate and bolt kit), which is not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plate and bolt kit.

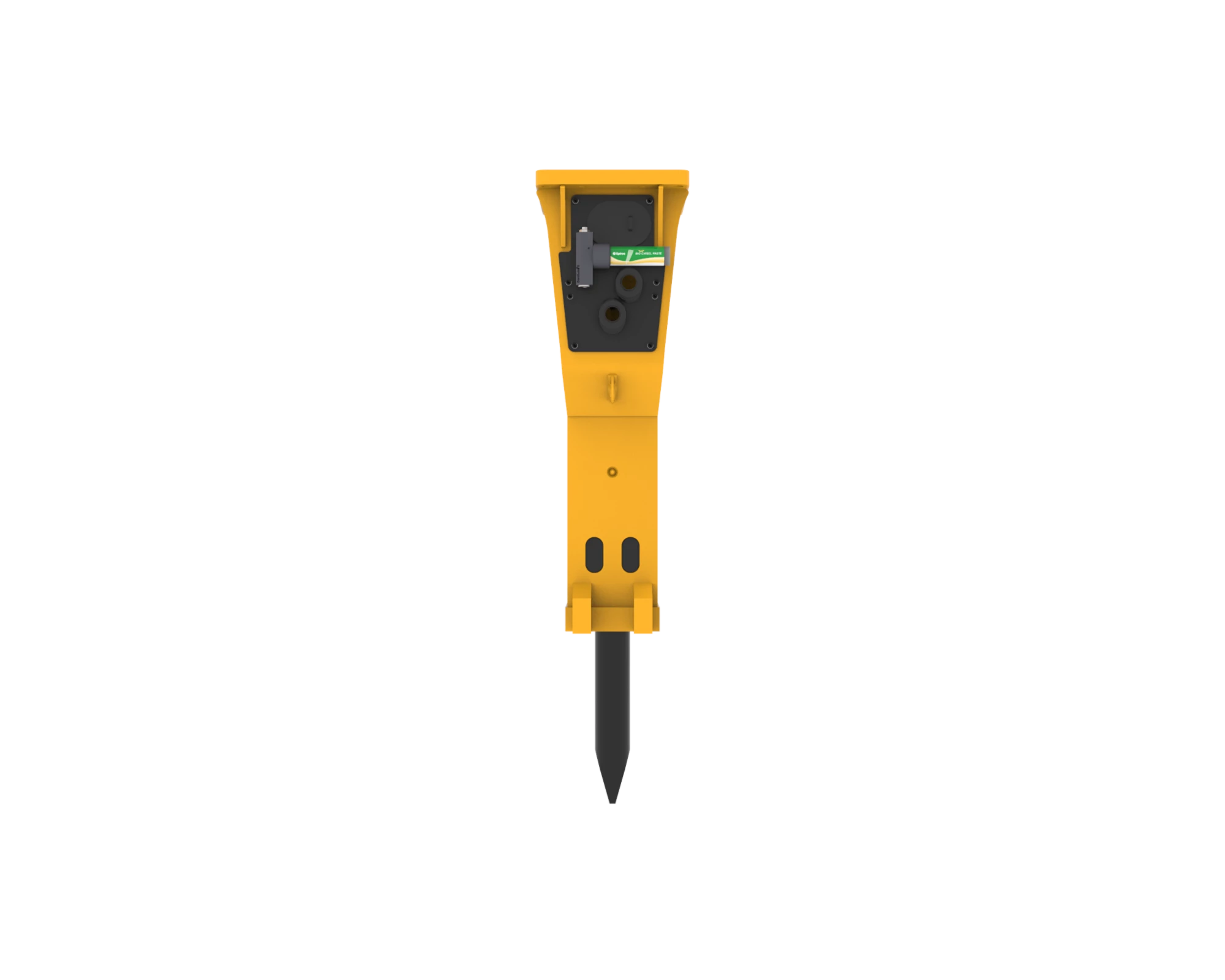

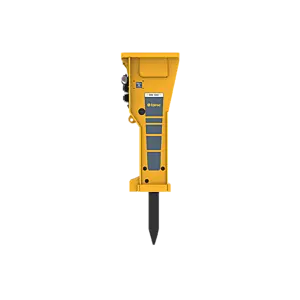

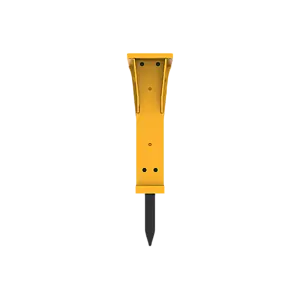

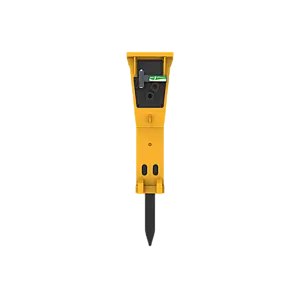

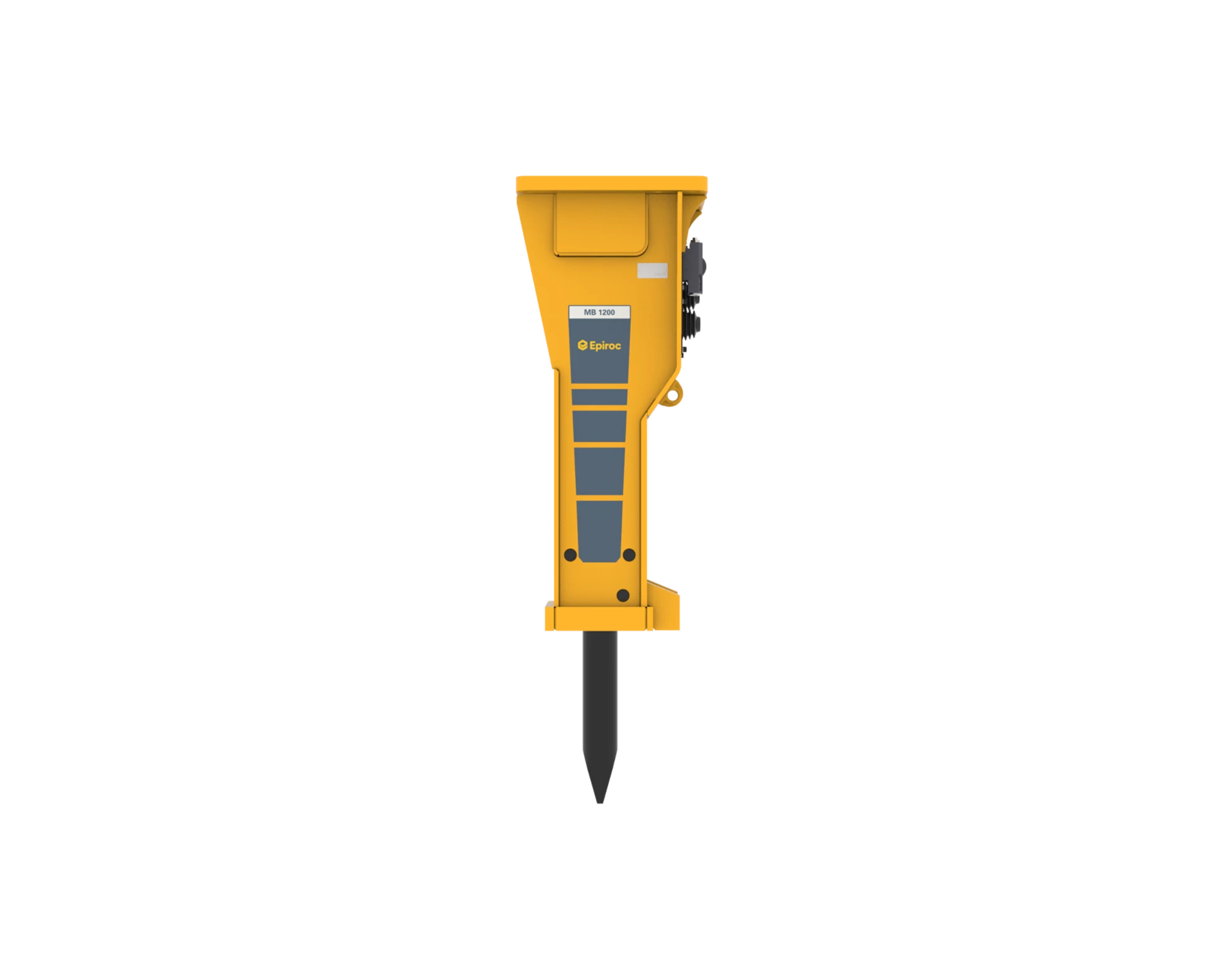

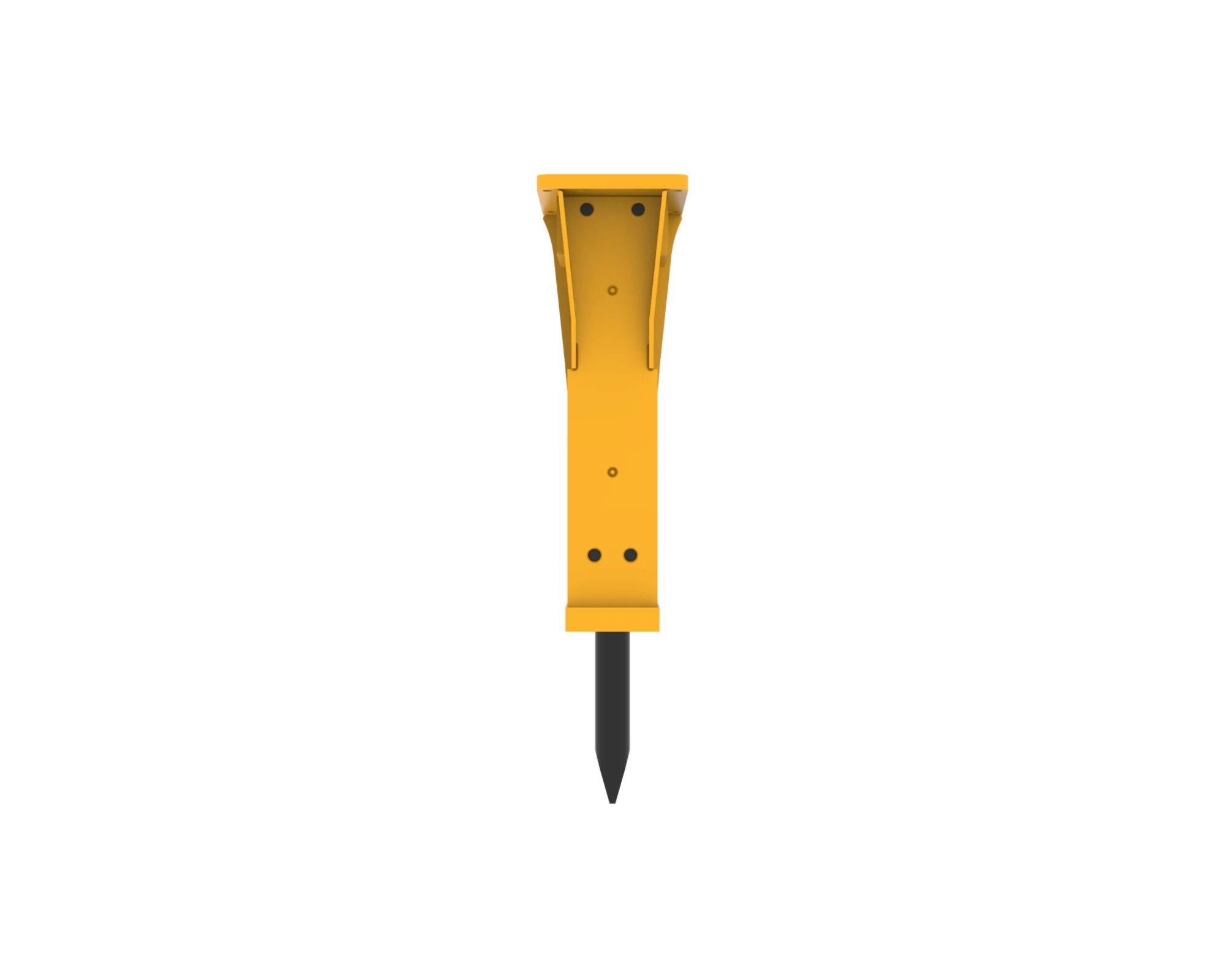

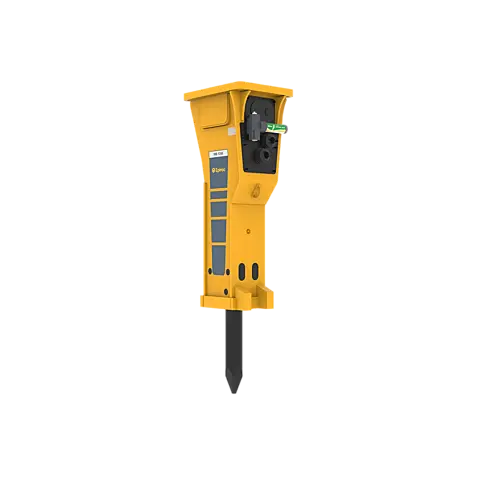

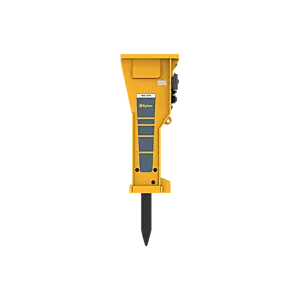

The Epiroc MB 1200 is a 2,650 lb (1,200 kg) Premium range hydraulic breaker for excavators and other carriers in the 33,100–57,300 lb (15–26 t) class. It drives a 4.72 in. (120 mm) working tool at 340–680 bpm on 26.4–37 gpm (100–140 l/min) of oil flow at 2,320–2,610 psi (160–180 bar) and up to 56.3 HP (42 kW) of hydraulic input.

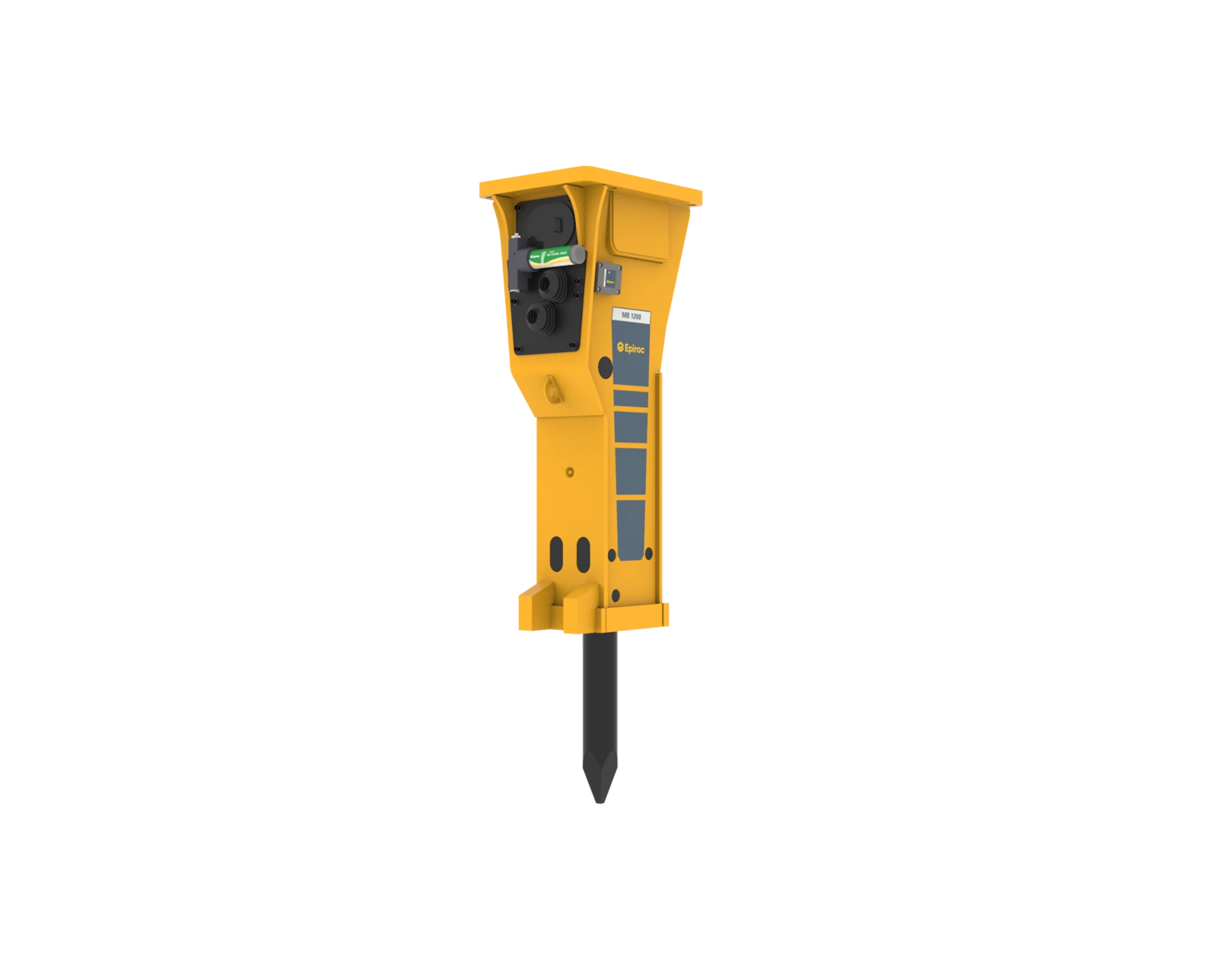

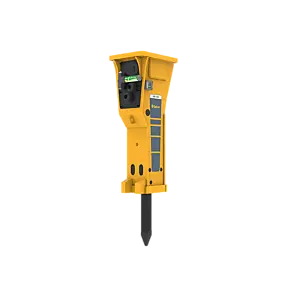

The MB is Epiroc’s Premium range medium breaker for concrete and asphalt demolition, secondary rock breaking and primary rock excavation. VibroSilenced Plus suspends the percussion mechanism on non-metallic elements inside a fully sealed box to cut noise and vibration, and energy recovery puts the piston recoil energy back to work. AutoControl adjusts the piston stroke automatically (short stroke with a higher impact rate in soft material, long stroke with higher impact energy in hard material), and StartSelect lets the operator choose AutoStart for unstable ground or AutoStop, which prevents blank firing on solid ground. ContiLube II automatic lubrication keeps greasing consistent and cuts maintenance stops. HATCON connectivity can be retrofitted with the HATCON kit.

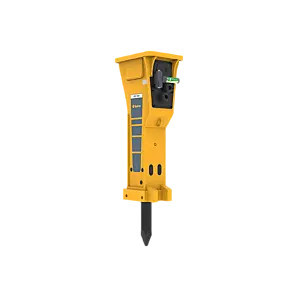

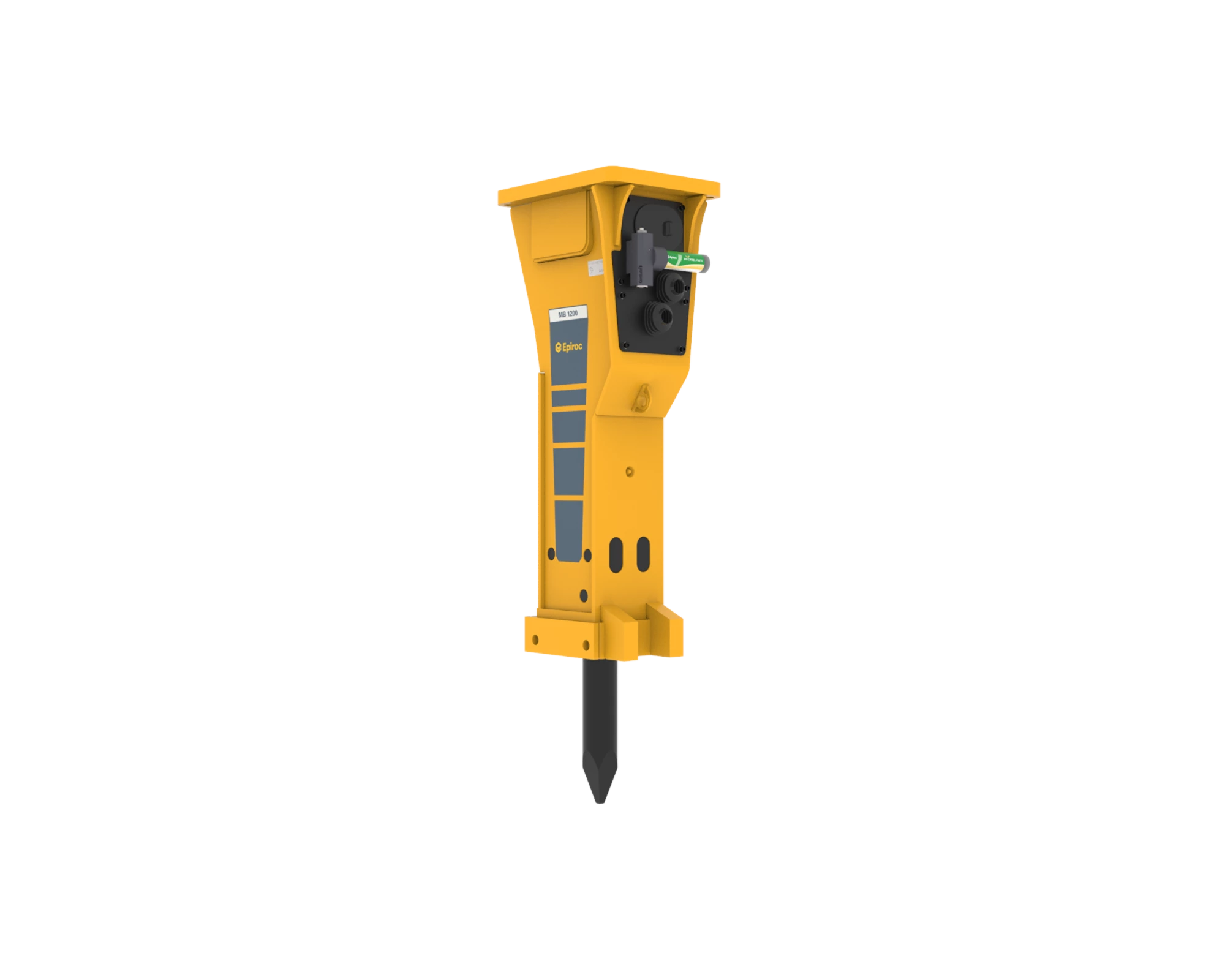

The MB 1200 is offered here in the Standard, DUST and High Temp configurations, as Epiroc lists them for this model: DUST configurations carry the DustProtector II two-stage sealing system; High Temp is Epiroc’s high-thermal-load version of the breaker. Pick the one your carrier and application call for, or call us if you are not sure. Moil points, chisels and blunt tools are under Epiroc working tools, and the MB 1200 parts breakdown lists the seal, lower breaker part and refurbishment kits. See the full Epiroc hydraulic breakers range.

• Carrier weight class 33,100–57,300 lb (15–26 t); service weight 2,650 lb (1,200 kg)
• Working tool 4.72 in. (120 mm) diameter; working length of tool 23.6 in. (600 mm)
• Impact rate 340–680 bpm; max hydraulic input 56.3 HP (42 kW)
• Oil flow 26.4–37 gpm (100–140 l/min); operating pressure 2,320–2,610 psi (160–180 bar); guaranteed sound power 120 dB(A)
• Premium range; VibroSilenced Plus; energy recovery; AutoControl; StartSelect (AutoStart / AutoStop); ContiLube II; DustProtector II on DUST configurations; HATCON retrofit available
• Carrier adapter plate and bolt kit not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
