Carrier adapter plate not included. Epiroc hydraulic breakers mount to the carrier through a carrier-specific adapter plate (base plate, adapter plate and bolt kit), which is not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plate and bolt kit.

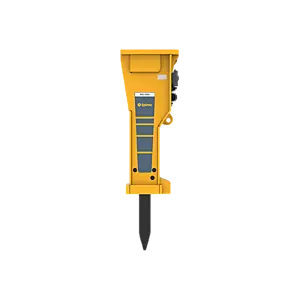

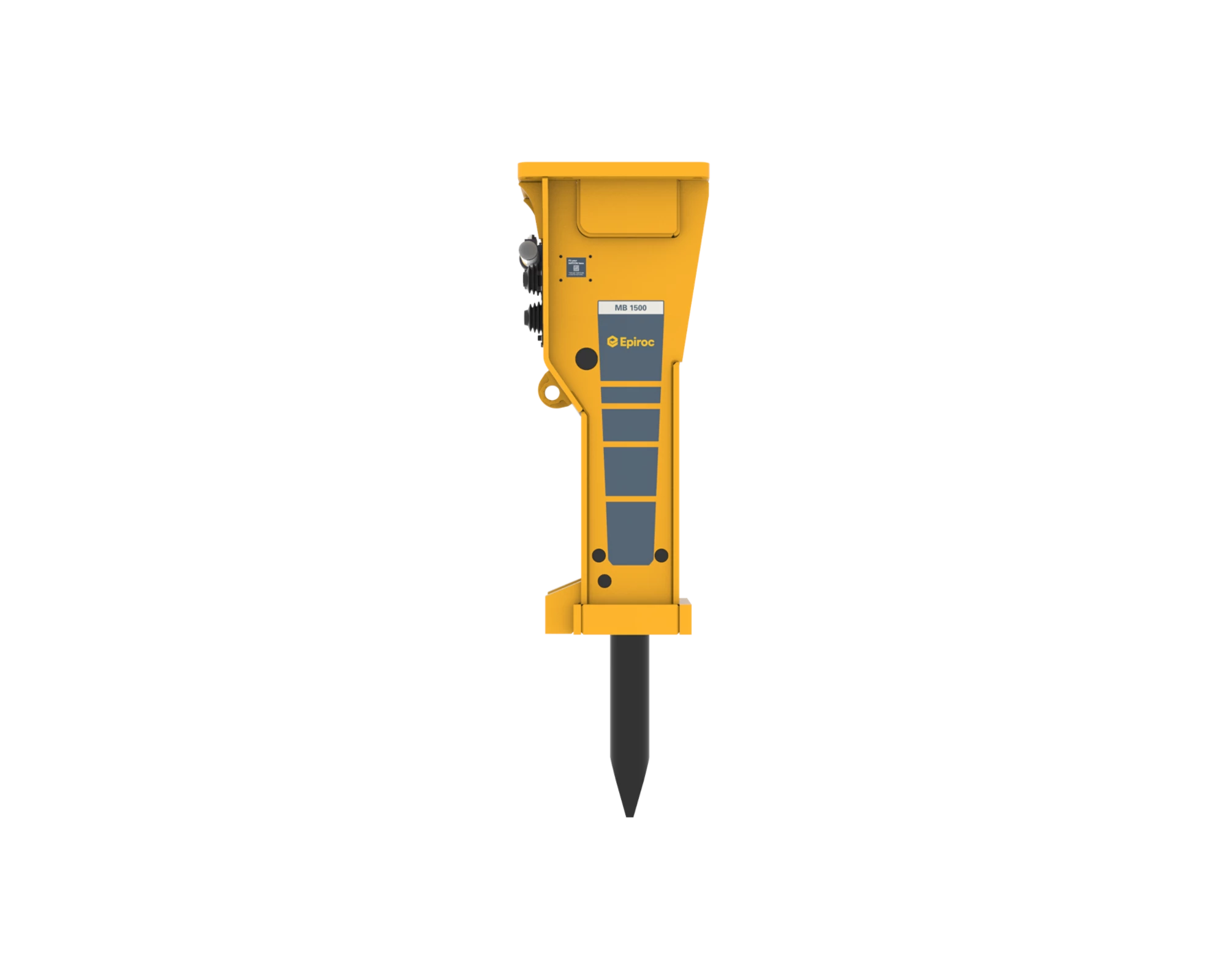

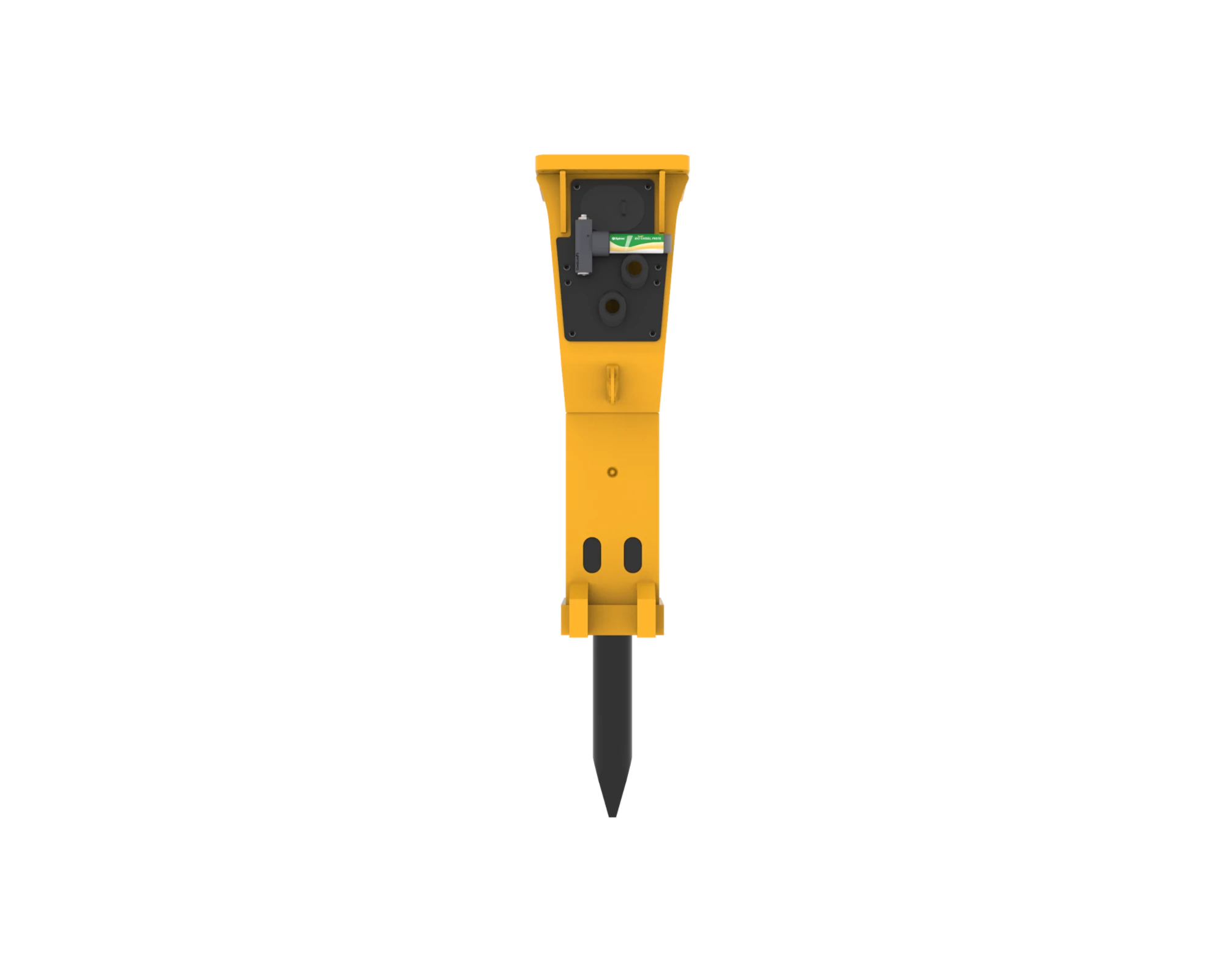

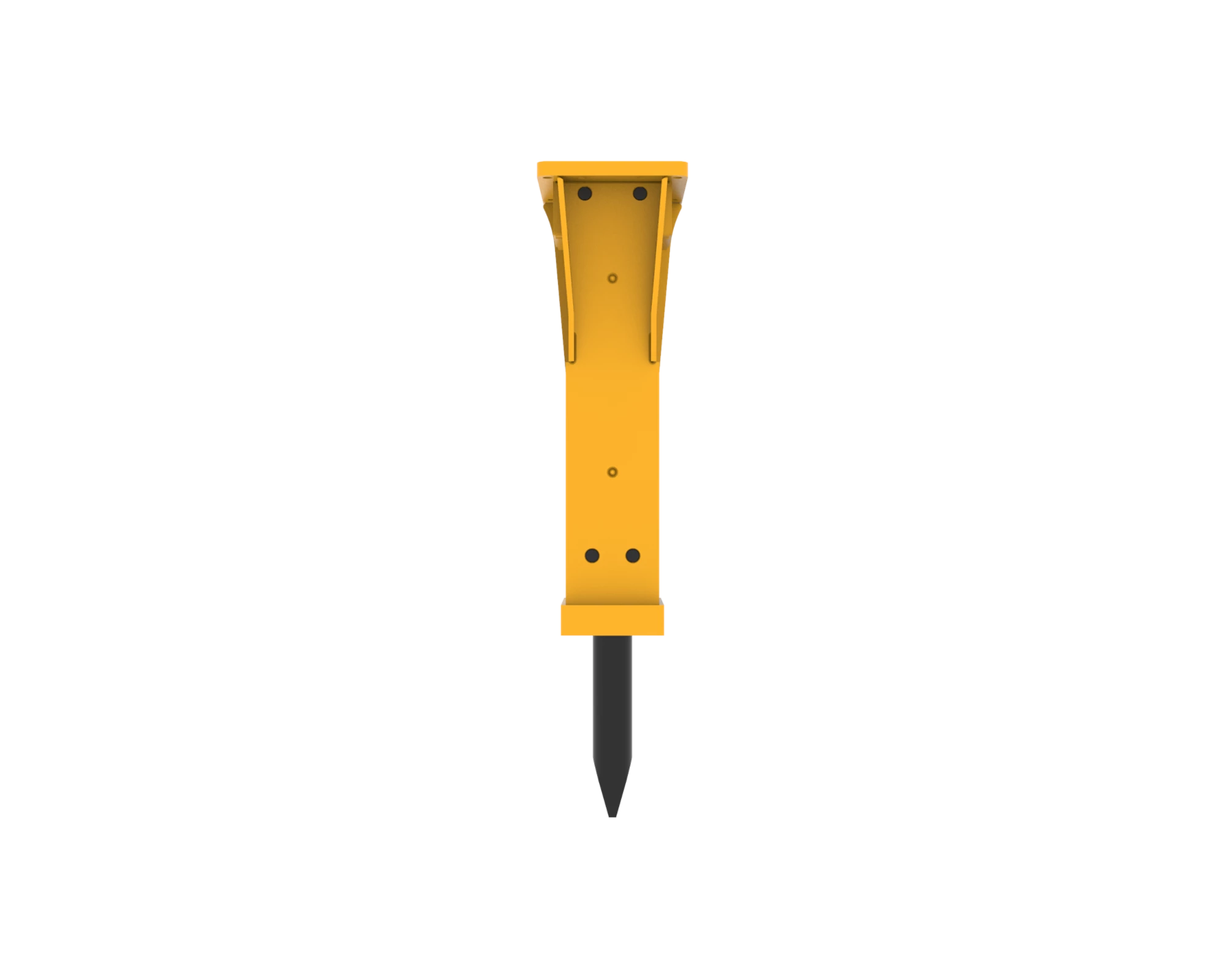

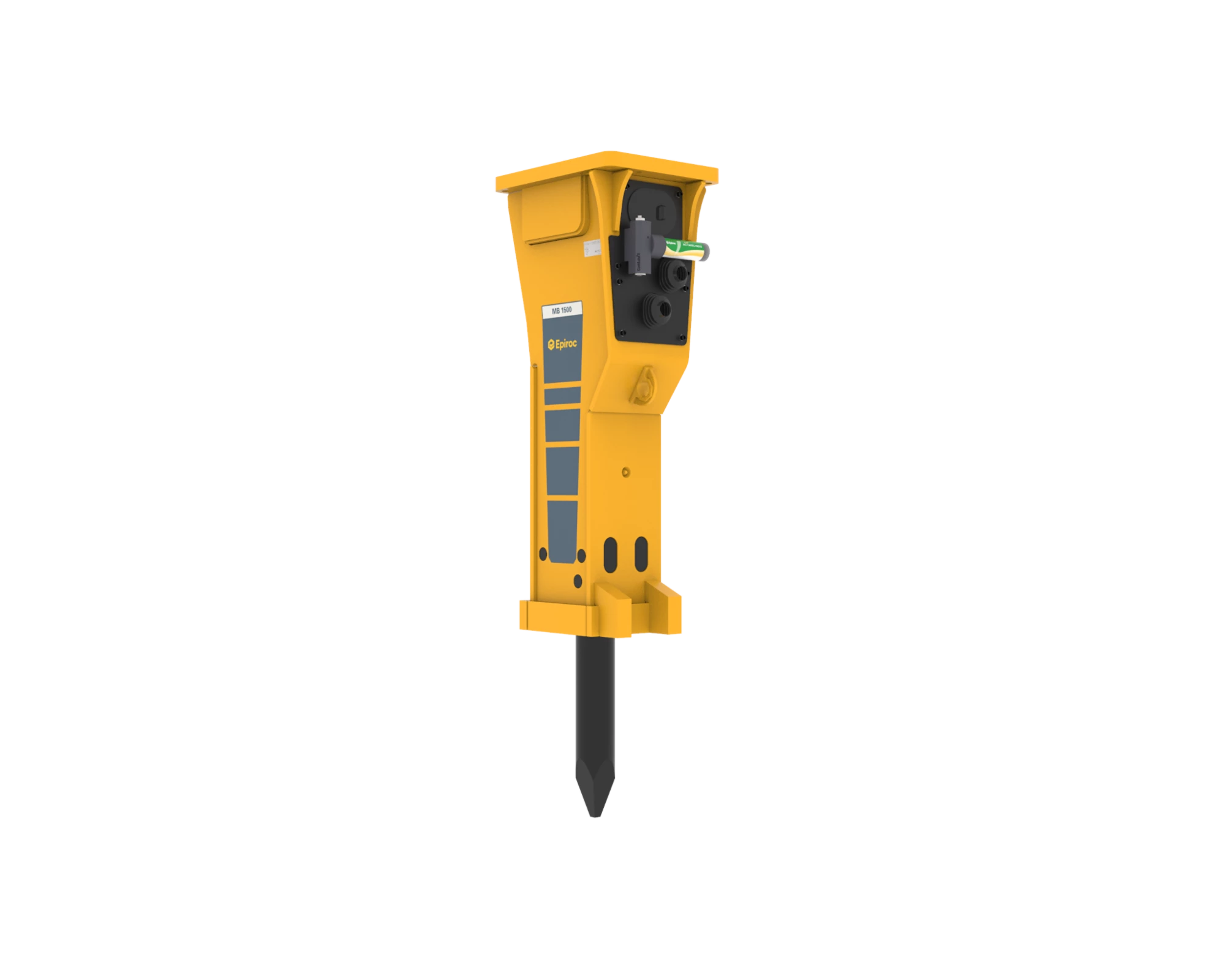

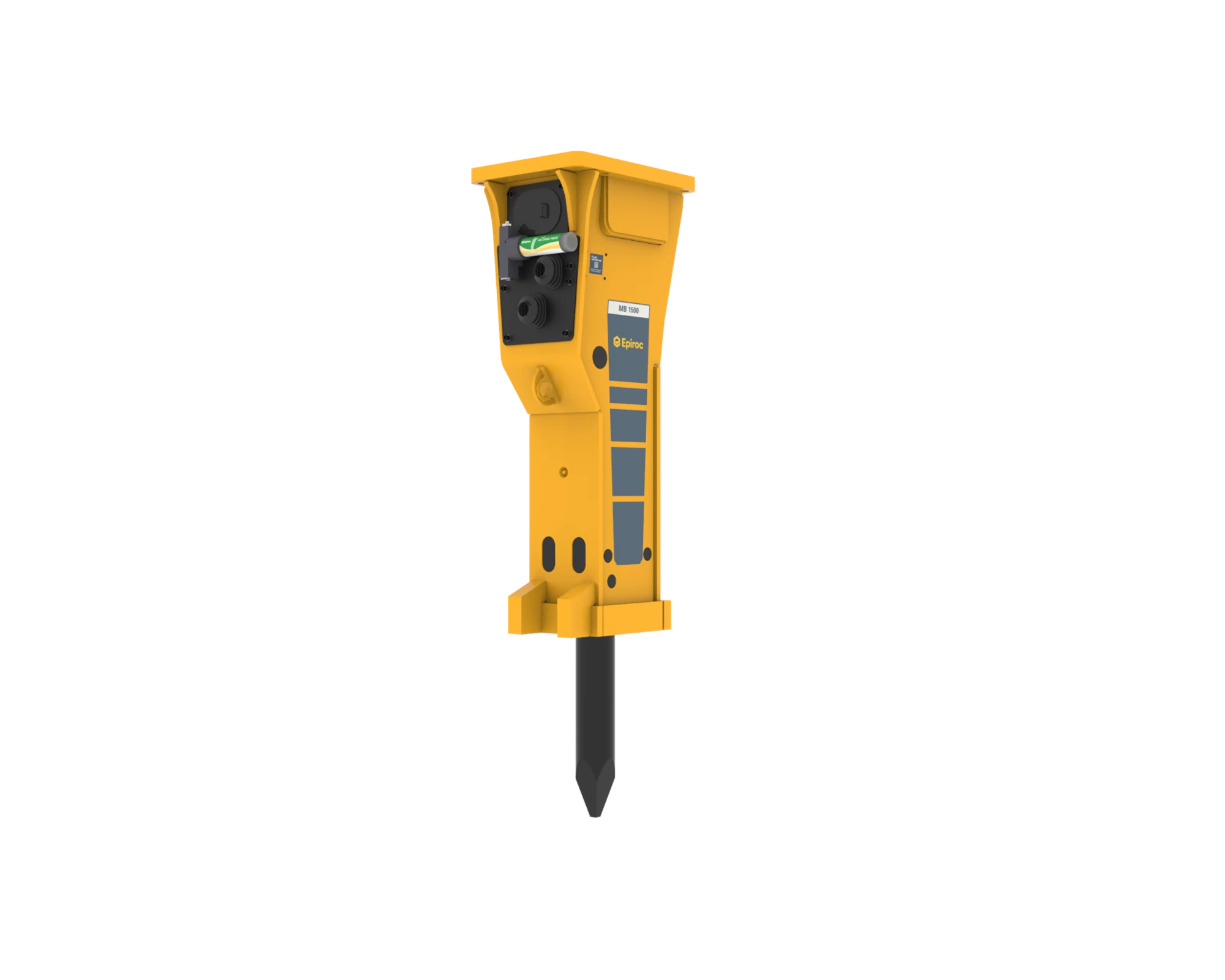

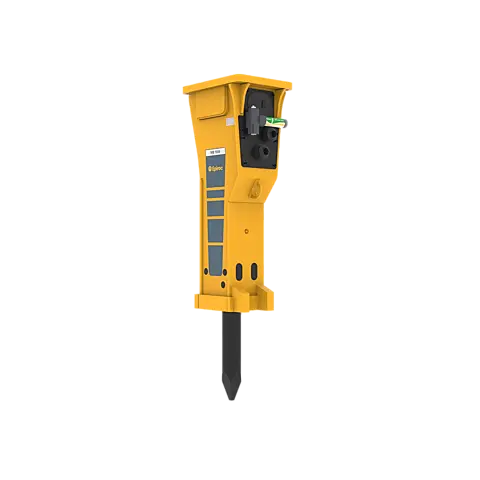

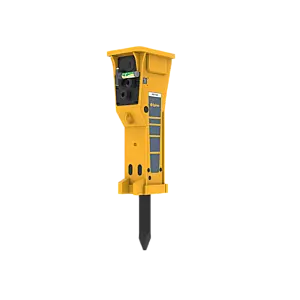

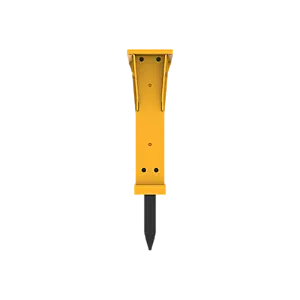

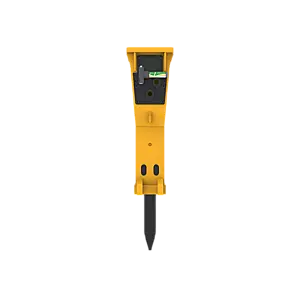

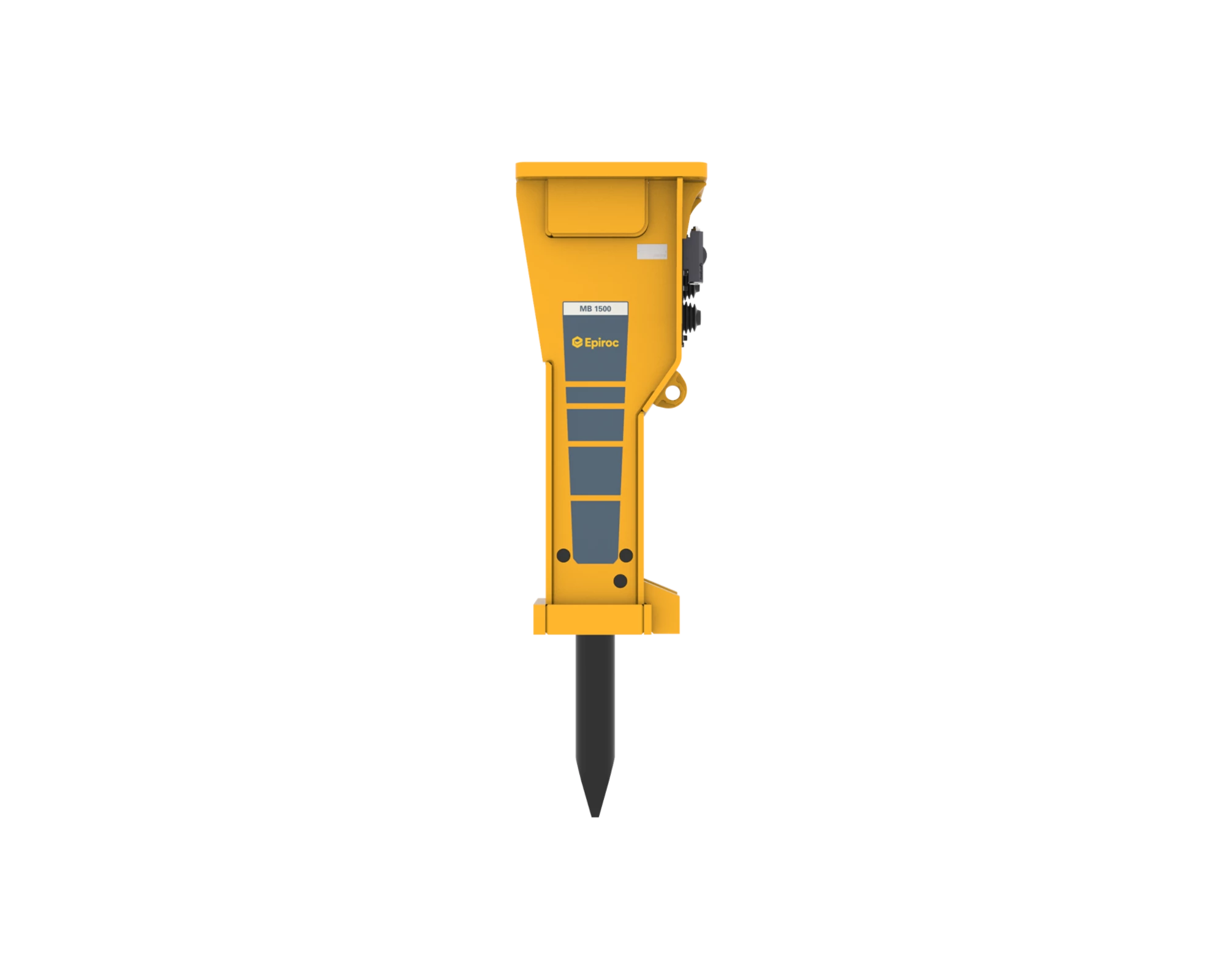

The Epiroc MB 1500 is a 3,300 lb (1,500 kg) Premium range hydraulic breaker for excavators and other carriers in the 37,500–63,900 lb (17–29 t) class. It drives a 5.31 in. (135 mm) working tool at 330–680 bpm on 31.7–40.9 gpm (120–155 l/min) of oil flow at 2,320–2,610 psi (160–180 bar) and up to 61.7 HP (46 kW) of hydraulic input.

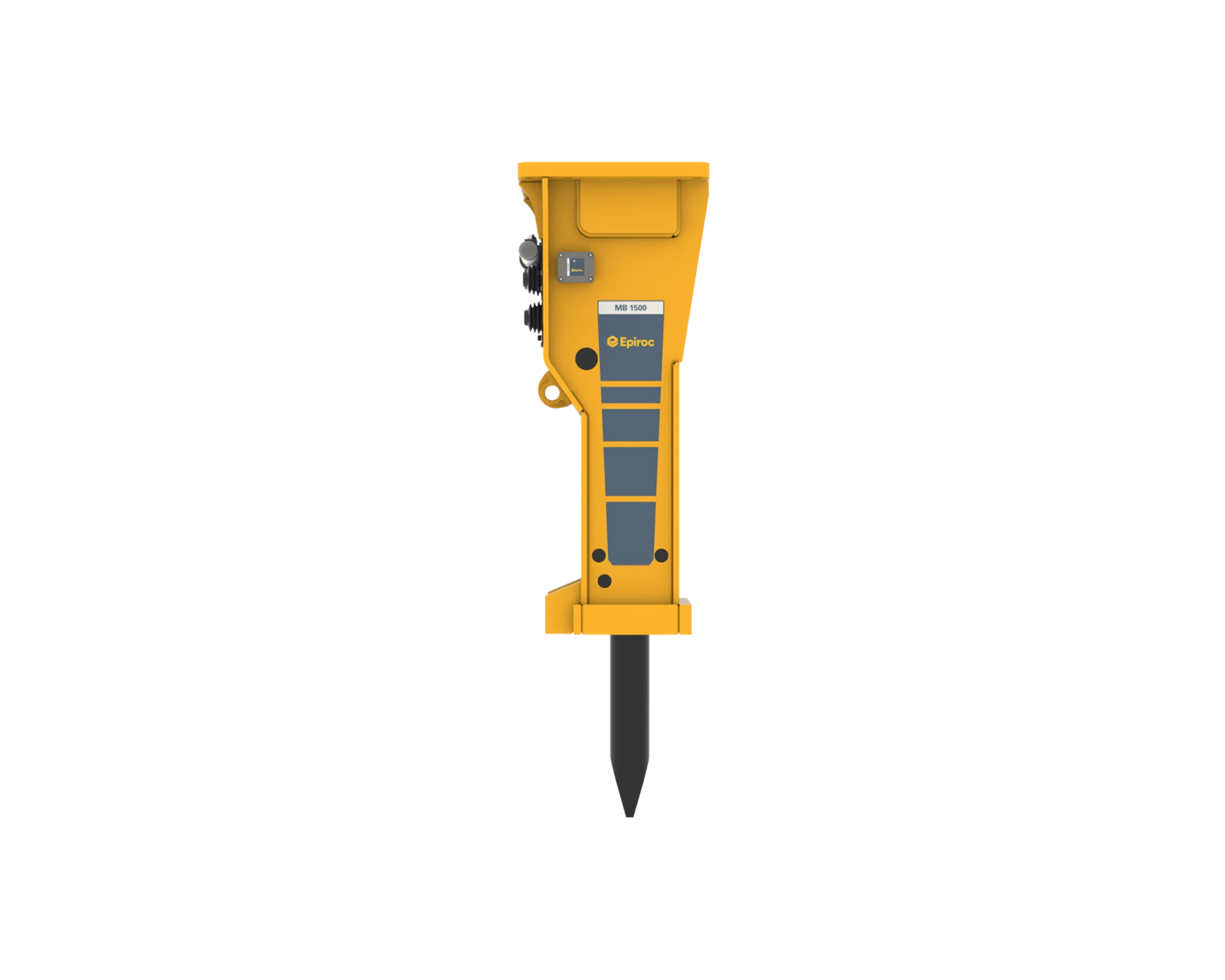

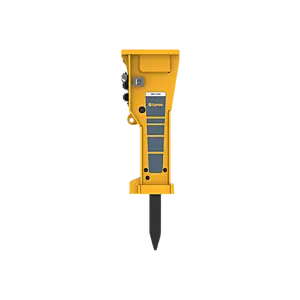

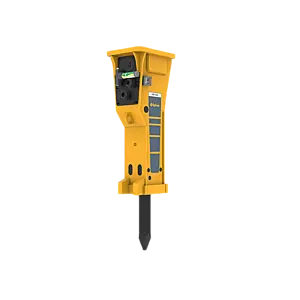

The MB is Epiroc’s Premium range medium breaker for concrete and asphalt demolition, secondary rock breaking and primary rock excavation. VibroSilenced Plus suspends the percussion mechanism on non-metallic elements inside a fully sealed box to cut noise and vibration, and energy recovery puts the piston recoil energy back to work. AutoControl adjusts the piston stroke automatically (short stroke with a higher impact rate in soft material, long stroke with higher impact energy in hard material), and StartSelect lets the operator choose AutoStart for unstable ground or AutoStop, which prevents blank firing on solid ground. ContiLube II automatic lubrication keeps greasing consistent and cuts maintenance stops. HATCON connectivity can be retrofitted with the HATCON kit.

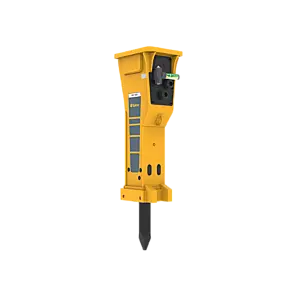

The MB 1500 is offered here in the Standard and DUST configurations, as Epiroc lists them for this model: DUST configurations carry the DustProtector II two-stage sealing system. Pick the one your carrier and application call for, or call us if you are not sure. Moil points, chisels and blunt tools are under Epiroc working tools, and the MB 1500 parts breakdown lists the seal, lower breaker part and refurbishment kits. See the full Epiroc hydraulic breakers range.

• Carrier weight class 37,500–63,900 lb (17–29 t); service weight 3,300 lb (1,500 kg)
• Working tool 5.31 in. (135 mm) diameter; working length of tool 25 in. (635 mm)
• Impact rate 330–680 bpm; max hydraulic input 61.7 HP (46 kW)
• Oil flow 31.7–40.9 gpm (120–155 l/min); operating pressure 2,320–2,610 psi (160–180 bar); guaranteed sound power 123 dB(A)
• Premium range; VibroSilenced Plus; energy recovery; AutoControl; StartSelect (AutoStart / AutoStop); ContiLube II; DustProtector II on DUST configurations; HATCON retrofit available
• Carrier adapter plate and bolt kit not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
