Carrier base plate and adapter plate not included. Epiroc attachments mount to the carrier through a carrier-specific base plate, adapter plate and bolt kit, which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing.

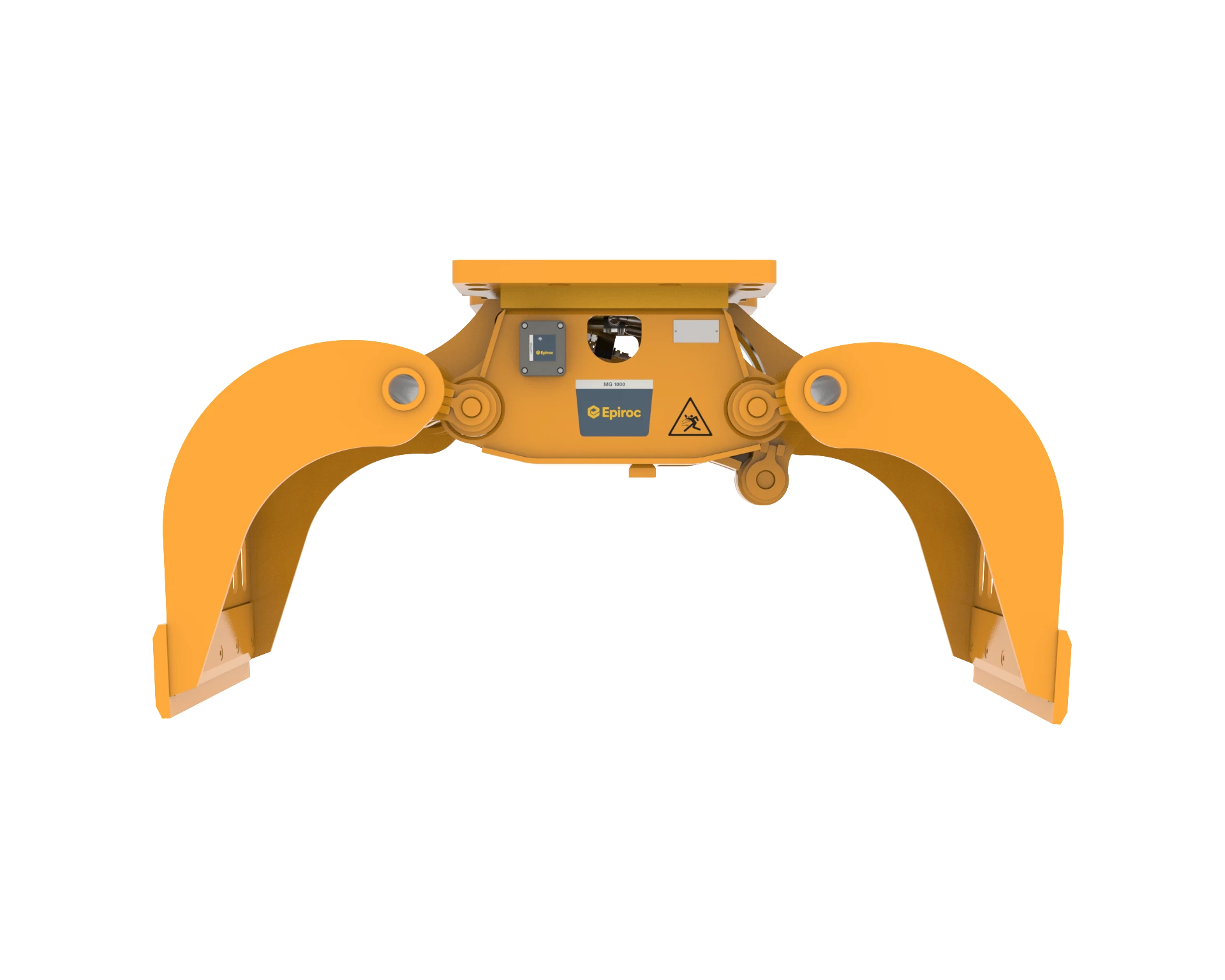

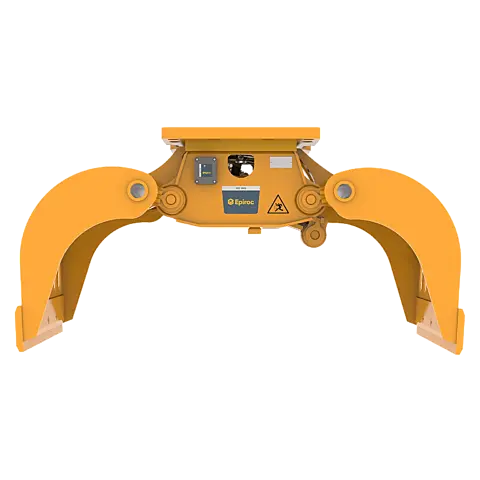

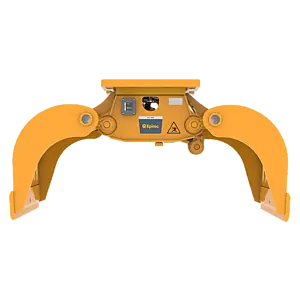

The Epiroc MG 1000 is a hydraulic multi grapple for 26,500–44,100 lb (12–20 t) excavators, built for loading and sorting material and for demolishing wooden and masonry structures – static (non-rotating) version.
Service weight 2,405 lb (1,090 kg) with an average-sized adapter plate; product weight 1,995 lb (905 kg). Max. closing force 5.1 US tons (4.6 t). Jaw opening 74.8 in. (1,900 mm), grapple width 31.9 in. (810 mm), loading volume 0.64 cu yd (0.49 m³). Oil flow 22.5–31.7 gpm (85–120 l/min) at up to 5,075 psi (350 bar). This is the static (non-rotating) version; Epiroc’s multi grapples can be converted between rotating and non-rotating.
Epiroc multi grapples load and sort material and take down wooden and masonry structures with a steady grip and virtually constant closing force. An integrated mechanical stop takes load off the cylinders, the solid perforated shells keep the load in view, and the cutting blades are replaceable and reversible. Optional tooth blades (MG 400–2300) suit block and stone handling, and optional bolt-on side plates (MG 400–1500) hold fine-grained material and debris.
Service parts on the MG 1000 / MG 1000 R Multi Grapple breakdown (serial DEQ226556-DEQ250017, DGR240056 and later): blade kit 3363123456, cylinder seal kits 3376682163 / 3376683168, rotary seal kit 3376682165, hydraulic motor seal kit 3376682182, life ring seal kit 3363129337, label kit 3363098275, optional tooth blade kit 3376683105 and optional side closing plates kit 3376683106, and connection hoses 3360332294 / 3363085947. HATCON LTE telematics kit sold separately. See the MG 1000 / MG 1000 R Multi Grapple parts diagram for every part, and the full Epiroc excavator attachments range.
- Fits 26,500–44,100 lb (12–20 t) excavators; service weight 2,405 lb (1,090 kg)
- 5.1 US tons (4.6 t) closing force; 74.8 in. (1,900 mm) jaw opening
- 0.64 cu yd (0.49 m³) loading volume, 31.9 in. (810 mm) grapple width
- Static (non-rotating) version; integrated mechanical stop, reversible blades
- 22.5–31.7 gpm (85–120 l/min) at up to 5,075 psi (350 bar)
- Carrier base plate and adapter plate not included; contact us for exact pricing
