Carrier base plate and adapter plate not included. Epiroc attachments mount to the carrier through a carrier-specific base plate, adapter plate and bolt kit, which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing.

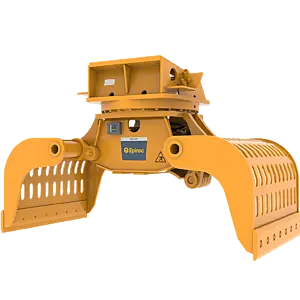

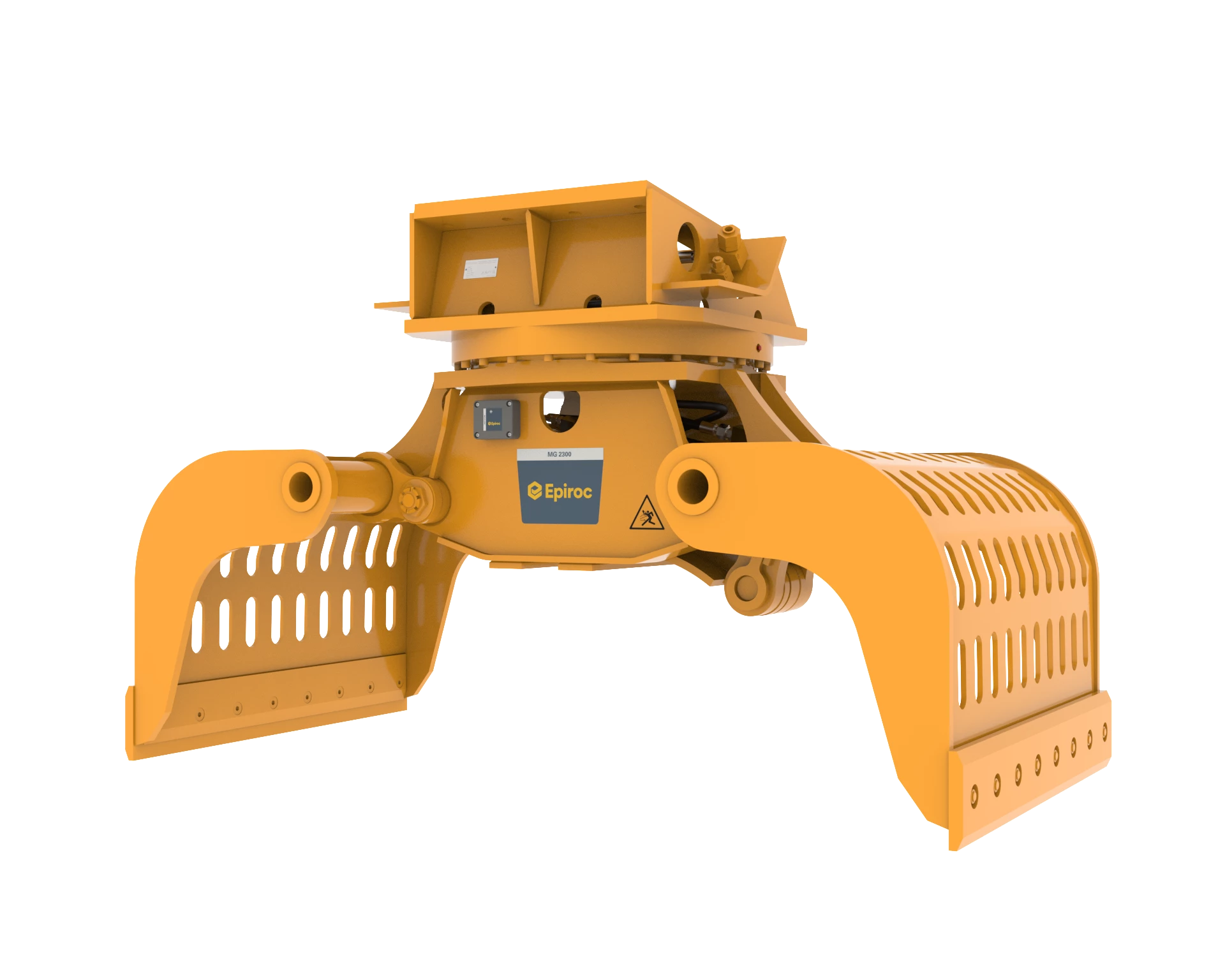

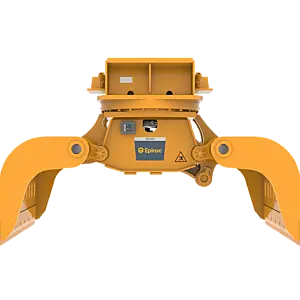

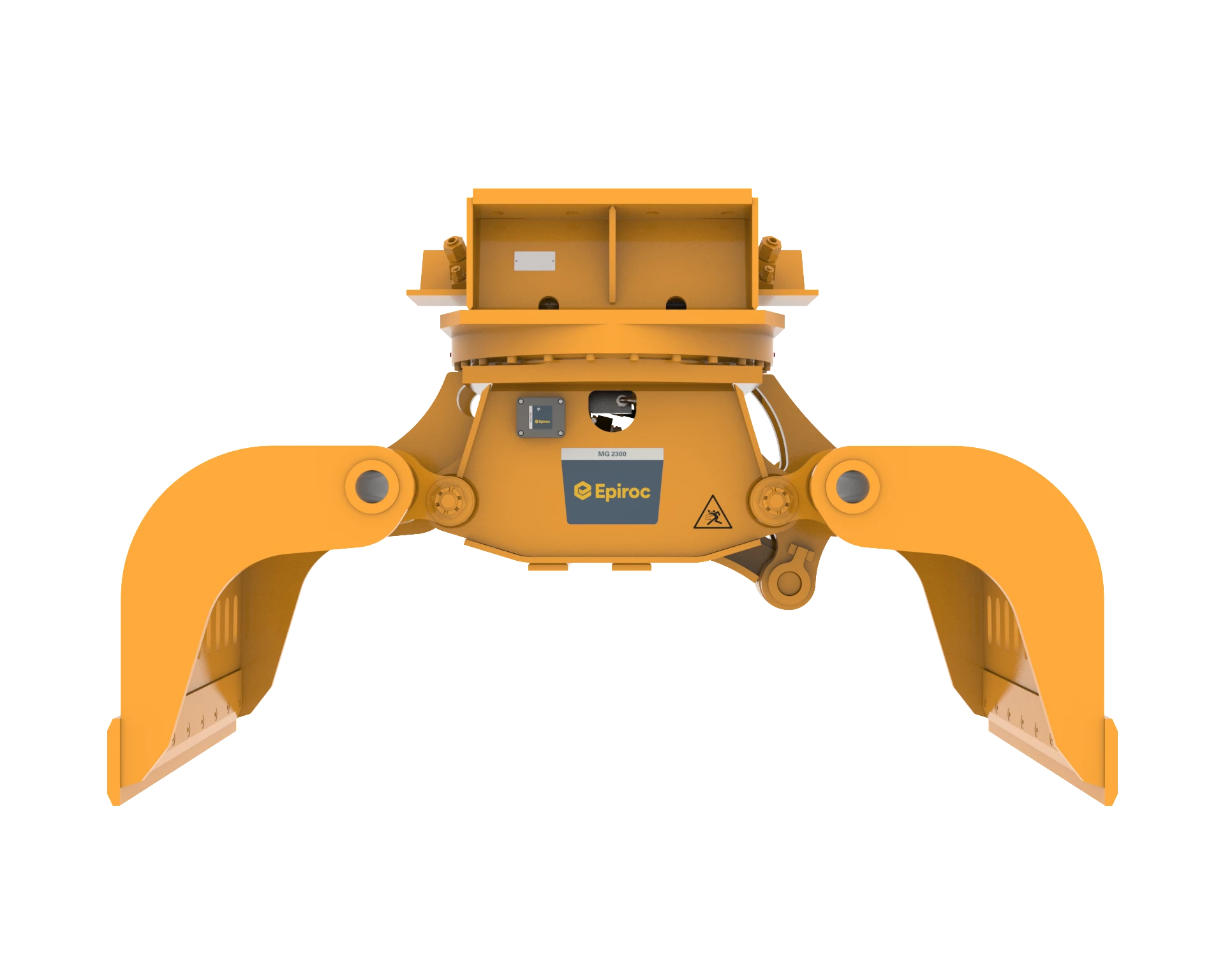

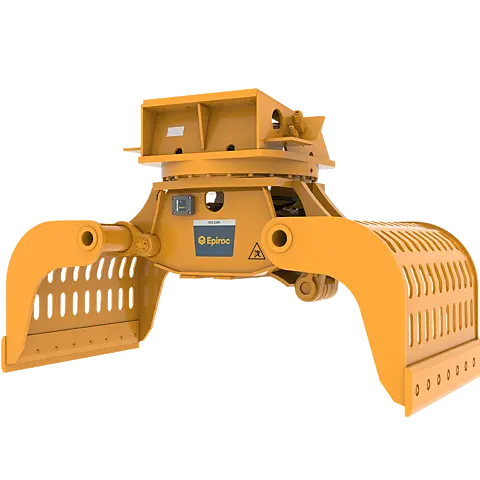

The Epiroc MG 2300 R is a hydraulic multi grapple for 55,100–83,800 lb (25–38 t) excavators, built for loading and sorting material and for demolishing wooden and masonry structures.

Service weight 5,505 lb (2,496 kg) with an average-sized adapter plate; product weight 4,585 lb (2,080 kg). Max. closing force 8.8 US tons (8 t). Jaw opening 88.8 in. (2,255 mm), grapple width 47.6 in. (1,210 mm), loading volume 1.15 cu yd (0.88 m³). Oil flow 42.3–47.6 gpm (160–180 l/min) at up to 5,075 psi (350 bar); rotation circuit 7.9–9.2 gpm (30–35 l/min) at up to 2,465 psi (170 bar). 360° endless hydraulic rotation positions the shells precisely, and the rotation can be switched off for non-rotating use.

Epiroc multi grapples load and sort material and take down wooden and masonry structures with a steady grip and virtually constant closing force. An integrated mechanical stop takes load off the cylinders, the solid perforated shells keep the load in view, and the cutting blades are replaceable and reversible. Optional tooth blades (MG 400–2300) suit block and stone handling, and optional bolt-on side plates (MG 400–1500) hold fine-grained material and debris.

Service parts on the MG 2300 R Multi Grapple breakdown (serial DEQ246250-DEQ246309, DGR240063 and later): blade kits 3363124337 / 3372100012, cylinder seal kit 3376686175, rotary seal kit 3376684171, hydraulic motor seal kits 3363124376 / 3376682182, life ring seal kits 3363129337 / 3363129338, label kit 3363112588 and optional tooth blade kit 3363126977, and connection hoses 3360992340 / 3361853859 / 3363031767 / 3363034399. HATCON LTE telematics kit sold separately. See the MG 2300 R Multi Grapple parts diagram for every part, and the full Epiroc excavator attachments range.

• Fits 55,100–83,800 lb (25–38 t) excavators; service weight 5,505 lb (2,496 kg)
• 8.8 US tons (8 t) closing force; 88.8 in. (2,255 mm) jaw opening
• 1.15 cu yd (0.88 m³) loading volume, 47.6 in. (1,210 mm) grapple width
• 360° endless hydraulic rotation, integrated mechanical stop, reversible blades
• 42.3–47.6 gpm (160–180 l/min) at up to 5,075 psi (350 bar); rotation 7.9–9.2 gpm at 2,465 psi
• Carrier base plate and adapter plate not included; contact us for exact pricing
