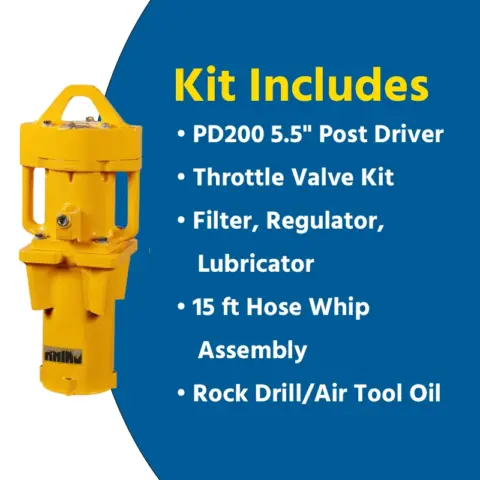

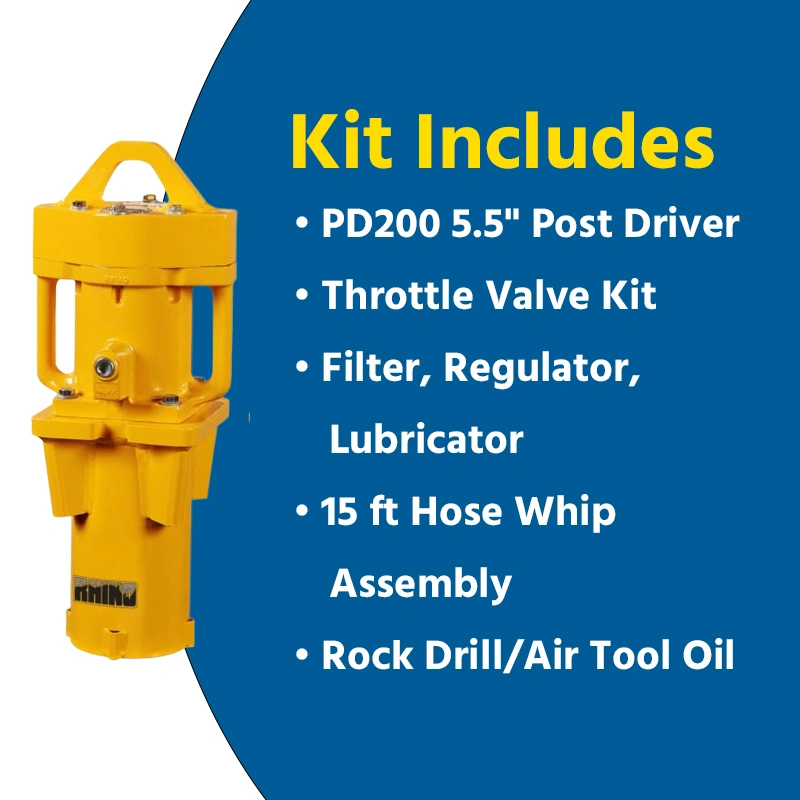

The Rhino PD-200 Economy Kit is the starter bundle for the PD-200 pneumatic post driver: the 170 lb driver with its standard 5-1/2 in. ID master chuck, a throttle valve kit with 5 ft hose whip, a filter-regulator-lubricator with carrier and hose, a 15 ft hose whip assembly and one gallon of rock drill oil the air-line equipment the driver needs from its first post.
A pneumatic driver only lasts on clean, oiled air, and this kit plumbs it correctly from day one: the FRL conditions and regulates supply while rock drill oil feeds the tool as it hits. The 5-1/2 in. round chuck suits round posts and pipe, and bolt-on adapters, sold separately, stretch coverage from ground rods to dock piles. See the rest of the Rhino pneumatic post drivers, or the other PD-200 kits for guard rail and utility configurations.
- Includes PD-200 pneumatic post driver with standard 5-1/2 in. ID master chuck installed
- Throttle valve kit with 5 ft hose whip puts air control at the operators position
- Filter-regulator-lubricator with carrier and hose conditions compressed air and meters lubrication
- 15 ft hose whip assembly and one gallon of rock drill oil complete the air line
- 170 lb driver with alloy steel piston, approximately 900 BPM and 72 CFM air consumption
- Adapters sold separately cover ground rods, T-posts, form pins, Telespar and channel posts, pipe up to 7 in. and dock piles
- Kit assembled and stocked by Crowder Supply in Denver
