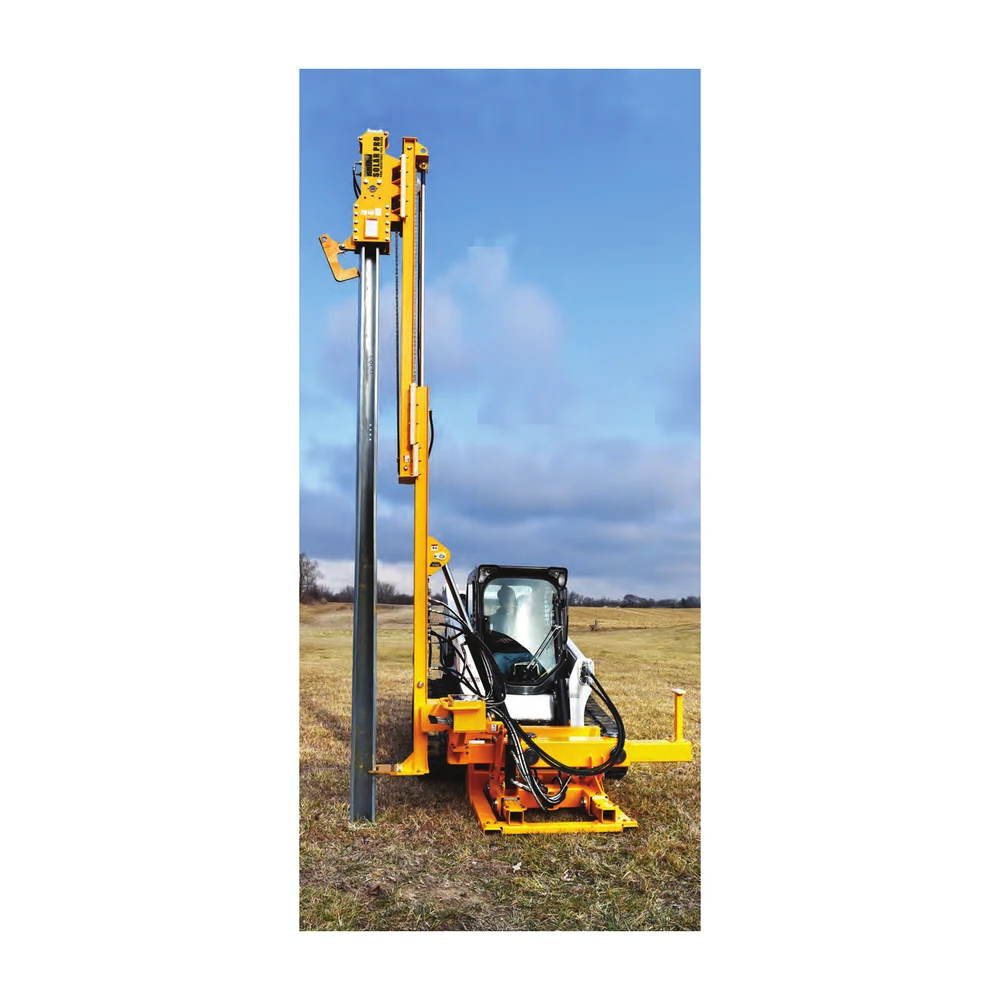

The Rhino Solar Pro (P/N 360001) is a skid steer pile driver attachment built in Kewanee, Illinois for large-volume mounted driving — solar farm pile installation and production piling work. A Furukawa Fx 55 hydraulic hammer delivers 800 ft-lb (1,085 J) per stroke at 500–1,000 BPM, and the omni-adjustable mast keeps every pile plumb on terrain that is anything but.
Pick the configuration on this page: the Unit Only (P/N 360001) is the 3,000 lb driver alone, handling piles up to 15 ft tall, while the Complete (P/N 360003) adds the 10 in. x 7.25 in. anvil and your choice of Solar Pro adapter, ready to drive from day one. Both mount to most carriers with a universal skid-steer plate — custom plates available — and the mono-block design has only two moving parts to maintain.
- Skid-steer mounted pile driver attachment; omni-adjustable mast for plumb installation on uneven terrain
- Furukawa Fx 55 hydraulic hammer delivers 800 ft-lb (1,085 J) of impact energy per stroke at 500–1,000 BPM
- Mast tilts 2° right, 90° left, 10° front and back; attachment shifts 10 in. front/back and 24 in. left/right
- Piles up to 15 ft tall; Complete configuration carries the 10 in. x 7.25 in. anvil for ground-mounted solar racking
- Carrier requirements: 10,000 lb minimum operating weight, 3,000 lb rated operating capacity, 1,740–2,320 PSI, 10.5–22.5 GPM
- Mono-block design with only two moving parts — minimal grease points, low-maintenance jobsite life
- Universal skid-steer mounting plate fits most carriers; custom mounting plates available on request
- Two-year warranty on the Furukawa hydraulic hammer
What Your Skid Steer Needs
Plan the carrier before the attachment arrives: a minimum 10,000 lb operating weight and 3,000 lb rated operating capacity, with auxiliary hydraulics delivering 10.5–22.5 GPM at 1,740–2,320 PSI. Add a hydraulic hose set with quick connects sized to your carrier — available in 25 ft and 40 ft lengths from Crowder Supply — and the attachment couples to most machines with the universal mounting plate.
Solar Pro FAQ
Unit Only or Complete — which configuration?
Complete (P/N 360003) if this is your first Solar Pro: it includes the 10 in. anvil and your choice of Solar Pro adapter, ready to drive. Unit Only (P/N 360001) if you are adding a driver to a fleet that already carries anvils and adapters.
What about highway guardrail work?
That is the Rhino Guardrail Pro — the 2,600 lb sibling tuned for guardrail posts to 8.5 ft with dedicated guardrail adapters and guide plates.
Can it pull piles too?
Yes — the pile puller kit converts it for extraction and solar-site remediation, and the pile lift kit handles positioning.
What else drives posts at machine scale?
See every truck- and carrier-mounted option in mounted post drivers, or compare the full Rhino lineup from handheld to skid-steer scale.
The Solar Pro is the carrier-mounted end of the Rhino skid steer pile driver range; for handheld work, see the full post driver selection. Guard/Solar Pro accessories cover chucks and wear parts.
