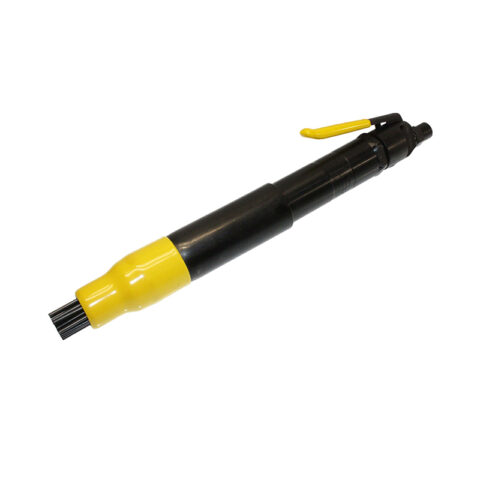

The Texas Pneumatic TX1B needle scaler is a USA-made pneumatic scaler whose needles adjust automatically to any surface contour, making fast work of rust, paint, scale and marine growth on irregular steel. It runs 4,600 BPM from a 1 in. bore and 1-1/8 in. stroke, drawing 12 CFM at 90 psi through a 1/4 NPT inlet, in a 6 lb tool measuring 17 in. overall.
The tool converts completely to a chisel scaler the TX1B chisel scaler is the flat-blade version and lever throttle, push throttle, long reach and 2 mm, 4 mm and 7 in. needle options are all stocked. Typical duty runs from de-rusting and weld peening to casting cleanup and chipping stone, concrete and brick. It anchors the Texas Pneumatic scaler line at Crowder Supply within our chisel and needle scaler selection, and an in-line lubricator on the supply hose keeps it cycling at rate.
- 4,600 BPM from a 1 in. bore and 1-1/8 in. stroke; 12 CFM at 90 psi through a 1/4 NPT inlet
- 6 lb tool weight and 17 in. overall length; 3/8 in. minimum hose size
- Needles adjust automatically to any surface contour for irregular and curved steel
- Completely convertible between needle and chisel scaler configurations

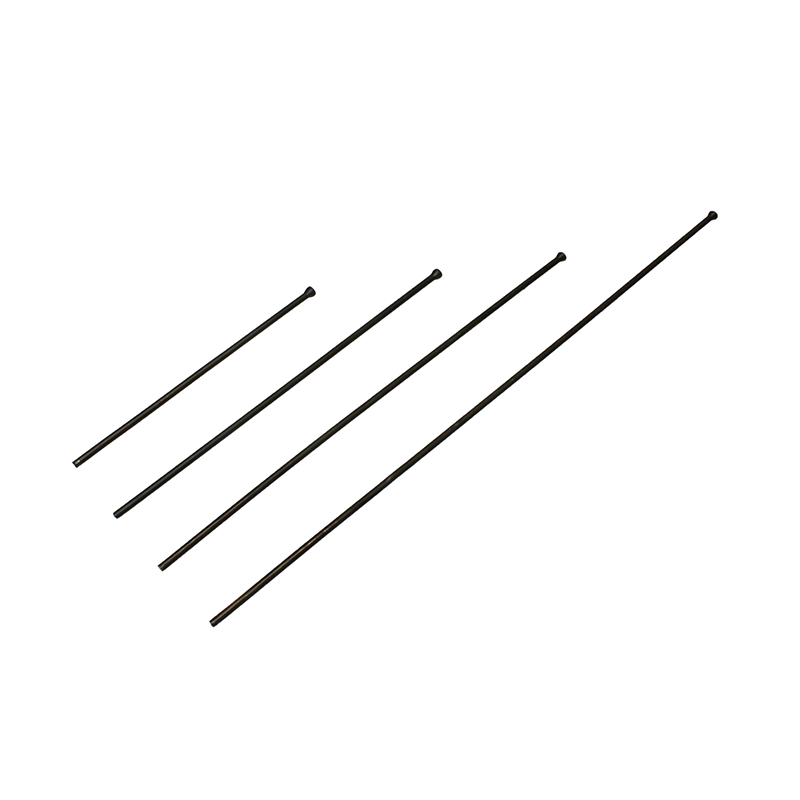

- Options stocked: lever or push throttle, long reach, and 2 mm, 4 mm and 7 in. needle configurations
- Applications: de-rusting, weld joint peening, casting and slag cleanup, barnacle and paint removal
- Made in the USA; stocked by Crowder Supply in Denver and ships free via UPS Ground
TX1B Needle Scaler FAQ
Can the TX1B convert to a chisel scaler?
Yes it is completely convertible between needle and chisel configurations; the TX1B chisel scaler is the flat-blade version of the same tool.
How much air does a needle scaler need?
Just 12 CFM at 90 psi through a 1/4 NPT inlet on a 3/8 in. minimum hose, so nearly any shop or contractor compressor keeps the 4,600 BPM cycle rate up.
What will it clean?
Rust, paint, dirt, welding slag, castings and barnacles, plus weld joint peening and chipping stone, concrete and brick the needles adjust automatically to any surface contour, so it follows irregular and curved steel.
Where is the TX1B made?
It is made in the USA, with tens of thousands of these tools proven in the field across thousands of applications.
