DOWN-THE-HOLE HAMMERS

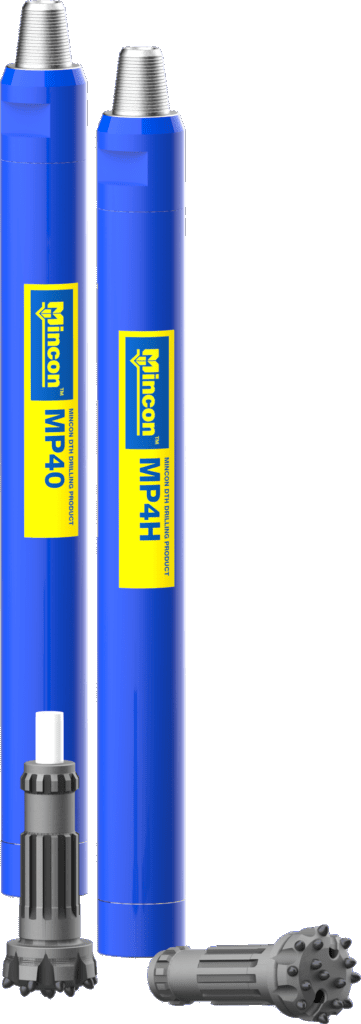

4" Series Hammers

The Mincon hammers maintain excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment. Mincon products are all manufactured in house (Ireland), and processes are carried out under one roof. This guarantees that the quality you expect is always delivered.

Applications include blast hole, water well, environmental, exploration, construciton and applications where limited supplies of air available.

** FREE ground shipping to non-dealers within the Continental United States

Design Highlights:

  • Patented features maximize energy output and reduce service requirements
  • Fewer internal components to minimize service requirements
  • Valveless, high frequency design ensures smooth operation
  • Hardened wear sleeve for optimum wear resistance even the most abrasive conditions
  • Multi-start threads on back head and chuck ensure easy coupling/uncoupling of hammer
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All critical internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user-friendly tool for use in the most demanding conditions

Mincon Hammers

The Mincon 4HRTD is a superior but versatile hammer, specifically built for drilling applications where high penetration speeds are vitally important.  It's unique design concept provides much greater impact energy and ultimate drilling performance for absolute maximum productivity in almost all ground conditions.

The Mincon MC series drill bits do not use foot valves (blow tubes) and therefore any problems previously associated with them are completely eradicated.  The multi-splined, full length drive bits are designed to extend the wear lift of the the bit shank.

Like all Mincon DTH hammers, the Mincon 4HRTD maintains an excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment. Mincon produces are all manufactured in house (Ireland) and all processes are carried out under the one roof. This guarantees that the quality you expect is always delivered.

Design Highlights:

  • Patented shank design is fully supported withing the chuck throughout the stroke providing maximum prodection against shanking.
  • Hammer design eliminates the foot valve from the drill bit.
  • Patented features maximize energey output and reduce service requirements
  • Extremely efficient air exhaust provide excellent hole cleaning and allows for drilling against very large volumes of water.
  • Valveless, high frequency design ensures smooth operation
  • Reversible hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All critical internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user friendly tool for use in the most demanding conditions

Applications:

  • Blast hole
  • Underground mining
  • Environmental
  • Exploration
  • Construction
Model Part No. Price
Mincon 4HRTD Hammer MD401AS16 $4,046.43

*** FREE shipping within continental United States for non-dealers

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3⁄8" API Reg Pin

Consumables
Bit Shank Type Mincon TD40

TD40 4" Down the Hole Bits

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3/8" API Reg Pin



Accessories
O Ring Kit MD425OK01 $12.96
Service Kit MD426SK02 QUOTE

Mincon 4HDS Hammer

The Mincon 4HDS is a universal hammer that can be used in almost any drilling application.  It is a field proven technolgy that delivers superior penetration rates versus other manufacturers.  A unique heavy duty bit design reduces the possibility of bit shanking, expecially at the larger bit sizes.

Like all Mincon DTH hammers, the Mincon 4HDS maintains an excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment.  Mincon produces are all manufactured in house (Ireland) and all processes are carried out under the one roof.  This guarantees that the quality you expect is always delivered.

Design Highlights

  • Patented features maximize energy output and reduce service requirements
  • Fewer internal components minimize service requirements
  • Valveless, high frequency design ensures smooth operation
  • Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
  • Multi-start threads on back head and chuck ensure easy coupling/uncoupling of hammer
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All critical internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user friendly tool for use in the most demanding conditions

Applications:

  • Blast hole
  • Underground mining
  • Environmental
  • Exploration
  • Construction
  • Geothermal
Model Part No. price
Mincon 4HDS Hammer MD401AS04 $4,046.43

*** FREE shipping within continental United States for non-dealers

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3⁄8" API Reg Pin
Consumables
Bit Shank Type Mincon MD4
Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3/8" API Reg Pin
Accessories
O Ring Kit MD425OK02 QUOTE
Service Kit MD426SK02 QUOTE

The Mincon 4HDS is a universal hammer that can be used in almost any drilling application.  It is a field proven technolgy that delivers superior penetration rates versus other manufacturers.  A unique heavy duty bit design reduces the possibility of bit shanking, expecially at the larger bit sizes.

Like all Mincon DTH hammers, the Mincon 4HDS maintains an excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment.  Mincon produces are all manufactured in house (Ireland) and all processes are carried out under the one roof.  This guarantees that the quality you expect is always delivered.

Design Highlights

  • Patented features maximize energy output and reduce service requirements
  • Fewer internal components minimize service requirements
  • Valveless, high frequency design ensures smooth operation
  • Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
  • Multi-start threads on back head and chuck ensure easy coupling/uncoupling of hammer
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All critical internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user friendly tool for use in the most demanding conditions
Applications:
  • Blast hole
  • Underground mining
  • Environmental
  • Exploration
  • Construction
  • Geothermal
Model Part No. Price
Mincon 4HDS Hammer MD401AS08 $4,046.43

*** FREE shipping within continental United States for non-dealers

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-7⁄8" API Reg Pin
Consumables
Bit Shank Type Mincon MD4
Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-7/8" API Reg Pin
Accessories
O Ring Kit MD425OK01 $12.96

The Mincon 4HDS is a universal hammer that can be used in almost any drilling application.  It is a field proven technolgy that delivers superior penetration rates versus other manufacturers.  A unique heavy duty bit design reduces the possibility of bit shanking, expecially at the larger bit sizes.

Like all Mincon DTH hammers, the Mincon 4HDS maintains an excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment.  Mincon produces are all manufactured in house (Ireland) and all processes are carried out under the one roof.  This guarantees that the quality you expect is always delivered.

Design Highlights:

  • Patented features maximize energy output and reduce service requirements
  • Fewer internal components minimize service requirements
  • Valveless, high frequency design ensures smooth operation
  • Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
  • Multi-start threads on back head and chuck ensure easy coupling/uncoupling of hammer
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All critical internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user friendly tool for use in the most demanding conditions

Applications:

  • Blast hole
  • Underground mining
  • Environmental
  • Exploration
  • Construction
  • Geothermal
Model Part No. Price
Mincon 4HDS Hammer MD401AS14 $4,136.46

*** FREE shipping within continental United States for non-dealers

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   Cubex 24
Consumables
Bit Shank Type Mincon MD4
Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   Cubex 24
Accessories
O Ring Kit MD425OK01 $12.96

Mincon 4HR Hammer

The Mincon 4HR is a universal hammer that can be used in almost any drilling application.  It is a field proven technology that delivers superior penetration rates versus other manufacturers.

Like all Mincon DTH hammers, the Mincon 4HDS maintains an excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment. Mincon produces are all manufactured in house (Ireland) and all processes are carried out under the one roof. This guarantees that the quality you expect is always delivered.

Design Highlights

  • Patented features maximize energy output and reduce service requirements
  • Fewer internal components minimize service requirements
  • Valveless, high frequency design ensures smooth operation
  • Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
  • Multi-start threads on back head and chuck ensure wasy coupling/uncoupling of hammer
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All criticla internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user-friendly tool for use in the most demanding conditions

Applications:

  • Blast hole
  • Underground mining
  • Environmental
  • Exploration
  • Construction
Model Part No. Price
Mincon 4HR Hammer MD401AS05 $4,046.43

*** FREE shipping within continental United States for non-dealers

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3⁄8" API Reg Pin
Consumables
Bit Shank Type Mincon DHD 340A
Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.6
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3/8" API Reg Pin
Accessories
O Ring Kit MD425OK01 $12.96
Service Kit MD426SK01 QUOTE

Mincon 4RSD4 Hammer

The Mincon 4HRSD4 is a universal hammer that can be used in almost any drilling application. It is a field proven technology that delivers superior penetration rates versus other manufacturers.  A unique heavy duty bit design
reduces the possibility of bit shanking, especially at the larger bit sizes.

Like all Mincon DTH hammers, the Mincon 4HDSD4 maintains an excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment. Mincon products are all manufactured in house (Ireland) and all processes are carried out under the one roof. This guarantees that the quality you expect is always delivered.

Design Highlights

  • Patented features maximize energy output and reduce service requirements
  • Fewer internal components minimize service requirements
  • Valveless, high frequency design ensures smooth operation
  • Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
  • Multi-start threads on back head and chuck ensure wasy coupling/uncoupling of hammer
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All critical internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user-friendly tool for use in the most demanding conditions

Applications:

  • Blast hole
  • Underground mining
  • Environmental
  • Exploration
  • Construction
  • Geothermal
Model Part No. Price
Mincon 4HDS Hammer MD401AS09 $4,046.43

*** FREE shipping within continental United States for non-dealers

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 38.1
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3⁄8" API Reg Pin
Consumables
Bit Shank Type Sandvik SD4 / 3415
Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 38.1
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Back Head Thread   2-3/8" API Reg Pin
Accessories
O Ring Kit MD425OK02 QUOTE
Service Kit MD426SK02 QUOTE

Mincon MC40 Hammer

The Mincon MC40 hammer is designed around proven technology to perform at the top end of the performance scale compared to other tools on the market.  These tools are excellent for all types of drilling applications including residential geothermal, production quarry drilling, seismic drilling and small construction drilling.

Like all Mincon DTH hammers, the Mincon 4HDS maintains an excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment. Mincon produces are all manufactured in house (Ireland) and all processes are carried out under the one roof. This guarantees that the quality you expect is always delivered.

Design Highlights

  • Patented features maximize energy output and reduce service requirements
  • Fewer internal components minimize service requirements
  • Valveless, high frequency design ensures smooth operation
  • Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions
  • Multi-start threads on back head and chuck ensure wasy coupling/uncoupling of hammer
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • All criticla internal components are heat treated under strict control to maximize tool longevity
  • An overall cost-effective and user-friendly tool for use in the most demanding conditions

Applications:

  • Residential geothermal
  • Production quarry drilling
  • Seismic drilling
  • Small construction drilling
Model Part No. Price
Mincon MC40 Hammer - 2-3/8" A.P.I. Reg. Pin

MD401AS15

 $4,882.20
Mincon MC40 Hammer with Button Back Head MD401AS15B $5,001.66
Mincon MC40 Hammer - 2-7/8" A.P.I. Reg. Pin MD401AS20 $4,882.20

*** FREE shipping within continental United States for non-dealers

Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.8
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Consumables
Bit Shank Type 4" Mincon MC42
Specifications
Outside Diameter (in) 3.82
Minimum Bit Size (in) 4.33
Spanner Flat Size (in) 2.5
Hammer Length (in) 37.8
Hammer Weight (lbs) 85
Piston Weight (lbs) 17
Wear Sleeve Reverse Limit   n/a
Wear Sleeve Discard Limit (in) 3.425
Accessories
O Ring Kit MD425OK03 QUOTE
Service Kit MD426SK03 QUOTE

Forgot password?
