Carrier base plate and adapter plate not included. Epiroc bulk pulverizers mount to the carrier through a carrier-specific base plate and adapter plate (with bolt kit), which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plates and bolts.

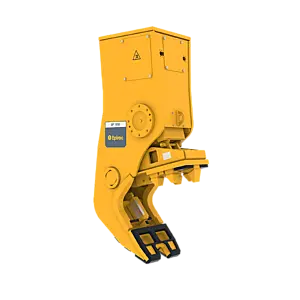

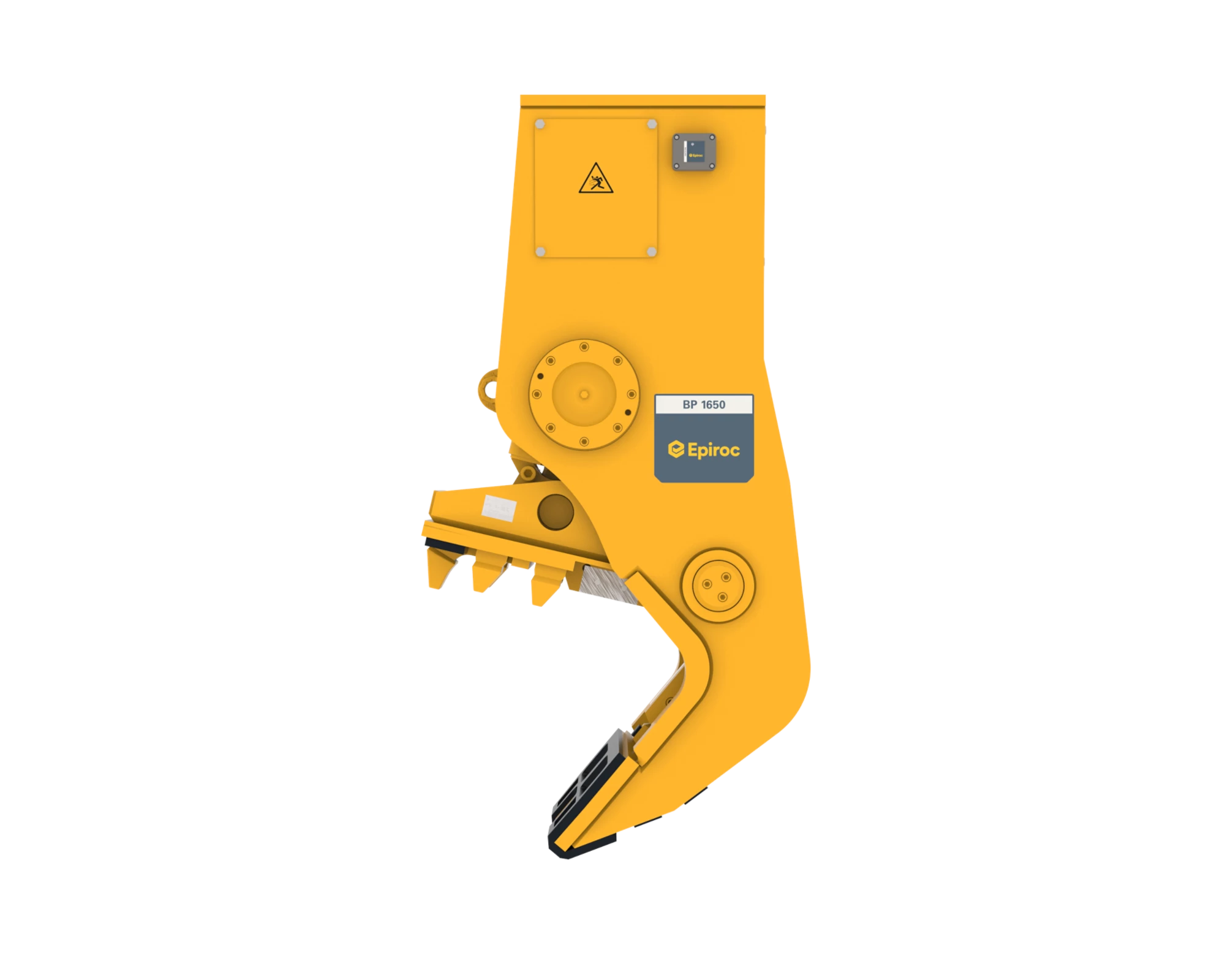

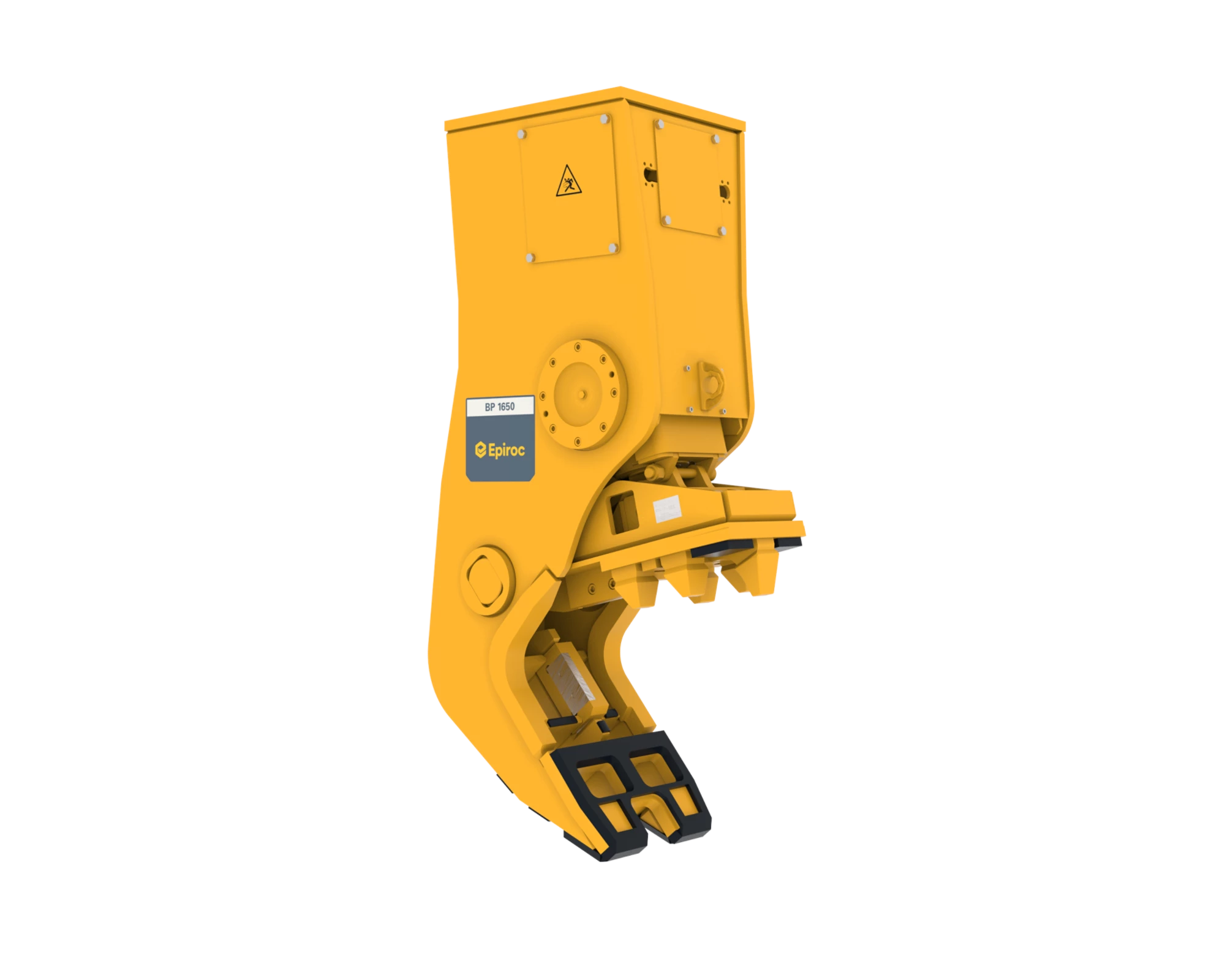

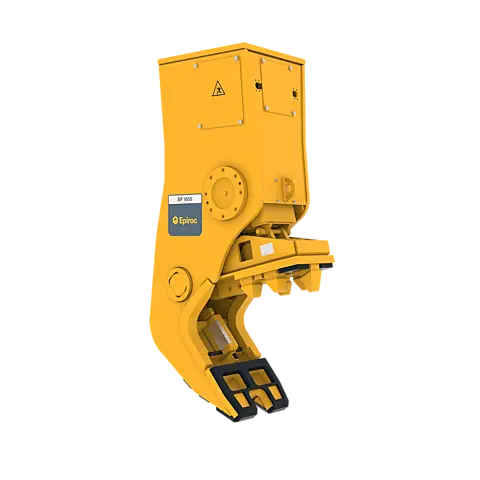

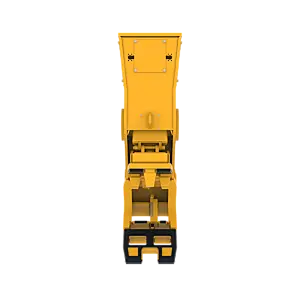

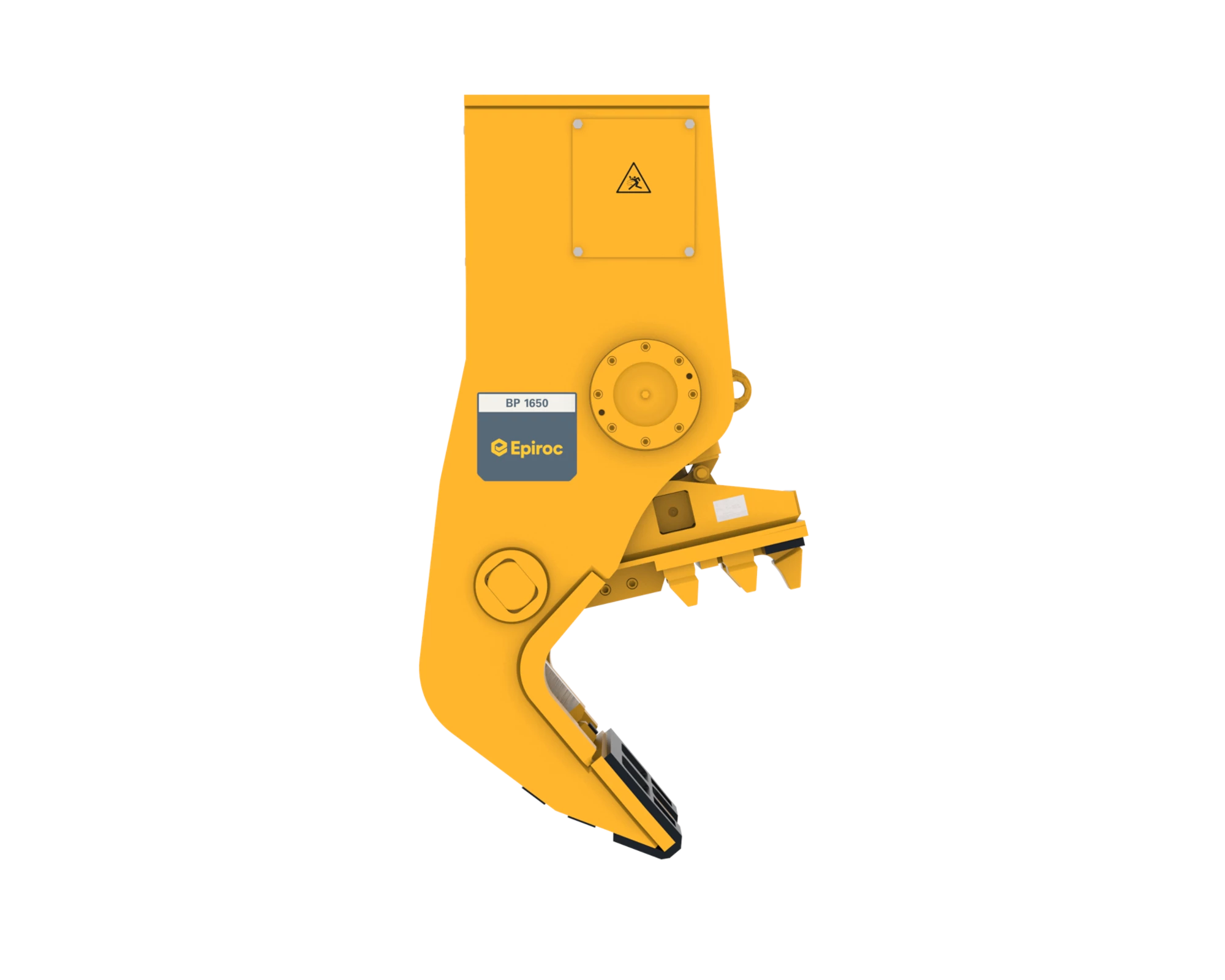

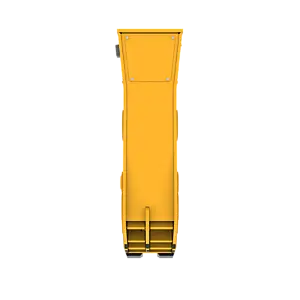

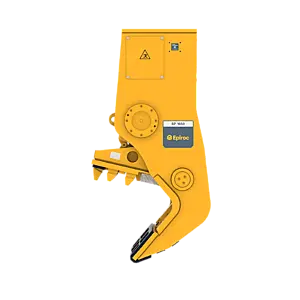

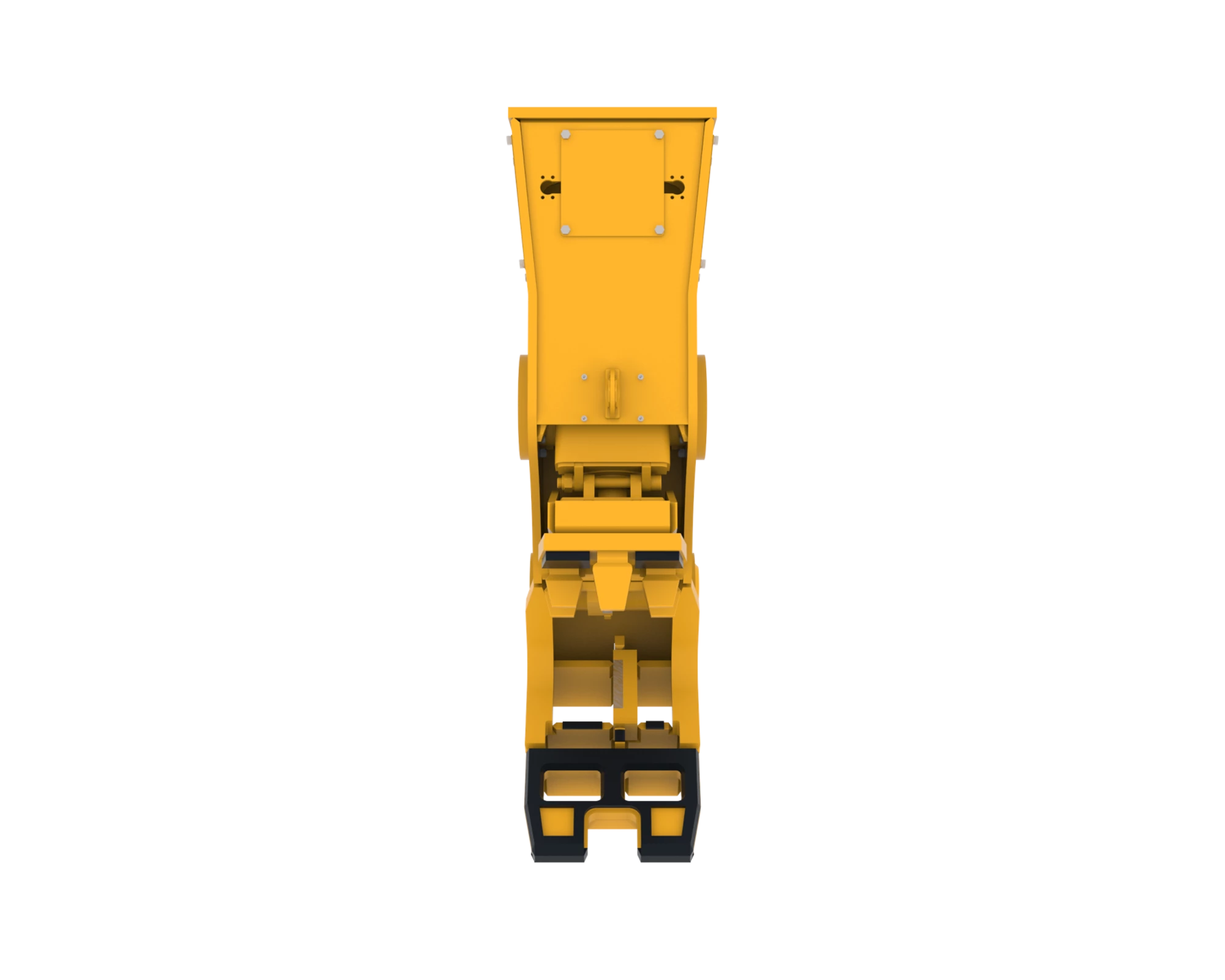

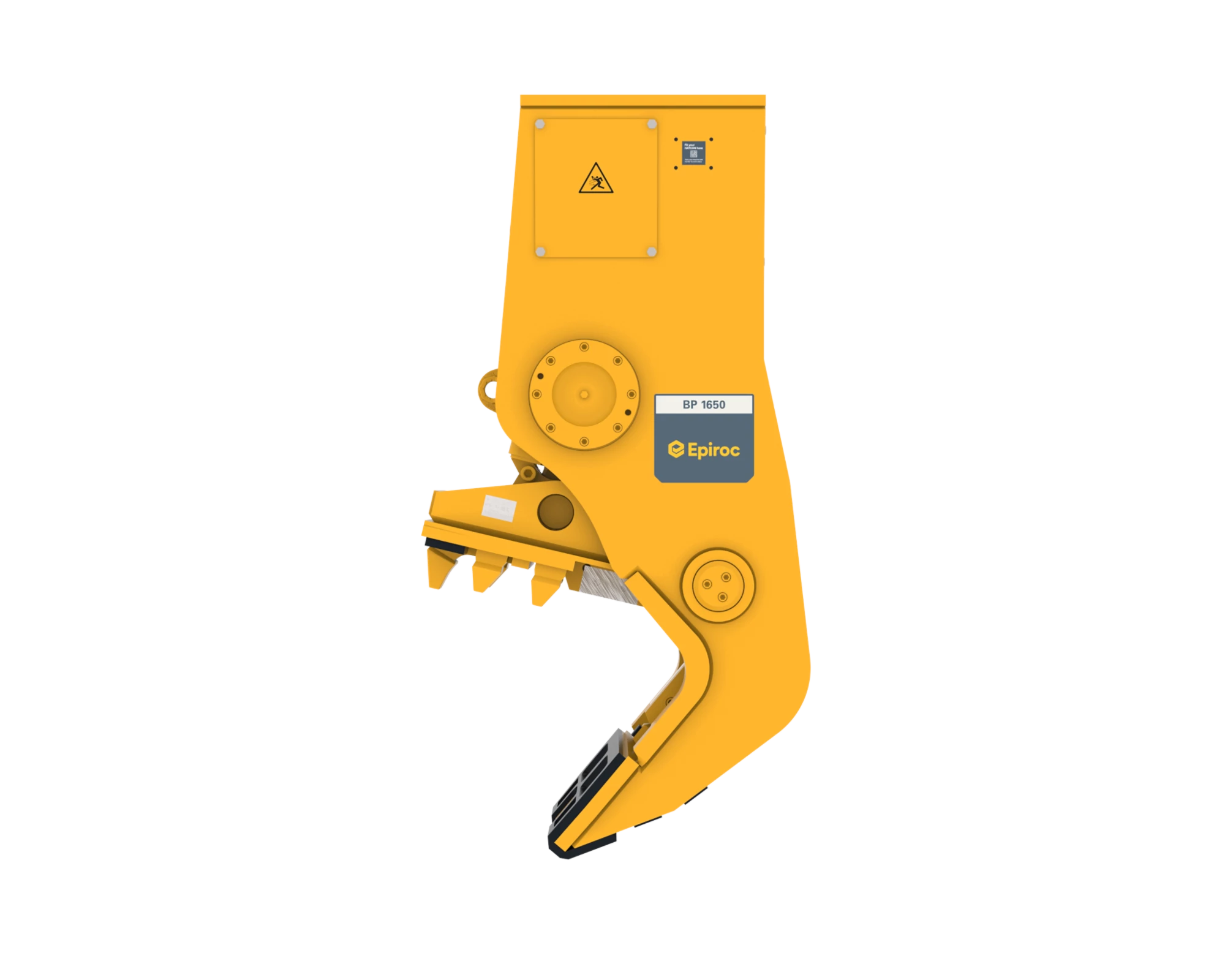

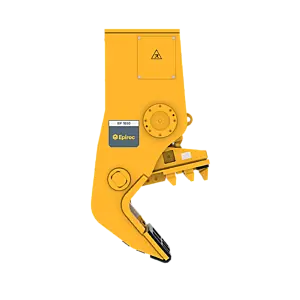

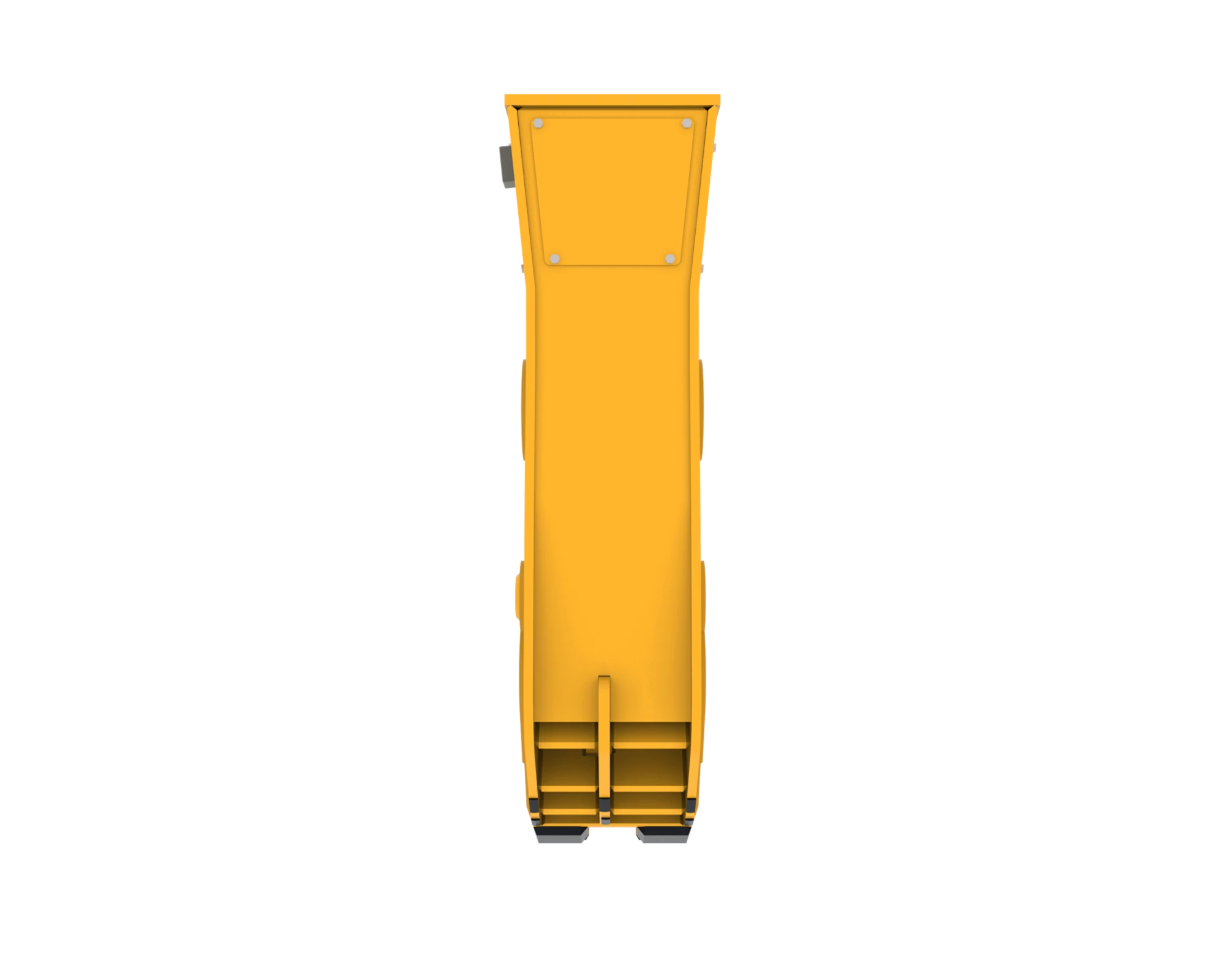

The Epiroc BP 1650 is a static (non-rotating) hydraulic bulk pulverizer for 30,900–50,700 lb (14–23 t) excavators, with an angled jaw that separates rebar from concrete in secondary reduction.

Service weight 3,900 lb (1,770 kg) with an average-sized adapter plate; product weight 3,525 lb. Cutting force at the upper blades 231 US tons (210 t); crushing force at the jaw tip 81.6 US tons (74 t). Jaw opening 29.9 in. (760 mm), jaw depth 21.7 in., blade length 6.9 in. Cycle time 2.0 s opening / 1.9 s closing. Oil flow 39.6–66 gpm (150–250 l/min) at up to 5,075 psi (350 bar).

The angled jaw separates rebar from concrete in secondary reduction. A piston rod guard protects the hydraulic cylinder, an integrated speed valve shortens working cycles, the tooth plate is replaceable, and the cutting blades are replaceable and reversible.

Use it for secondary reduction on demolition and recycling sites: the jaws crush concrete debris on the ground and free the rebar, so the concrete and the steel can be recycled separately.

Service parts on the BP 1650 / BP 1650 R Bulk Pulverizer parts breakdown (serial DEQ219329 and later, DGR240001 and later) include the cutter blades kit 3363126321, cylinder seal kit 3363125864, label kit 3363125690, rotary seal kit 3363083065, speed valve seal kit 3363113168 (earlier units), speed valve seal kit 3363127334 (current units), tooth plate, complete 3363126322, hydraulic motor and housing seal kit 3363126309 and connection hoses 3360332294 (0.79 in.), 3363085947 (0.79 in.). The HATCON LTE telematics kit is sold separately. See the full Epiroc pulverizers range.

• Fits 30,900–50,700 lb (14–23 t) excavators; service weight 3,900 lb (1,770 kg)
• 231 US tons (210 t) cutting force at the upper blades; 81.6 US tons at the jaw tip
• 29.9 in. (760 mm) jaw opening, replaceable tooth plate, reversible cutting blades
• Static mount; rotating version sold separately, integrated speed valve, piston rod guard
• 39.6–66 gpm (150–250 l/min) at up to 5,075 psi (350 bar)
• Carrier base plate and adapter plate not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
