Carrier base plate and adapter plate not included. Epiroc combi cutters mount to the carrier through a carrier-specific base plate and adapter plate (with bolt kit), which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing on the plates and bolts.

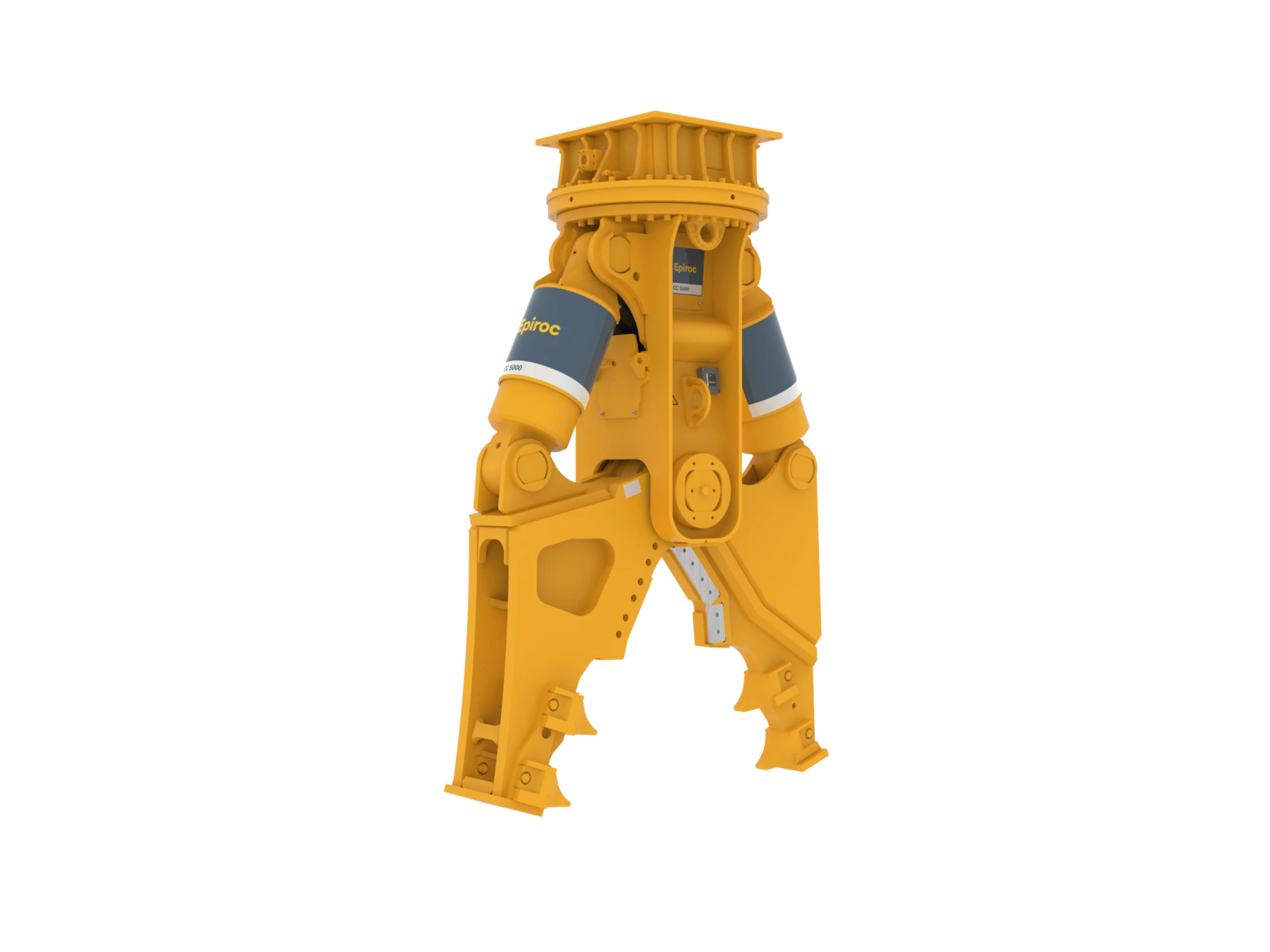

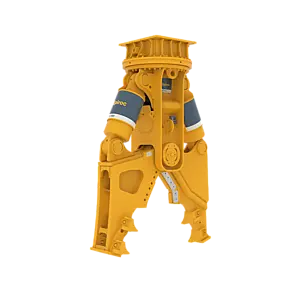

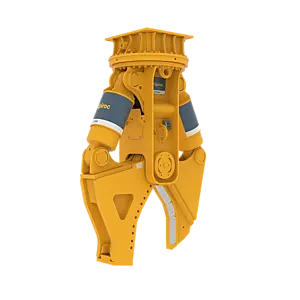

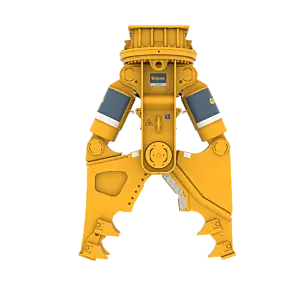

The Epiroc CC 5000 is a hydraulic combi cutter for 99,200–143,300 lb (45–65 t) excavators, with interchangeable U (universal) and S (steel cutting) jaw sets for primary demolition, secondary reduction and steel cutting.

Cutting force at the jaw tip 683 US tons (620 t) on every jaw set. Service weight 10,935–11,685 lb (4,960–5,300 kg) depending on the jaw set; jaw opening up to 51.2 in. Cycle time 3.7 s opening / 3.2 s closing. Oil flow 92.5–118.9 gpm (350–450 l/min) at up to 5,075 psi (350 bar); rotation circuit 13.2 gpm at up to 1,670 psi.

Two hydraulic cylinders deliver virtually constant closing force, and two independently moving jaws eliminate displacement force, lowering stress on the carrier. The CAPS coupling and positioning system lets the crew change jaw sets on site. An integrated speed valve shortens working cycles, piston rod guards protect both cylinders, the crushing teeth of the U and P jaws are replaceable, and the cutting blades are replaceable and reversible. 360° endless hydraulic rotation positions the jaws precisely.

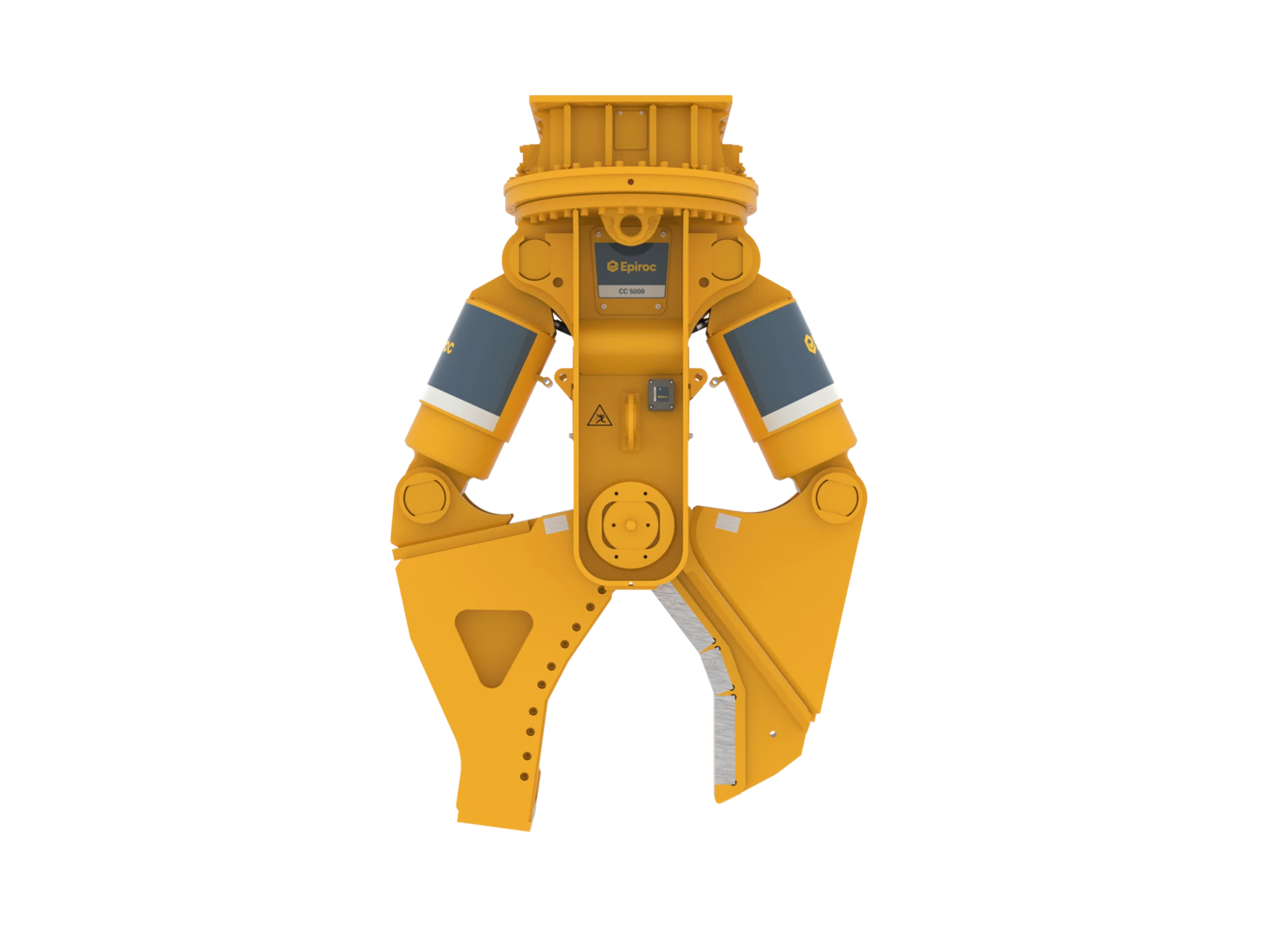

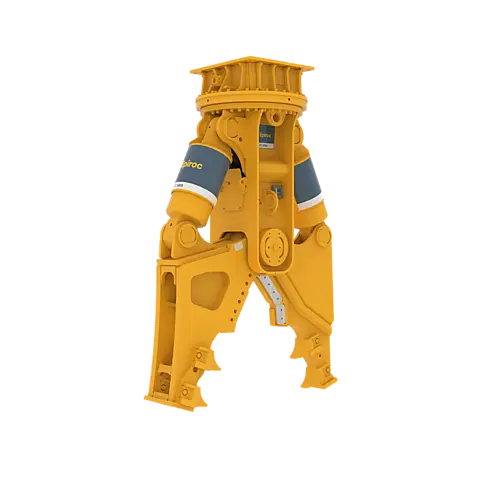

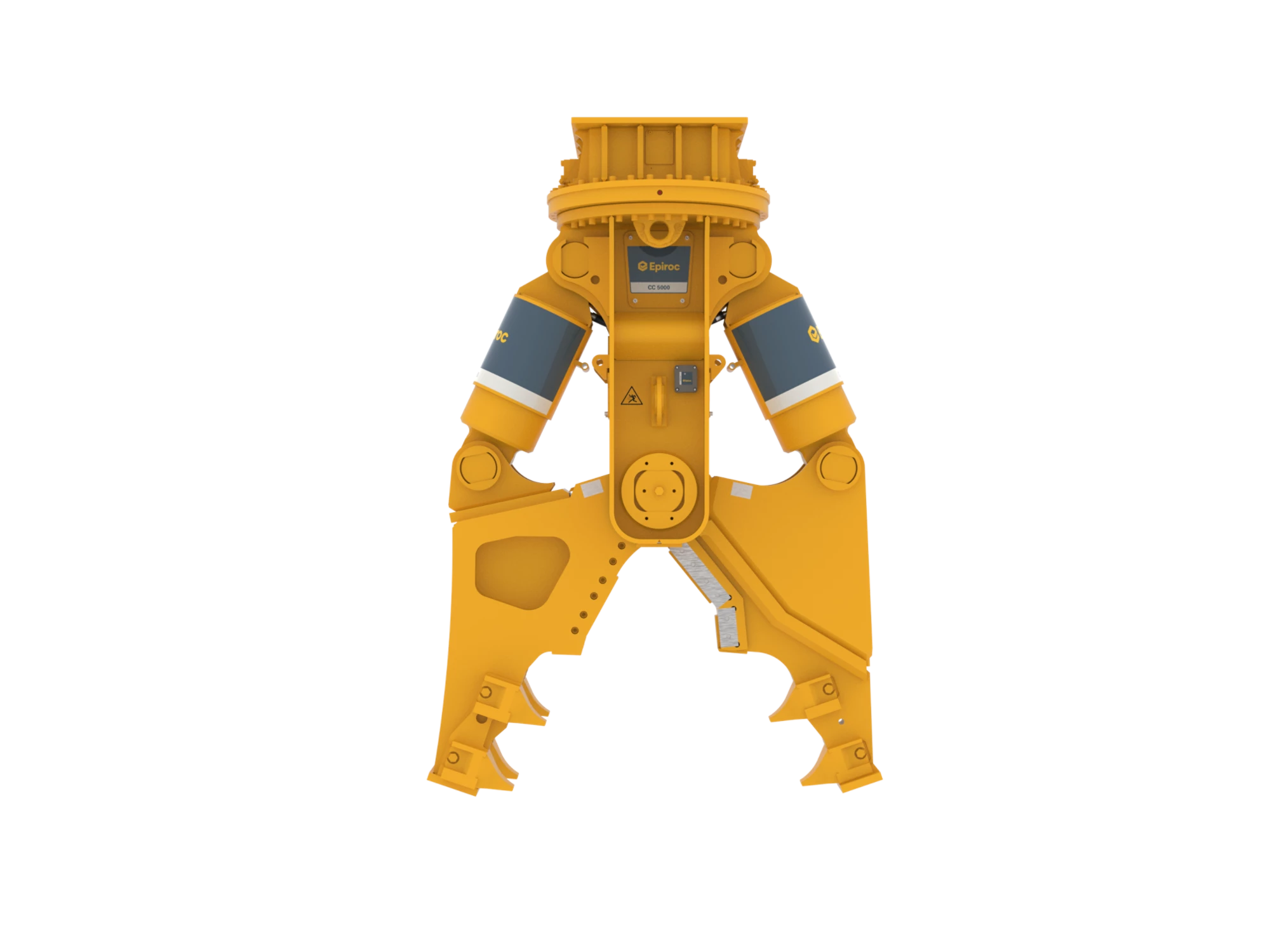

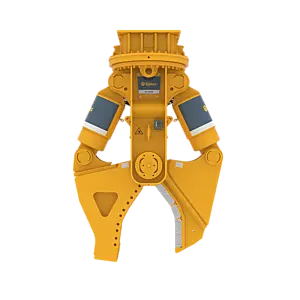

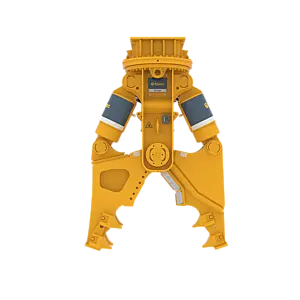

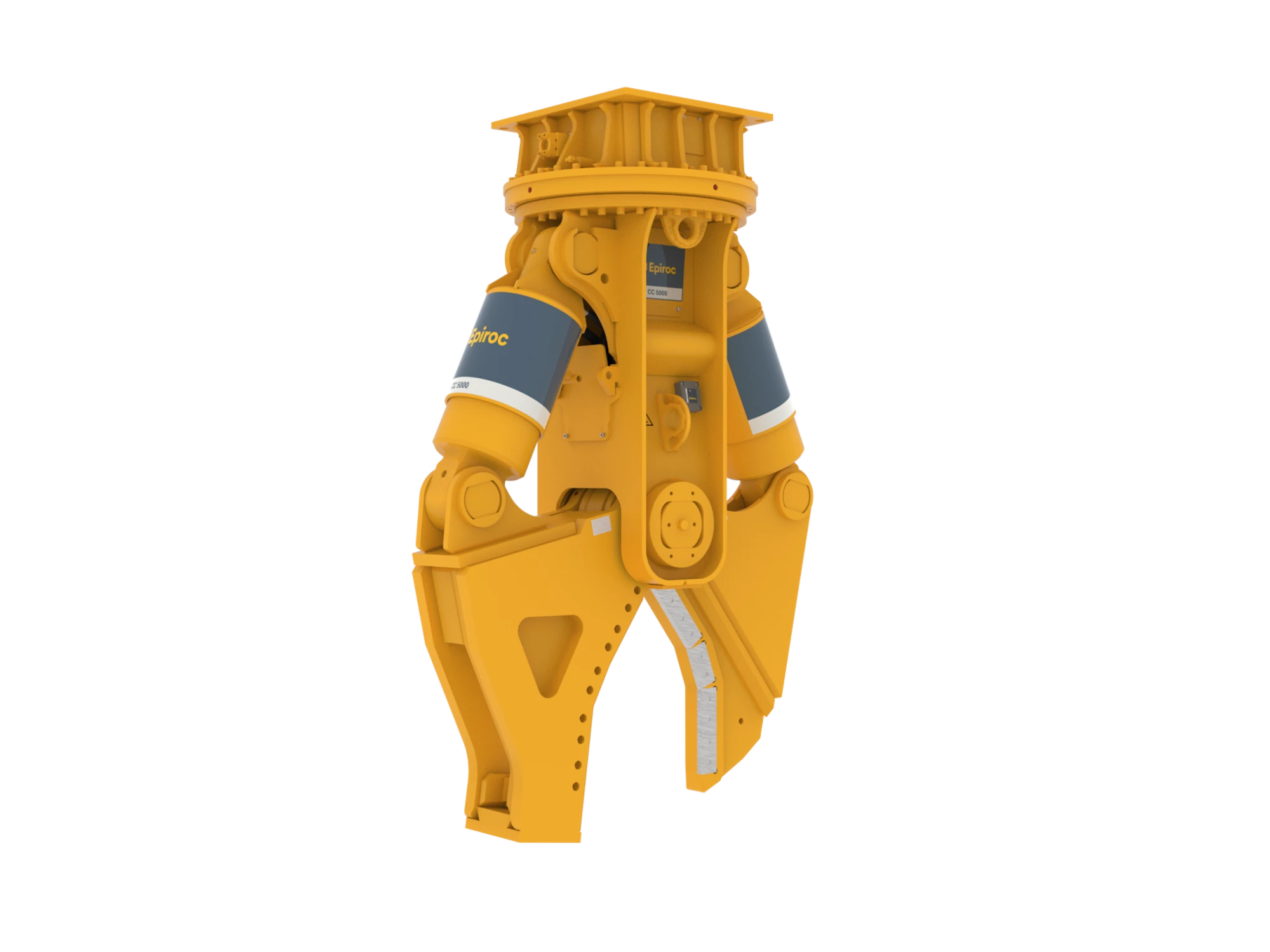

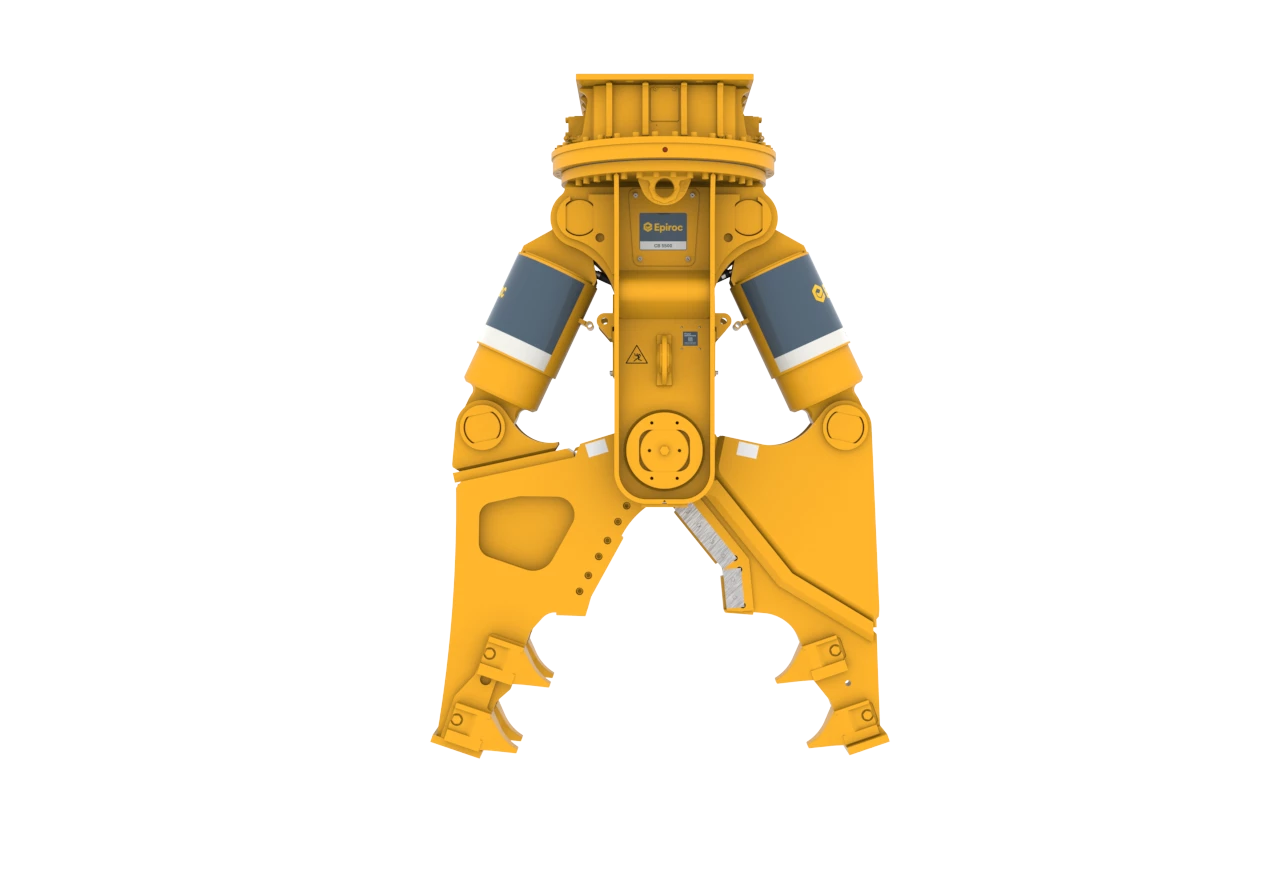

Use it for primary demolition and secondary reduction of concrete structures with the U (universal) jaws, and for cutting steel beams, pipes, tanks and rebar with the S (steel cutting) jaws, so one carrier tool covers the whole job.

Service parts on the CC 5000 Combi Cutter parts breakdown (serial DEQ159199–DEQ249027, DGR240105 and later) include the casing hose kit 3363106347, cutter blades kit 3363112051 (S jaws), cutter blades kit 3363112362 (U jaws), label kit 3363118304, sliding plate kit 3363103648 (S jaws), tip of tooth kit 3363103619 (U jaws), rotary seal kit 3363083066, hydraulic motor and housing seal kit 3363126309, speed valve seal kit 3363106314, cylinder seal kit 3363103698 and connection hoses 3363031767 (110 in.), 3363034399 (138 in.), 3363106493 (1.26 in.), 3363106494 (1.26 in.). The HATCON LTE telematics kit is sold separately. See the full Epiroc combi cutters range.

• Fits 99,200–143,300 lb (45–65 t) excavators; service weight 11,685 lb with U jaws
• 683 US tons (620 t) cutting force at the jaw tip on all jaw sets
• U and S jaw sets change on site with the CAPS coupling and positioning system
• 360° endless hydraulic rotation, integrated speed valve, piston rod guards on both cylinders
• 92.5–118.9 gpm (350–450 l/min) at up to 5,075 psi; replaceable, reversible cutting blades
• Carrier base plate and adapter plate not included – carrier-specific, quoted separately; ships by $500 flat-rate Freight from Crowder Supply in Denver
