Carrier base plate and adapter plate not included. Epiroc attachments mount to the carrier through a carrier-specific base plate, adapter plate and bolt kit, which are not part of this price. Call us at 888-883-5144 or contact us with your carrier make and model for exact pricing.

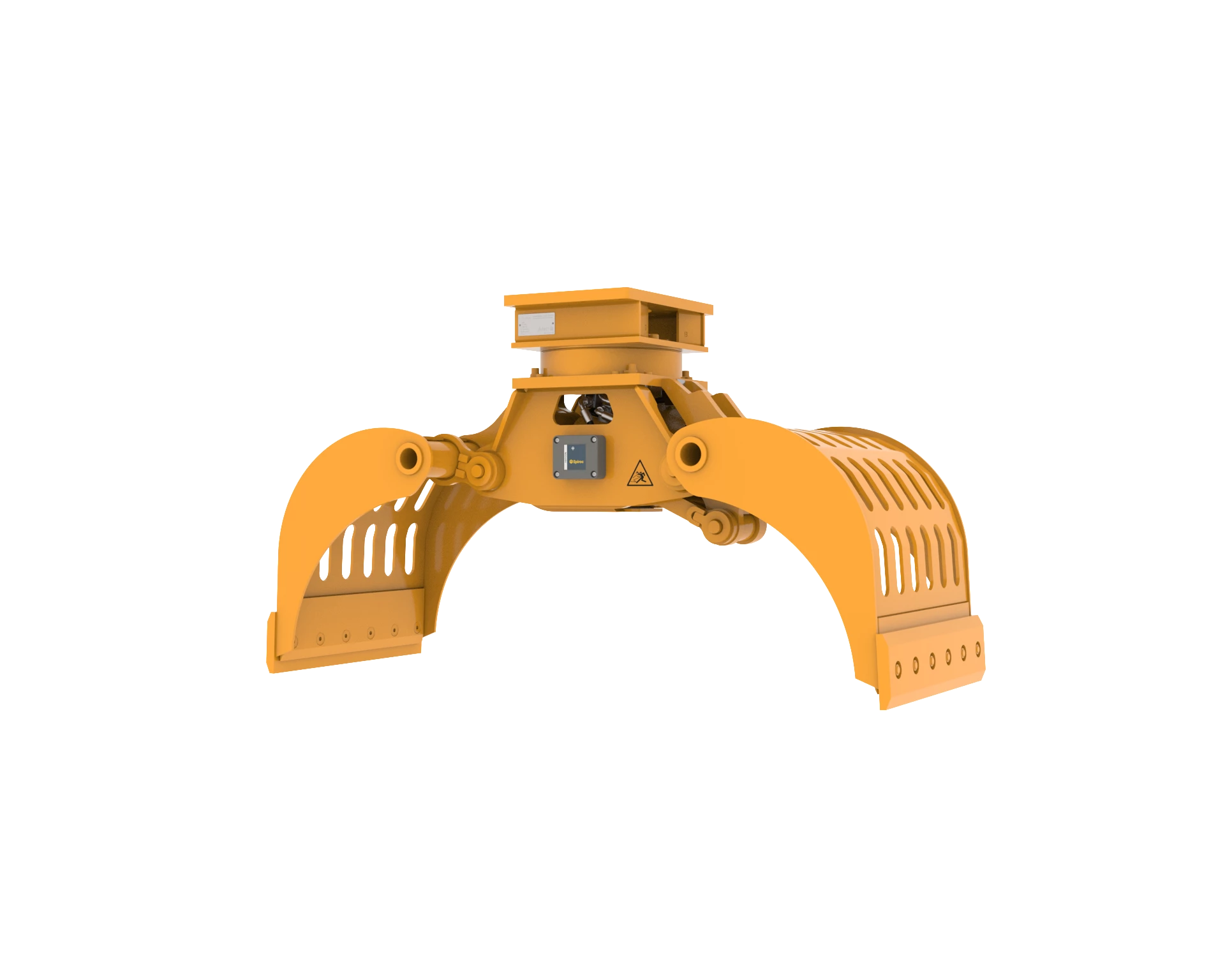

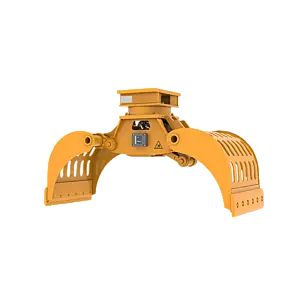

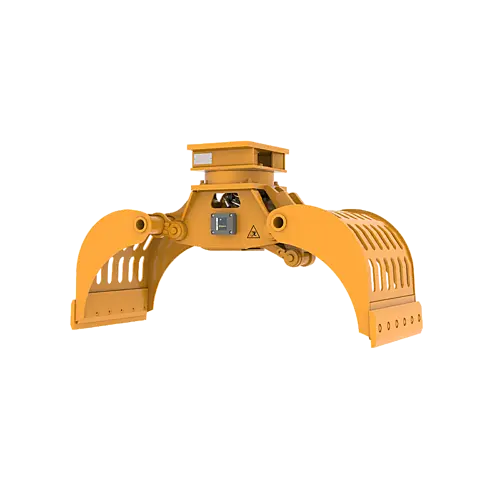

The Epiroc MG 400 R is a hydraulic multi grapple for 8,800–17,600 lb (4–8 t) excavators, built for loading and sorting material and for demolishing wooden and masonry structures.
Service weight 1,140 lb (516 kg) with an average-sized adapter plate; product weight 950 lb (430 kg). Max. closing force 2.5 US tons (2.3 t). Jaw opening 58.3 in. (1,480 mm), grapple width 23.7 in. (603 mm), loading volume 0.27 cu yd (0.21 m³). Oil flow 10.6 gpm (40 l/min) at up to 4,350 psi (300 bar); rotation circuit 2.6–4 gpm (10–15 l/min) at up to 2,465 psi (170 bar). 360° endless hydraulic rotation positions the shells precisely, and the rotation can be switched off for non-rotating use.
Epiroc multi grapples load and sort material and take down wooden and masonry structures with a steady grip and virtually constant closing force. An integrated mechanical stop takes load off the cylinders, the solid perforated shells keep the load in view, and the cutting blades are replaceable and reversible. Optional tooth blades (MG 400–2300) suit block and stone handling, and optional bolt-on side plates (MG 400–1500) hold fine-grained material and debris.
Service parts on the MG 400 / MG 400 R Multi Grapple breakdown (serial DEQ236371-DEQ246286, DGR250025 and later): blade kits 3363124282 / 3363125139, cylinder seal kit 3376680158, rotary seal kit 3376678152, hydraulic motor seal kits 3363124374 / 3376680159, life ring seal kits 3363129337 / 3376678108, label kit 3363106251, optional tooth blade kit 3376680105 and optional side closing plates kit 3376680106, and connection hoses 3363094540 / 3363094541. HATCON LTE telematics kit sold separately. See the MG 400 / MG 400 R Multi Grapple parts diagram for every part, and the full Epiroc excavator attachments range.
- Fits 8,800–17,600 lb (4–8 t) excavators; service weight 1,140 lb (516 kg)
- 2.5 US tons (2.3 t) closing force; 58.3 in. (1,480 mm) jaw opening
- 0.27 cu yd (0.21 m³) loading volume, 23.7 in. (603 mm) grapple width
- 360° endless hydraulic rotation, integrated mechanical stop, reversible blades
- 10.6 gpm (40 l/min) at up to 4,350 psi (300 bar); rotation 2.6–4 gpm at 2,465 psi
- Carrier base plate and adapter plate not included; contact us for exact pricing
