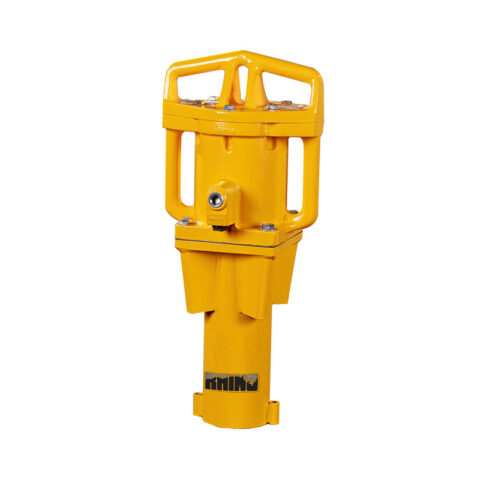

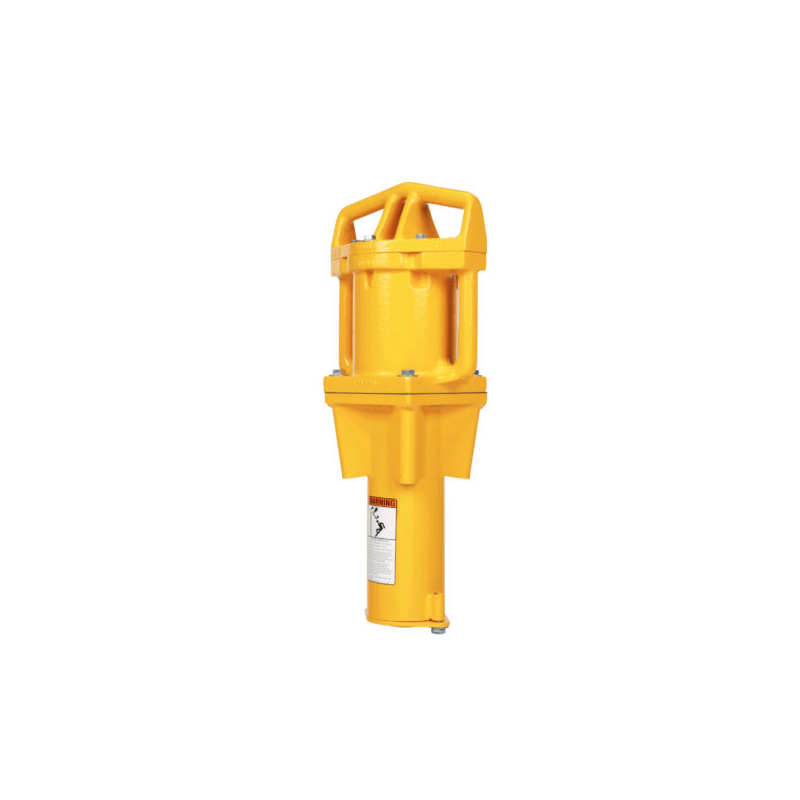

The Rhino PD-110 (P/N 070014) is a 109 lb medium/heavy-duty pneumatic post driver that works where fence tools stop: the air-powered choice for 2 to 4 in. pipe and tube, 4×4 wood posts, structural concrete forms, pin piles and dock piles. In most soils it drives a 2 in. O.D. post 10 to 15 ft deep, and at this weight a mechanical lift is recommended for safe handling.

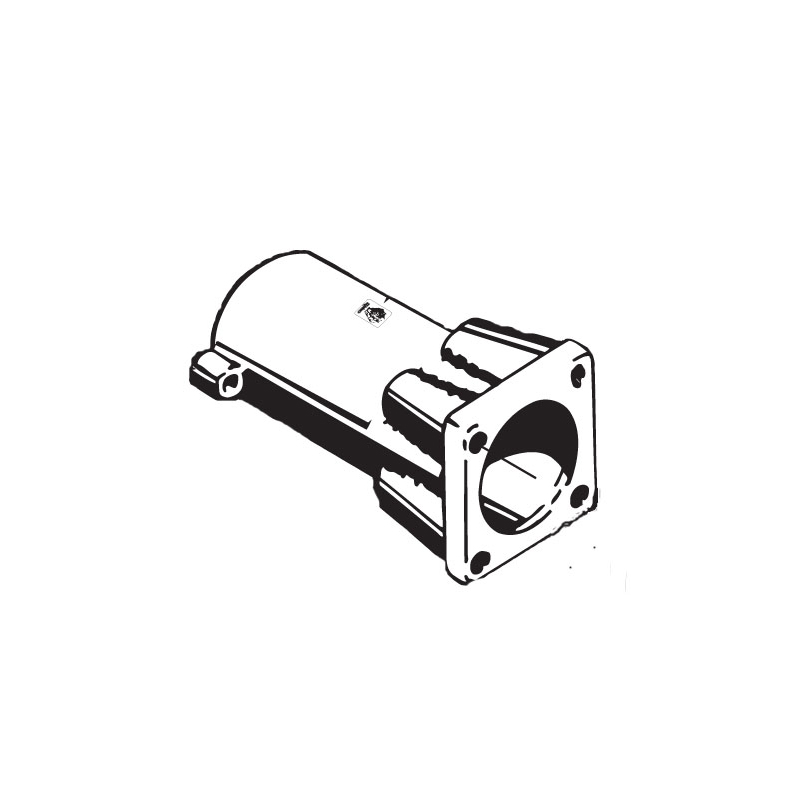

Its 4-1/4 in. round master chuck is the same size the PD-140 runs, so drive caps and adapters move between the two drivers as jobs change, and a single reciprocating piston cycled by a double valve one moving part keeps maintenance minimal. Feed it 64 CFM at 100 PSI through a throttle valve and filter-regulator-lubricator with rock drill oil in the line. The Rhino post driver buyers guide matches models to post types across our post driver range.
- Drives 2 to 4 in. pipe and tube, 4×4 wood posts, structural concrete forms, pin piles and dock piles
- Capable of driving a 2 in. O.D. post 10 to 15 ft deep in most soils
- 4-1/4 in. round master chuck shares drive caps and adapters with the PD-140
- Single-piston design cycled by a double valve one moving part for a decades-long service life
- 109 lb working weight; mechanical lift recommended for safe operation
- Air consumption of 64 CFM at 100 PSI from a mid-size tow-behind compressor
- Stocked by Crowder Supply in Denver with free UPS Ground shipping
