Tamco/Toku THA-1B Chipping Hammer – .580 Hex

Tamco/Toku THA-1B Chipping Hammer – .580 Hex

$679.00

Add to Cart
Tamco/Toku THA-1B Chipping Hammer – .580 Hex
Tamco/Toku THA-1B Chipping Hammer - .580 Hex
$679.00
Free Shipping (Ground shipping to lower 48)

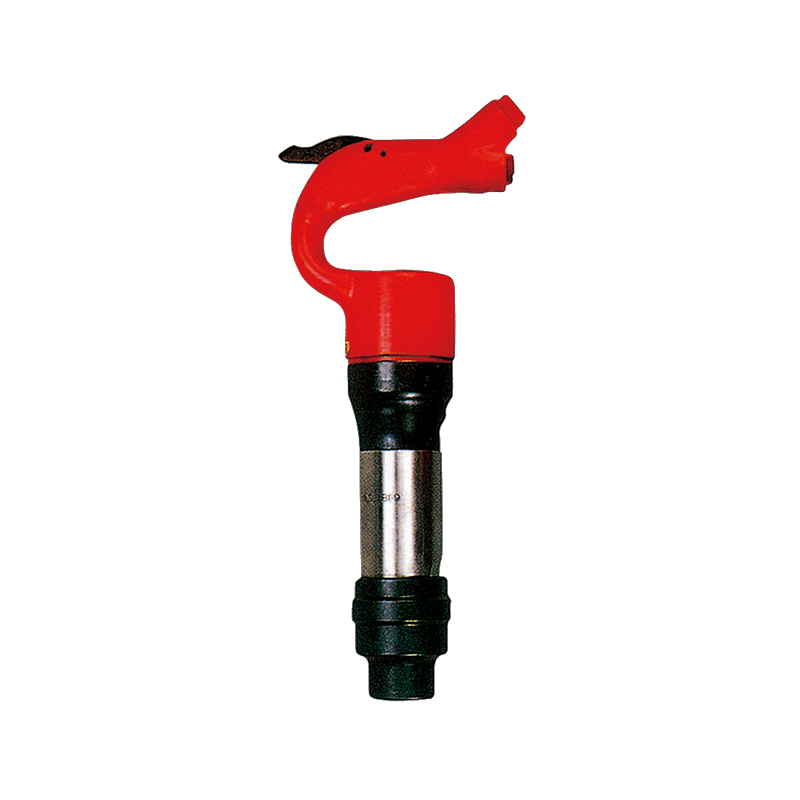

The Tamco/Toku THA-1B is a 1-cylinder pneumatic chipping hammer 1 in. stroke at 2,500 BPM with a gooseneck handle and a choice of .580 in. hex or .680 in. round chuck bushing. The short, fast stroke suits scaling, weld dressing, surface preparation and detail chiseling where control matters more than blow energy, making it one of the lighter-hitting pneumatic chipping hammers Crowder Supply stocks.

Toku builds the THA series with a saw-tooth handle-to-cylinder joint that locks up tighter than conventional pinned designs. The 1-1/8 in. piston draws 28 CFM at 90 PSI through a 3/8 in. NPT inlet sized for a 1/2 in. airline a 1/2 in. hose whip with line oiler feeds and lubricates it in one assembly. For guidance on stroke length and shank style, see the chipping hammer buyers guide; matching chisel steel is stocked in both shank sizes.

  • 1 in. stroke at 2,500 BPM fast, controlled blows for finish chiseling and scaling
  • Chuck bushing options: .580 in. hex or .680 in. round
  • Saw-tooth handle-to-cylinder joint gives a more secure, positive fit than conventional pinned designs
  • 1-1/8 in. piston diameter; air consumption 28 CFM at 90 PSI through a 3/8 in. NPT inlet
  • 15 lb tool weight (14.8 lb); 15-9/32 in. overall length; runs on a 1/2 in. air hose
  • Applications: scaling, chiseling, weld dressing, surface preparation and detail demolition
  • Stocked by Crowder Supply in Denver with free UPS Ground shipping

Suggested Together

Tamco/Toku THA-1B Chipping Hammer - .580 Hex
CURRENT ITEM

Tamco/Toku THA-1B Chipping Hammer - .580 Hex

$679.00

6 ft long, 1/2 in Hose Whip Assembly with Line Oiler

6 ft long, 1/2 in Hose Whip Assembly with Line Oiler

$123.60$172.60

Contractors Air Hose with Crowsfoot fittings

Contractors Air Hose with Crowsfoot fittings

$75.00$185.00

Pneumatic Tool and Rock Drill Oil

Pneumatic Tool and Rock Drill Oil

$42.00$1,578.00

Chipping Hammer Retainer Springs

Chipping Hammer Retainer Springs

$2.00$60.00

Subtotal: $ 679

Accessories

Chipping Hammer Narrow Chisel

Chipping Hammer Narrow Chisel

$17.00$130.00

Chipping Hammer Moil Point

Chipping Hammer Moil Point

$17.00$104.00

Chipping Hammer Ground Rod Driver

Chipping Hammer Ground Rod Driver

$111.00

Chipping Hammer Clay Spade

Chipping Hammer Clay Spade

$133.00

Chipping Hammer Bushing Tool

Chipping Hammer Bushing Tool

$80.00$201.00

Chipping Hammer Blank Tool

Chipping Hammer Blank Tool

$15.00$17.00

Chipping Hammer 3 in Chisel

Chipping Hammer 3 in Chisel

$53.00QUOTE

Chipping Hammer 2 in Chisel

Chipping Hammer 2 in Chisel

$22.00$155.00

Chipping Hammer Non Sparking Chisel

Chipping Hammer Non Sparking Chisel

$116.50$121.70

Chipping Hammer 2-1/2 in Chisel

Chipping Hammer 2-1/2 in Chisel

$45.00$54.00

Chipping Hammer 1-1/2 in Chisel

Chipping Hammer 1-1/2 in Chisel

$20.00$29.00

Chipping Hammer Retainer Springs

Chipping Hammer Retainer Springs

$2.00$60.00

Pneumatic Tool and Rock Drill Oil

Pneumatic Tool and Rock Drill Oil

$42.00$1,578.00

Eco Friendly Pneumatic Tool and Rock Drill Oil

Eco Friendly Pneumatic Tool and Rock Drill Oil

$67.00$270.00

6 ft long, 1/2 in Hose Whip Assembly with Line Oiler

6 ft long, 1/2 in Hose Whip Assembly with Line Oiler

$123.60$172.60

Contractors Air Hose with Crowsfoot fittings

Contractors Air Hose with Crowsfoot fittings

$75.00$185.00

Specifications

SKU
Product Name
Vendor SKU
Chuck Size (in)
Retainer Type
Power Source
Cylinder Stroke (in)
Min Air consumption (cfm)
Tool Weight (lb)
Min Air Consumption (cfm)
Impact Rate (bpm)
Length (in)
Air Inlet (in)
Piston Diameter (in)
Hose Size (in)
Max Air Consumption (cfm)
Shank Type
TK-THA-1B-H
Tamco/Toku THA-1B Pneumatic Chipping Hammer - .580 Hex
THA1H
.580 Hex
Standard Oval Collar Retainer &  Spring
Pneumatic
1
28
14.8
28
2500
16
3/8 Female NPT
1-1/8
1/2
28
Hex Shank/Oval Collar
TK-THA-1B-R
Tamco/Toku THA-1B Pneumatic Chipping Hammer - .680" Round
THA1R
.680 Round
Standard Oval Collar Retainer &  Spring
Pneumatic
1
28
14.8
28
2500
16
3/8 Female NPT
1-1/8
1/2
28
Round Shank/Oval Collar
