Tamco/Toku THR-4 Chipping Hammer – Screw-On Retainer

Visit Toku store

Tamco/Toku THR-4 Chipping Hammer – Screw-On Retainer

QUOTE

Screw-on retainer gooseneck chipping hammer – 1,600-1,800 BPM, 22 lb, .580 hex or .680 round shank.

Add to Cart
Tamco/Toku THR-4 Chipping Hammer - Screw-On Retainer
QUOTE

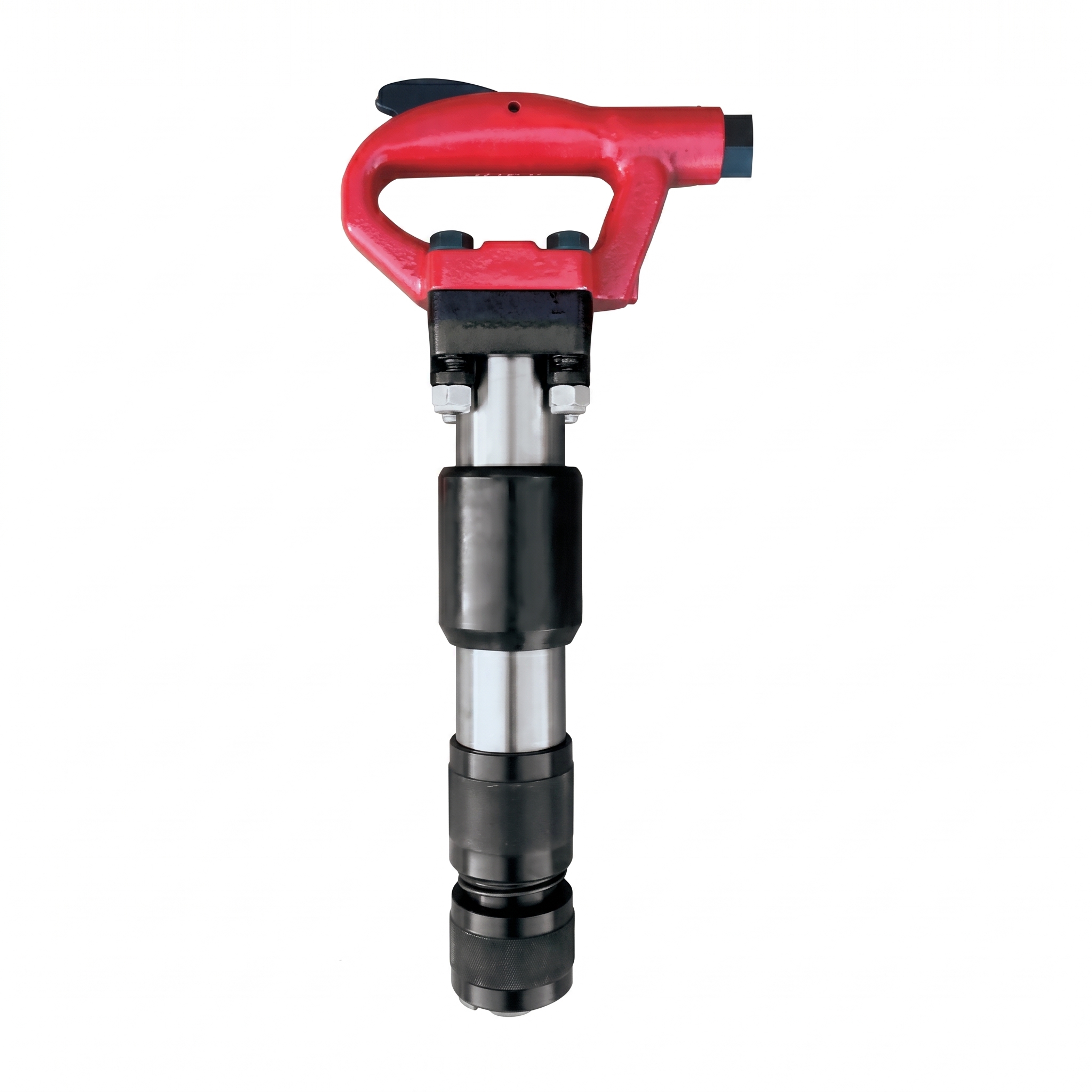

The Tamco/Toku THR-4 is the screw-on retainer version of the THA gooseneck chipping hammer line – the threaded retainer holds the chisel captive for overhead and production chipping where a lost oval retainer means downtime. Four-inch stroke class delivering 1,600-1,800 blows per minute at 90 PSI from a 22 lb, 18-1/2 in. tool drawing 33.25 CFM. Saw-tooth handle joint, heat-treated alloy cylinder, and your choice of .580 hex or .680 round shank. Made by TOKU Pneumatic Tool Mfg. (Japan, since 1937), distributed by TAMCO Tools.

  • Screw-on chisel retainer – no lost retainers overhead
  • 1,600-1,800 BPM at 90 PSI
  • 22 lb, 18-1/2 in. long, 33.25 CFM
  • .580 hex or .680 round shank
  • Gooseneck saw-tooth handle
  • Heat-treated alloy cylinder

Accessories

Chipping Hammer Narrow Chisel

Chipping Hammer Narrow Chisel

$17.00 – $130.00

Chipping Hammer Moil Point

Chipping Hammer Moil Point

$17.00 – $104.00

Chipping Hammer Ground Rod Driver

Chipping Hammer Ground Rod Driver

$111.00

Chipping Hammer Clay Spade

Chipping Hammer Clay Spade

$133.00

Chipping Hammer Bushing Tool

Chipping Hammer Bushing Tool

$80.00 – $201.00

Chipping Hammer Blank Tool

Chipping Hammer Blank Tool

$15.00 – $17.00

Chipping Hammer 3 in Chisel

Chipping Hammer 3 in Chisel

$53.00 – QUOTE

Chipping Hammer 2 in Chisel

Chipping Hammer 2 in Chisel

$22.00 – $155.00

Chipping Hammer Non Sparking Chisel

Chipping Hammer Non Sparking Chisel

$116.50 – $121.70

Chipping Hammer 2-1/2 in Chisel

Chipping Hammer 2-1/2 in Chisel

$45.00 – $54.00

Chipping Hammer 1-1/2 in Chisel

Chipping Hammer 1-1/2 in Chisel

$20.00 – $29.00

Eco Friendly Pneumatic Tool and Rock Drill Oil

Eco Friendly Pneumatic Tool and Rock Drill Oil

$67.00 – $270.00

Specifications

SKU
Product Name
Chuck Size (in)
Retainer Type
Power Source
Cylinder Stroke (in)
Min Air consumption (cfm)
Tool Weight (lb)
Air Consumption
Blows per Minute
Length
Max Air Pressure
TK-THR4-H
THR-4 with .580 hex shank and screw-on retainer.
.580 Hex
Screw-On Retainer
Pneumatic
4
33
22
33.25 CFM at 90 PSI
1,600-1,800
18-1/2 in
90 PSI
TK-THR4-R
THR-4 with .680 round shank and screw-on retainer.
.680 Round
Screw-On Retainer
Pneumatic
4
33
22
33.25 CFM at 90 PSI
1,600-1,800
18-1/2 in
90 PSI
